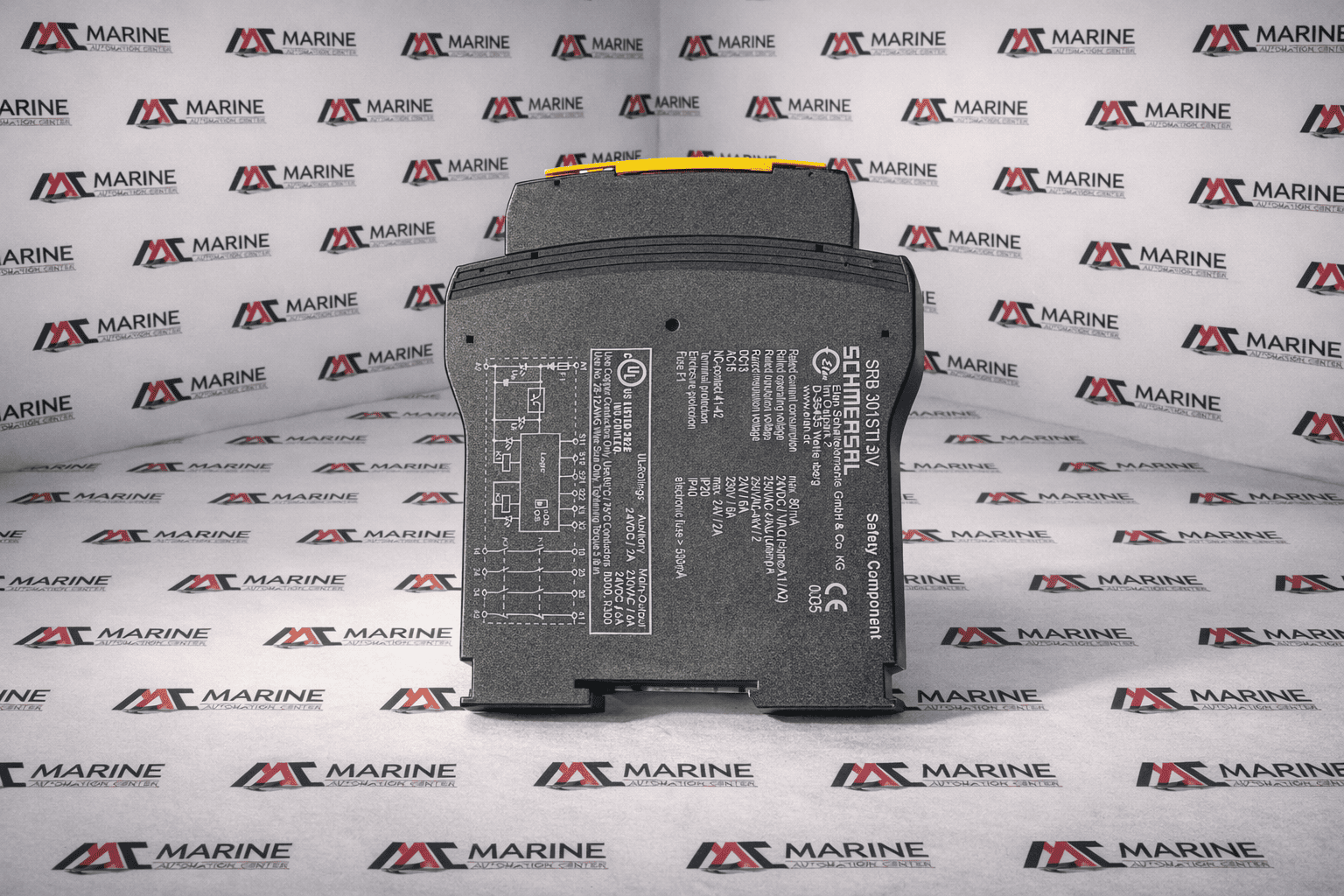

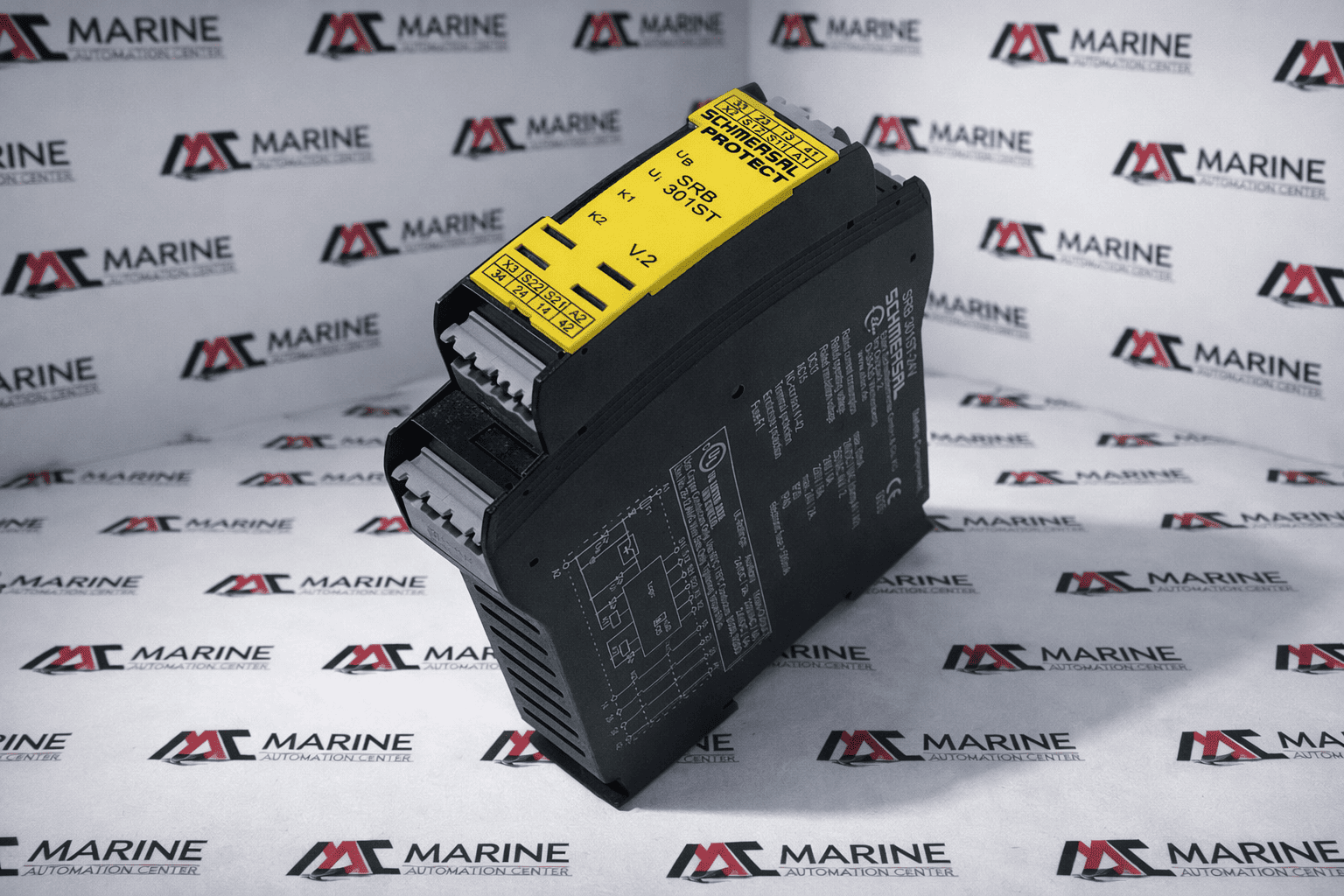

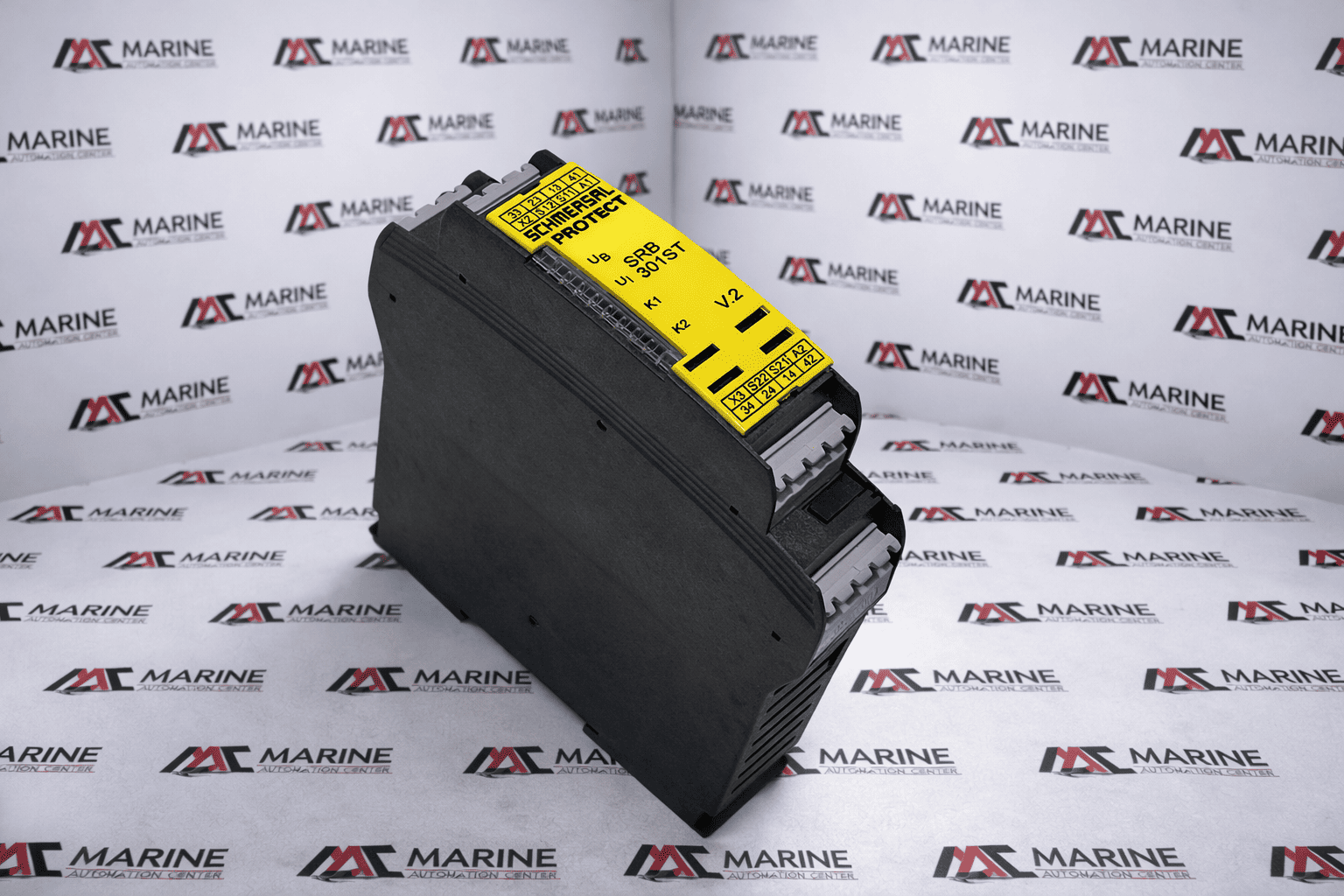

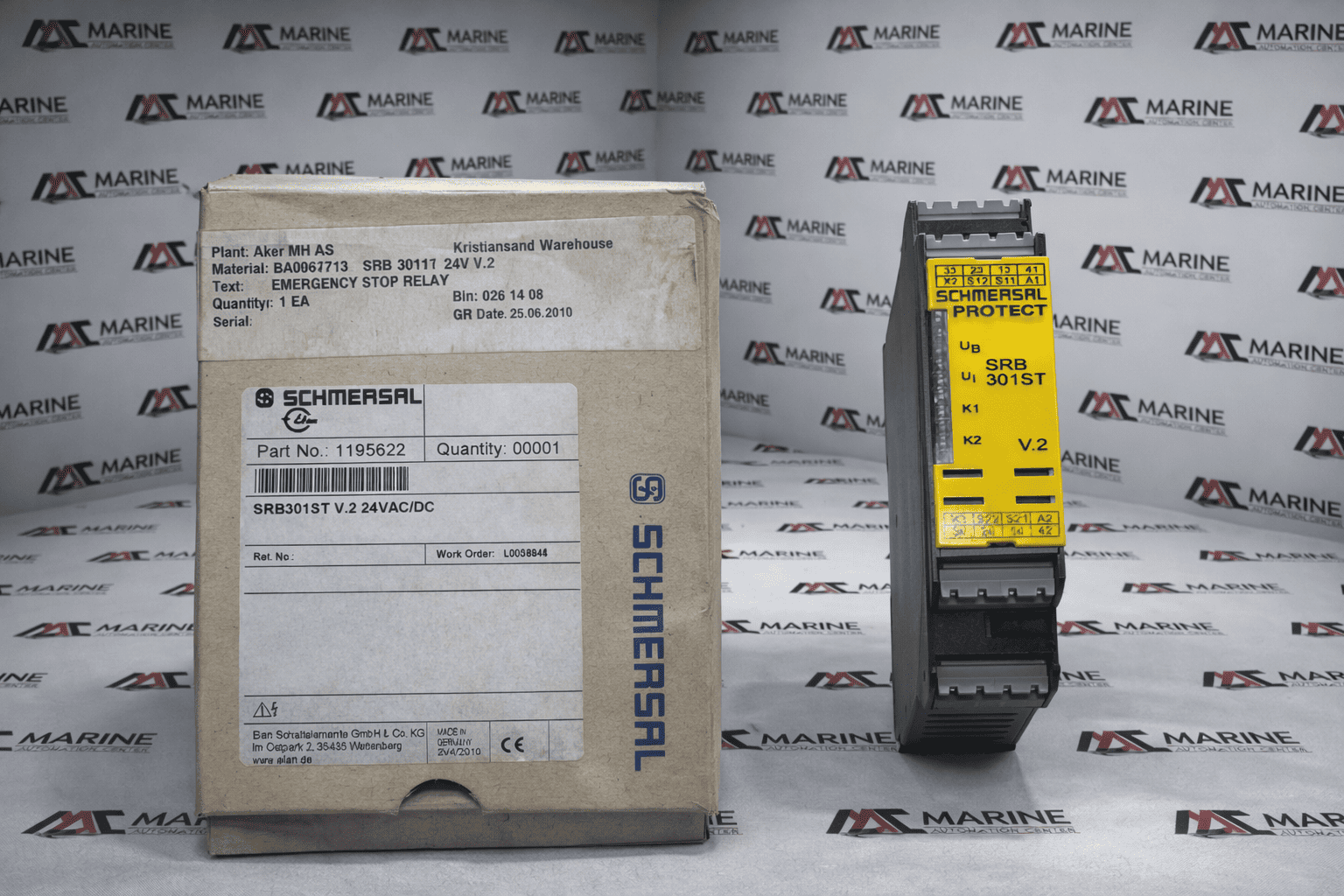

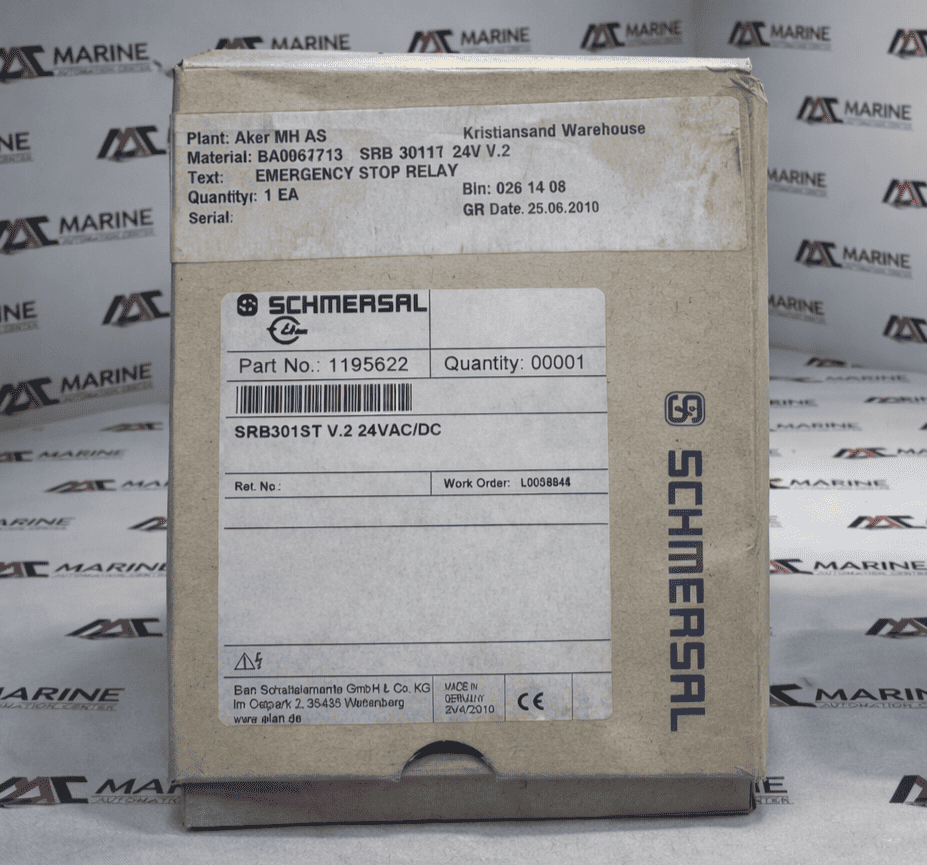

Schmersal Srb301st Safety Relay 1195622.
Explore the Schmersal SRB301ST-24V Safety Relay (1195622), designed for enhanced safety and reliability in industrial automation systems. Ensure optimal protection with this high-quality, durable safety relay.
BRAND
SCHMERSAL
TYPE
Safety Relay
PART NO.
1195622.
MODEL
Schmersal Srb301st Safety Relay 1195622
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SCHMERSAL |
| TYPE | Safety Relay |
| PART NO. | 1195622. |
| MODEL | Schmersal Srb301st Safety Relay 1195622 |
| Work Order | L0058848 |
| Usage Type | Safety Component |
| Plant | Aker Mh As |
| Material | Ba0067213 |
| Bin | 0261408 |

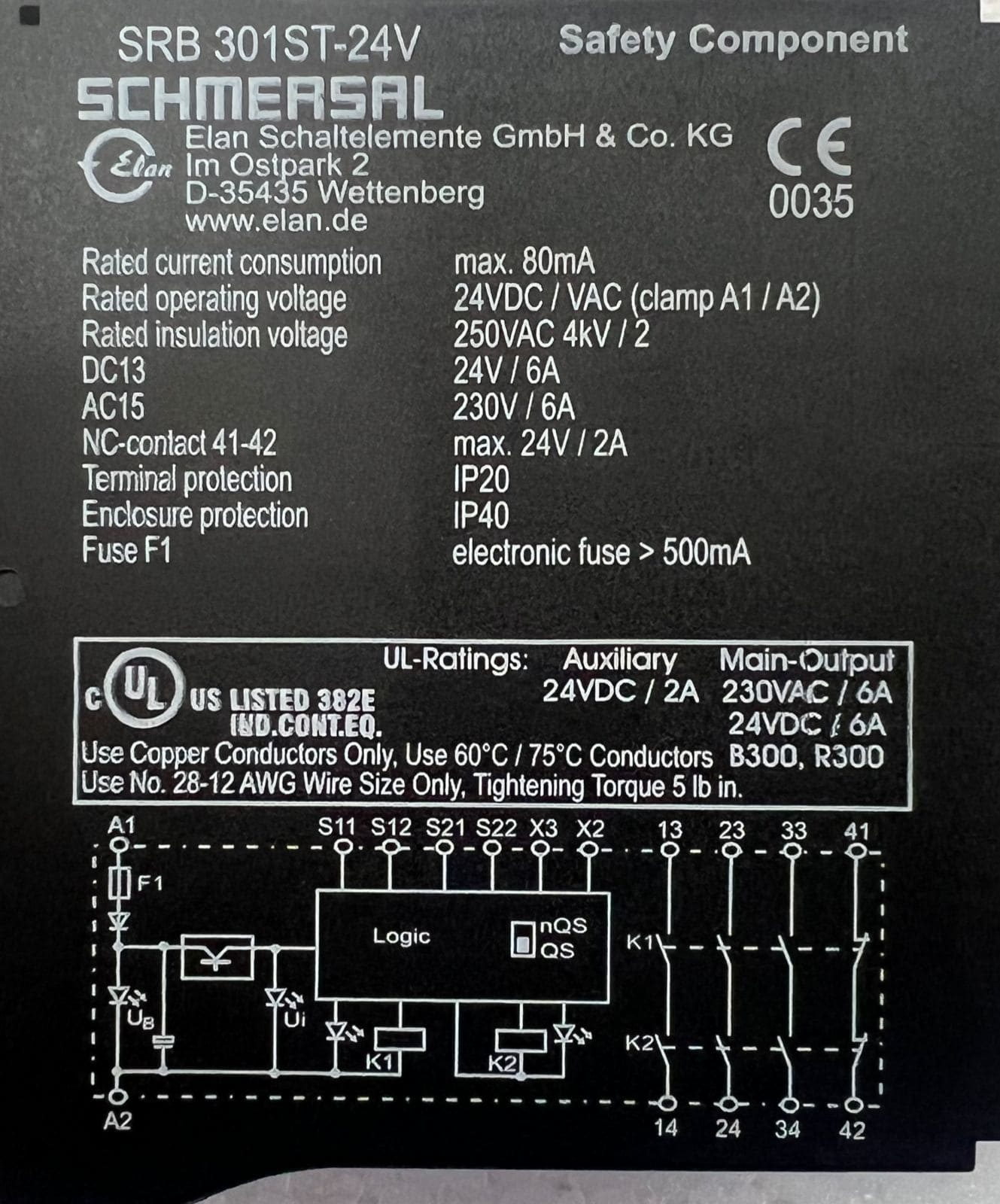

| Rated Current Consumption | Max. 80ma |
| Rated Operating Voltage | 24vdc/ Vac (Clamp A1/a2) |
| Rated Insulation Voltage | 250vac 4kv/ 2 |
| Dc13 | 24v/6a |
| Ac15 | 230v/ 6a |
| Nc-contact 41-42 | Max. 24v/2a |
| Terminal Protection | Ip20 |
| Enclosure Protection | Ip40 |
| Fuse F1 | Electronic Fuse>500ma |
| Ul-rating | Auxiliary 24vdc/2a |
| Main Output | 230vac/6a |
| : | 24vdc/6a |
| : | N300, R300 |
| Made In | Germany |
| Reference No | 592 |
