Schmersal SRB 301MC Safety Monitoring Module
Buy Schmersal SRB 301MC Safety Monitoring Module (24V AC/DC) with low power consumption, IP20/IP40 protection, and reliable safety control. Ideal for industrial automation with high-performance output ratings.
BRAND
Schmersal
TYPE
Safety Monitoring Module
PART NO.
Schmersal Srb 301mc Safety Monitoring Module
MODEL
SRB 301MC
Full Technical Specifications ▶

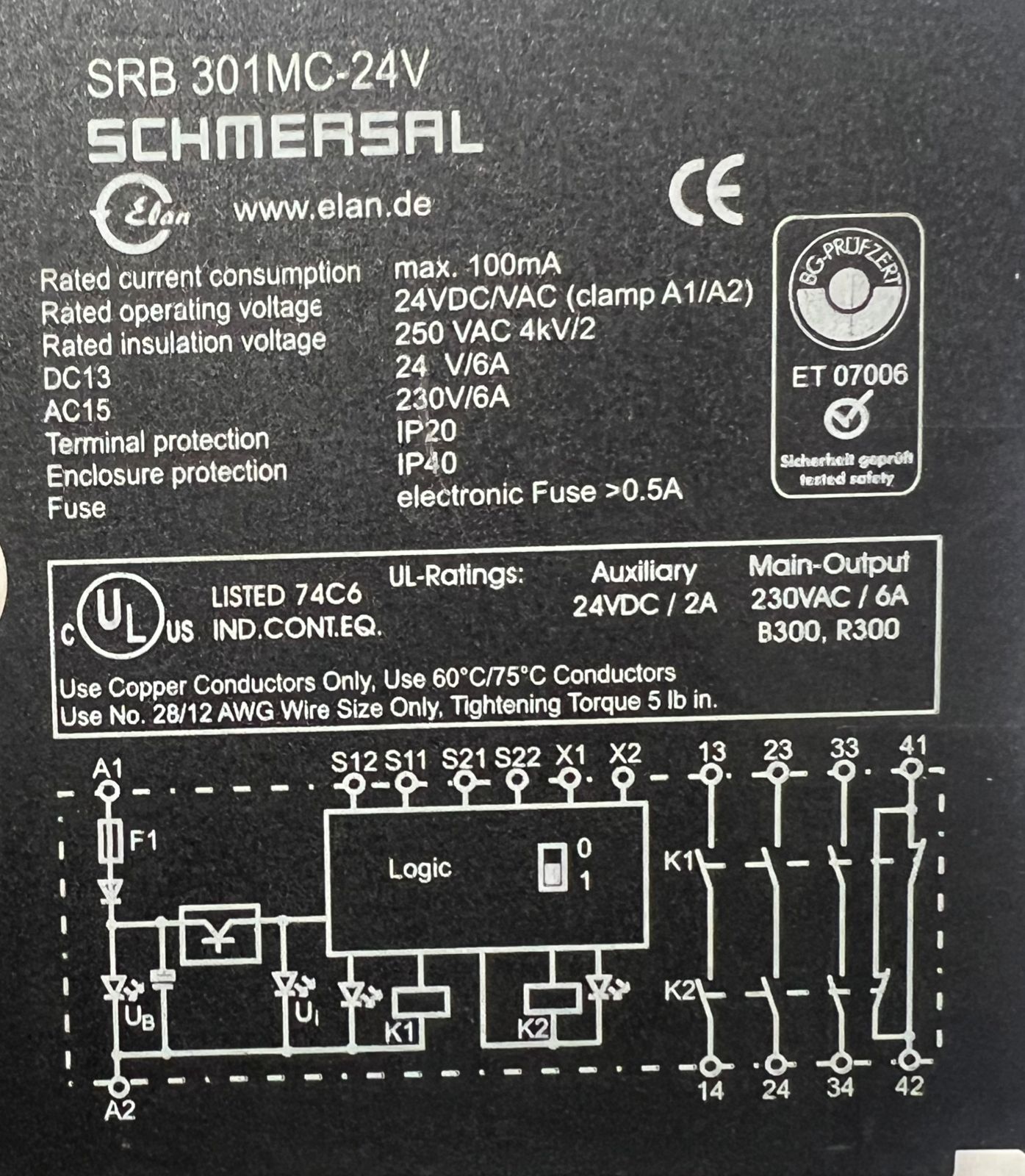

| Parameter | Value / Description |
|---|---|
| BRAND | Schmersal |
| TYPE | Safety Monitoring Module |
| PART NO. | Schmersal Srb 301mc Safety Monitoring Module |
| MODEL | SRB 301MC |
| Rated Current Consumption | max. 100ma |
| Rated Operating Voltage | 24vdc/vac |
| Rated Insulation Voltage | 250vac 4kv/2 |
| Dc13 | 24v/6a |
| Ac15 | 230v/6a |
| Terminal Protection | IP20 |
| Enclosure Protection | IP40 |
| Fuse | Electronic Fuse >0.5a |
| UL-Ratings | Auxiliary 24vdc/2a |
| Main-Output | 230vac/6a B300,R300 |
| : | 886297 |
| Reference No | 773 |
