Schmersal Project SRB 301ST Safety Relay
Schmersal SRB 301ST safety relay (24V DC/AC) with low 80mA consumption, 6A switching capacity , and high insulation (250VAC, 4kV). Reliable industrial safety solution.
BRAND
Schmersal
TYPE
Safety Relay
PART NO.
Schmersal Project SRB 301ST Safety Relay
MODEL
SRB 301ST-24V
Full Technical Specifications ▶

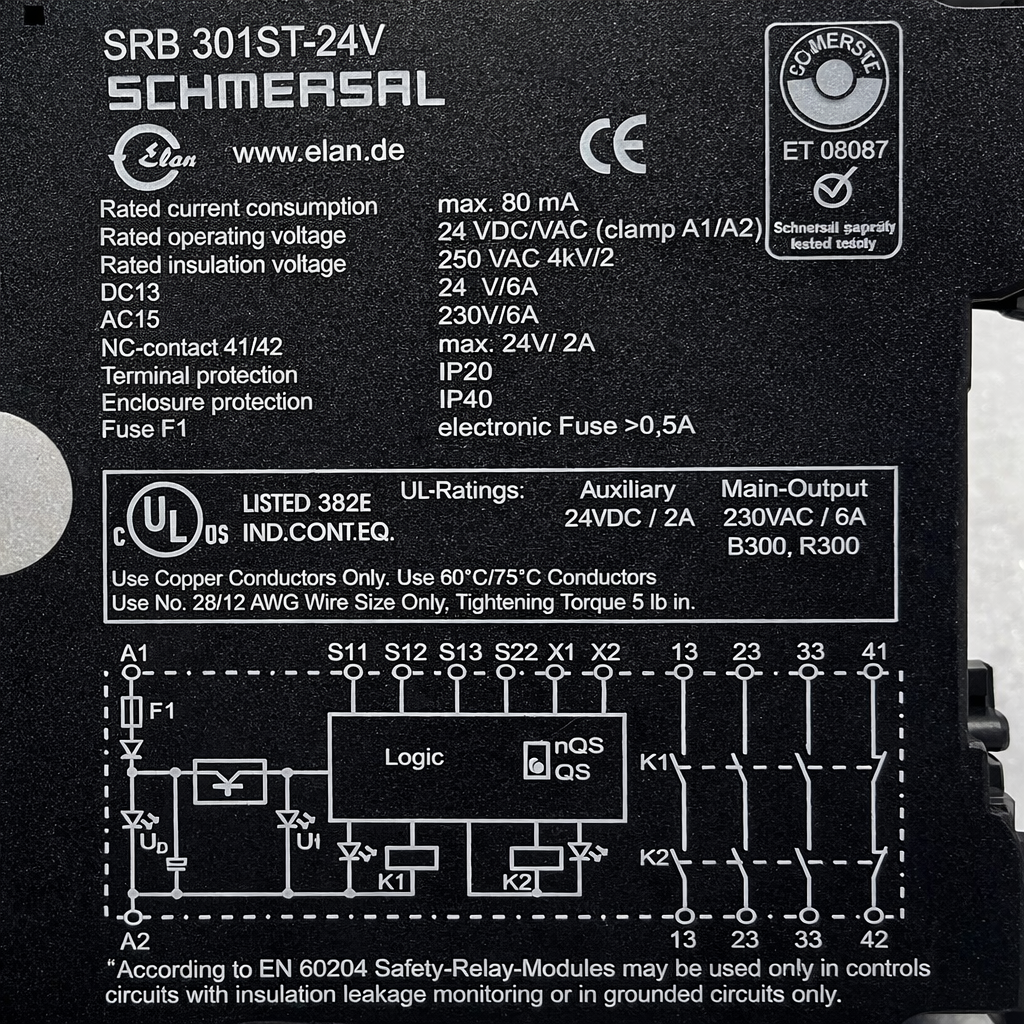

| Parameter | Value / Description |
|---|---|
| BRAND | Schmersal |
| TYPE | Safety Relay |
| PART NO. | Schmersal Project SRB 301ST Safety Relay |
| MODEL | SRB 301ST-24V |
| Rated Current Consumption | Max. 80mA |
| Rated Operating Voltage | 24 vdc/vac |
| Rated Insulation Voltage | 250vac 4kv/2 |
| DC13 | 24v/6a |
| AC15 | 230v/6a |
| Nc-Contact 41/42 | max. 24v/2a |
| Terminal Protection | Ip20 |
| Enclosure Protection | Ip40 |
| Fuse F1 | Electronic fuse>0.5a |
| Ul-Rating | : |
| Auxiliary | 24VDC/2A |
| Main Output | 230VAC/6A |
| : | B300 |
| : | R300 |
| Reference No | 800 |
