Scancon EXAG Rotary Encoder
The Scancon Explosion-Proof Absolute Multiturn Rotary Encoder (Part Number: EXAG-A-AL-10-20-66-A-FF) is a high-precision, ATEX-certified industrial positioning sensor manufactured in Denmark. Operating on a 10–30 VDC supply, this rugged EXAG Series encoder translates physical shaft angle tracking and revolution counts into digital binary data over a Profibus DP network interface, ensuring safe and reliable positioning telemetry within hazardous, explosive-prone zones.
BRAND
Scancon
TYPE
Explosion-Proof Absolute Rotary Encoder
PART NO.
EXAG-A-AL-10-20-66-A-FF
MODEL
EXAG Series
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Scancon |
| TYPE | Explosion-Proof Absolute Rotary Encoder |
| PART NO. | EXAG-A-AL-10-20-66-A-FF |
| MODEL | EXAG Series |
| Voltage Rating | 10–30 VDC (Max. 300mA) |
| Application | Rotational speed and position tracking in explosive hazardous marine, oil, gas, and petrochemical environments |

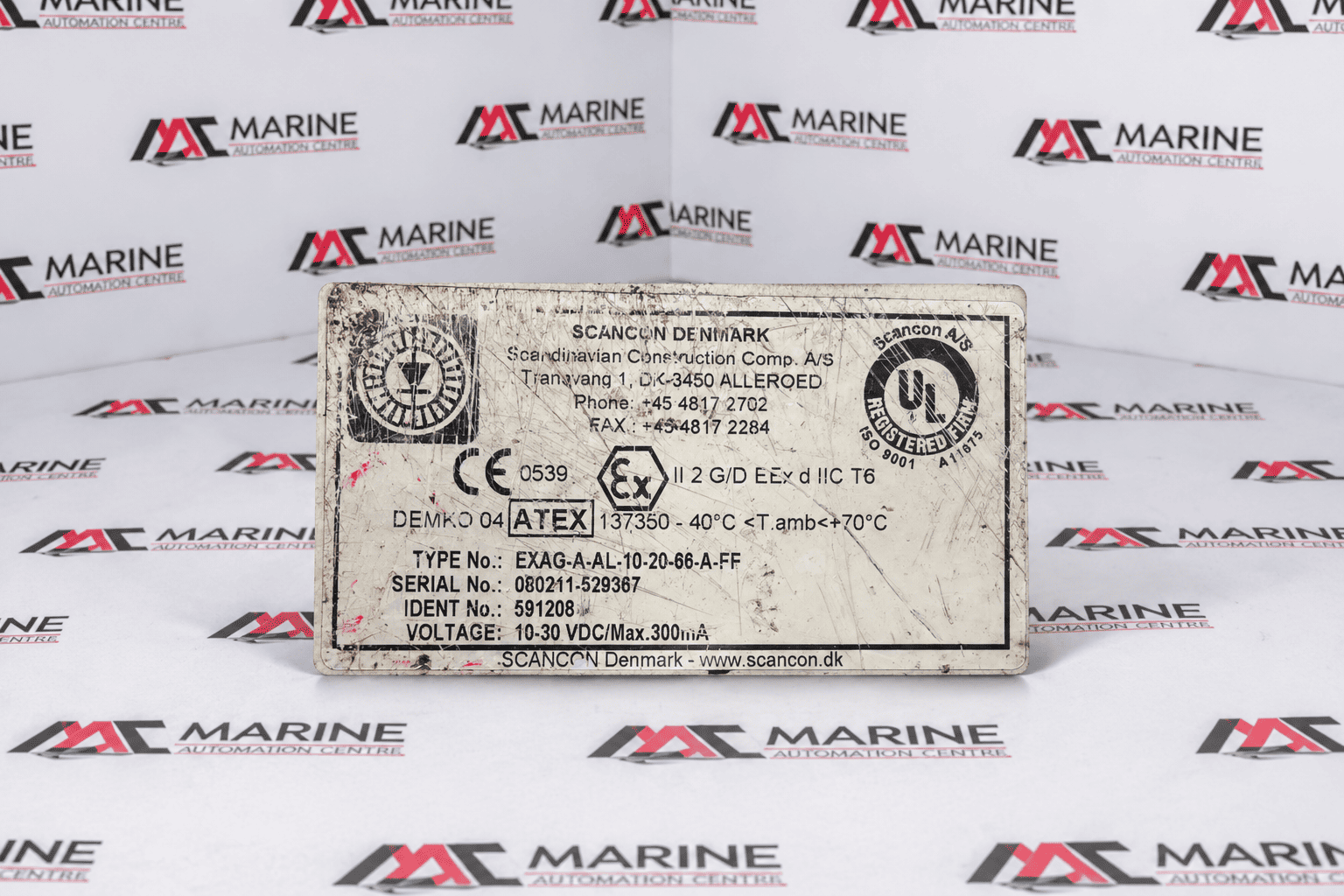

| IEC / ATEX | ATEX Certified: II 2 G/D EEx d IIC T6, DEMKO 04 ATEX 137350 |
| Product Name | Scancon Explosion-Proof Rotary Encoder |
| Steps per Revolution | 8192 steps |
| Number of Revolutions | 4096 revolutions (12-bit multiturn tracking) |
| Output Interface / Protocol | Profibus DP |
| Shaft Diameter | 10 mm |
| Enclosure Protection | IP66 rated dust-tight and heavy water jet protection |
| Ambient Operating Temperature | -40°C ≤ T.amb ≤ +70°C |
| Typical Applications | Winches, cranes, offshore drilling platforms, steering machinery, and heavy maritime processing decks |
| Made In | Denmark |
| REF NO | 135 |
