Salwico Conventional Manual Call Point IP55

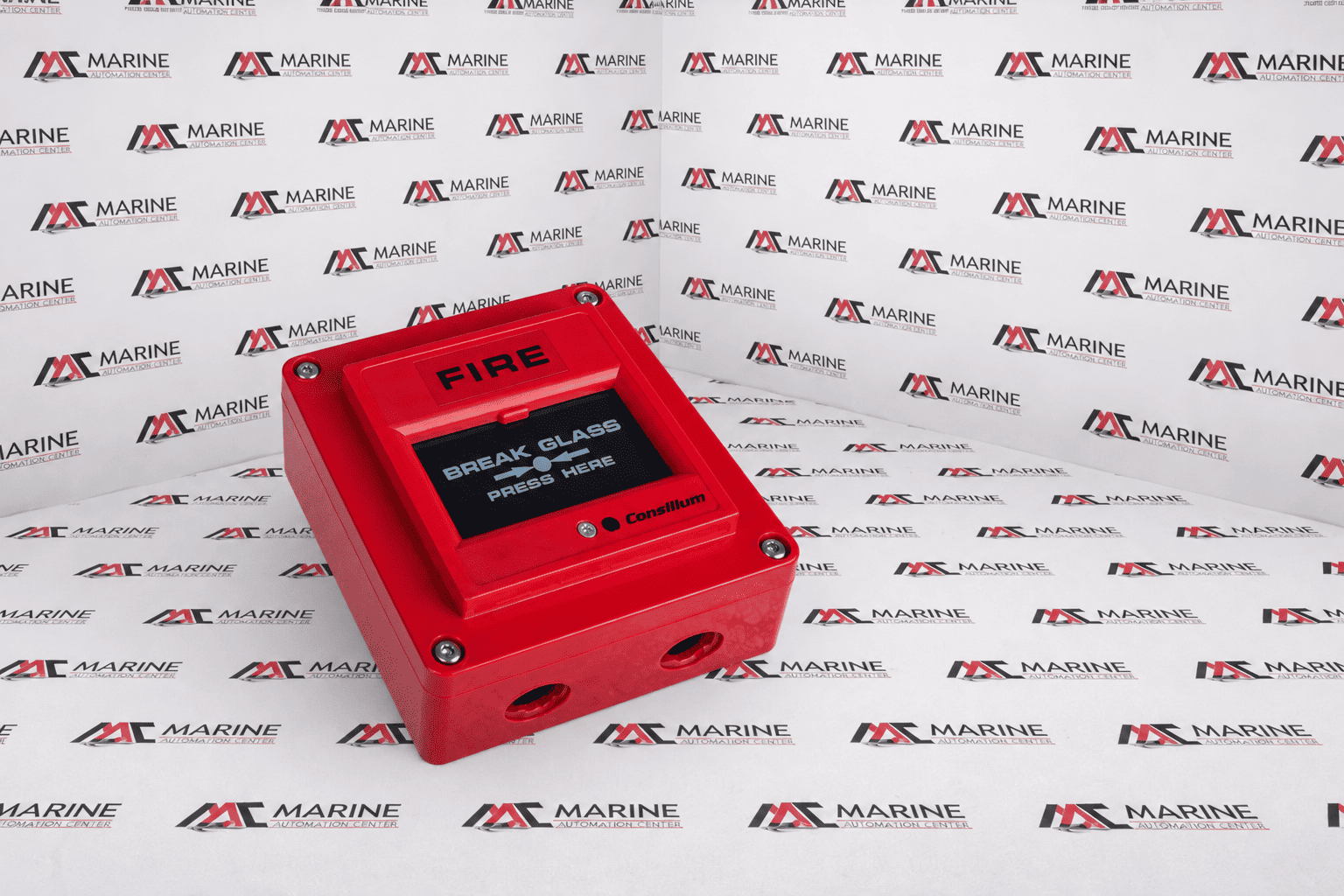

The Salwico NS-CP IP55 (Part Number: N1305) is a robust, conventional manual fire alarm call point designed by Consilium primarily for harsh marine, offshore, and industrial environments. Featuring a durable break-glass design with an IP55 weather-protected housing, it operates reliably in extreme temperatures ranging from -25°C to +70°C.
BRAND
CONSILIUM / Salwico
TYPE
Fire Alarm System
PART NO.
N1305 (GB)
MODEL
Salwico NS-CPIP55
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | CONSILIUM / Salwico |
| TYPE | Fire Alarm System |
| PART NO. | N1305 (GB) |
| MODEL | Salwico NS-CPIP55 |
| System Compatibility | Conventional loops, Salwico CS3000, CS4000, NSAC-1 |
| Type | Break Glass / Press Here |
| Ingress Protection | IP55 |
| Internal Resistor Value | 330 Ohms (2.5 Watt) |
| Operating Voltage | 18–32 VDC |
| Operating Temperature | -25°C to +70°C |
| Ambient Humidity | 0 to 95% RH (non-condensing) |
| Housing Material | PC / ABS |
| Color | Red (RAL 3001) |
| Weight | ~380 grams |
| Primary Function | Manual activation unit for fire alarm signaling |
| Made in | UK |
| Ref no. | 141 |
