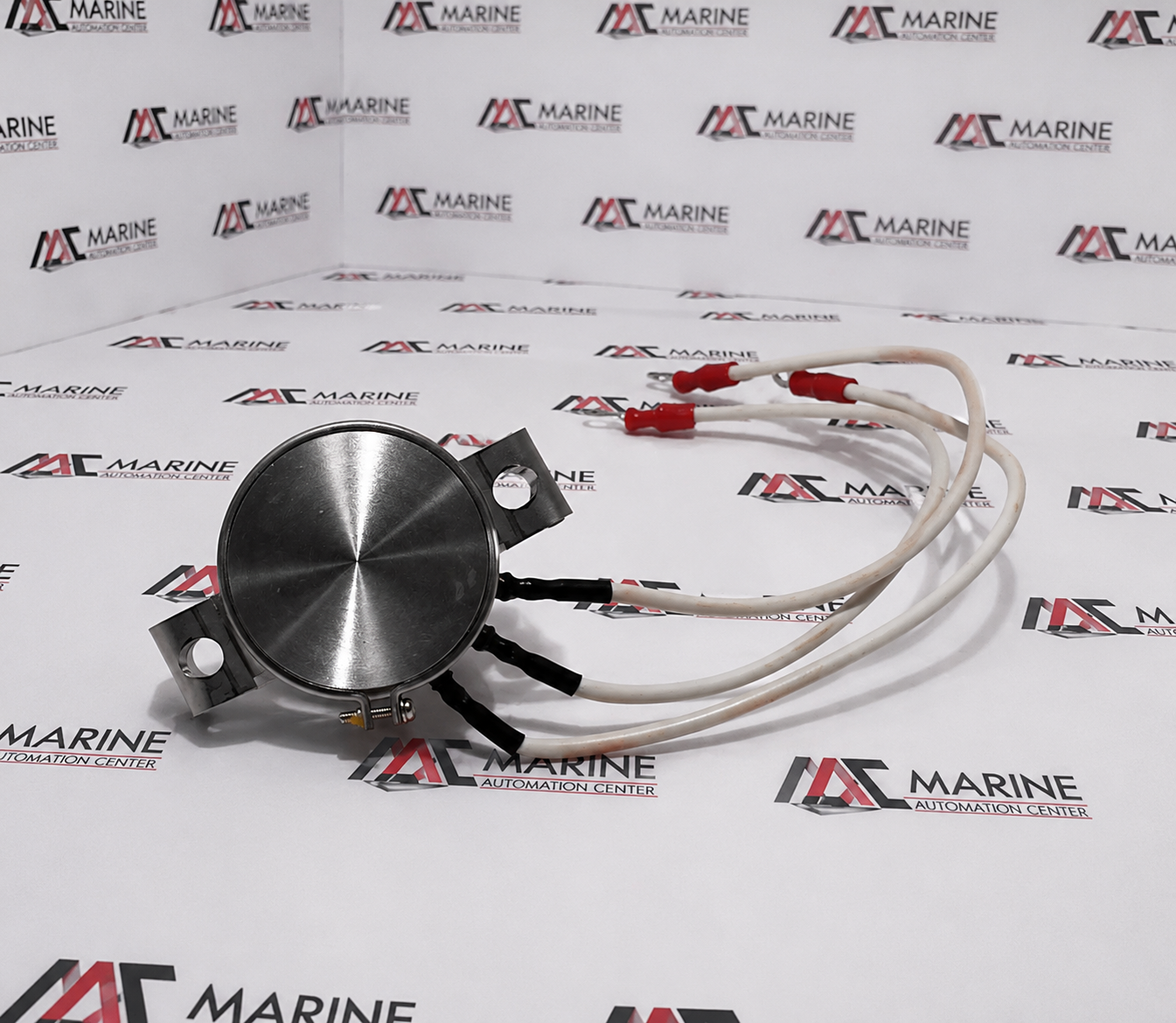

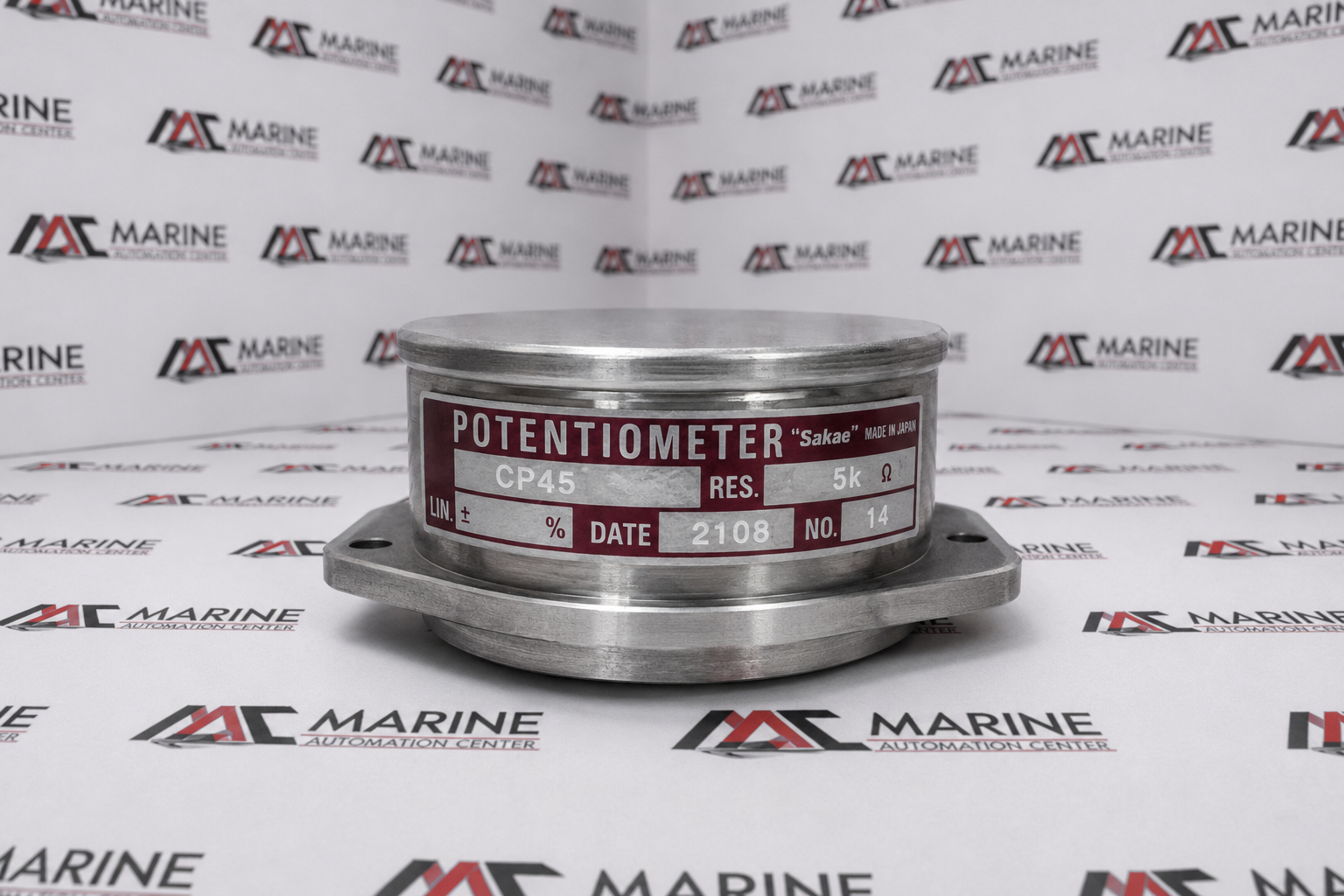

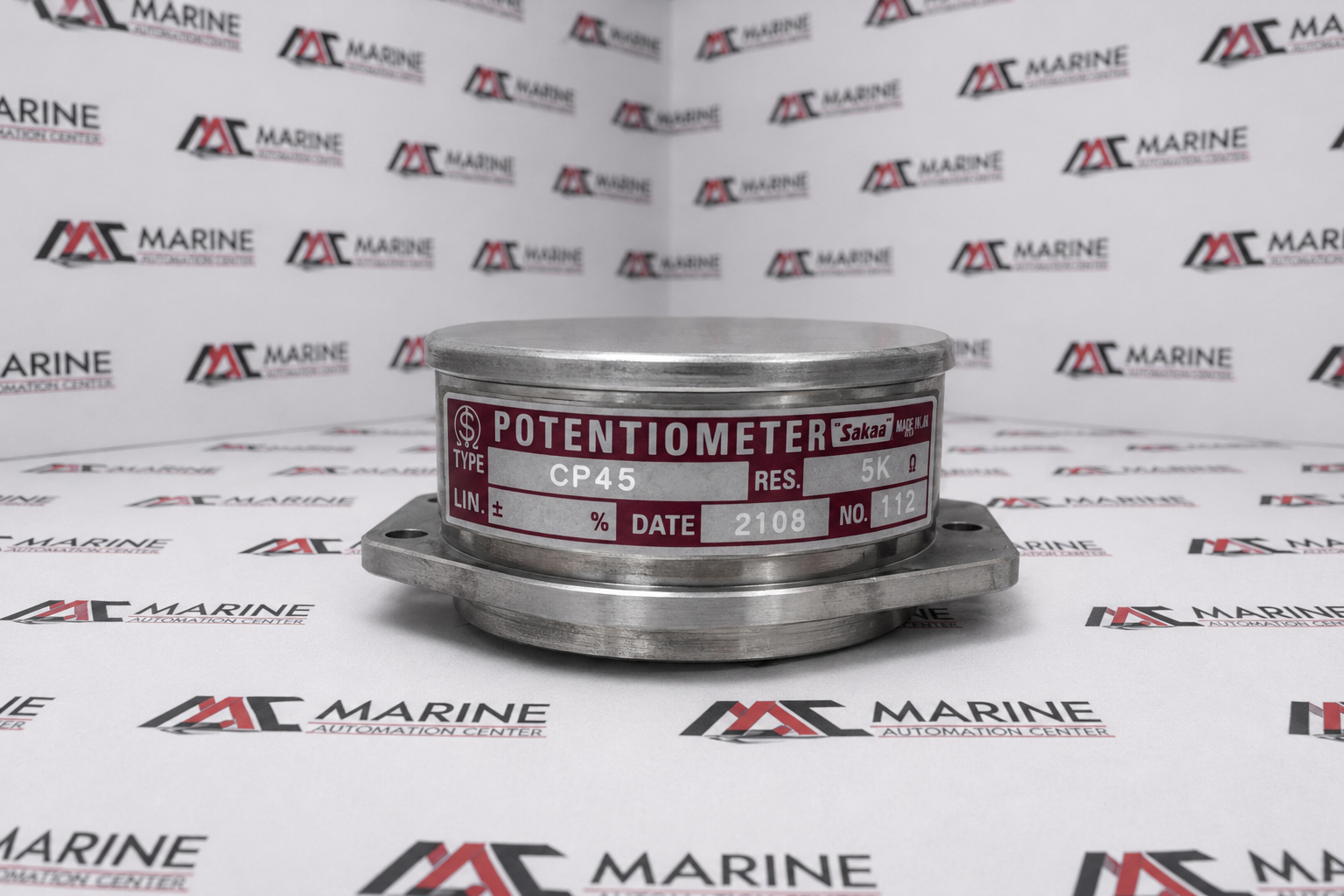

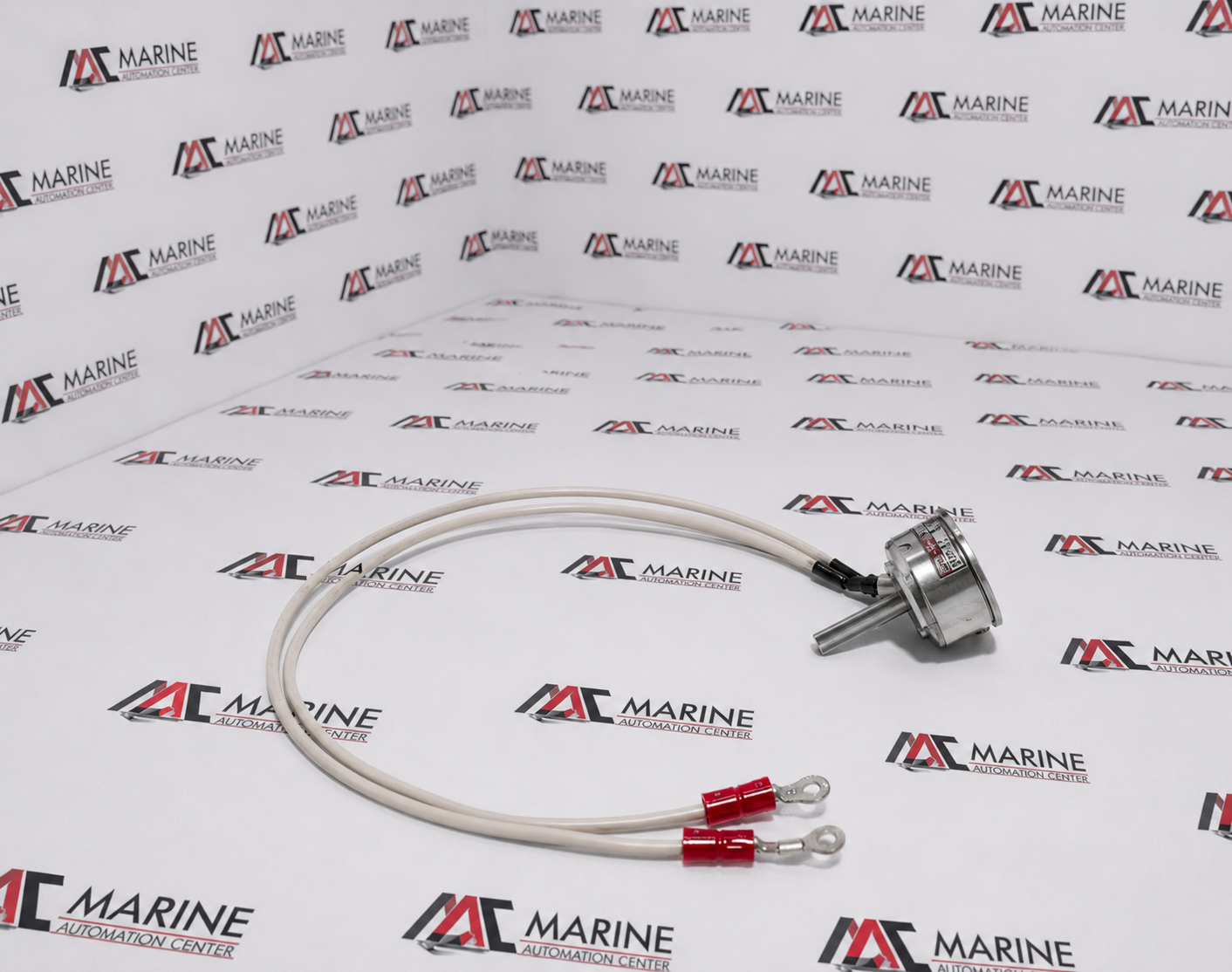

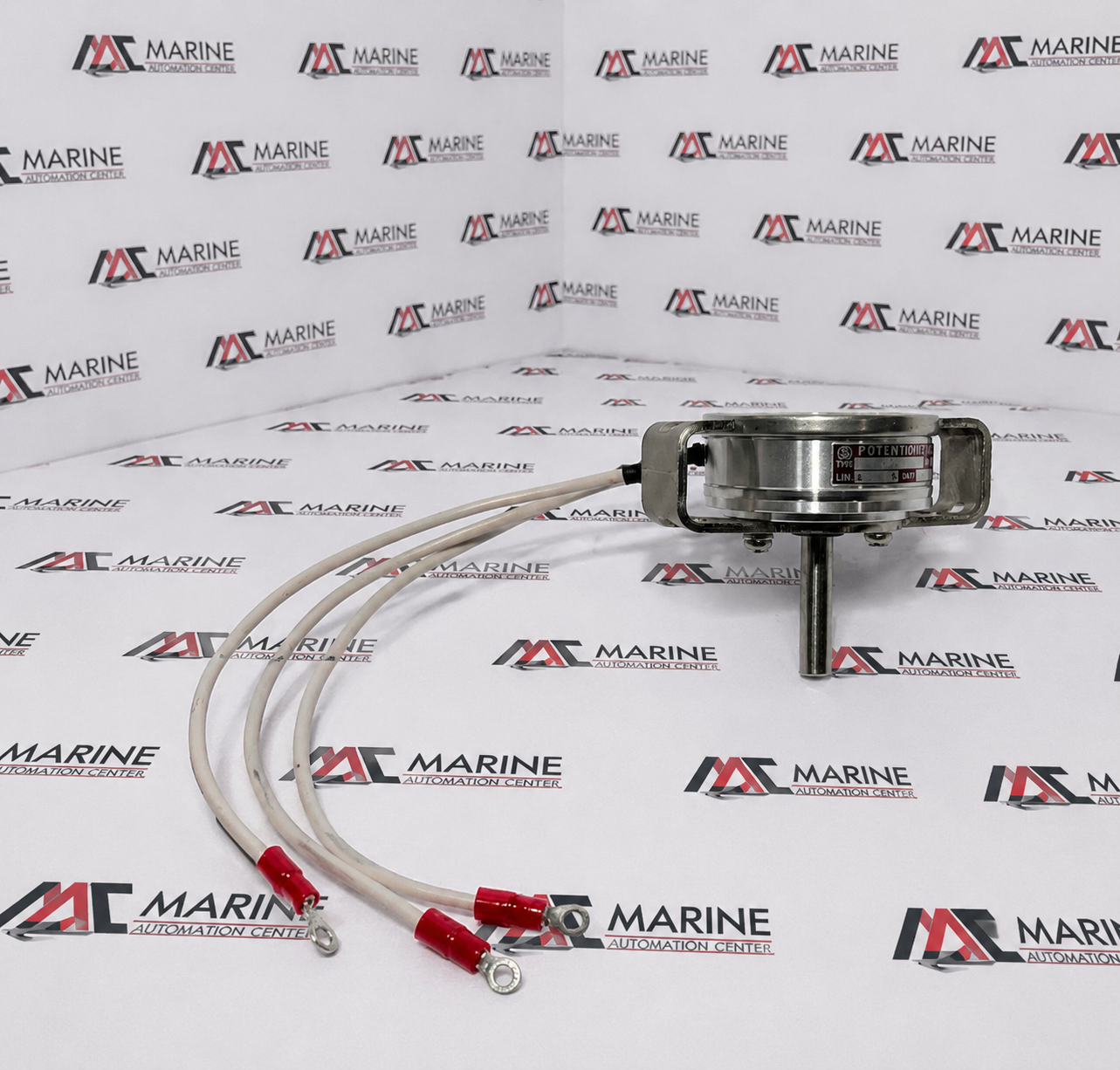

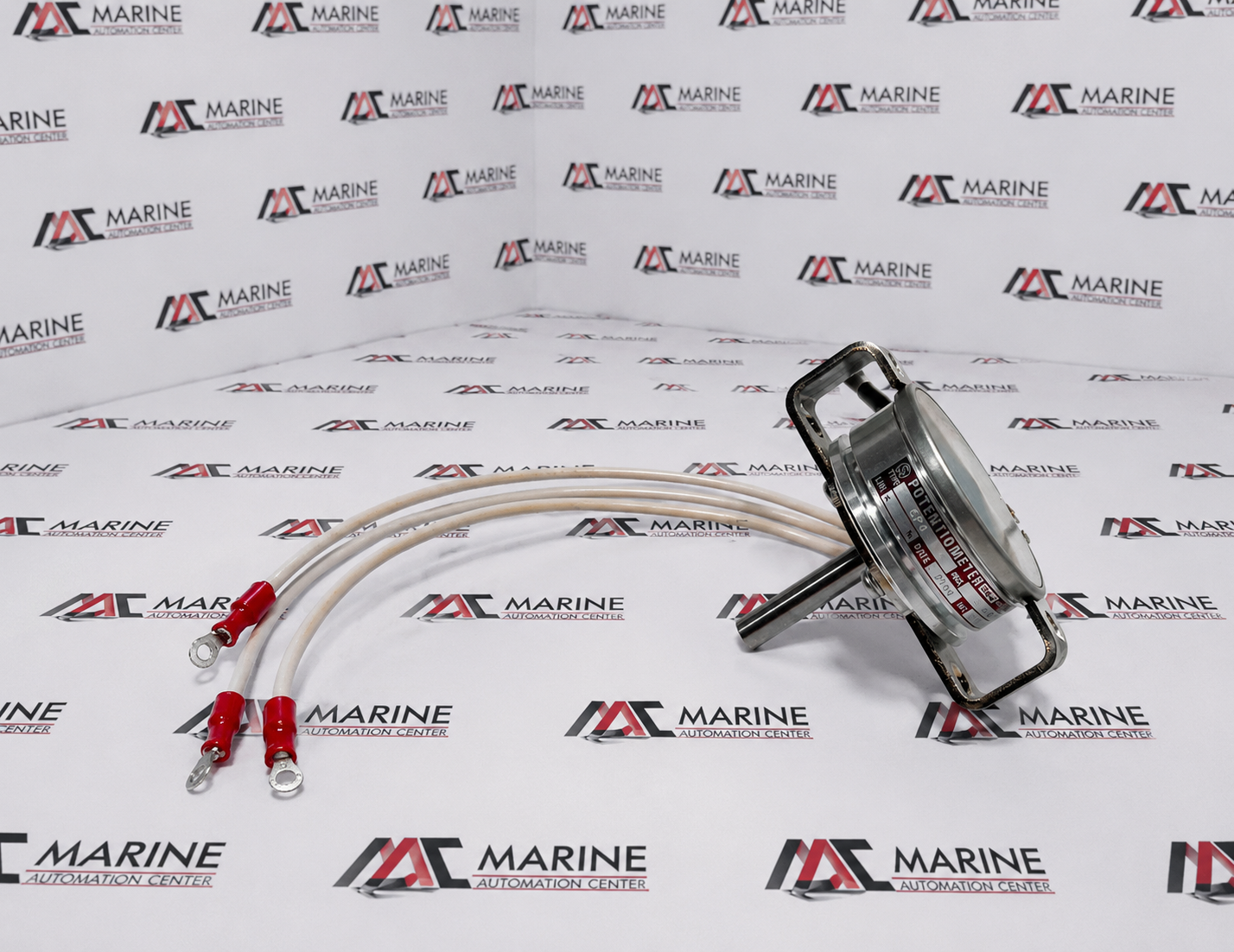

Sakae Precision Rotary Potentiometer
The Sakae CP45 Precision Rotary Potentiometer is a high-accuracy servo feedback potentiometer designed for precise position sensing and control in industrial automation and motion control systems. Manufactured by Sakae Tsushin Kogyo Co., Ltd., it delivers smooth, reliable, and repeatable resistance output for applications requiring accurate angular position feedback. Its durable construction and long operational life make the CP45 ideal for use in servo systems, machine tools, robotics, test equ
BRAND
Sakae
TYPE
Rotary Potentiometer
PART NO.
Precision Rotary Potentiometer CP45
MODEL
CP45
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Sakae |
| TYPE | Rotary Potentiometer |
| PART NO. | Precision Rotary Potentiometer CP45 |
| MODEL | CP45 |
| MANUFACTURER | Sakae Tsushin Kogyo Co., Ltd. |
| Resistance Value | 5 kΩ |
| Potentiometer Type | Single-Turn Precision Wirewound Potentiometer |
| Rated Power | 1 W |
| Electrical Rotation | 355° ± 3° |
| Resistance Tolerance | ±3% (Standard) / ±1% (Precision Grade) |
| Mechanical Rotation | 360° (Continuous Rotation) |
| Shaft Material | Stainless |
| Housing Material | Corrosion-resistant Aluminum Alloy |
| Terminal Type | 3-Wire Flying Leads with Ring Terminals |
| Application | Position feedback, valve position indication, servo control systems, marine automation, industrial automation, actuator feedback, motion control and process control systems. |
| Made In | Japan |
| REF NO | 1286 |
