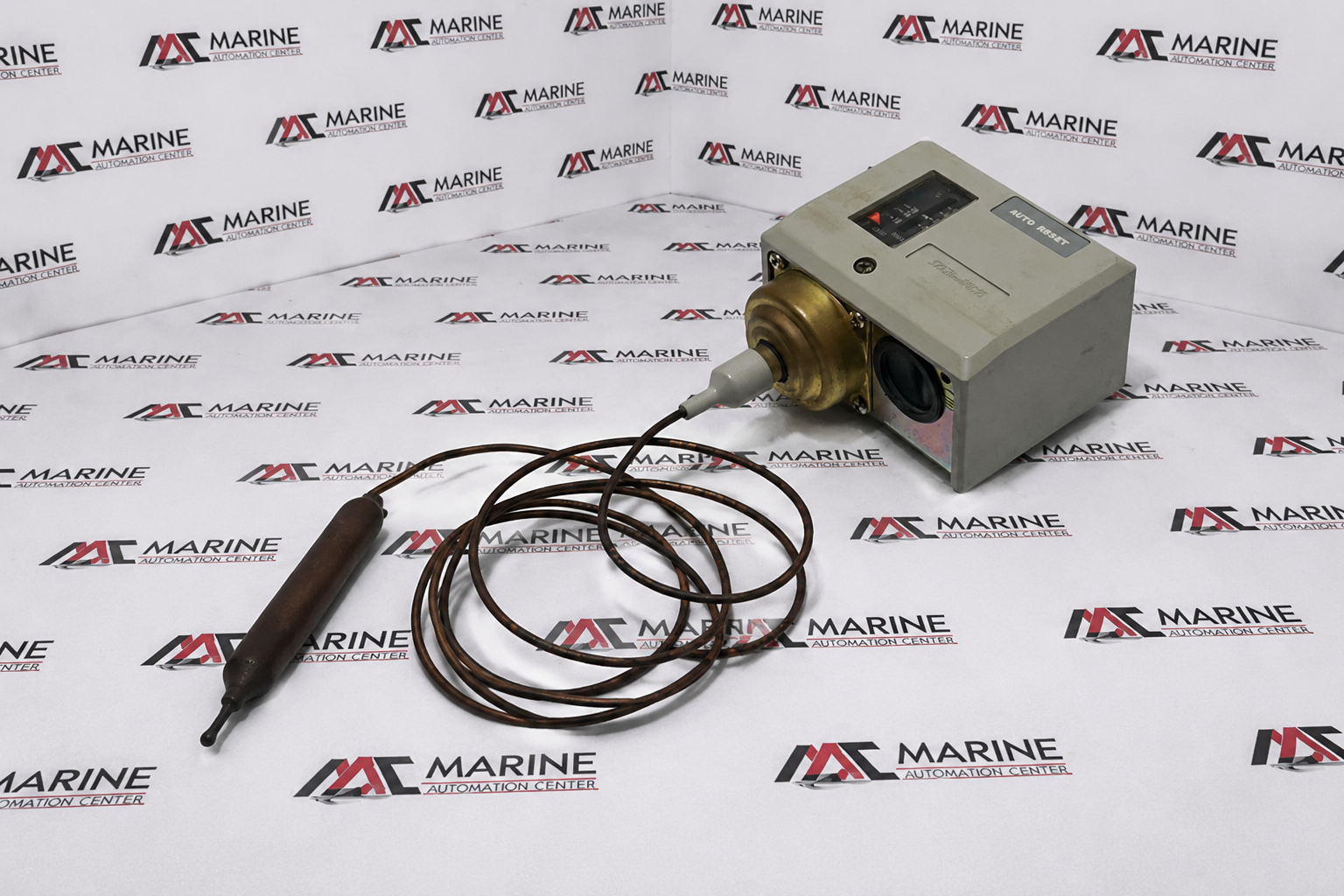

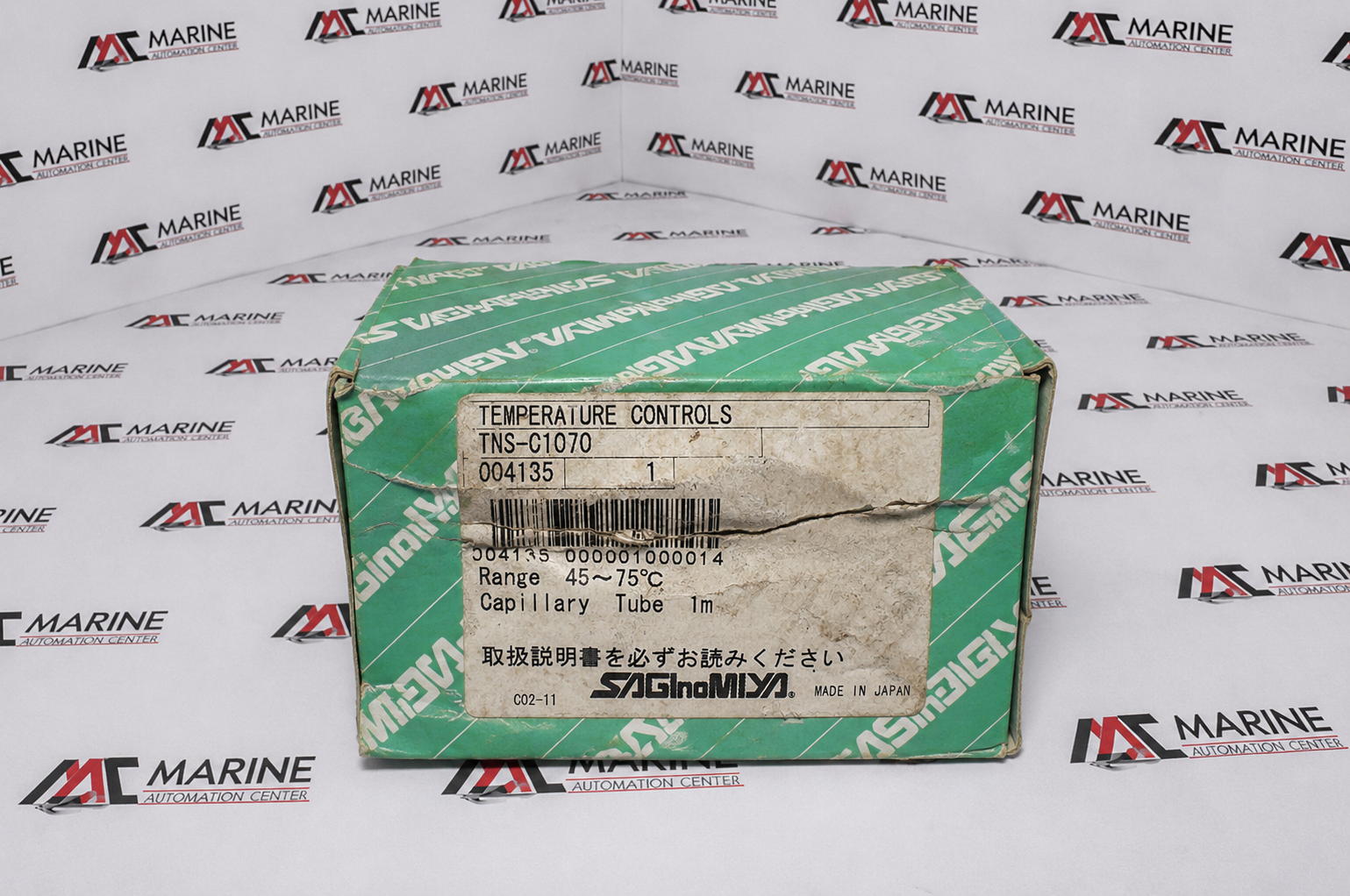

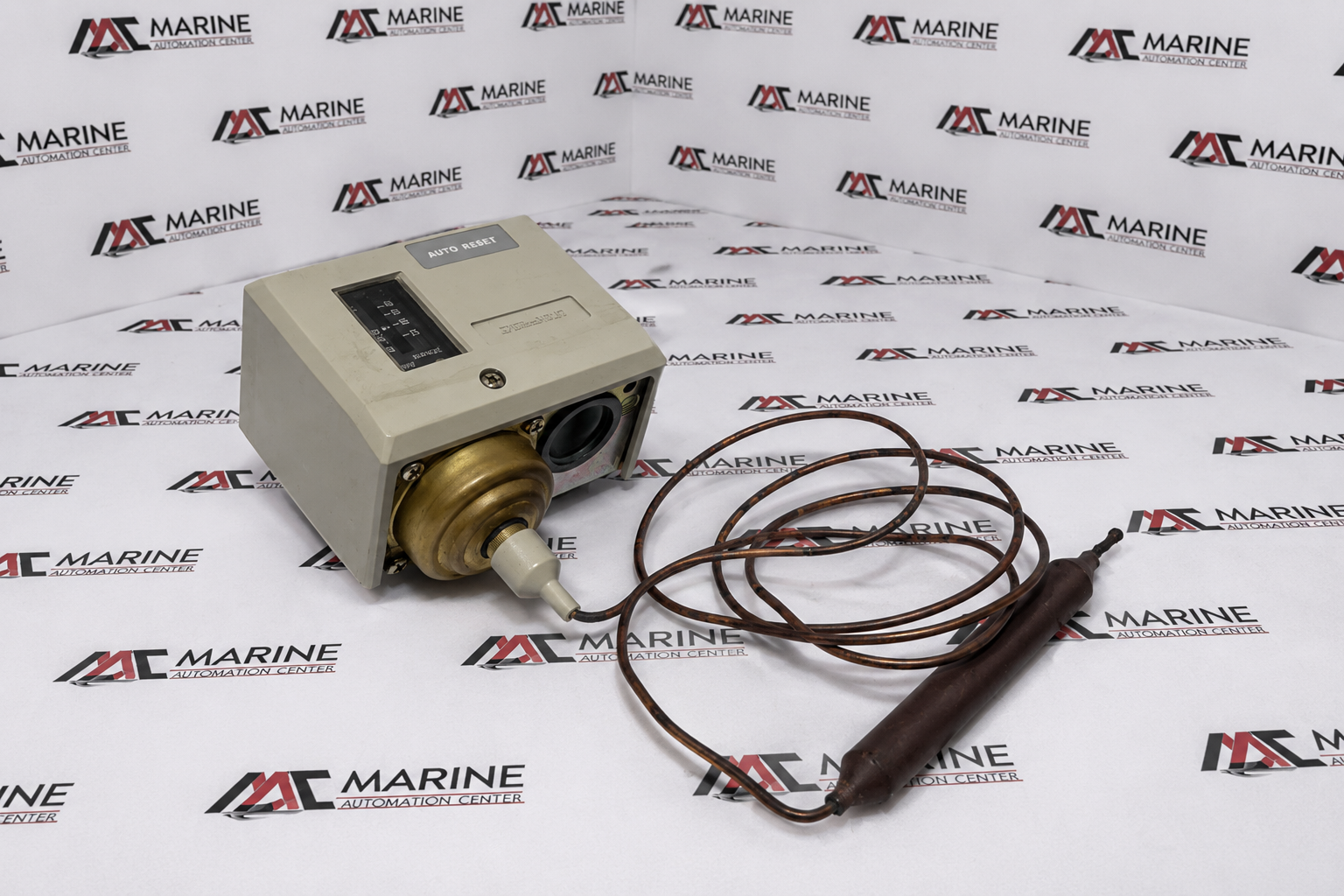

Saginomiya TNS-C1070Q Temperature Control Switch (Thermostat)
The Saginomiya TNS-C1070 Temperature Control / Capillary Thermostat is a reliable mechanical temperature controller designed for precise temperature regulation in marine, refrigeration, HVAC, and industrial applications. Featuring a capillary tube sensor, it provides accurate switching and dependable temperature control for heating and cooling systems.
BRAND
Saginomiya
TYPE
Temperature Control / Capillary Thermostat
PART NO.
004135
MODEL
TNS-C1070
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya |
| TYPE | Temperature Control / Capillary Thermostat |
| PART NO. | 004135 |
| MODEL | TNS-C1070 |
| MANUFACTURER | Saginomiya Seisakusho Co., Ltd. |
| Voltage Rating | Mechanical Control |
| Application | Temperature control for refrigeration, HVAC, marine cooling systems, compressors, and industrial equipment |
| Temperature Range | 45°C to 75°C |
| Sensor Type | Fluid-filled Capillary Tube with Sensing Bulb |
| Capillary Tube Length | 1 m |
| Mounting Type | Panel / Surface Mount |
| Reset Type | Automatic Reset |
| Sensing Element | Remote Bulb Sensor |
| Operating Principle | Mechanical Expansion Thermostat |
| Ambient Operating Temperature | -20°C to +70°C |
| Protection Class | IP20 (Typical TNS Series) |
| Electrical Connection | Screw Terminal Connection |
| Housing Material | Metal / Industrial Plastic Enclosure |
| Control Function | Adjustable Temperature Control with Variable Differential |
| Made In | Japan |
| REF NO | 1230 |
