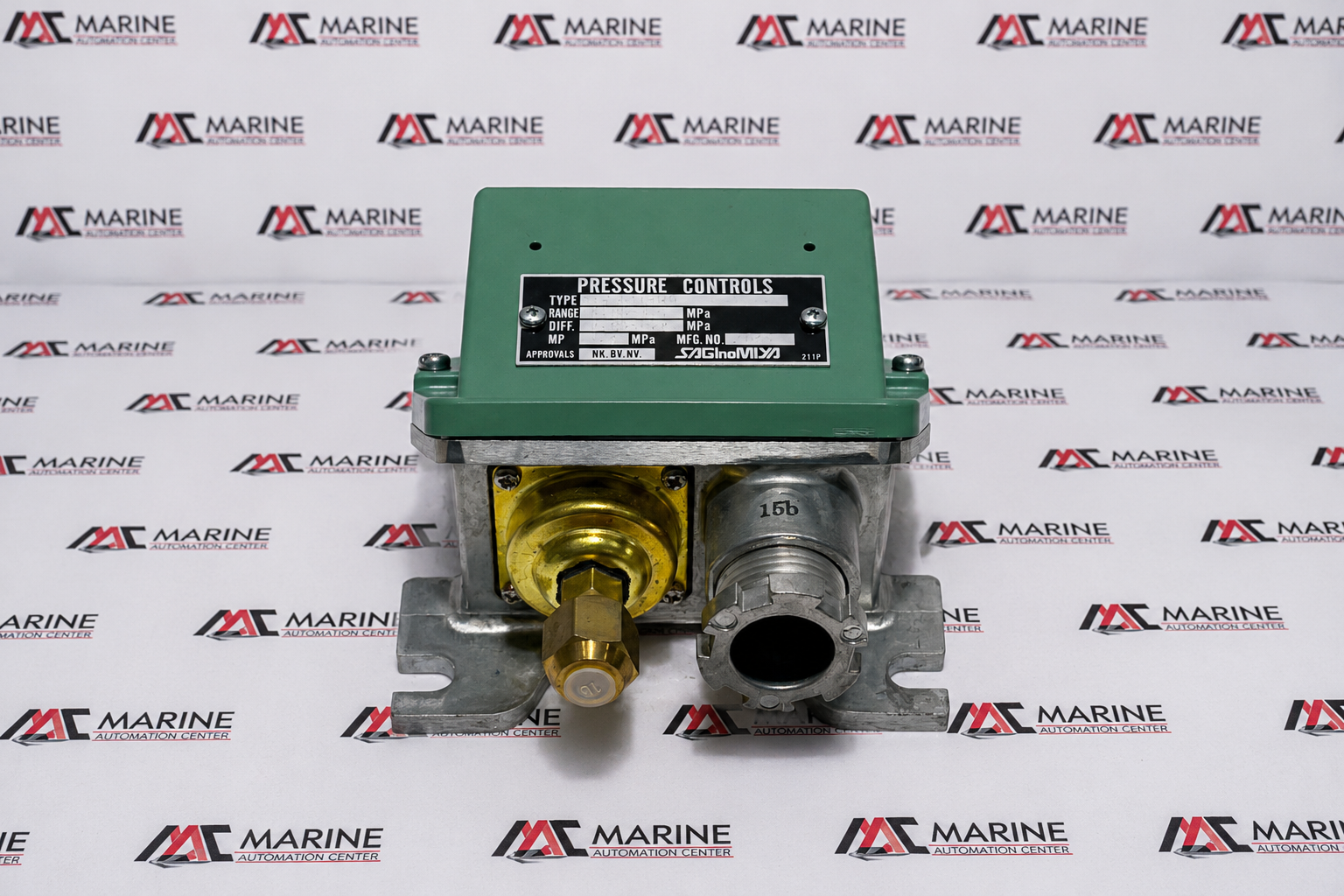

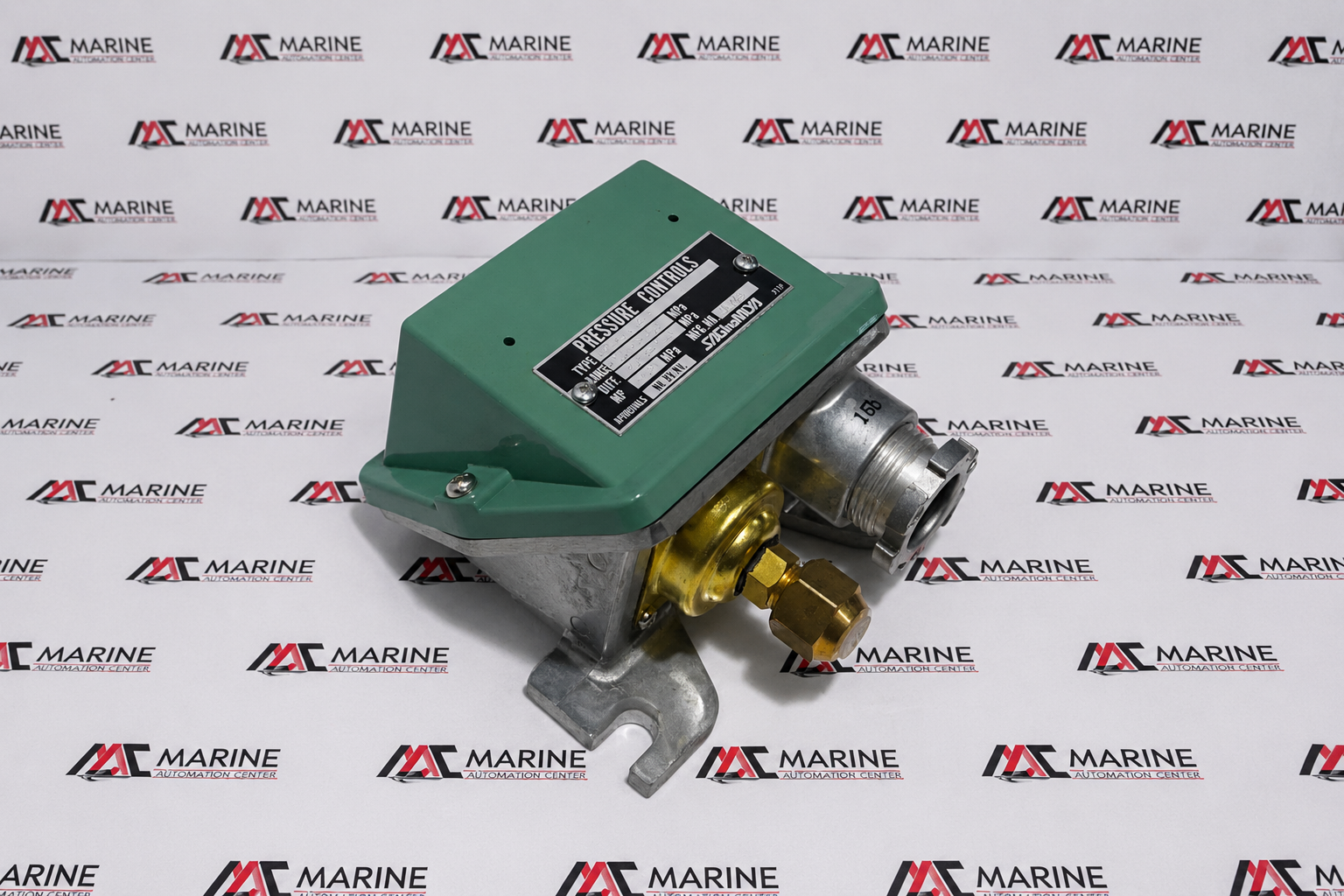

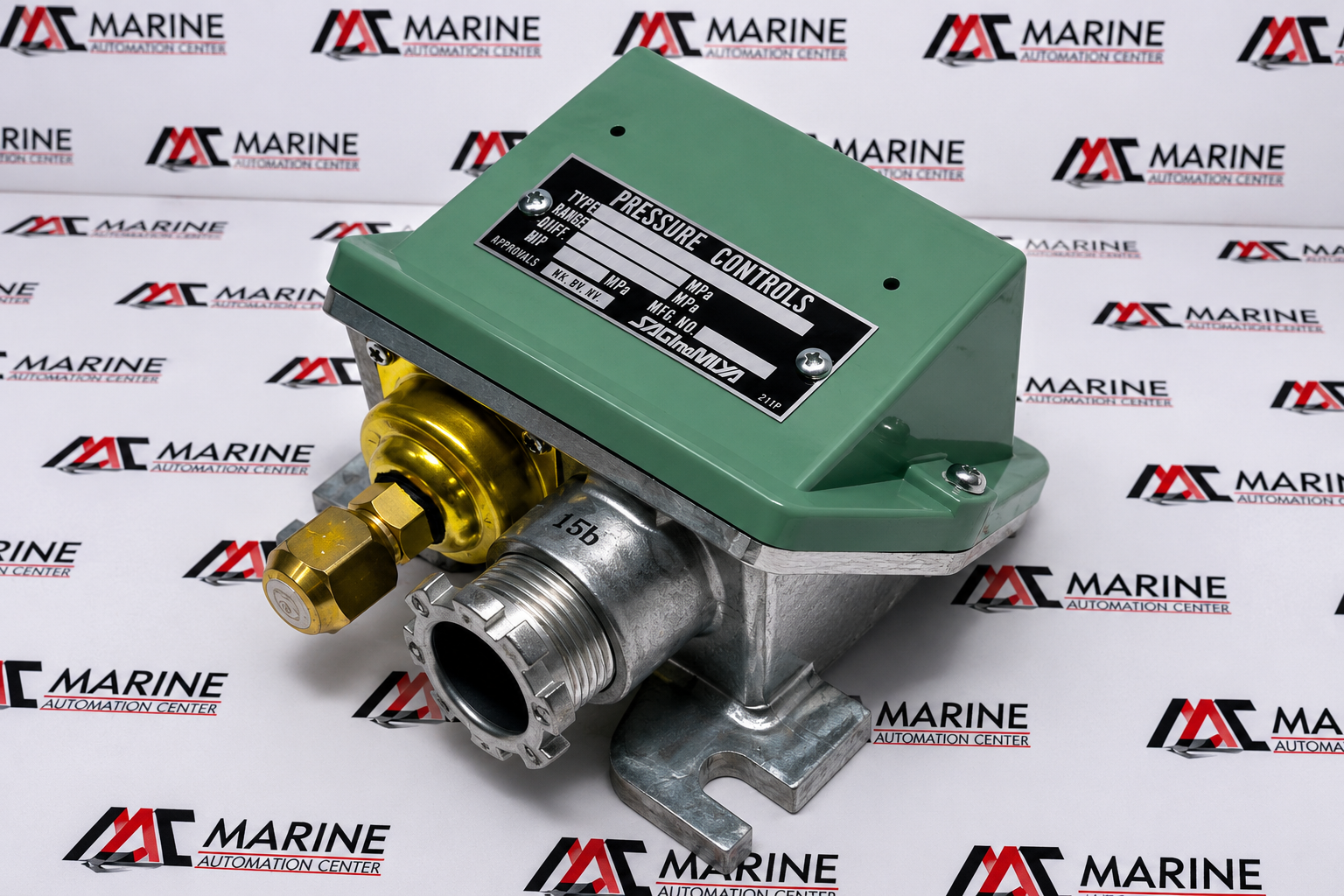

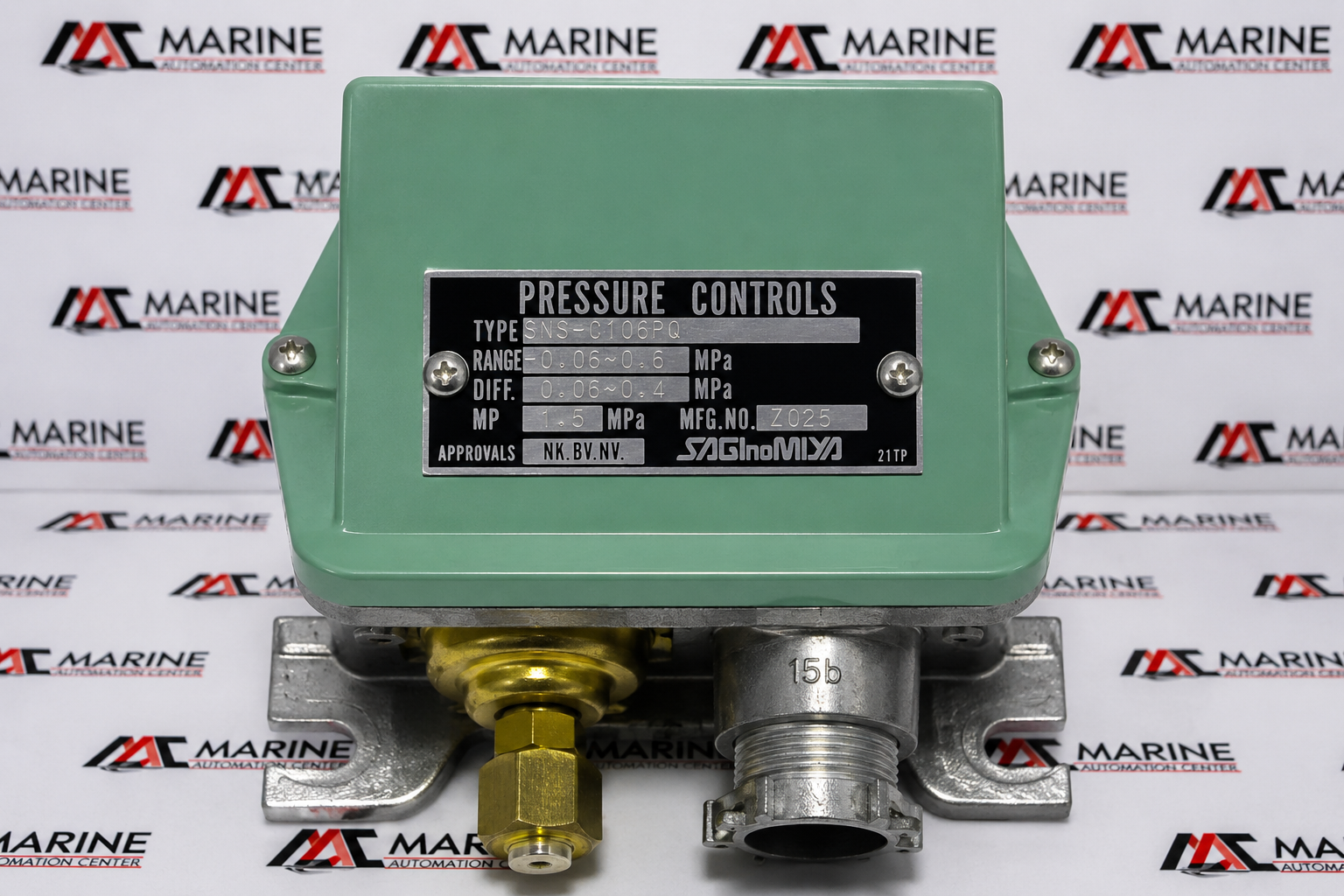

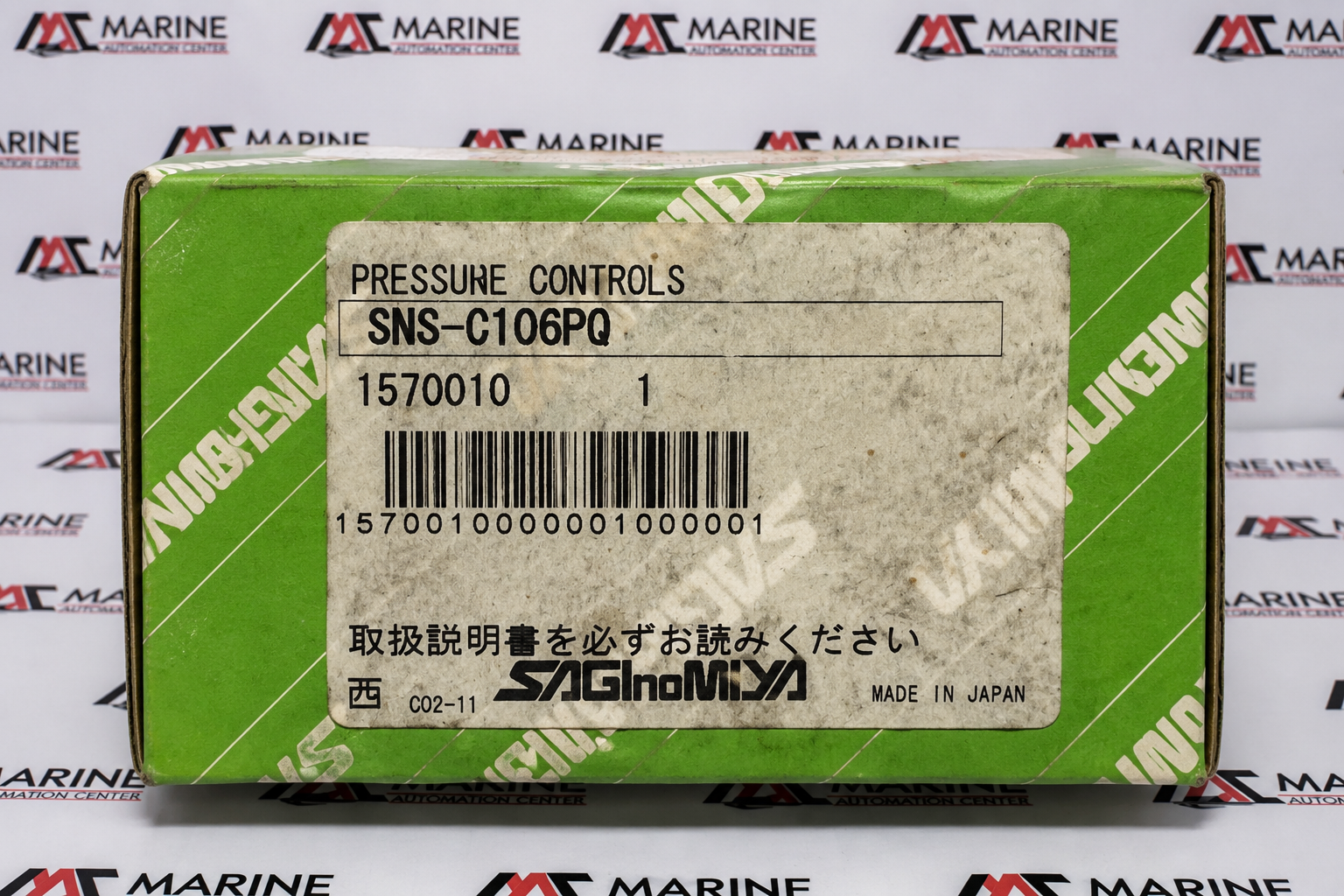

Saginomiya SNS-C106PQ Pressure Control Switch
The Saginomiya SNS-C106PQ Pressure Control Switch is a robust industrial pressure switch designed for reliable pressure monitoring and control in refrigeration, hydraulic, pneumatic, and marine systems. Featuring a drip-proof marine specification, it provides accurate pressure switching to protect equipment and automate system operation in demanding environments. Its durable construction and dependable performance make it suitable for compressors, pumps, engines, and other industrial control app
BRAND
Saginomiya
TYPE
Pressure Control Switch
PART NO.
SNS-C106PQ
MODEL
SNS-C106PQ (Drip-Proof / Marine Specification)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya |
| TYPE | Pressure Control Switch |
| PART NO. | SNS-C106PQ |
| MODEL | SNS-C106PQ (Drip-Proof / Marine Specification) |
| Voltage Rating | 125V AC / 250V AC (Standard SPDT contact capacity) |
| Application | Marine refrigeration, HVAC units, air, water, and fluorinated refrigerants |
| IEC | EN / Marine type-approved standard compliance |
| Regulation Range | -0.06 to 0.6 MPa |
| Adjustable Differential (DIFF) | 0.1 to 0.4 MPa |
| Max. Working Pressure (MP) | 1.5 MPa |
| Contact Mechanism | SPDT (Single Pole Double Throw) |
| Marine Approvals | NK (Nippon Kaiji Kyokai), BV (Bureau Veritas), NV (Det Norske Veritas) |
| Made In | Japan |
| REF NO | 1207 |
