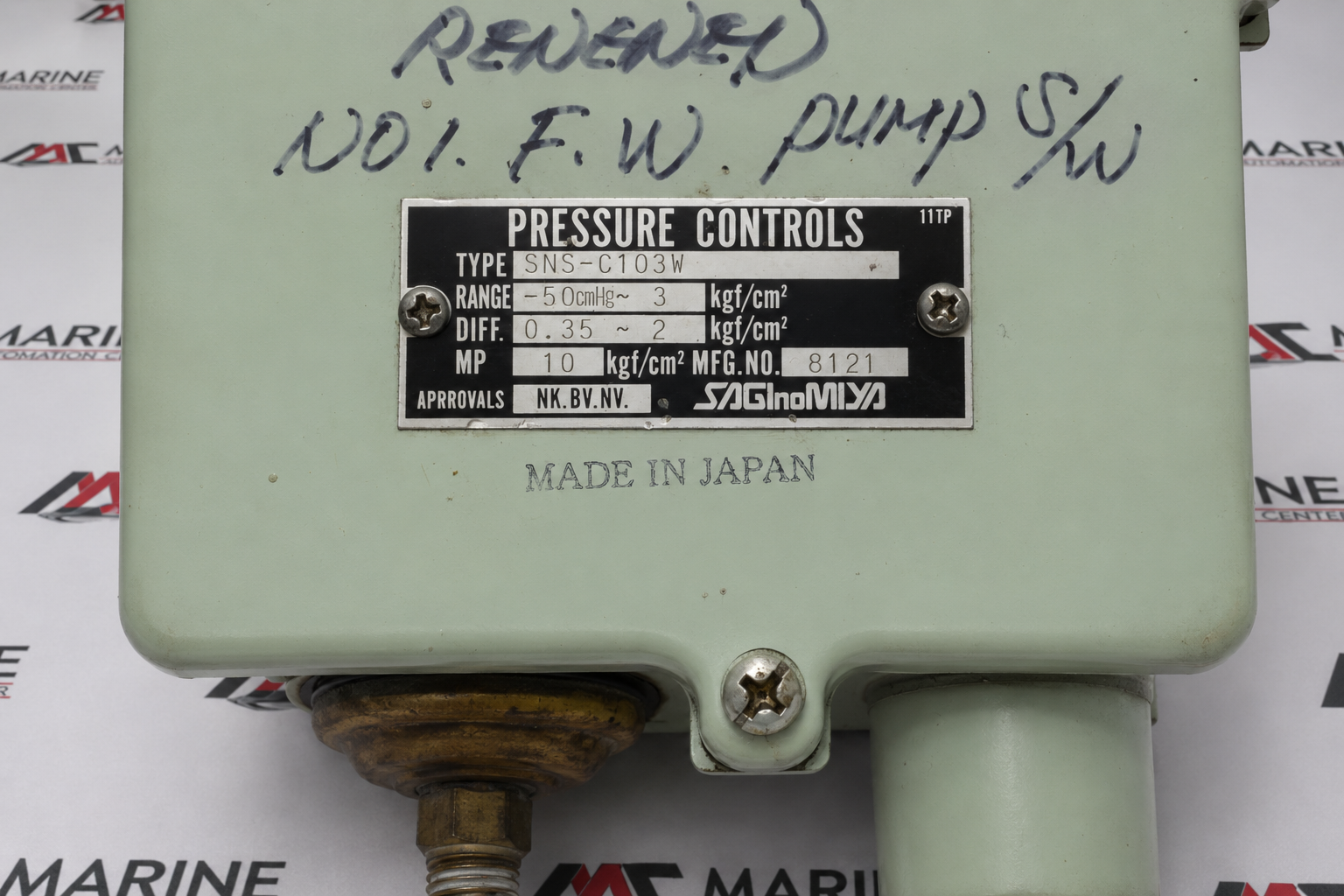

Saginomiya SNS-C103W Single Function Pressure Control Switch
The Saginomiya SNS-C103W is a single function pressure control switch designed for monitoring and controlling pressure in refrigeration, air conditioning, and industrial systems. It provides reliable pressure-based switching with adjustable set points, durable construction, and dependable performance for equipment protection and process control
BRAND
SAGINOMIYA
TYPE
Single Function Pressure Control Switch
PART NO.
Pressure Control Switch SNS-C103W
MODEL
SNS-C103W
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SAGINOMIYA |
| TYPE | Single Function Pressure Control Switch |
| PART NO. | Pressure Control Switch SNS-C103W |
| MODEL | SNS-C103W |
| Voltage Rating | 125V / 250V AC |
| Application | Universal pressure control, safety cut-out, and diagnostic regulation for fluorinated refrigerants, compressed air networks, industrial cooling water, and marine pipeline automation loops |
| IEC | IP44 rated casing equivalent protection (when fitted with an upper lid enclosure option); conforms to standard global marine machinery directives |
| Control Range | -0.06 to 0.3 MPa (-50 cm Hg to 3 kgf/cm²) |
| Differential | 0.035 to 0.2 MPa (0.35 to 2 kgf/cm²) |
| Maximum Working Pressure | 1 MPa (10 kgf/cm²) |
| Fluid Temperature Range | -20 to 120°C |
| Pressure Connection | 7/16"-20 UNF Male Flare (1/4" SAE) |
| Approvals | NK(Nippon Kaiji Kyokai) .BV(Bureau Veritas) .NV(Det Norske Veritas) |
| Made In | Japan |
| REF NO | 1469 |
