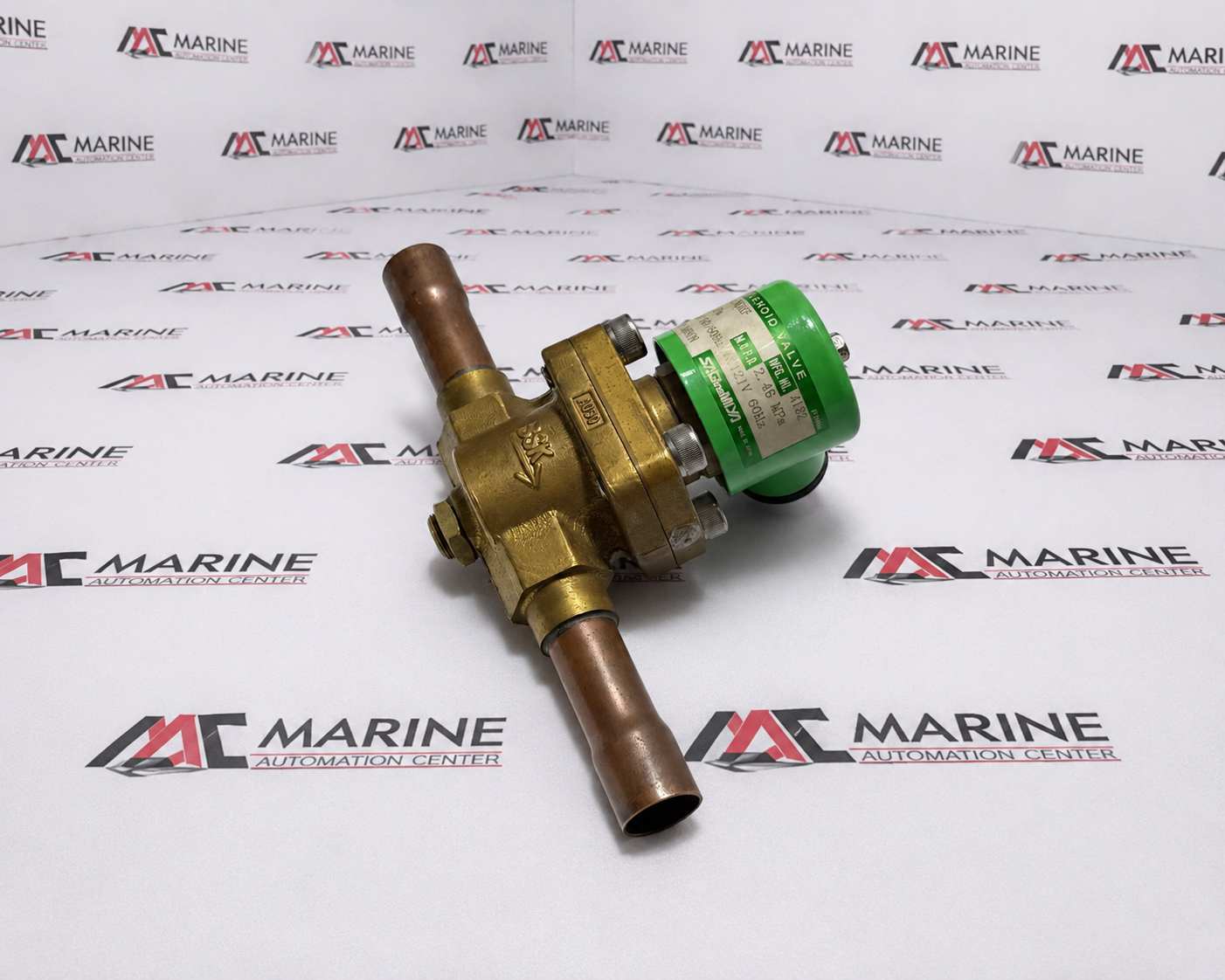

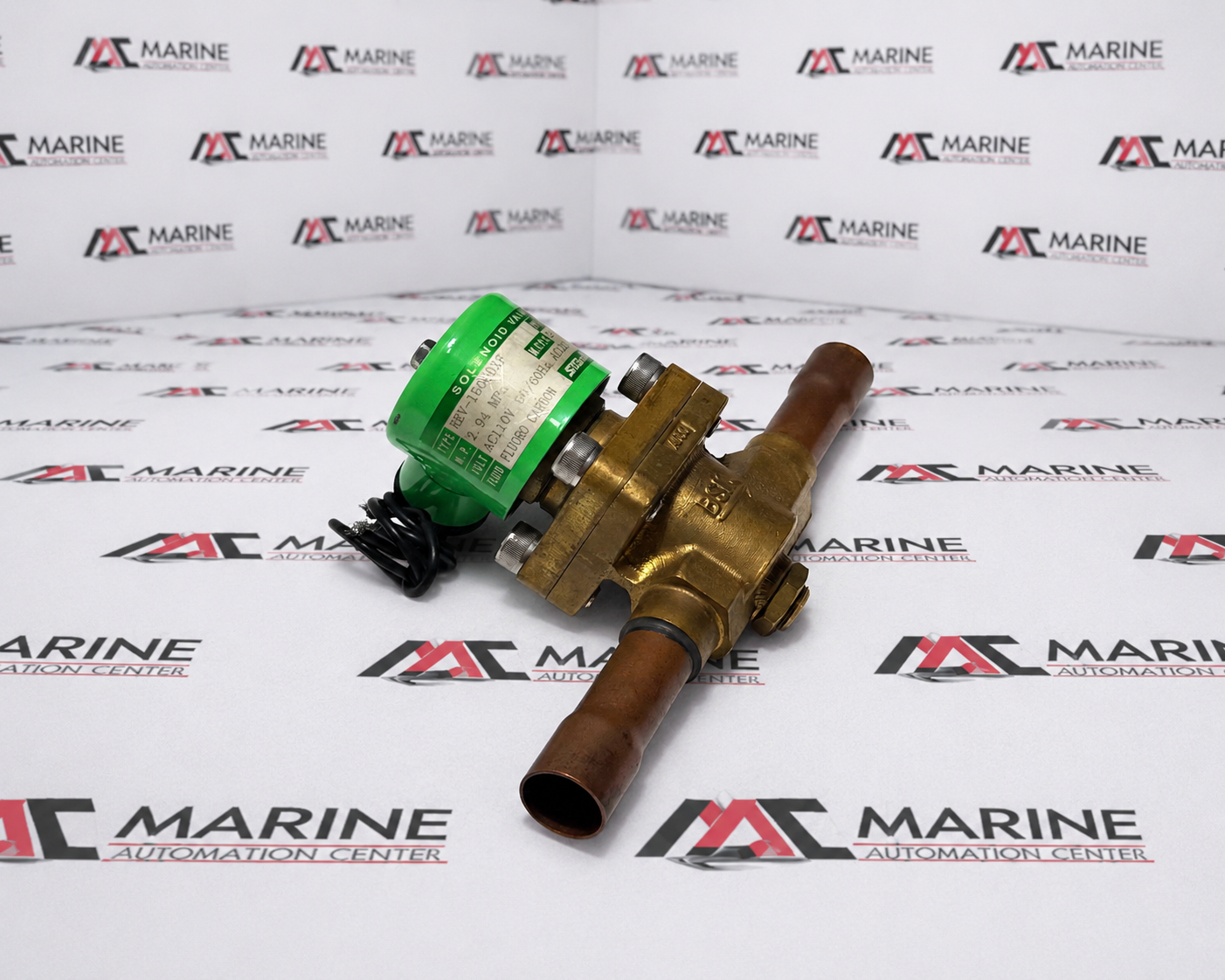

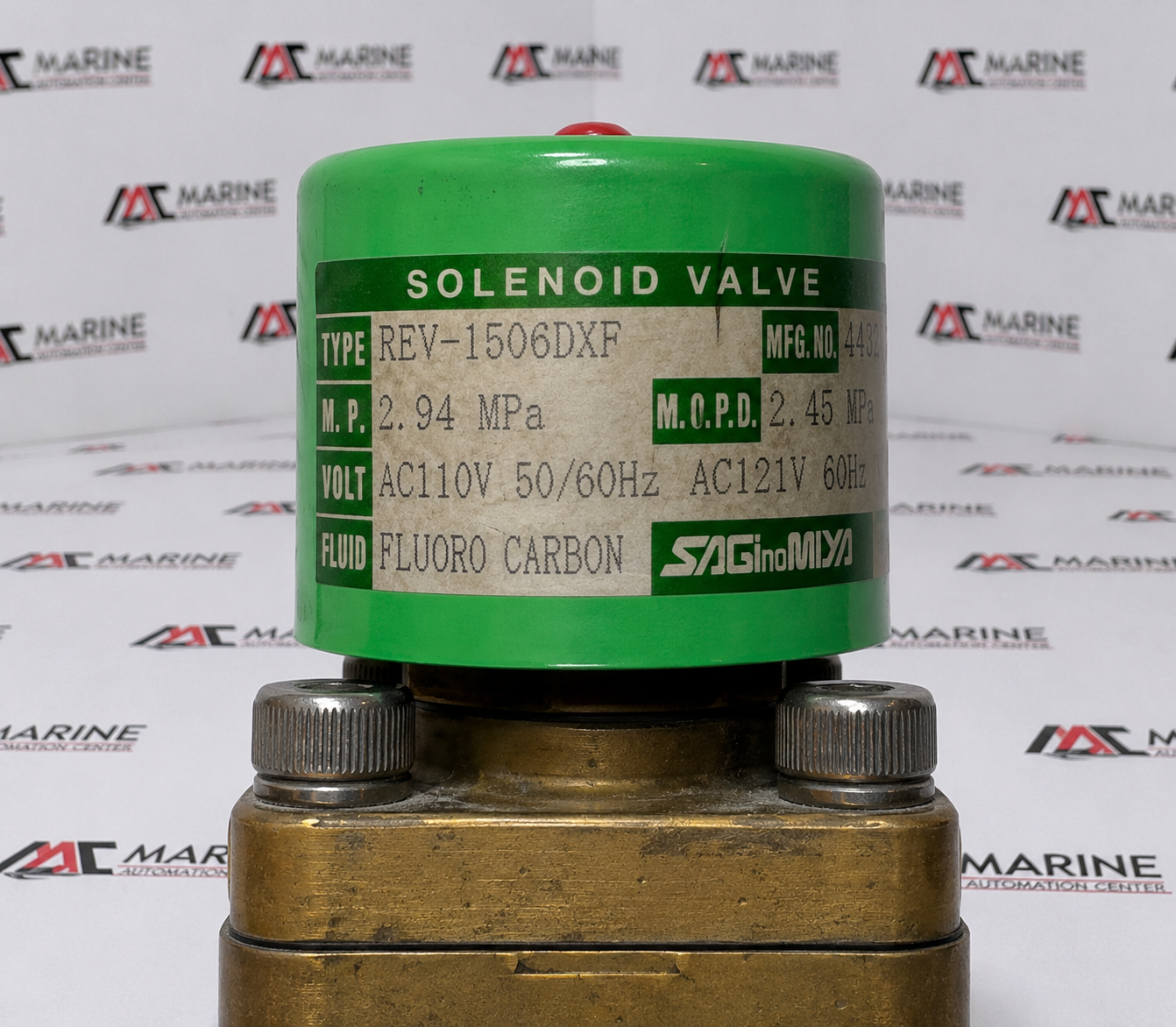

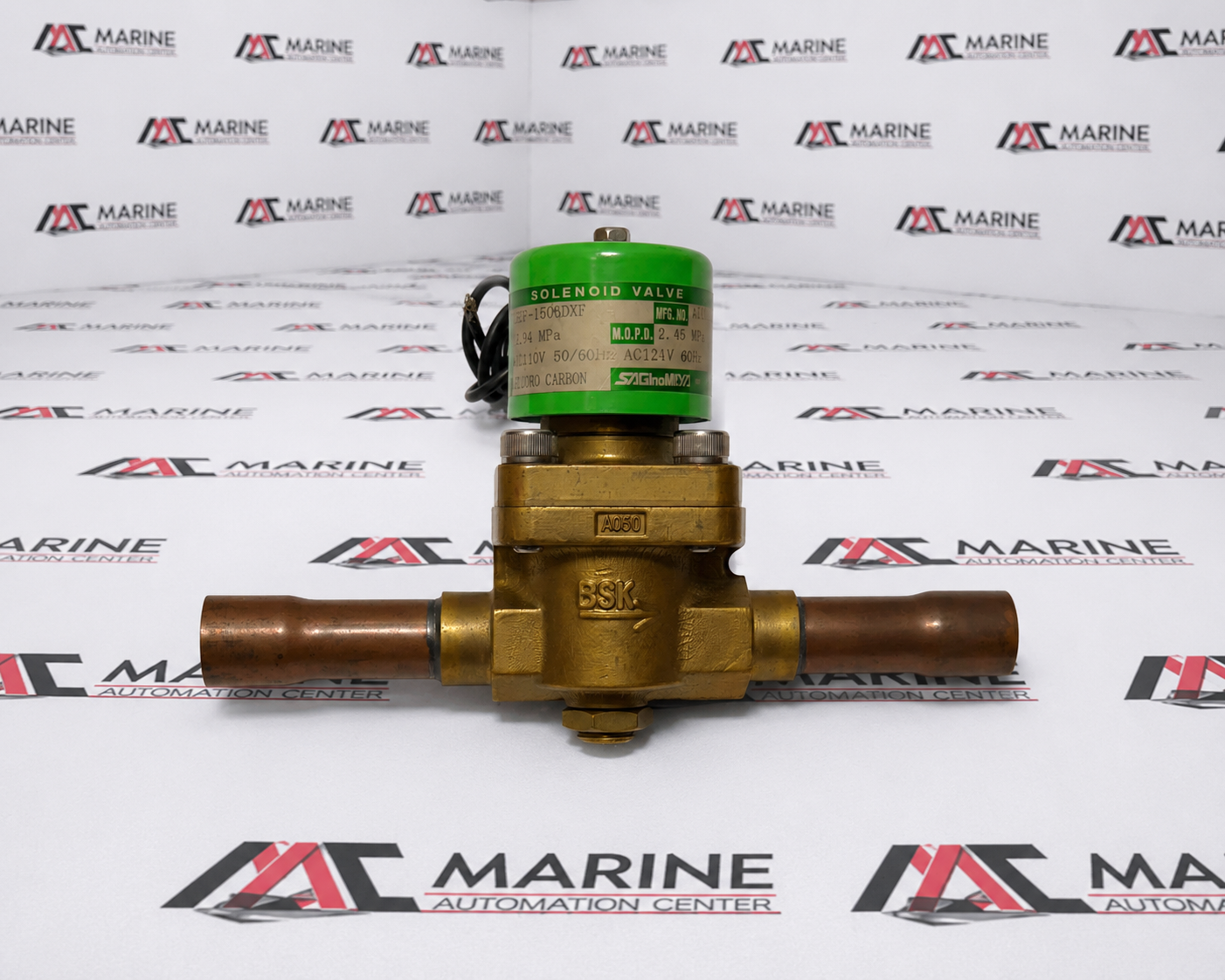

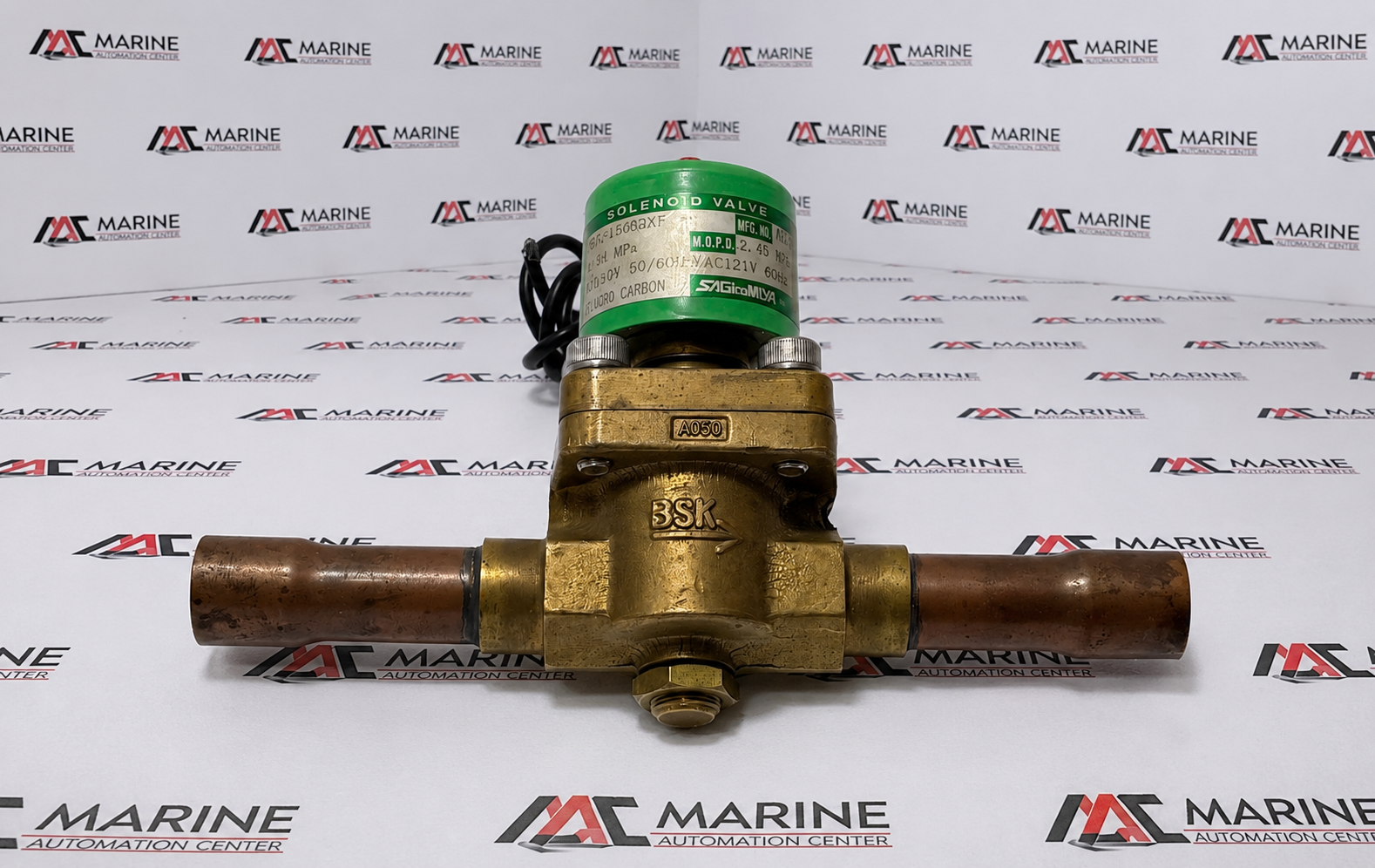

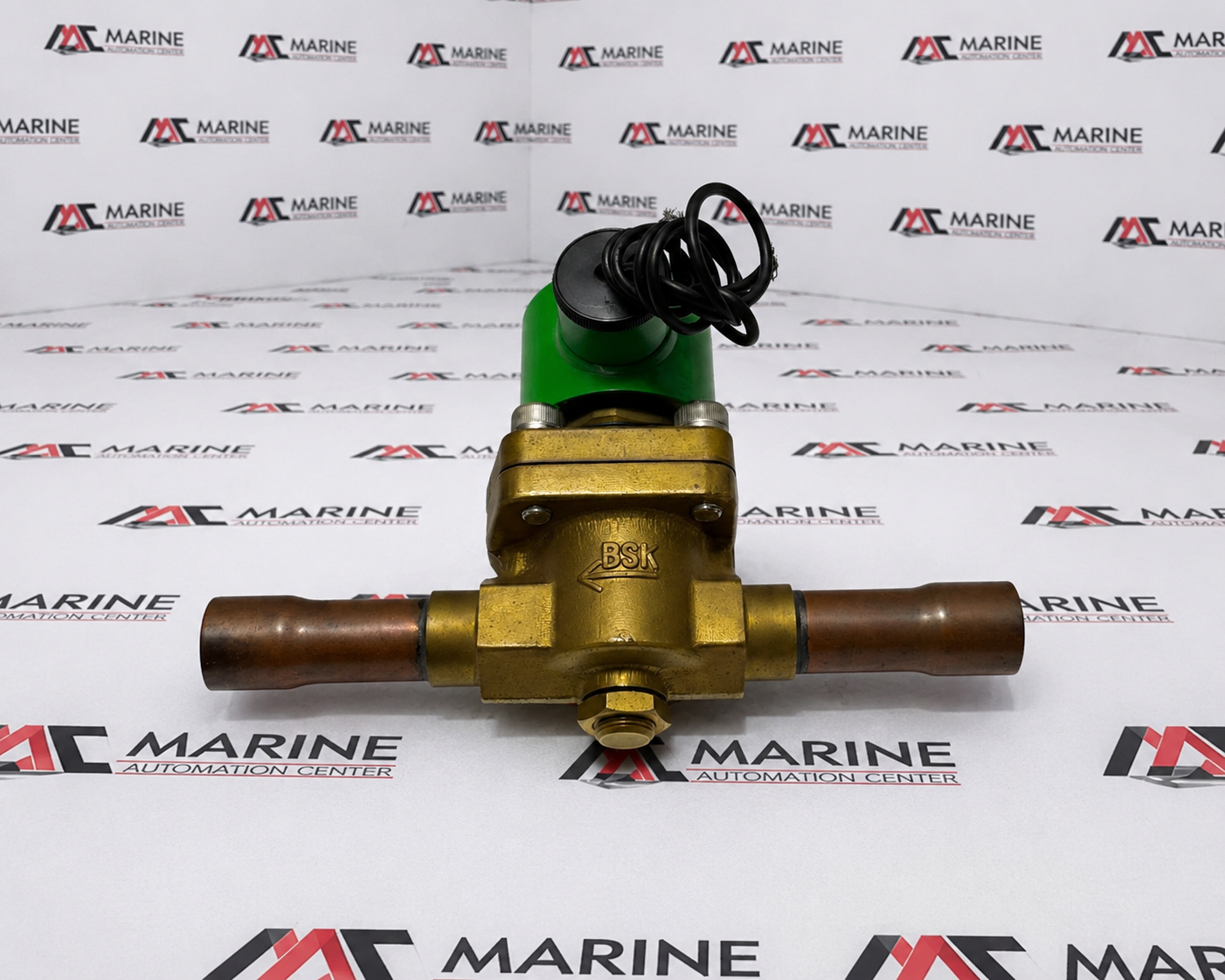

Saginomiya Seisakusho, Inc. Refrigeration Solenoid Valve REV Series
The Saginomiya REV-1506DXF REV Series is a normally closed refrigeration solenoid valve designed to control the flow of fluorocarbon refrigerants in refrigeration and air-conditioning systems. Featuring a durable brass body and AC-operated solenoid coil, it is widely used in marine HVAC, refrigeration plants, chillers, and industrial cooling systems for reliable automatic refrigerant flow control.
BRAND
Saginomiya Seisakusho, Inc.
TYPE
Refrigeration Solenoid Valve
PART NO.
REV-1506DXF
MODEL
REV Series
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya Seisakusho, Inc. |
| TYPE | Refrigeration Solenoid Valve |
| PART NO. | REV-1506DXF |
| MODEL | REV Series |
| Valve Type | Direct Acting / Normally Closed Refrigeration Solenoid Valve |
| Connection Type | Copper Tube Solder Connection (ODF) |
| Nominal Port Size | 15 mm (Copper Tube O.D.) |
| Body Material | Forged Brass |
| Coil Voltage | AC 110 V 50/60 Hz / AC 121 V 60 Hz |
| Maximum Operating Pressure (M.O.P.) | 2.45 MPa |
| Flow Direction | As Indicated by Body Arrow |
| Maximum Working Pressure (Series Rating) | Up to 4.2 MPa (REV Series specification, depending on refrigerant and model) |
| Operating Temperature | Fluid Temperature: -40°C to +125°C |
| IEC / Industrial Standard | Industrial Refrigeration Solenoid Valve |
| Made In | Japan |
