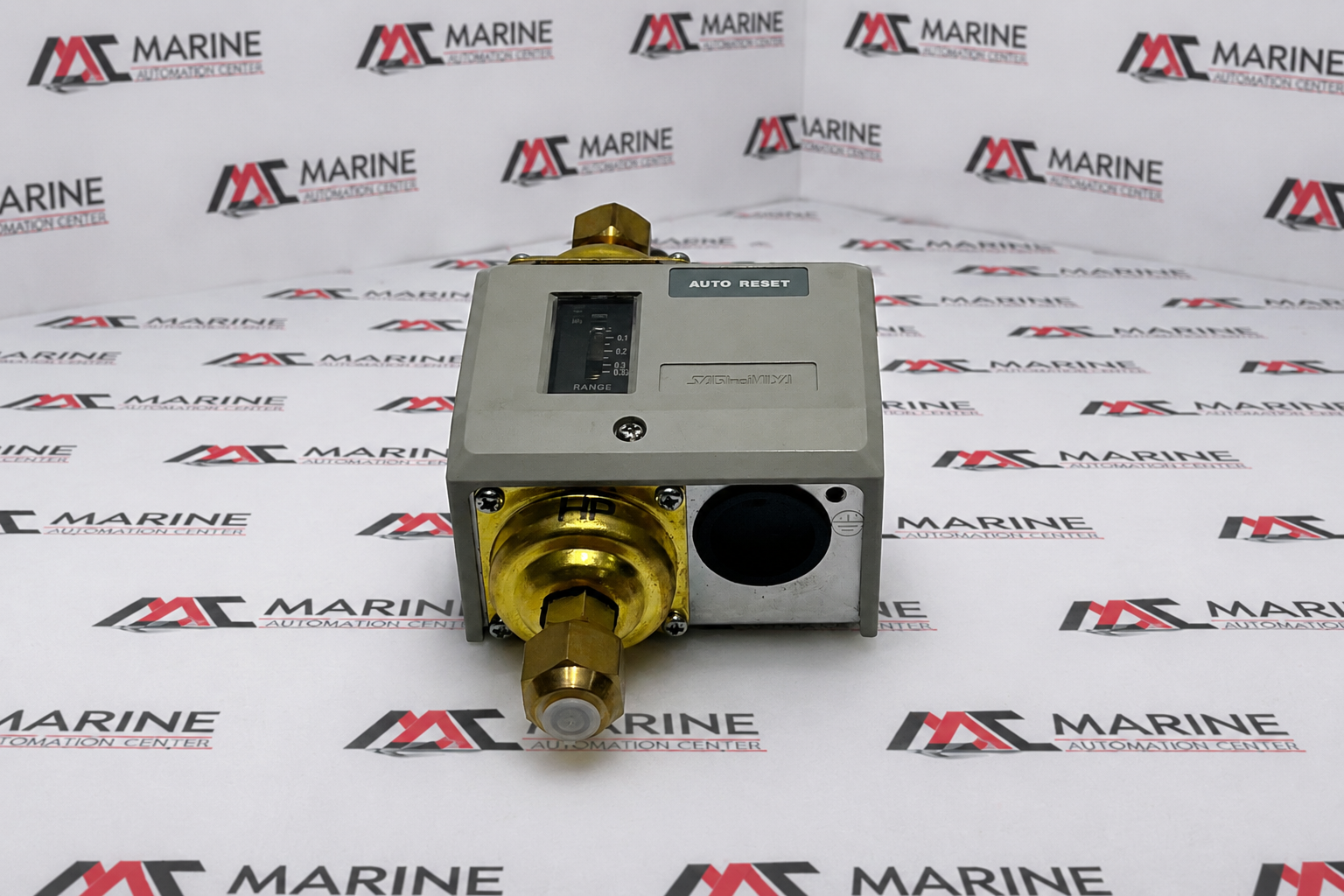

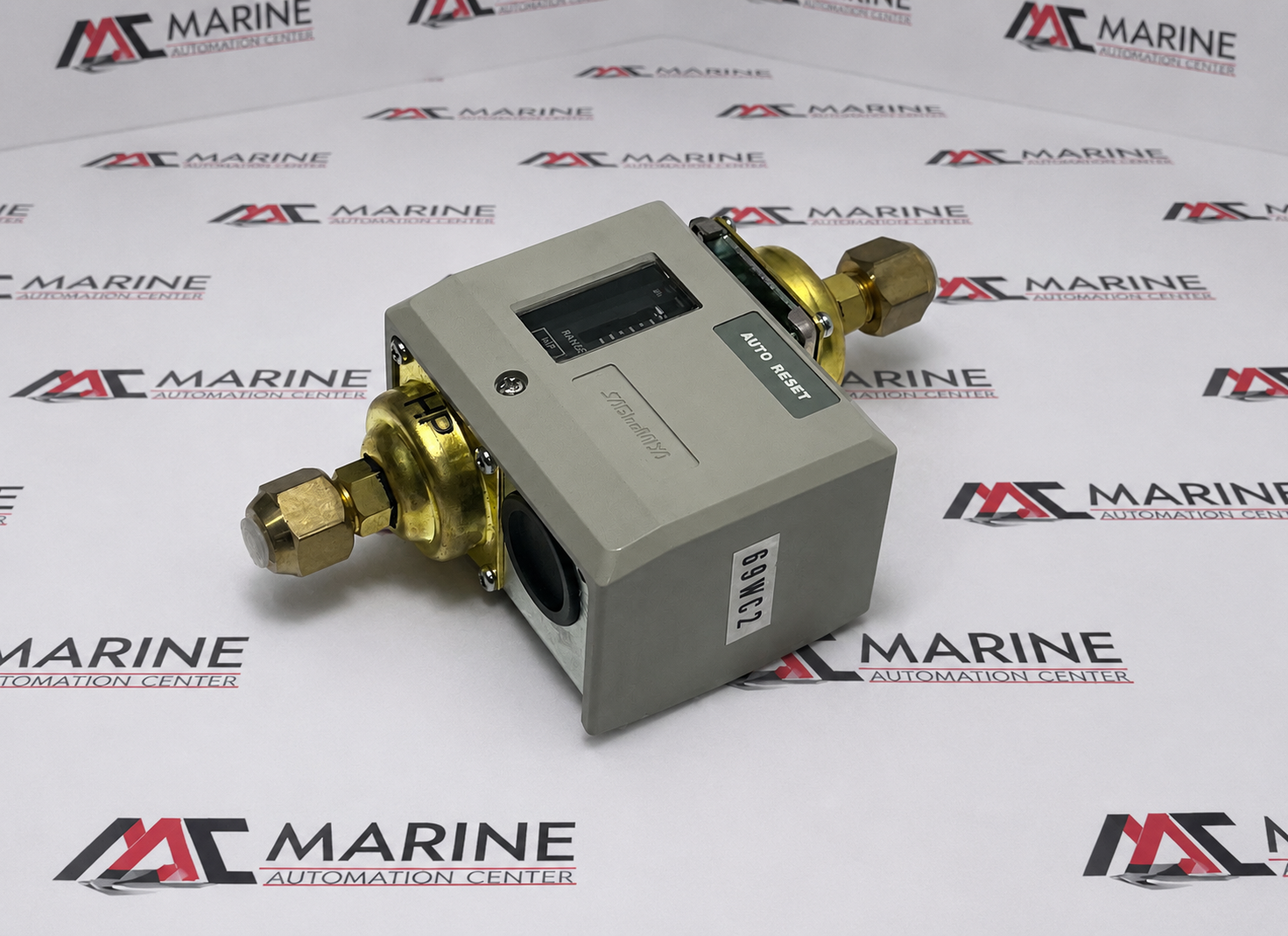

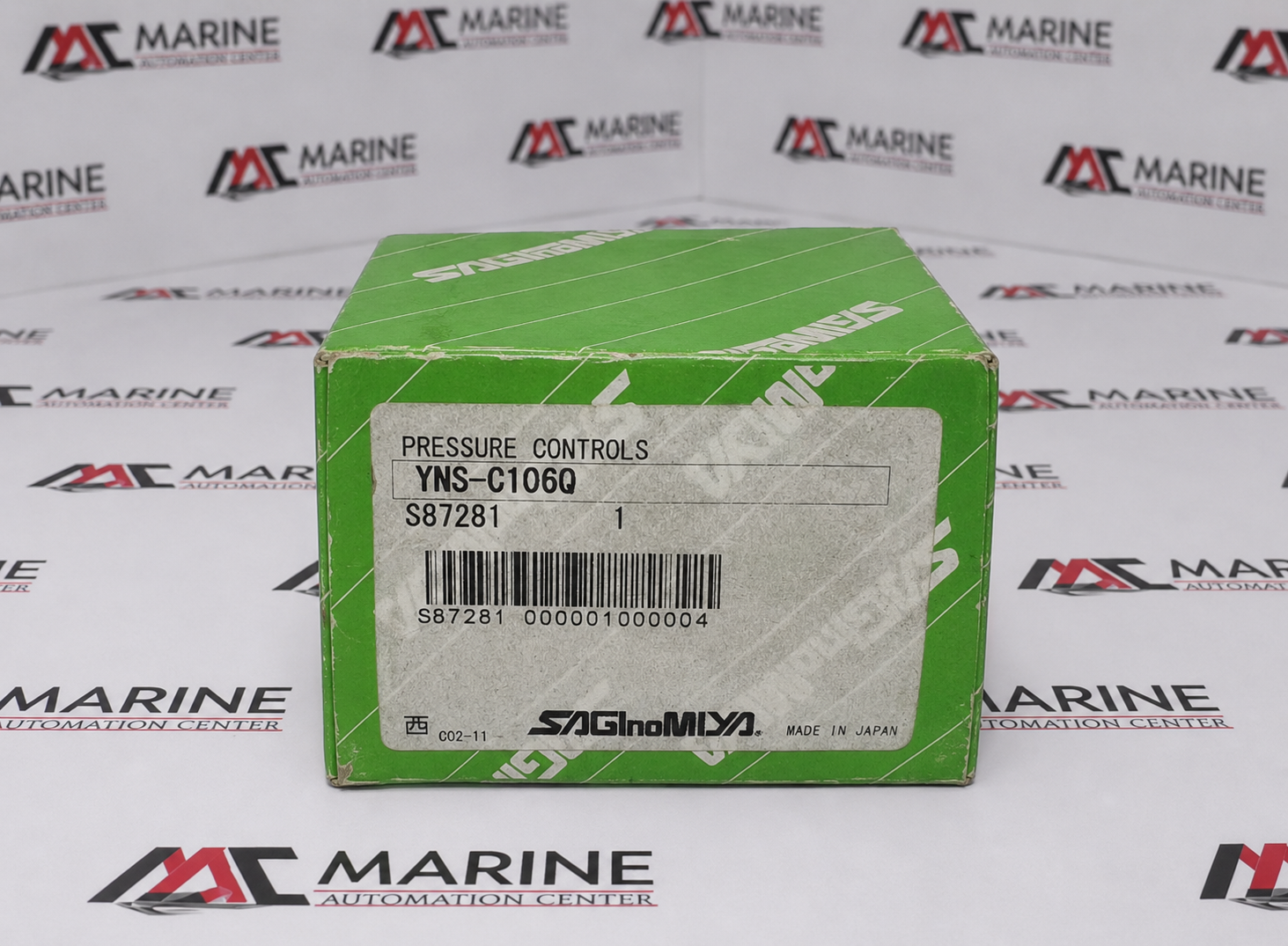

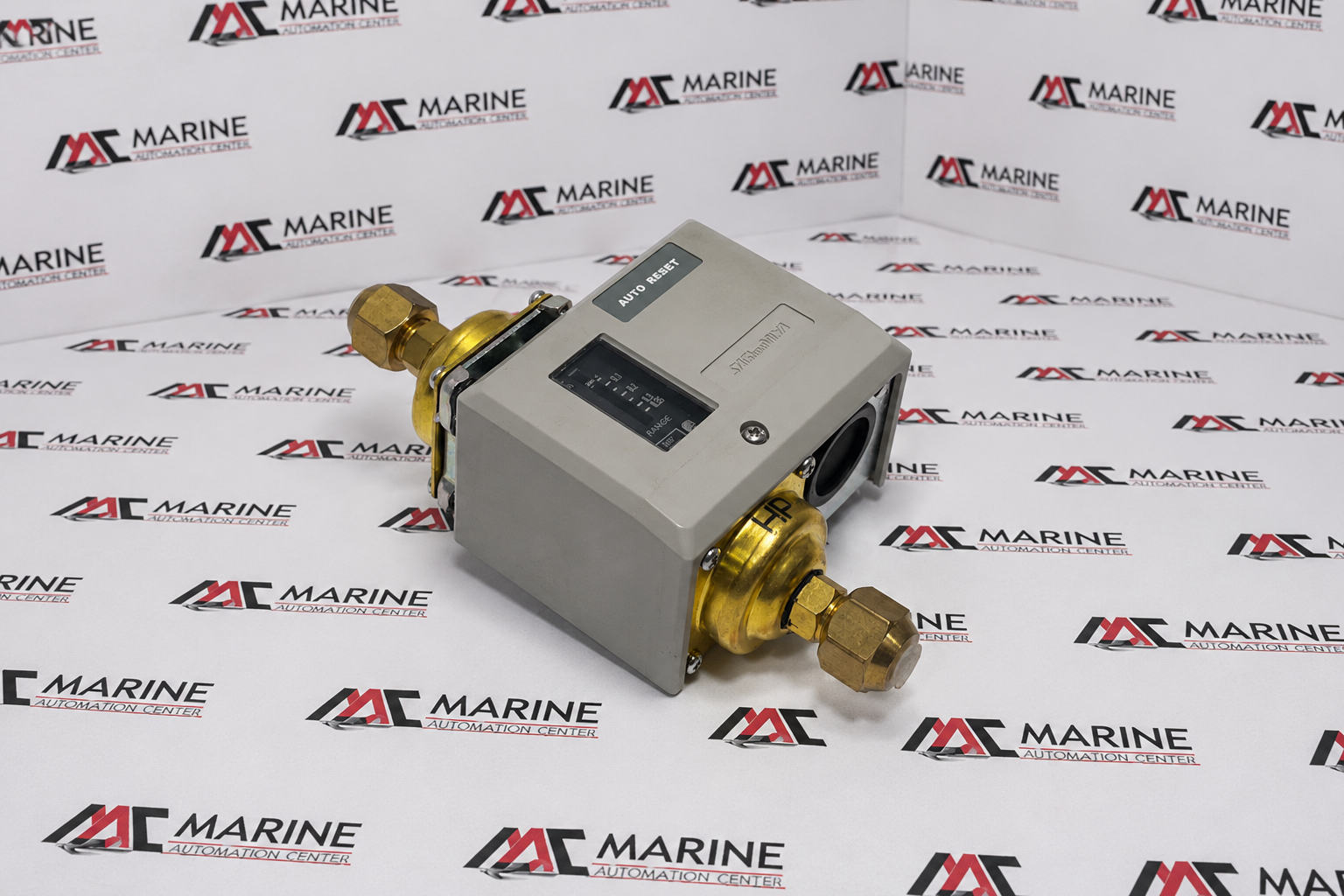

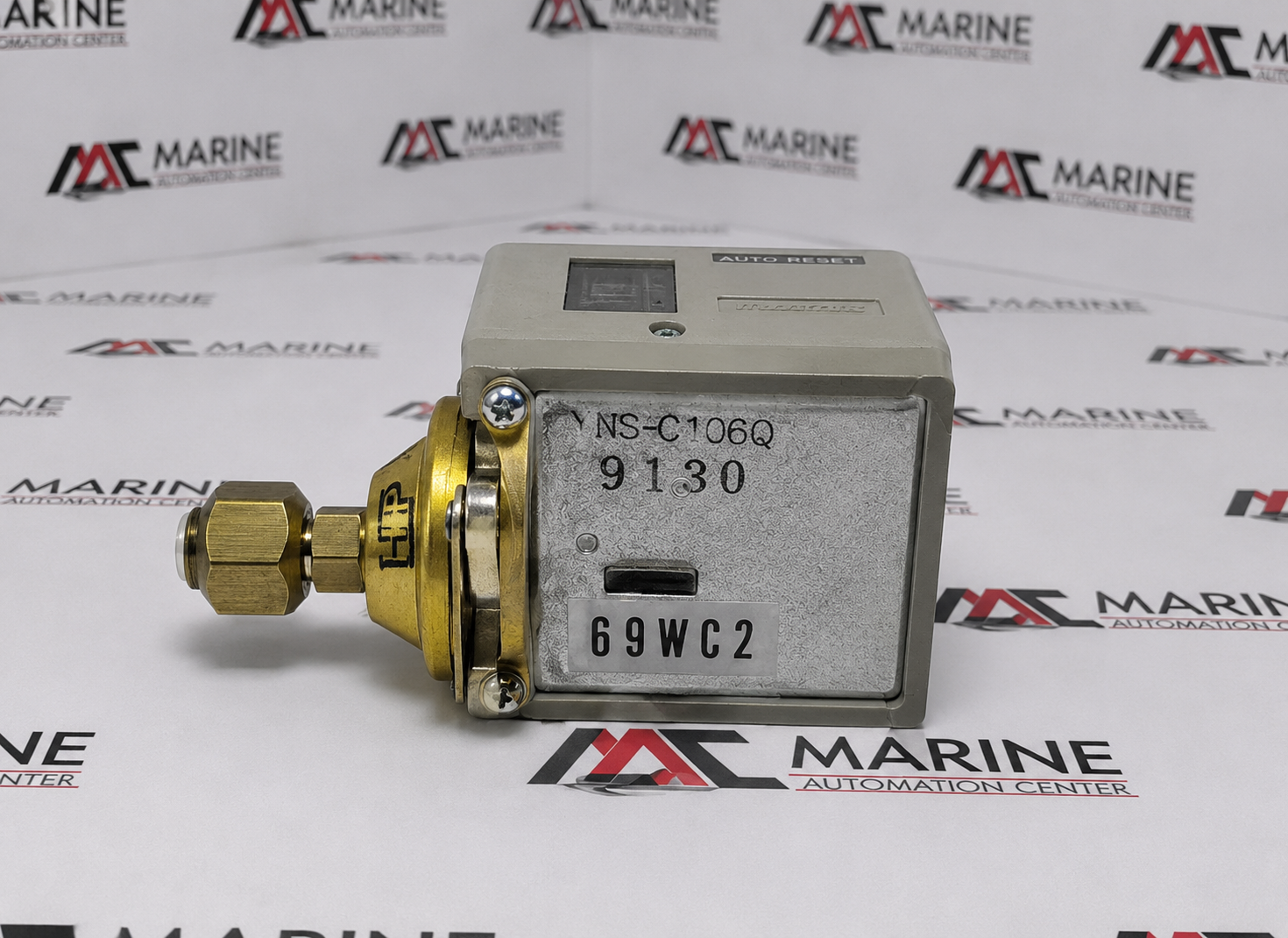

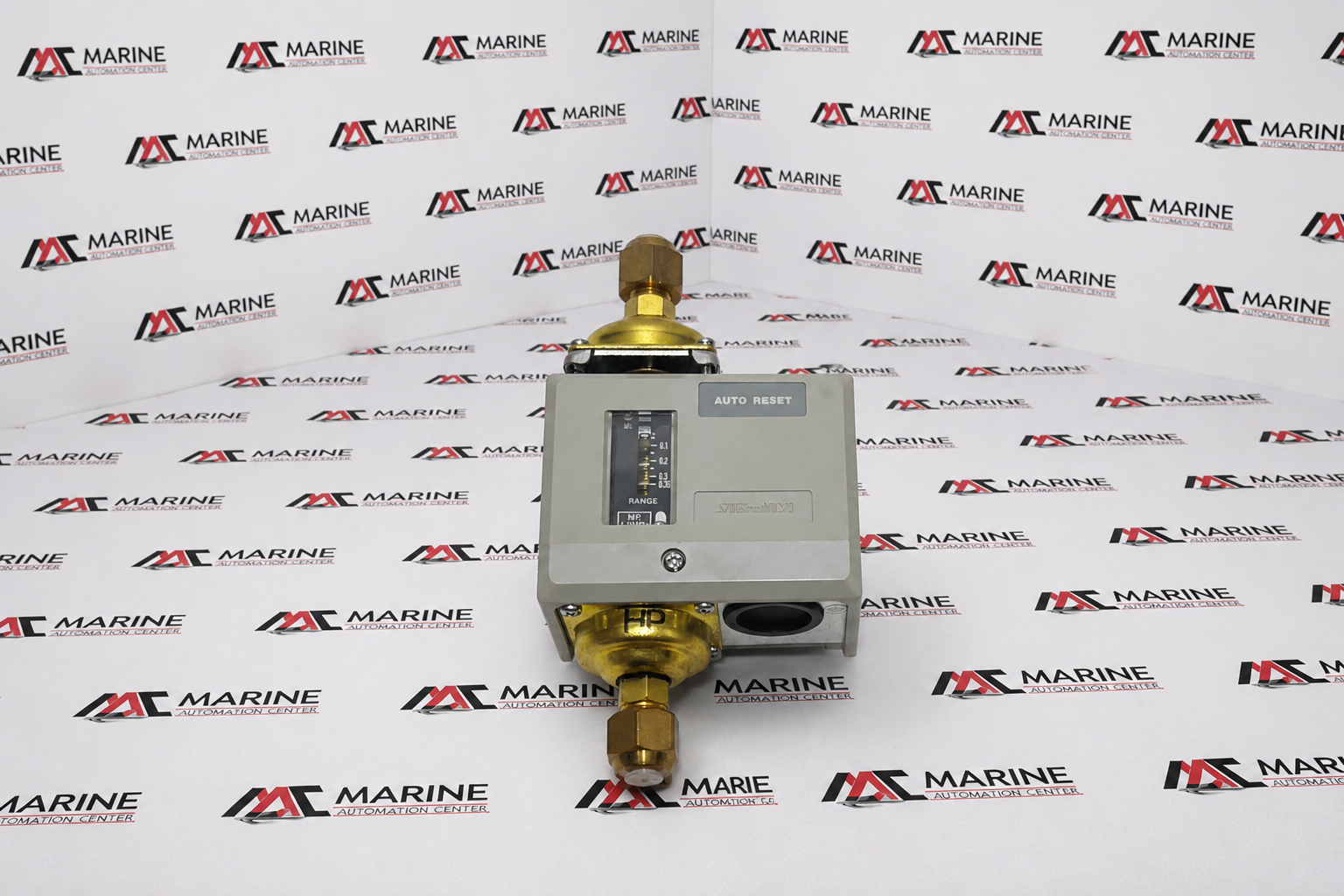

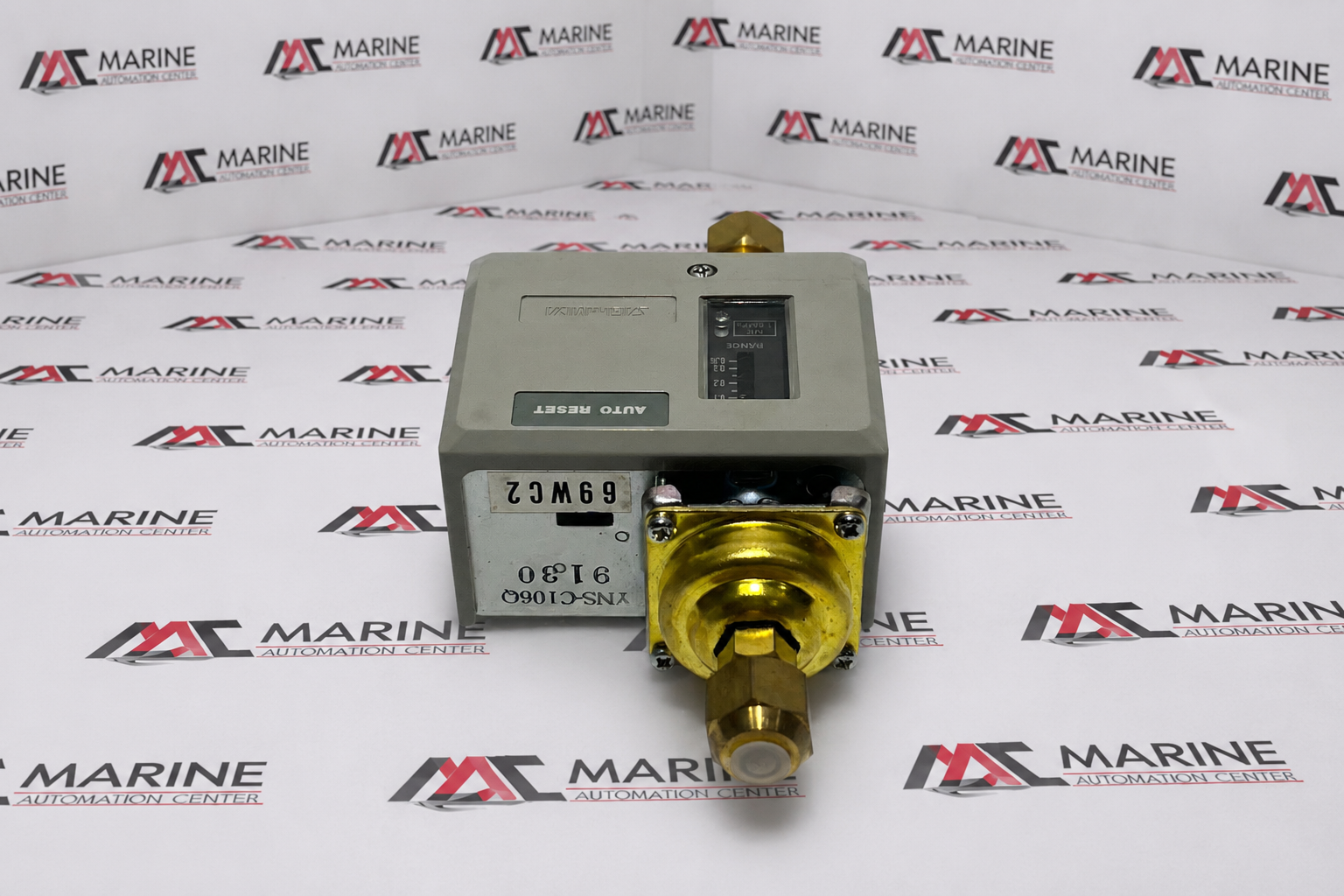

Saginomiya Pressure Switch YNS-C106WGQ
The Saginomiya YNS-C106WGQ Pressure Switch (Part No. YNS-C106Q) is a high-quality mechanical pressure control switch designed for accurate pressure monitoring in refrigeration, HVAC, hydraulic, pneumatic, and marine automation systems. Featuring an auto-reset mechanism, an adjustable pressure range of 0.02 to 0.35 MPa, and a maximum operating pressure of 25 kgf/cm², it delivers reliable and consistent performance in demanding industrial environments. Manufactured in Japan, this durable pressure
BRAND
Saginomiya
TYPE
Pressure Switch
PART NO.
Pressure Switch YNS-C106Q
MODEL
YNS-C106Q
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya |
| TYPE | Pressure Switch |
| PART NO. | Pressure Switch YNS-C106Q |
| MODEL | YNS-C106Q |
| MANUFACTURER | Saginomiya |
| Application | Pressure monitoring and control for refrigeration, HVAC, compressors, hydraulic, pneumatic, industrial process equipment, and marine automation systems |
| Pressure Range | 0.02 to 0.35 MPa (Approx. 0.2 to 3.5 kgf/cm²) |
| Differential | 0.5 kgf/cm² (Approx. Fixed differential: 0.012 MPa) |
| Maximum Allowable Pressure | 1.5 MPa |
| Maximum Operating Pressure | 25 kgf/cm² |
| Reset Type | Auto Reset |
| Pressure Element | Bellows Type |
| Pressure Connection | Compression fitting (Brass) |
| Housing Material | Die-cast metal enclosure |
| Pressure Element Material | Brass |
| Mounting | Panel / Surface Mount |
| Pressure Adjustment | Front-access adjustable setpoint with scale indicator |
| Display | Mechanical pressure range indicator |
| Weight | 1.470 kg |
| Made In | Japan |
| REF NO | 1251 |
