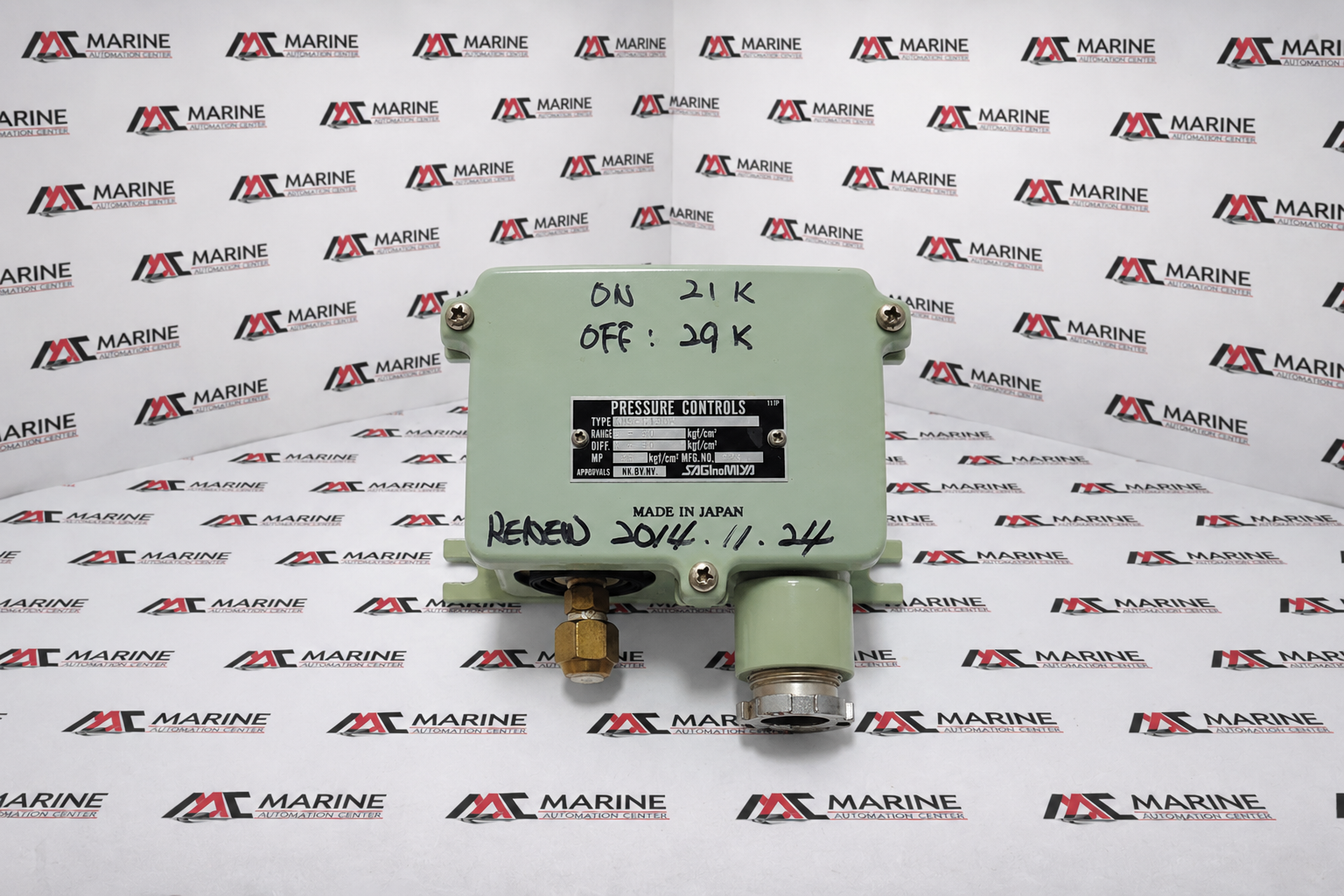

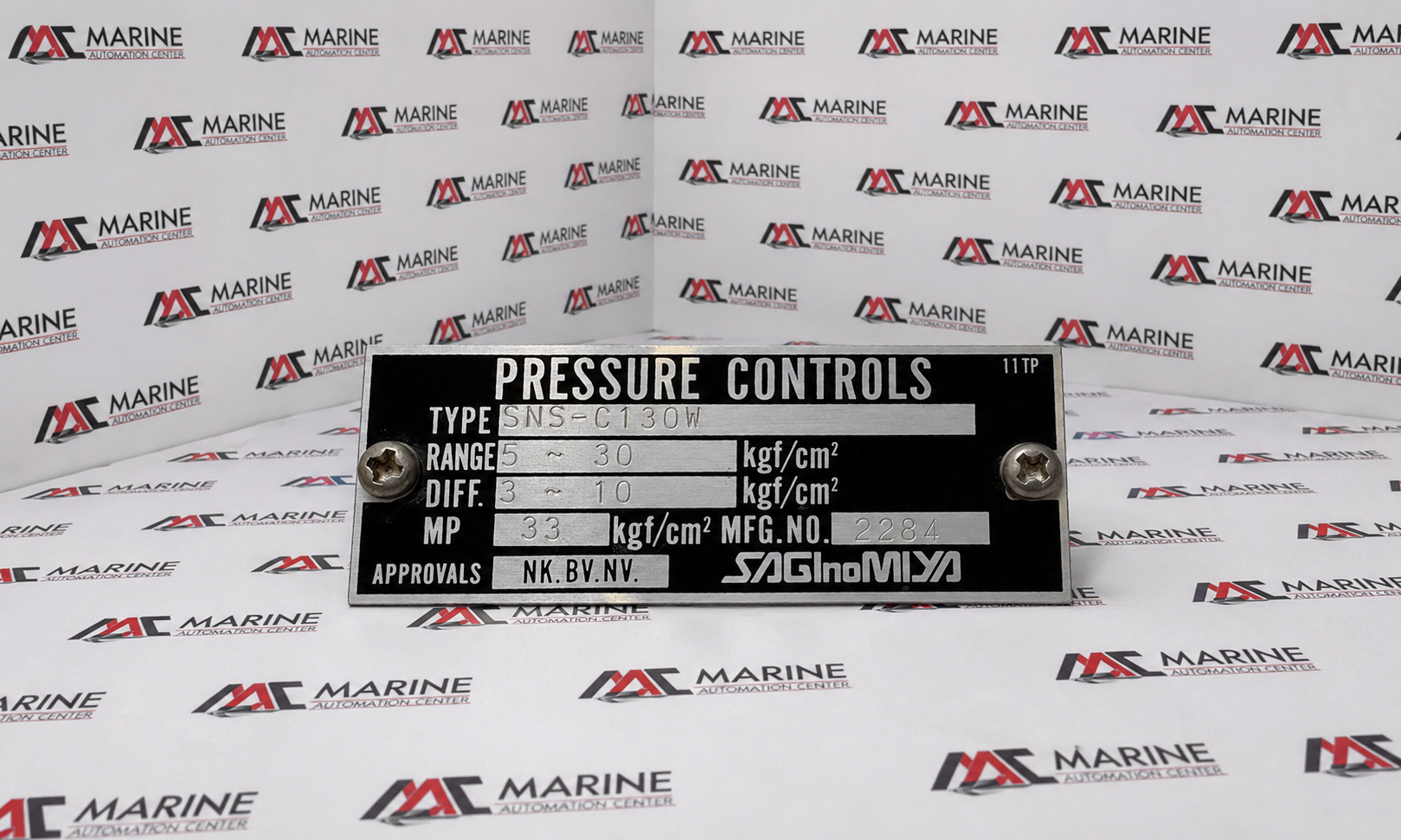

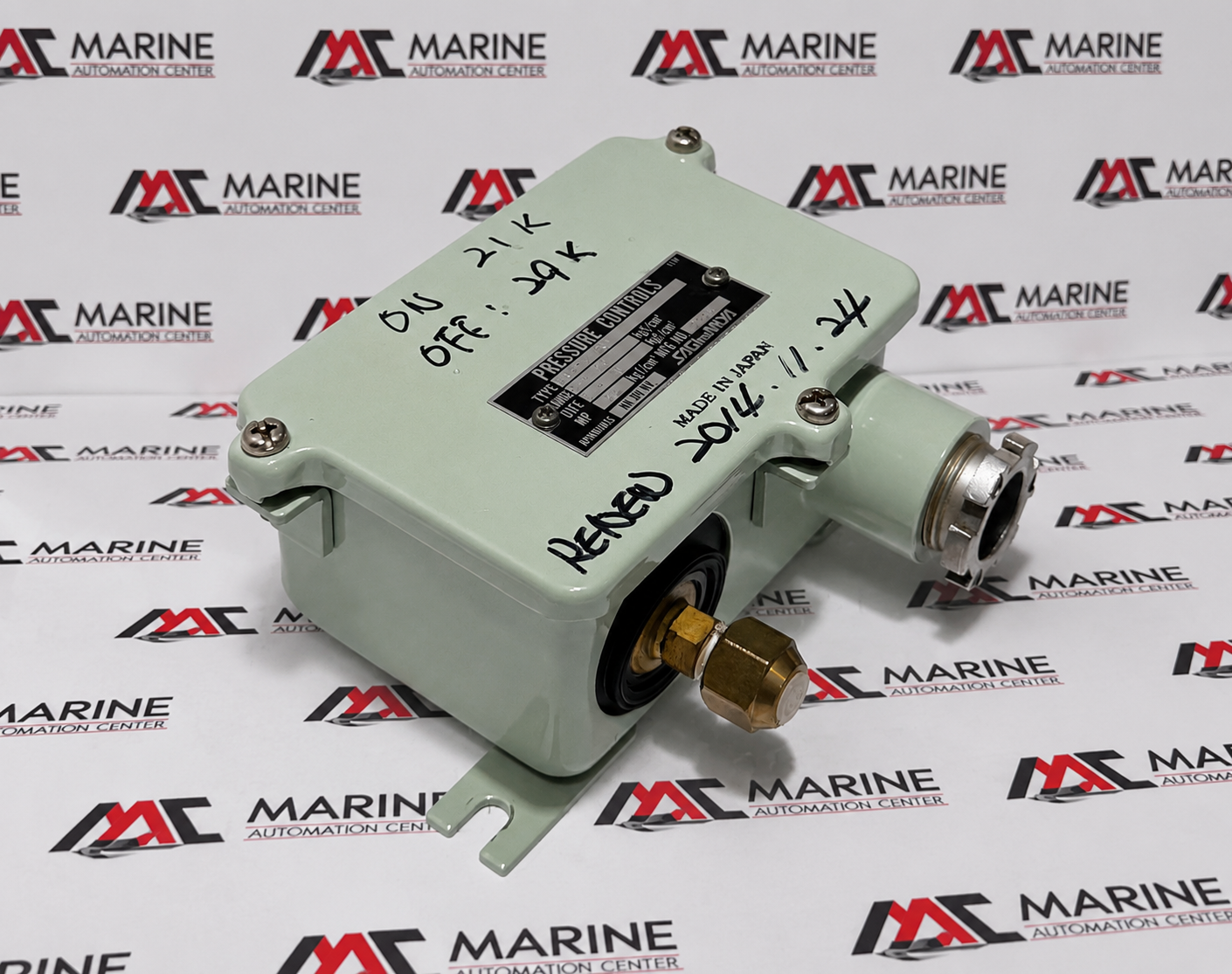

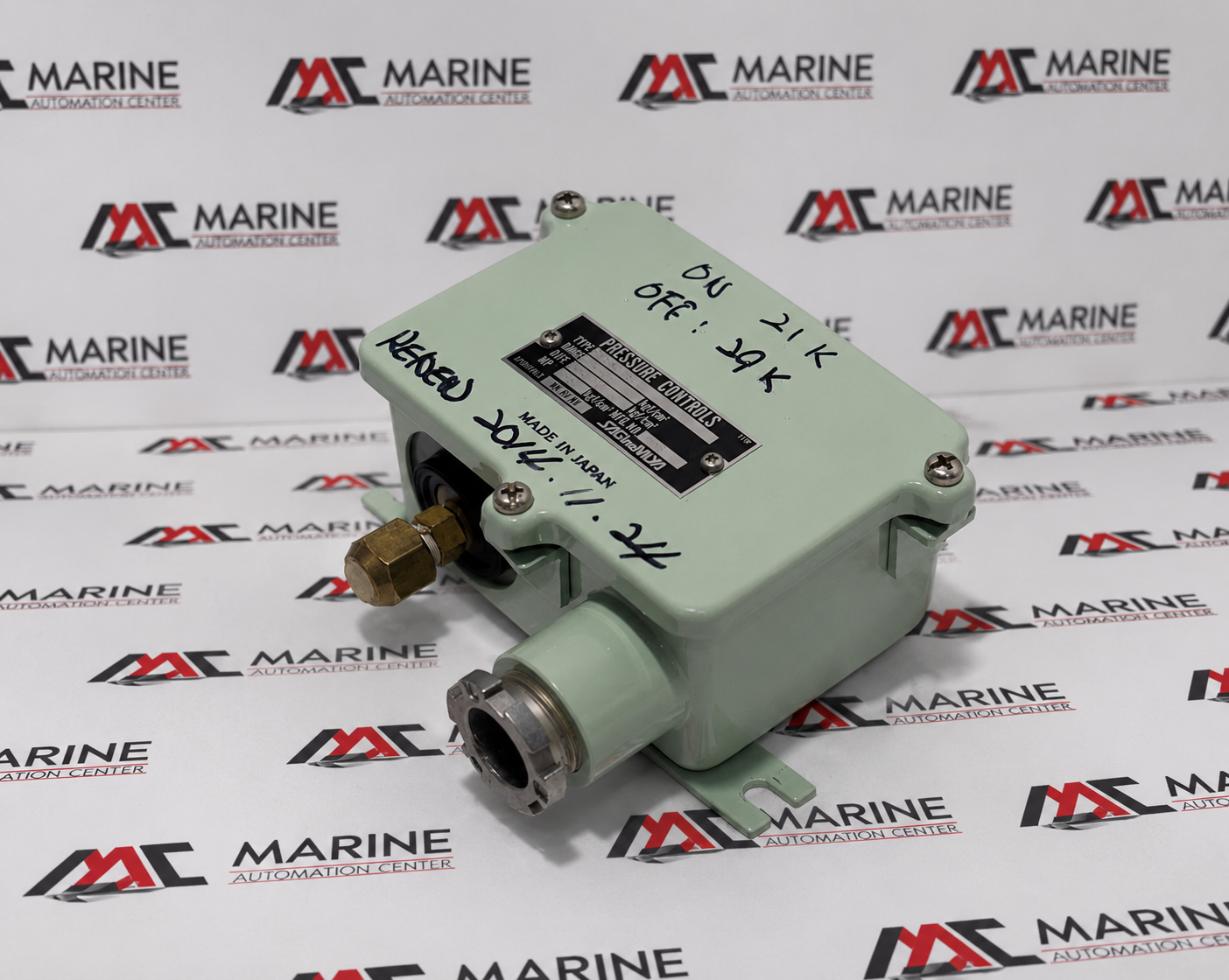

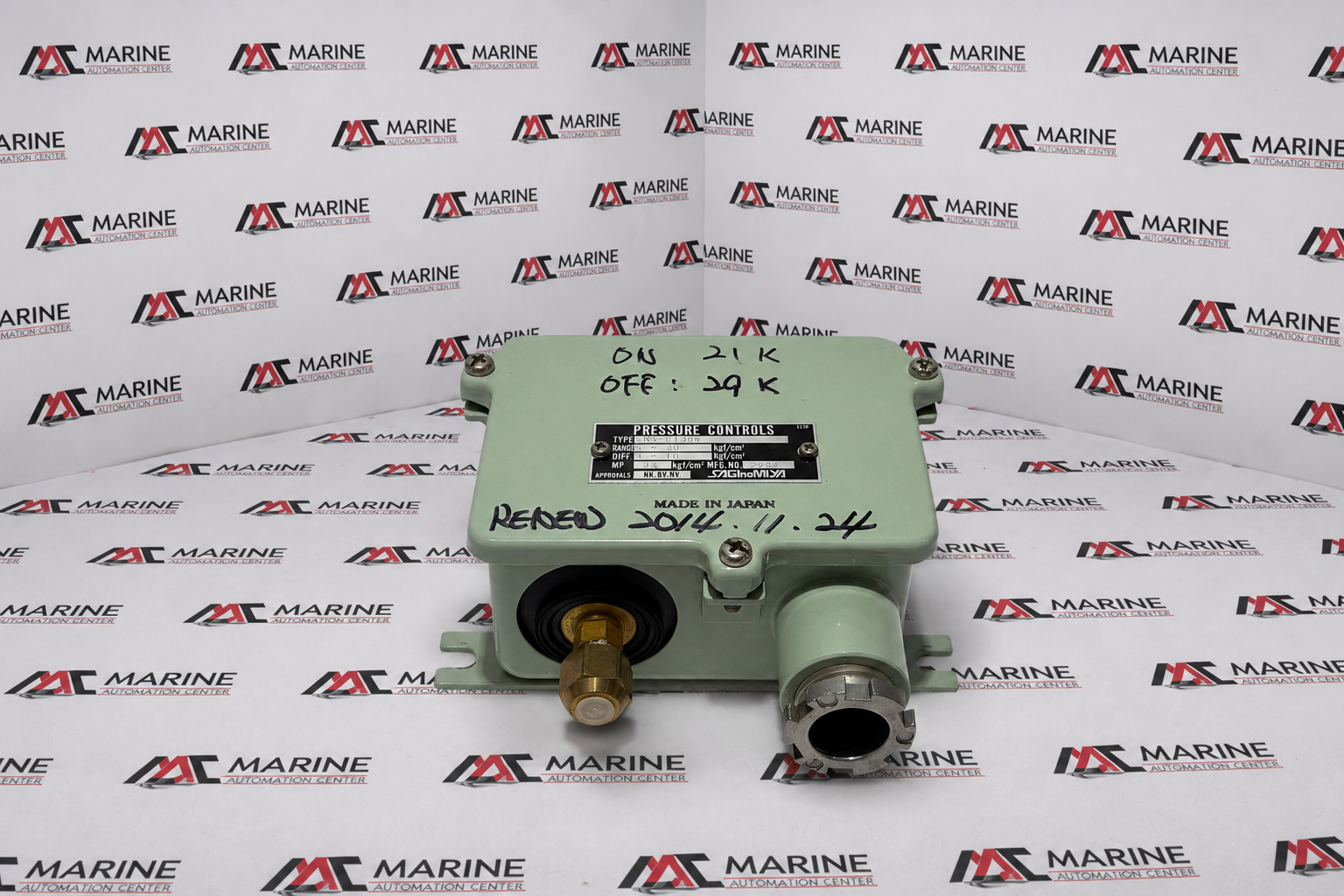

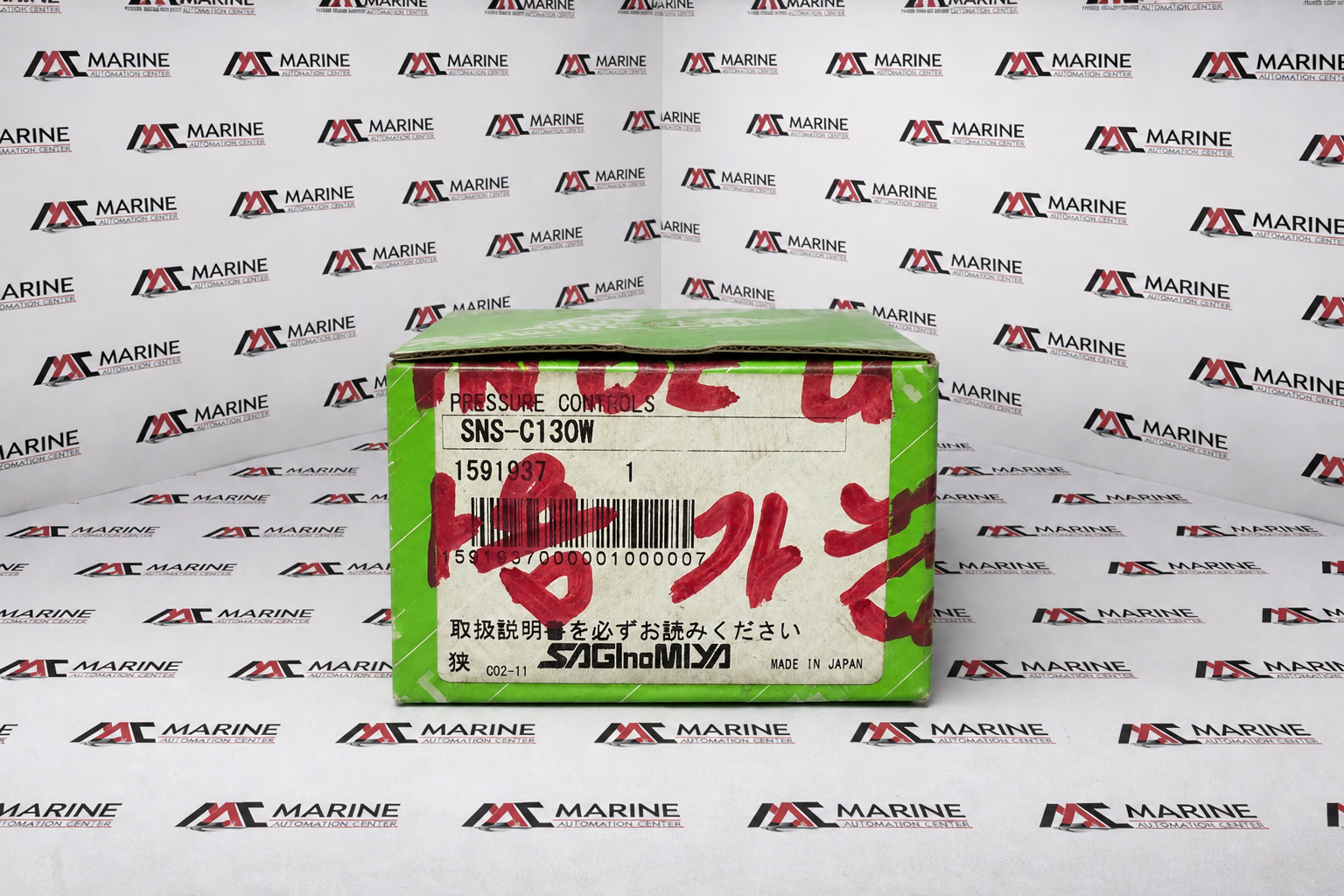

Saginomiya Pressure Switch SNS-C130W
The Saginomiya SNS-C130W Pressure Switch is a robust industrial pressure switch designed to monitor and control pressure in refrigeration, hydraulic, pneumatic, and process systems. It provides accurate pressure switching to protect pumps, compressors, and other equipment while ensuring reliable automatic control and safe operation in marine and industrial applications.
BRAND
Saginomiya
TYPE
Pressure Switch
PART NO.
Saginomiya Pressure Switch SNS-C130W
MODEL
SNS-C130W
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya |
| TYPE | Pressure Switch |
| PART NO. | Saginomiya Pressure Switch SNS-C130W |
| MODEL | SNS-C130W |
| Series | SNS Series |
| Reset Type | Automatic Reset |
| Pressure Range | 5 – 30 kgf/cm² (0.5 – 3.0 MPa) |
| Pressure Unit | kgf/cm² |
| Fluid Temperature Range | -20°C to +120°C |
| Ambient Temperature Range | -20°C to +70°C |
| Application | Pressure monitoring and automatic control for refrigeration systems, compressors, marine machinery, hydraulic and industrial pressure control applications. |
| Made In | Japan |
| REF NO | 1512 |
