Saginomiya Pressure Switch (Pressure Controls)
The Saginomiya SNS-C130W Pressure Switch is a high-quality, industrial-grade pressure control device designed for accurate pressure monitoring and reliable switching in marine and industrial applications. Built for durability and consistent performance, it provides dependable pressure control to help protect equipment and ensure safe system operation. Ideal for use in refrigeration, HVAC, compressors, hydraulic, and other pressure control systems
BRAND
Saginomiya
TYPE
Pressure Switch (Pressure Controls)
PART NO.
Pressure Switch (Pressure Controls) SNS-C130W
MODEL
SNS-C130W
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya |
| TYPE | Pressure Switch (Pressure Controls) |
| PART NO. | Pressure Switch (Pressure Controls) SNS-C130W |
| MODEL | SNS-C130W |
| Application | Pressure monitoring and control for marine, refrigeration, HVAC, hydraulic and industrial systems |
| Made In | Japan |

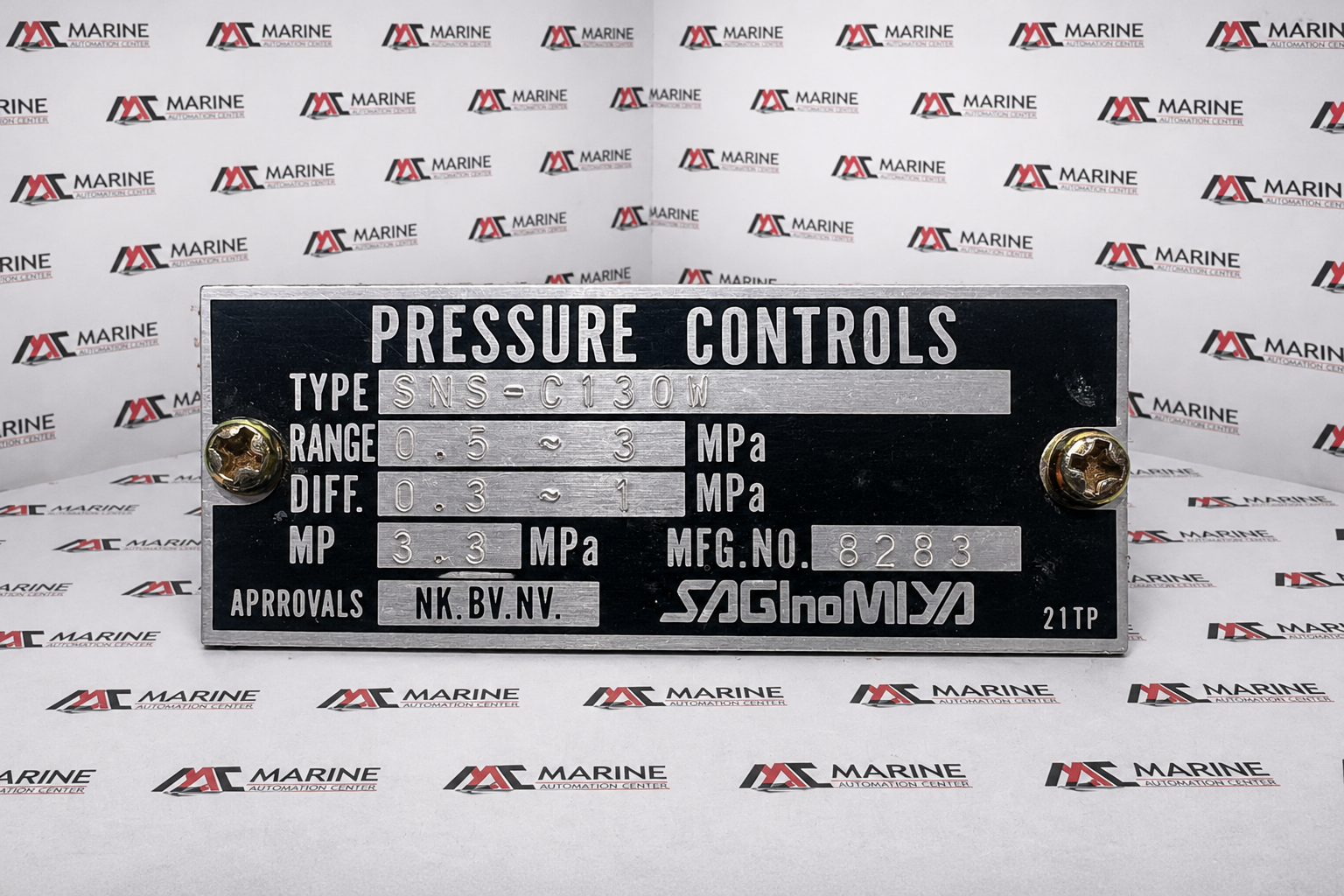

| Pressure Range | 0.5 ~ 3 MPa |
| Differential (DIFF) | 0.3 ~ 1 MPa |
| Maximum Pressure (MP) | 3.3 MPa |
| Approvals | NK, BV, NV |
| Series | SNS-C Series |
| Connection Type | Pressure Port Connection |
| Mounting Type | Surface / Panel Mount |
| Enclosure Color | Light Green |
| Weight | 1.200 kg |
| REF NO | 1196 |
