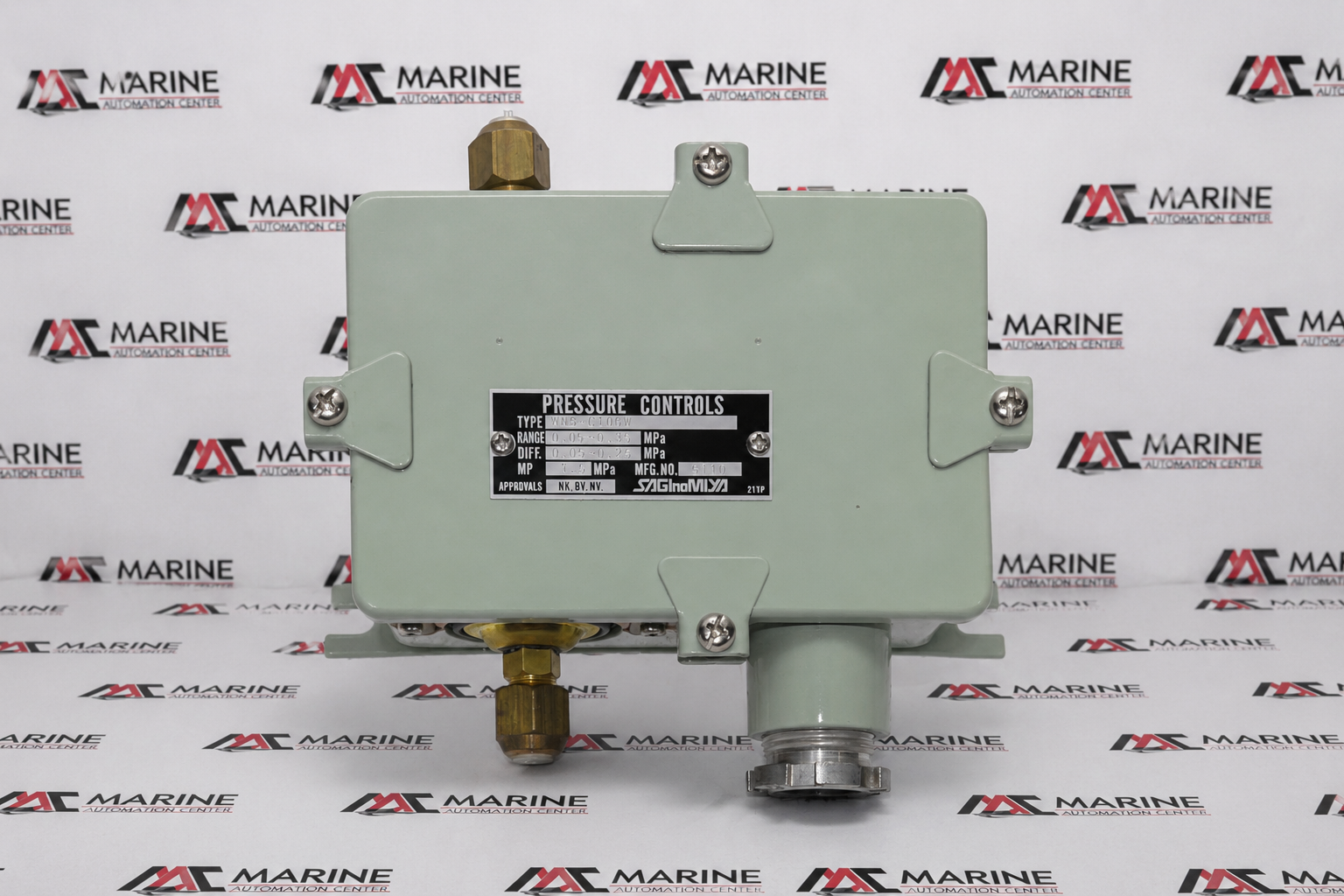

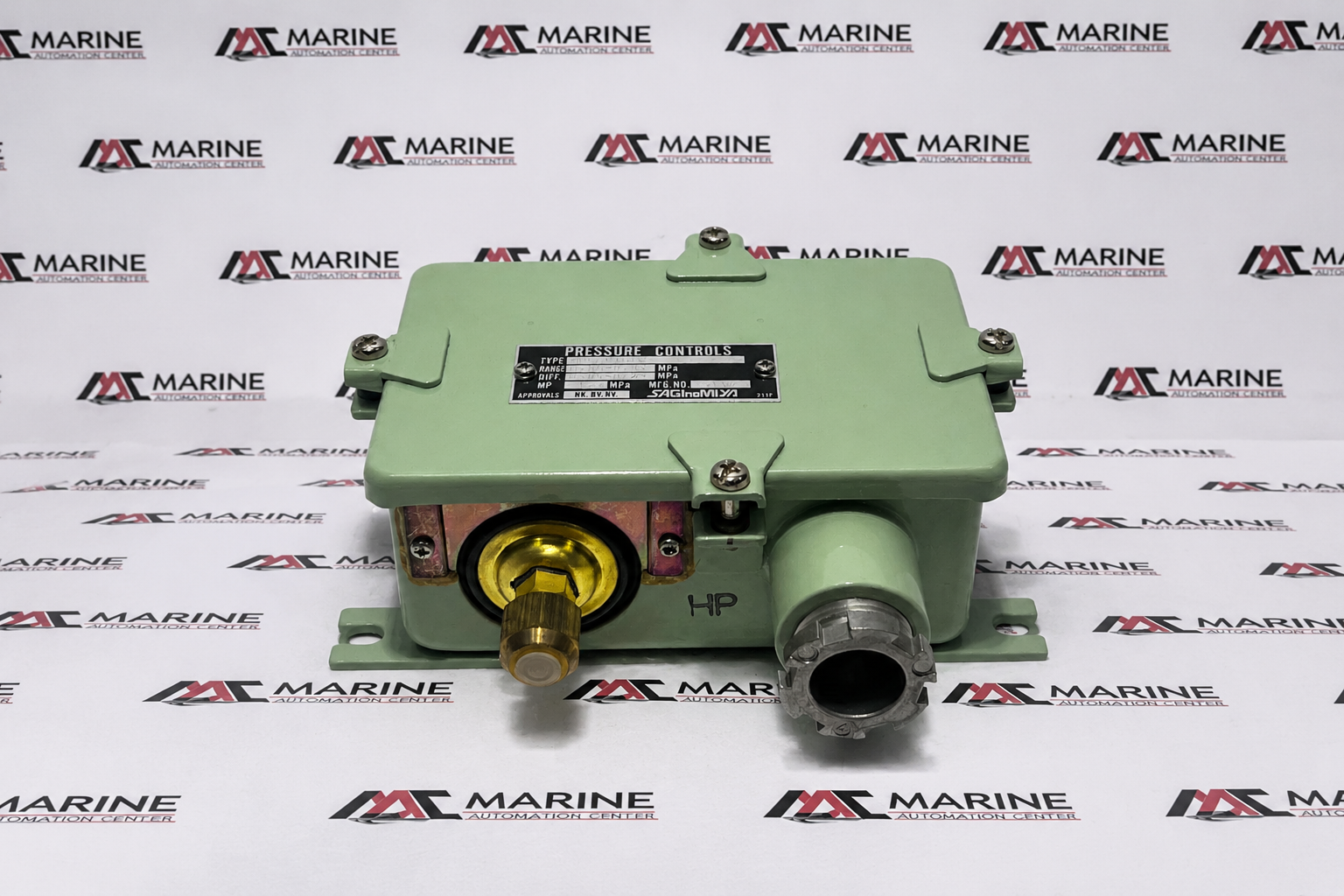

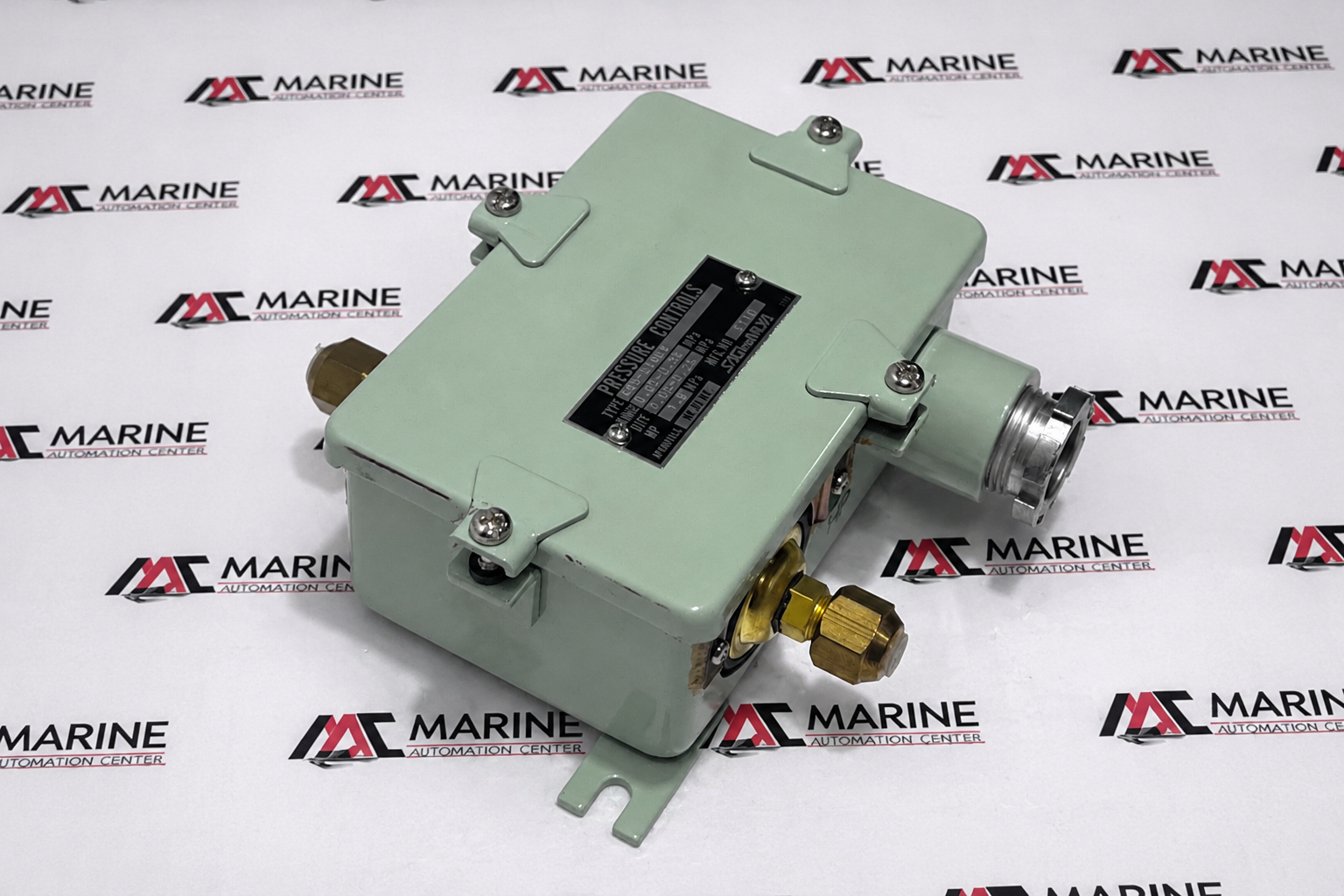

Saginomiya Differential Pressure Control
The Saginomiya WNS-C106W is a mechanical pressure control switch from the WNS Series, designed for accurate monitoring and control of differential pressure in refrigeration, HVAC, marine, and industrial systems. It provides reliable switching performance, durable construction, and long service life in demanding operating environments
BRAND
Saginomiya
TYPE
Pressure Control
PART NO.
Saginomiya Pressure Control WNS-C106W
MODEL
WNS-C106W
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Saginomiya |
| TYPE | Pressure Control |
| PART NO. | Saginomiya Pressure Control WNS-C106W |
| MODEL | WNS-C106W |

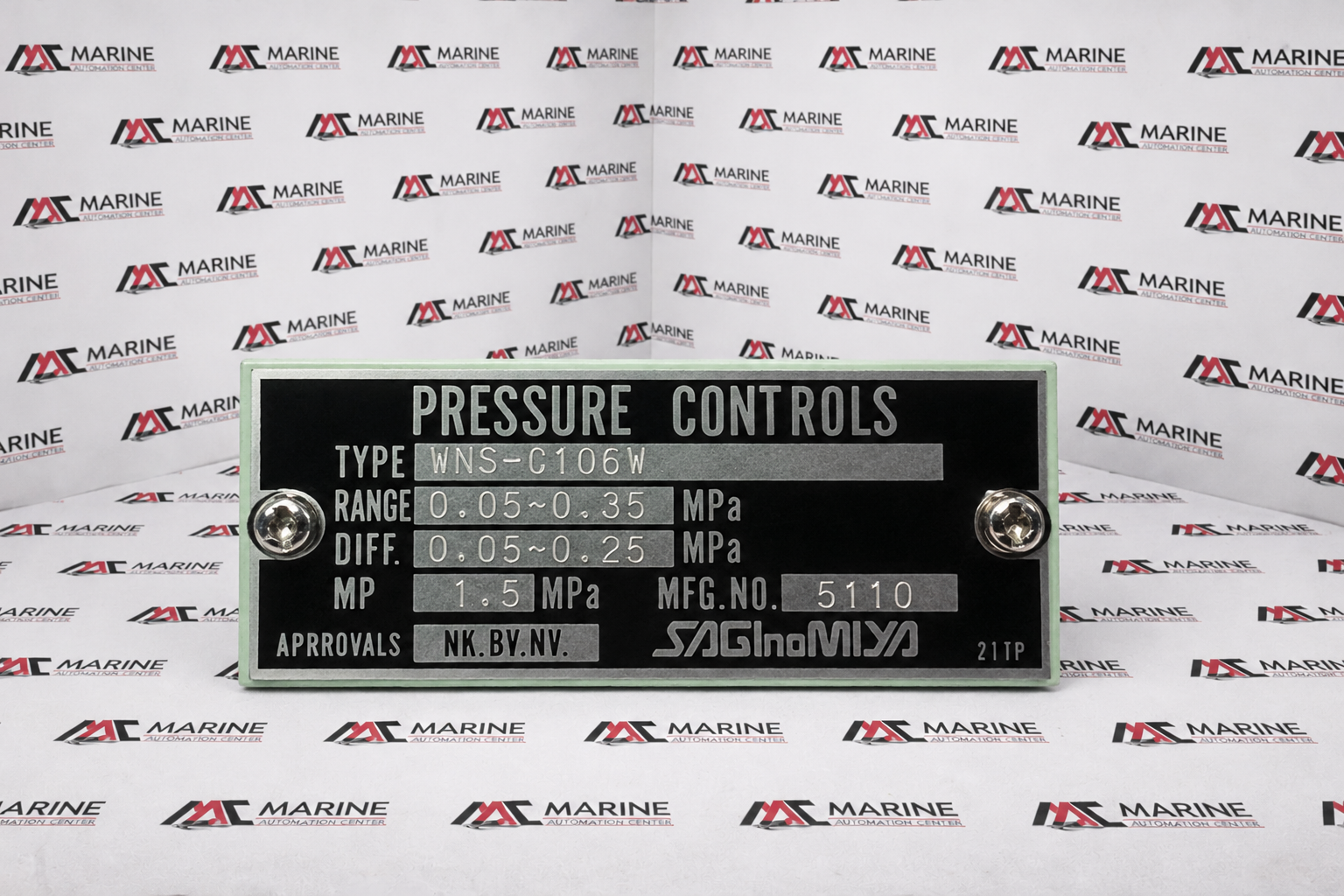

| Pressure Range (Set Point) | 0.05–0.35 MPa |
| Differential (Adjustable) | 0.05–0.25 MPa |
| Maximum Pressure (MP) | 1.5 MPa |
| Manufacturing Number | 5110 |
| Approvals | NK, BV, NV |
| Pressure Unit | MPa |
| Operating Principle | Mechanical pressure-actuated switch |
| Mounting Style | Panel / Equipment Mount |
| Application | Pressure monitoring and automatic pressure control |
| MADE IN | JAPAN |
| Ref no | 1220 |
