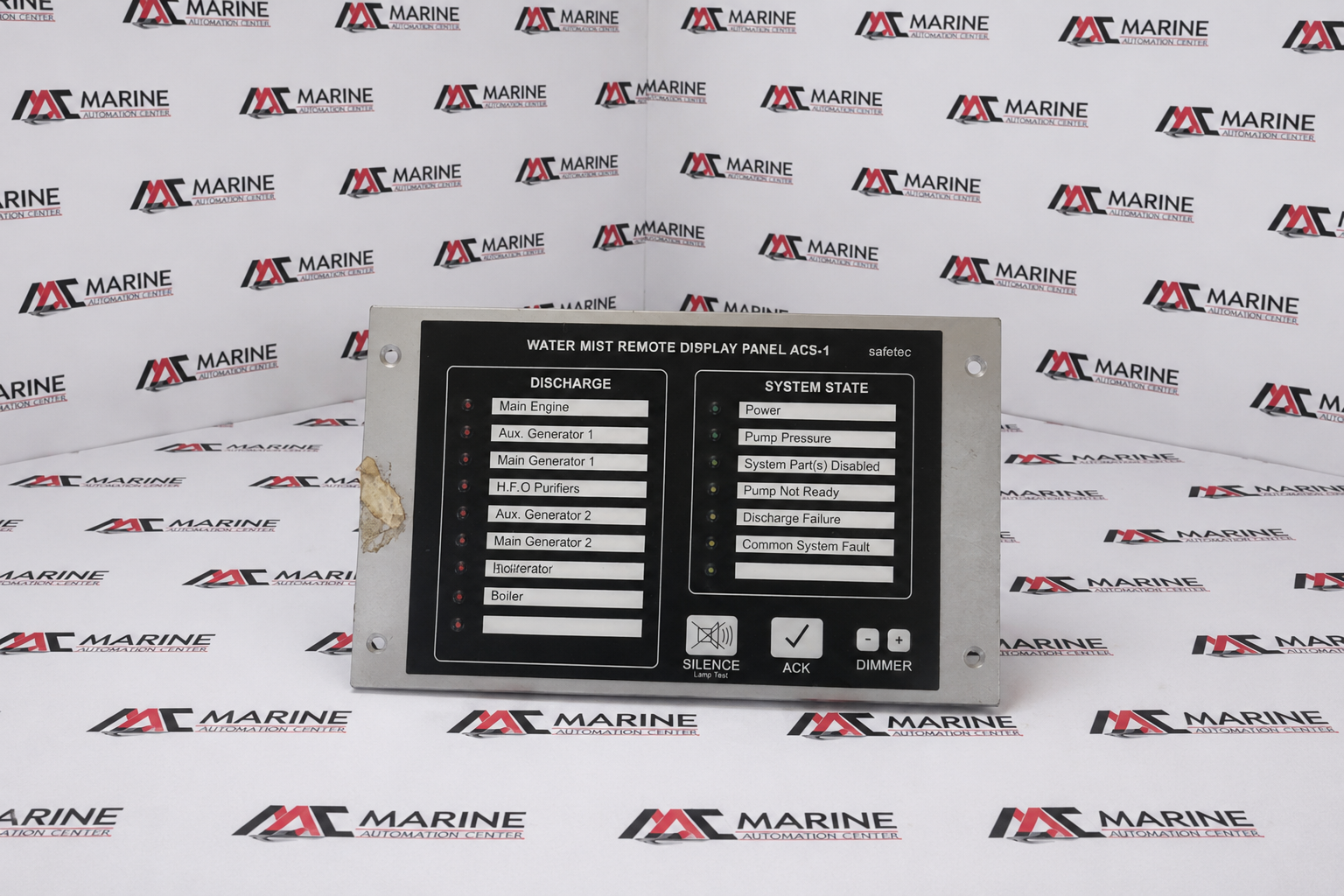

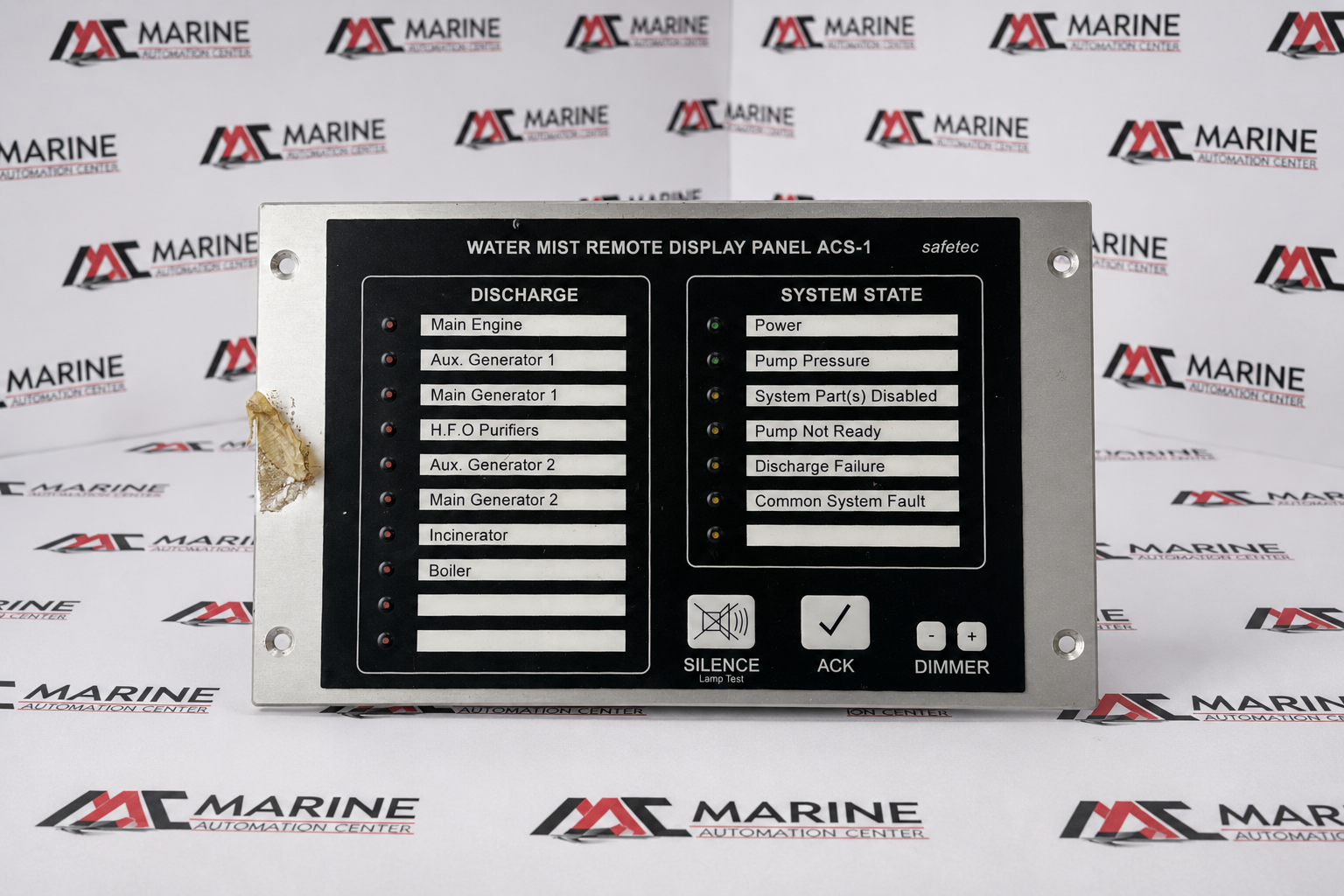

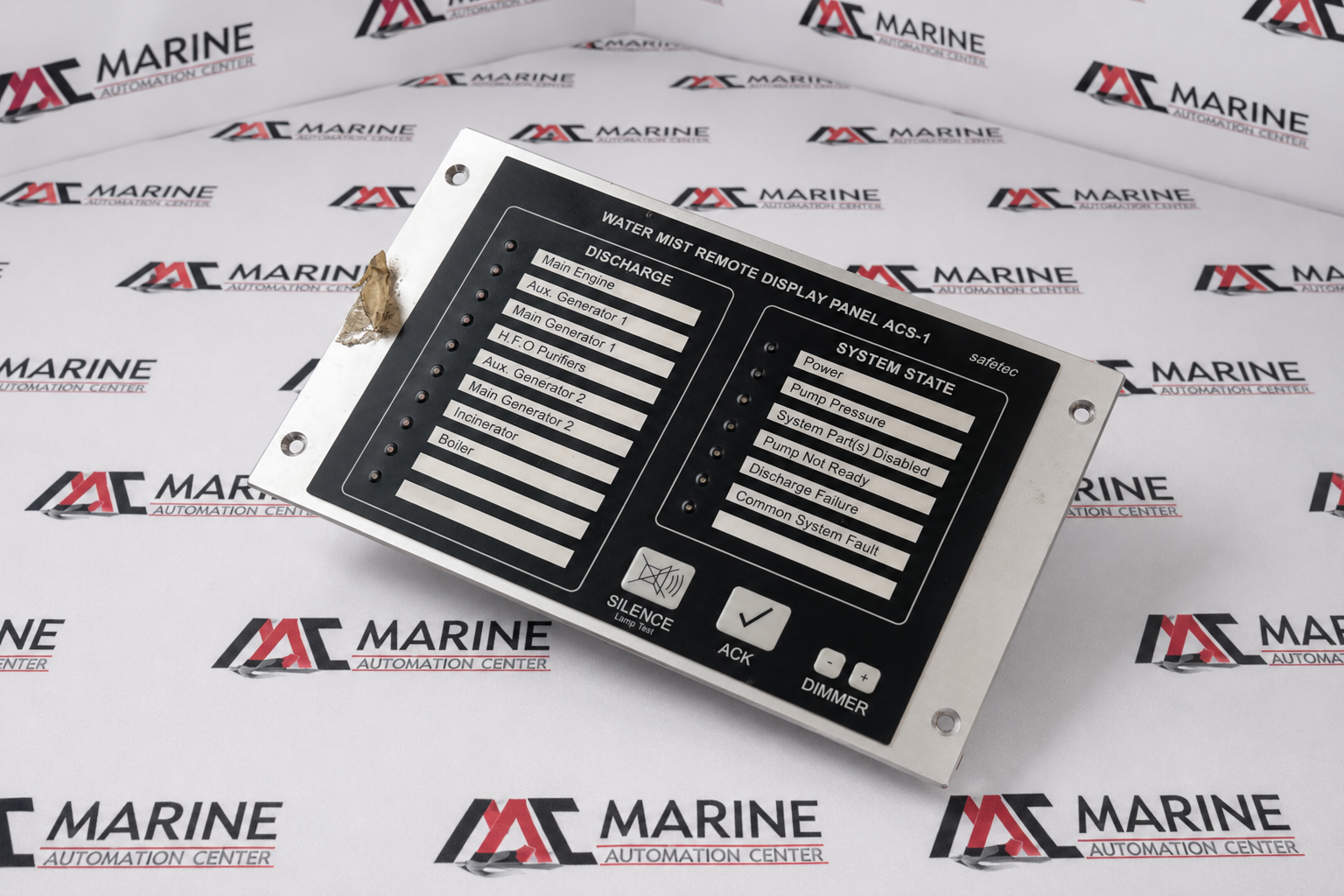

safetec Water Mist Remote Display Panel ACS-1
The safetec ACS-1 is a marine-grade Water Mist Remote Display Panel used to monitor and manage shipboard fire-fighting systems.
BRAND
SAFETEC
TYPE
Led Display Panel
PART NO.
ACS-1
MODEL
ACS-1
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|

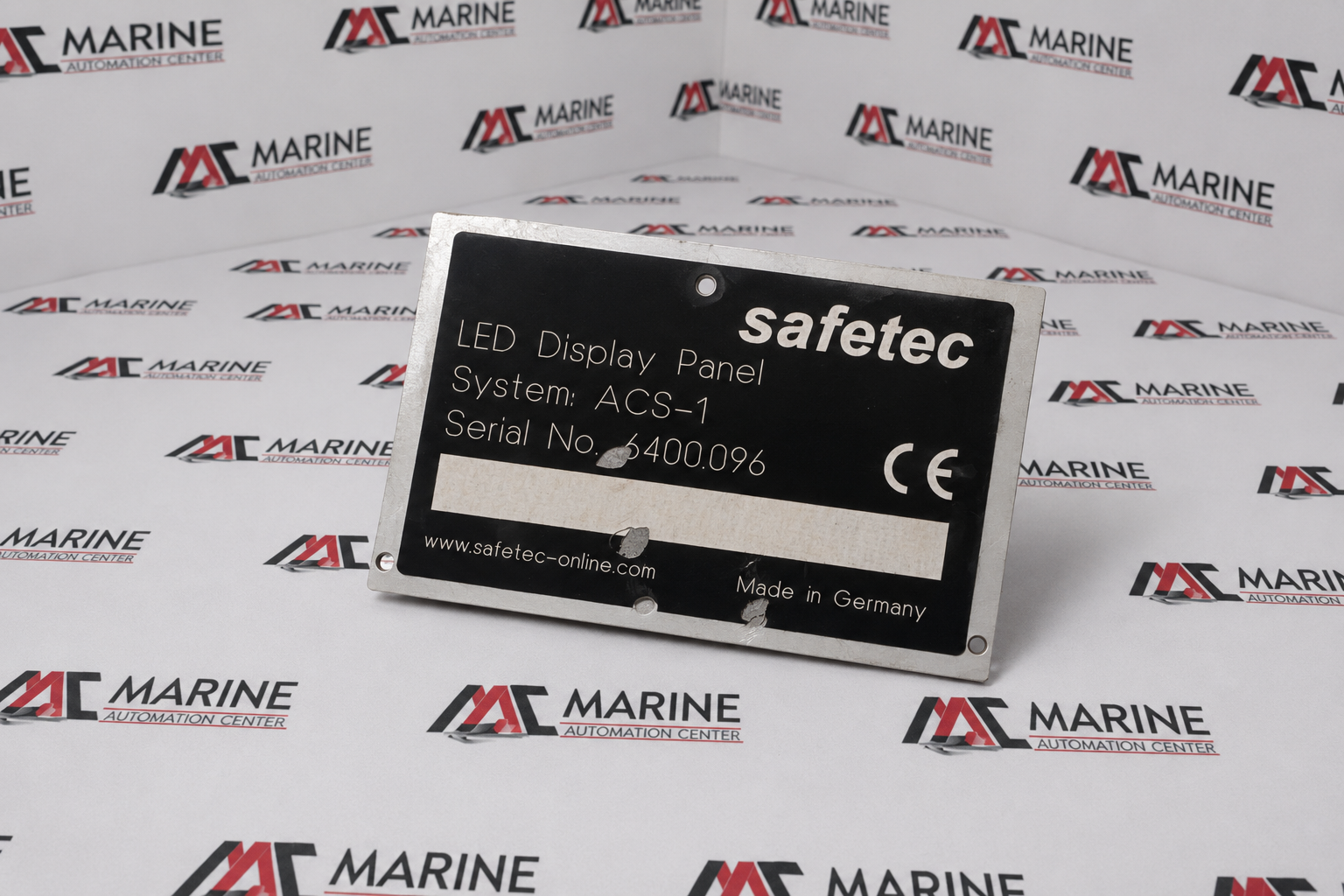

| Serial Number | 6400,096 |
| Operating Principle | Electronic multi-zone status indicator with microprocessor-controlled logic feedback |
| Application: | Monitors local application water mist fire-fighting systems in shipboard engine rooms, tracking active discharge status across components like the Main Engine, Auxiliary Generators, H.F.O Purifiers, and Boilers. |
| Operating Function: | Visual multi-color LED alarm monitoring with built-in operator control pushbuttons |
| Housing Material: | Stainless steel or anodized marine-grade aluminum faceplate with a sealed rear electronic casing |
| Display Type: | Multi-LED matrix status matrix with a multi-step backlight dimmer |
| Switching Contacts: | Back-end electrical terminals for remote alarm relay forwarding, system silencing, and central PLC integration |
| Mounting: | Panel flush mounting via front-facing screw holes |
| Electrical Function: | Fault signaling, lamp testing, alarm silencing, and event acknowledgment (ACK) |
| IEC / Standards: | CE marked, compliant with global marine classification society standards (DNV, BV, GL) for vessel safety electronics |
| Made In: | Germany |
| Ref No. | 493 |
