SAACKE BOILER CONTROLLER RSE-P II
The SAACKE GmbH 7-8073-00529097 Boiler Controller is an industrial boiler control module designed to manage and monitor burner operation, combustion sequences, flame supervision, and safety interlocks in marine and industrial boiler systems. It provides reliable, automated control to ensure safe, efficient, and stable boiler performance while supporting combustion system protection and operational efficiency.
BRAND
SAACKE
TYPE
BOILER CONTROLLER
PART NO.

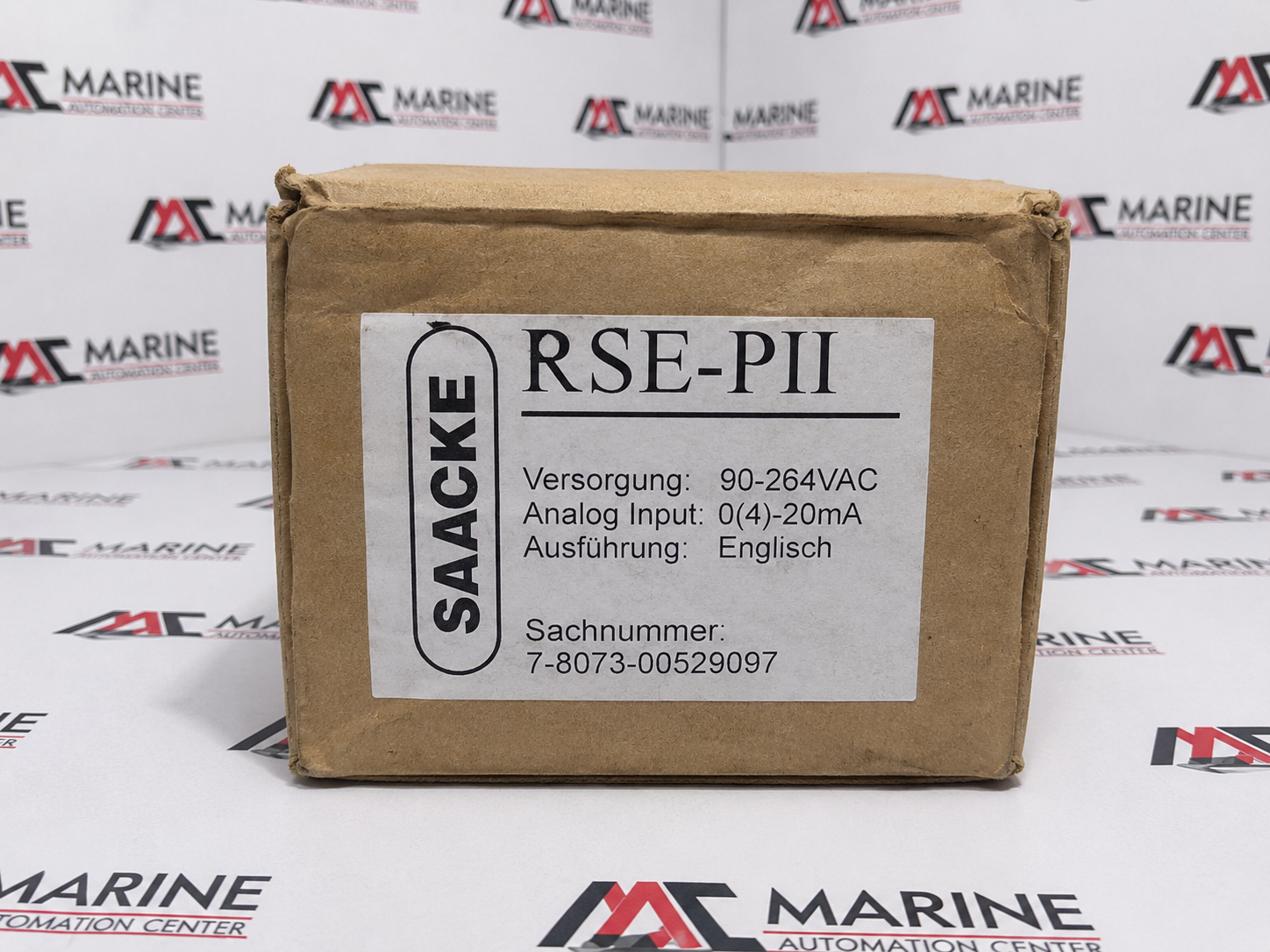

7-8073-00529097
MODEL
RSE-P II
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SAACKE |
| TYPE | BOILER CONTROLLER |
| PART NO. | 7-8073-00529097 |
| MODEL | RSE-P II |
| SUPPLY VOLTAGE | 90–264 V AC |

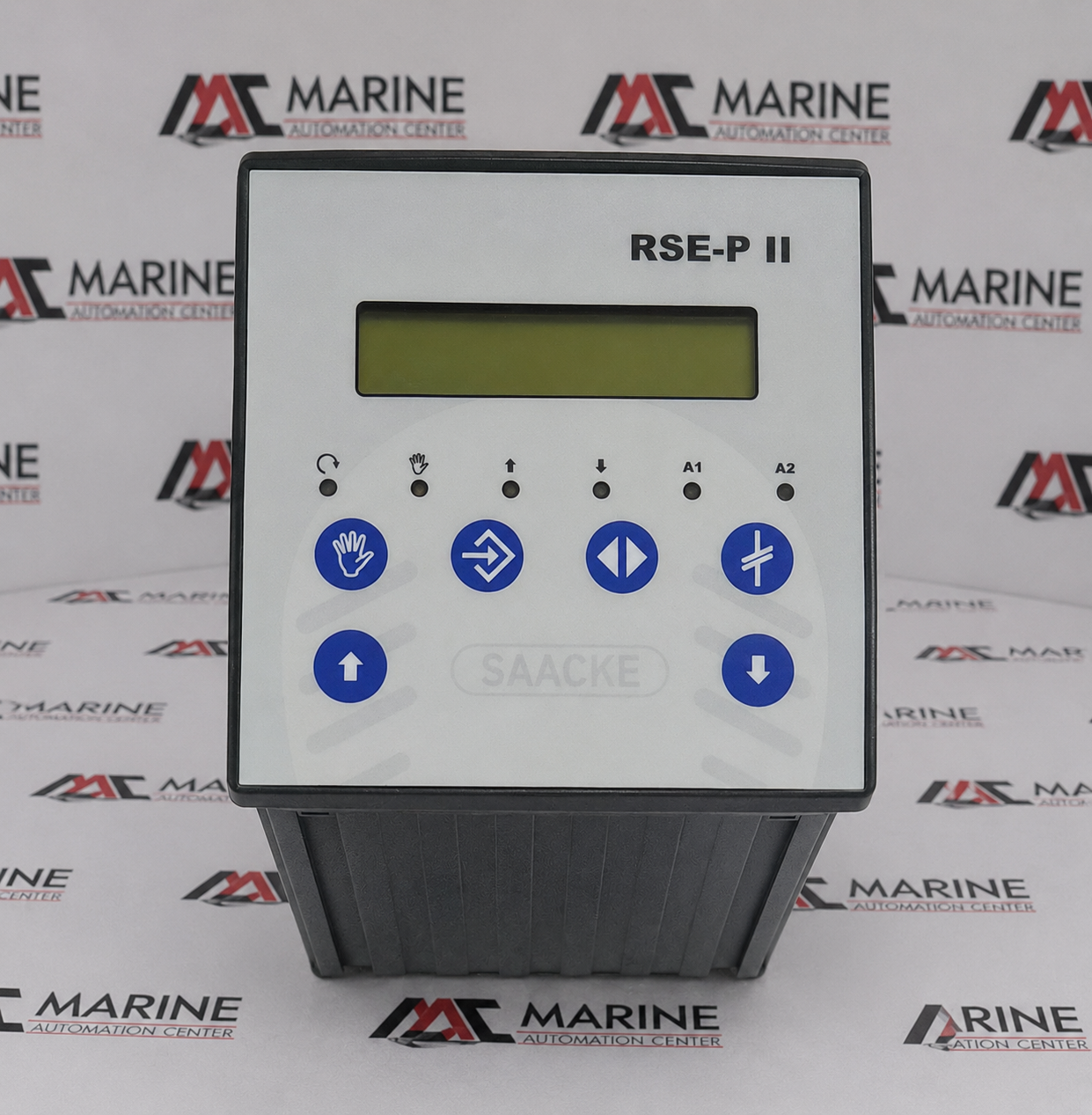

| DISPLAY | Integrated LCD Display |

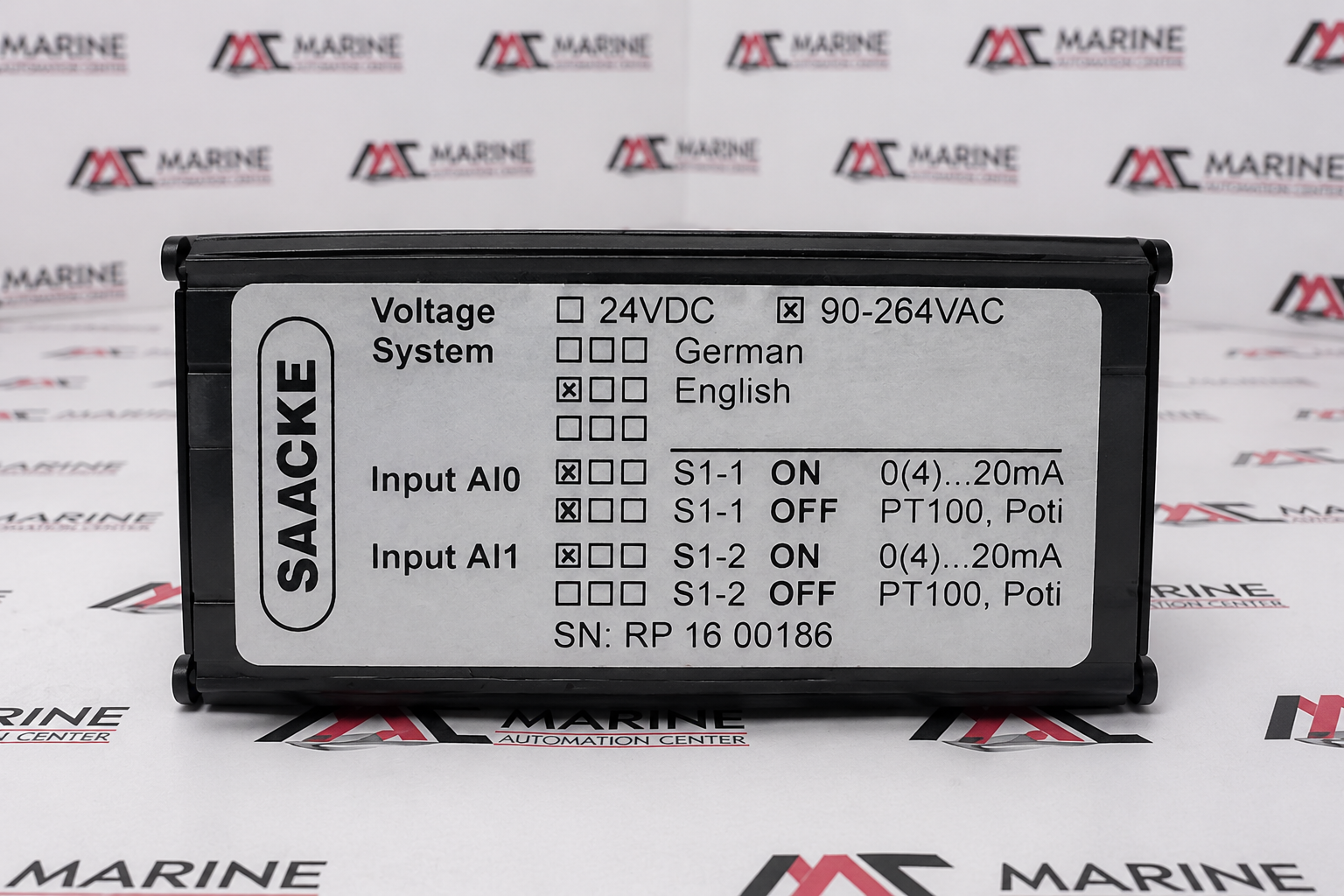

| ANALOG INPUT AI0 | PT100 / Potentiometer (S1-1 OFF) |
| ANALOG INPUT AI1 | 0(4)–20 mA (S1-2 ON) |
| DIGITAL INPUTS | DI0, DI1, DI2 |
| DIGITAL OUTPUTS | Relay Output 0, Relay Output 1 |

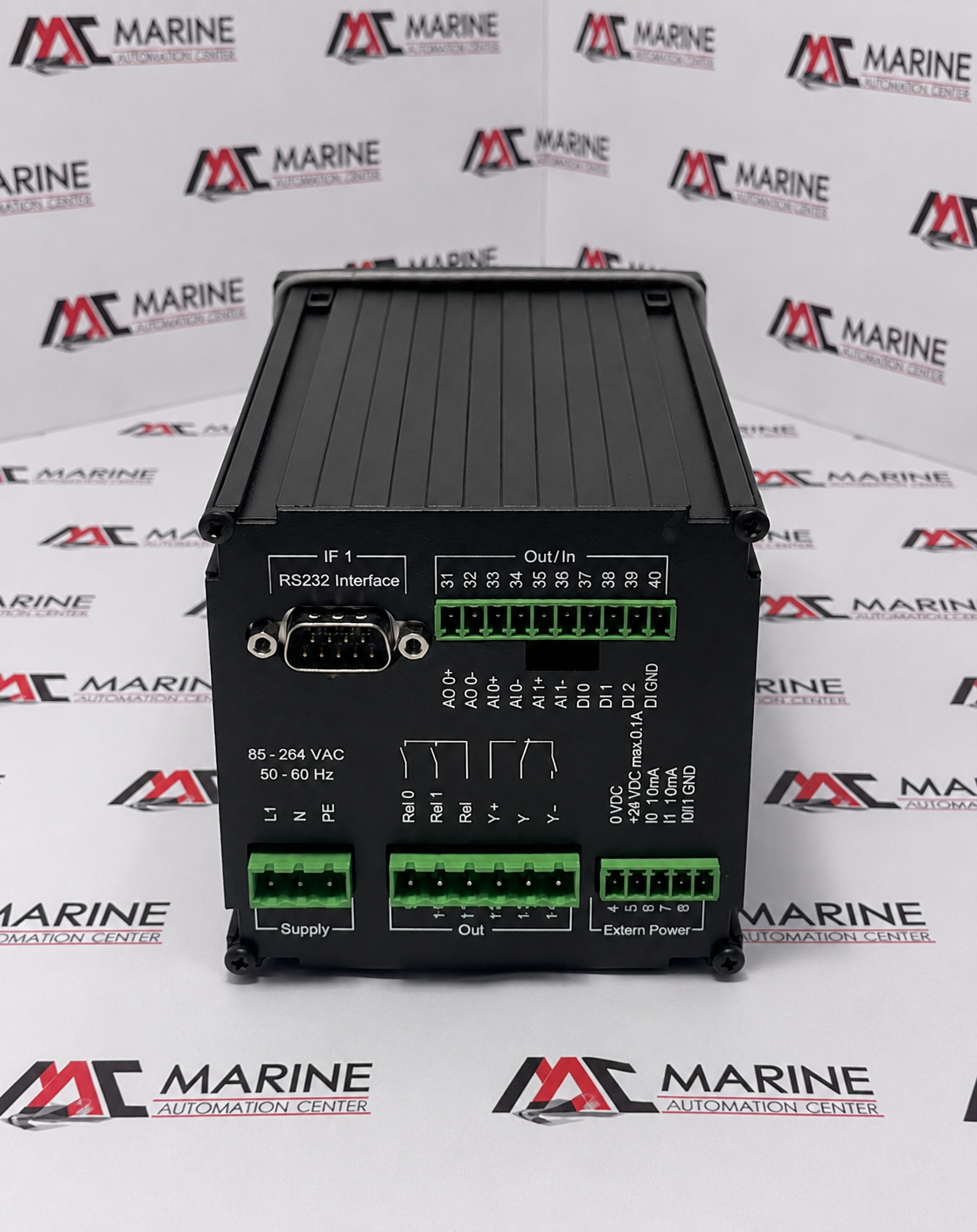

| COMMUNICATION INTERFACE | RS-232 Serial Interface |
| EXTERNAL POWER | +24 V DC (Max. 0.1 A), 10 mA Input, DI GND |
| MOUNTING TYPE | Panel Mount |
| APPLICATION | Industrial burner control, combustion monitoring, boiler management systems, marine boiler automation, burner supervision, process heating control |
| SERIAL NUMBER | RP 16 00186 |
| MADE IN | Germany |
| REF NO. | 1314 |
