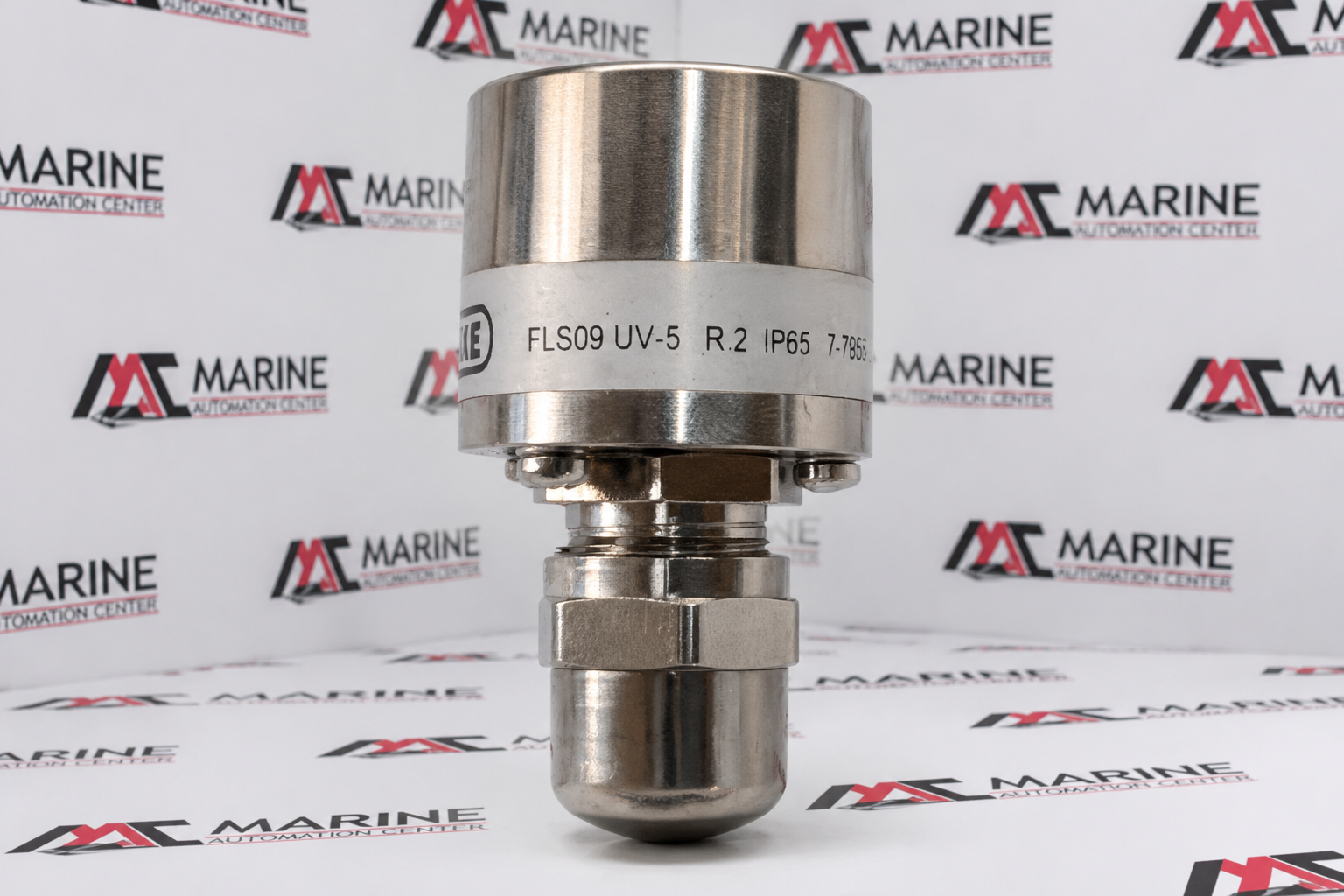

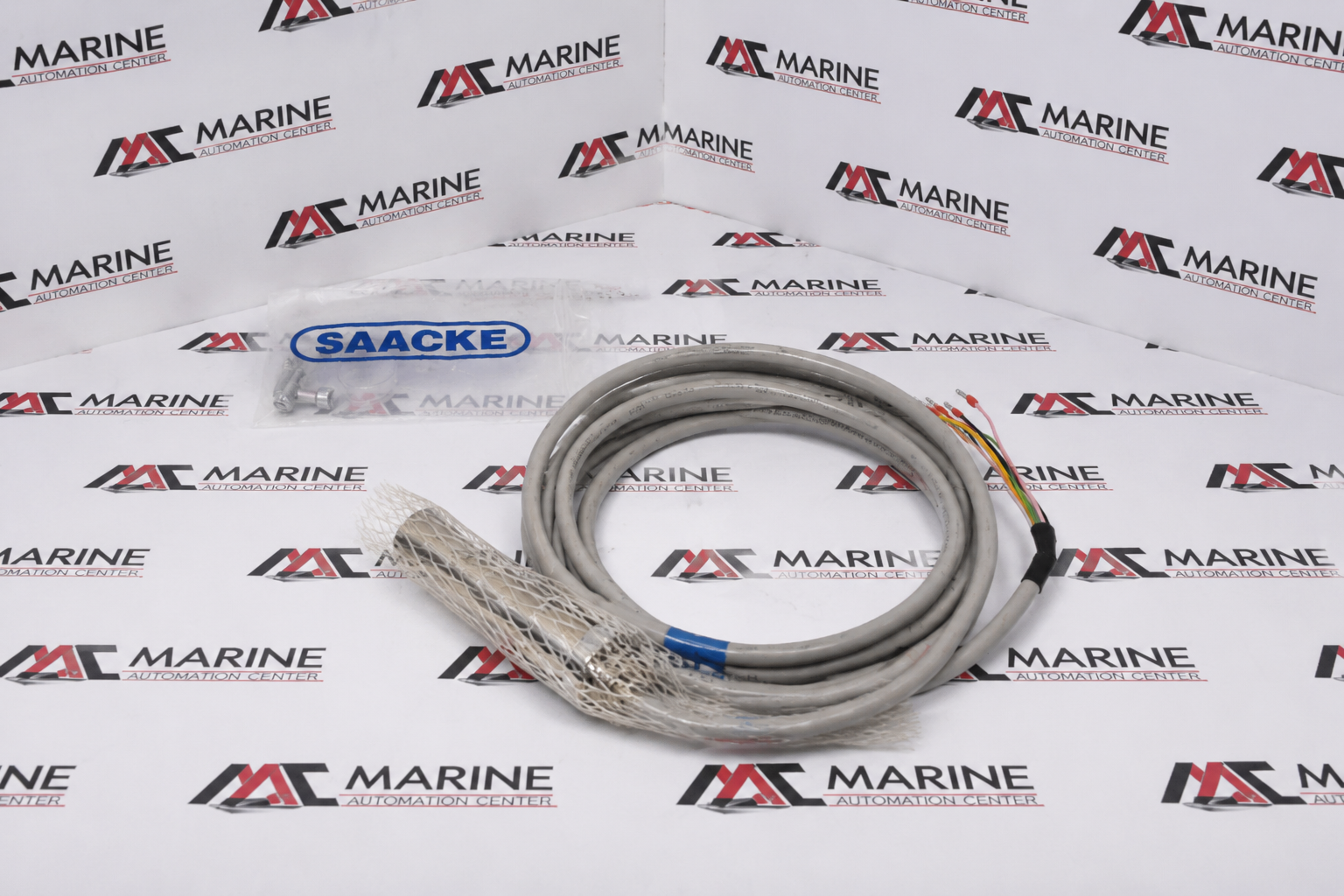

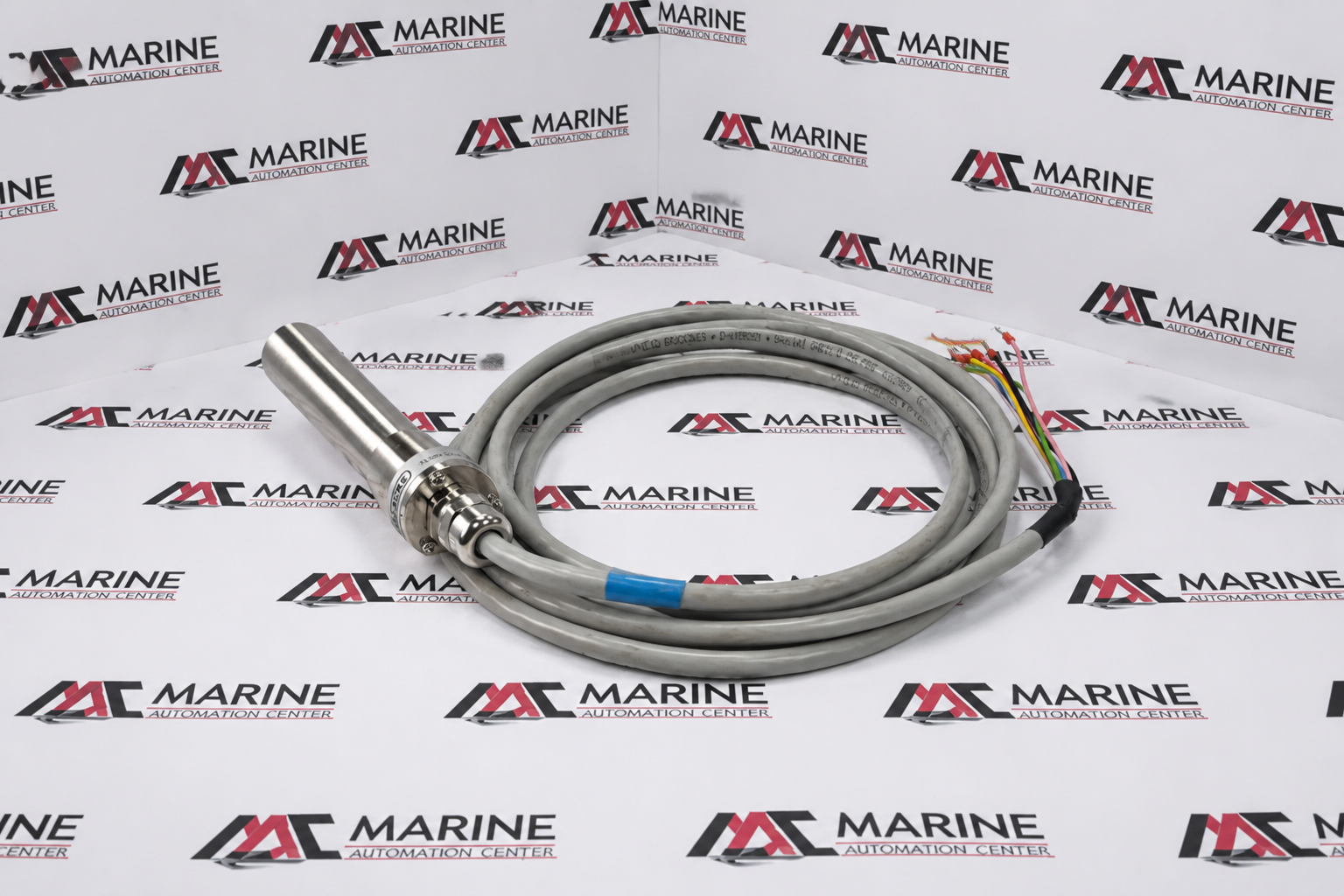

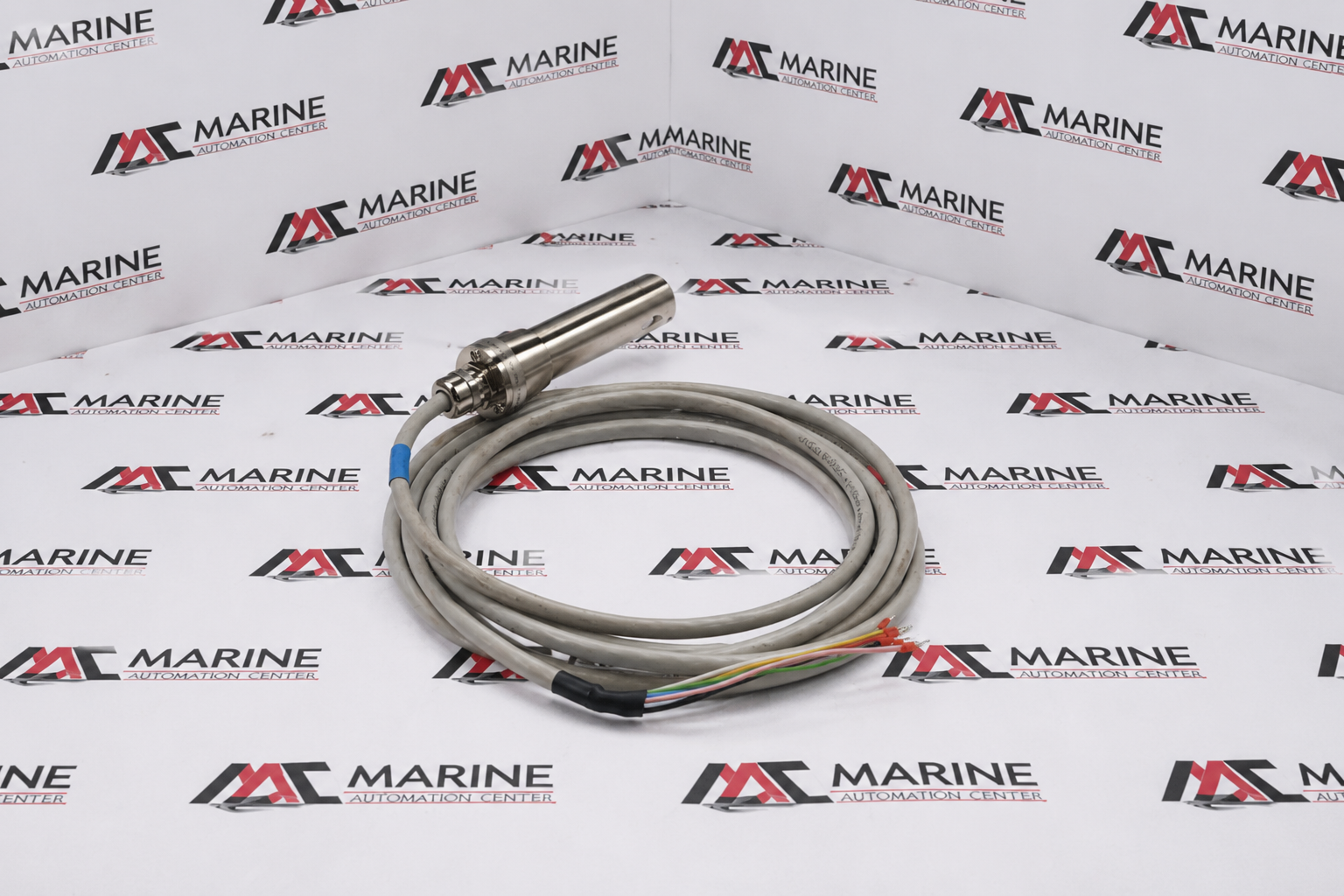

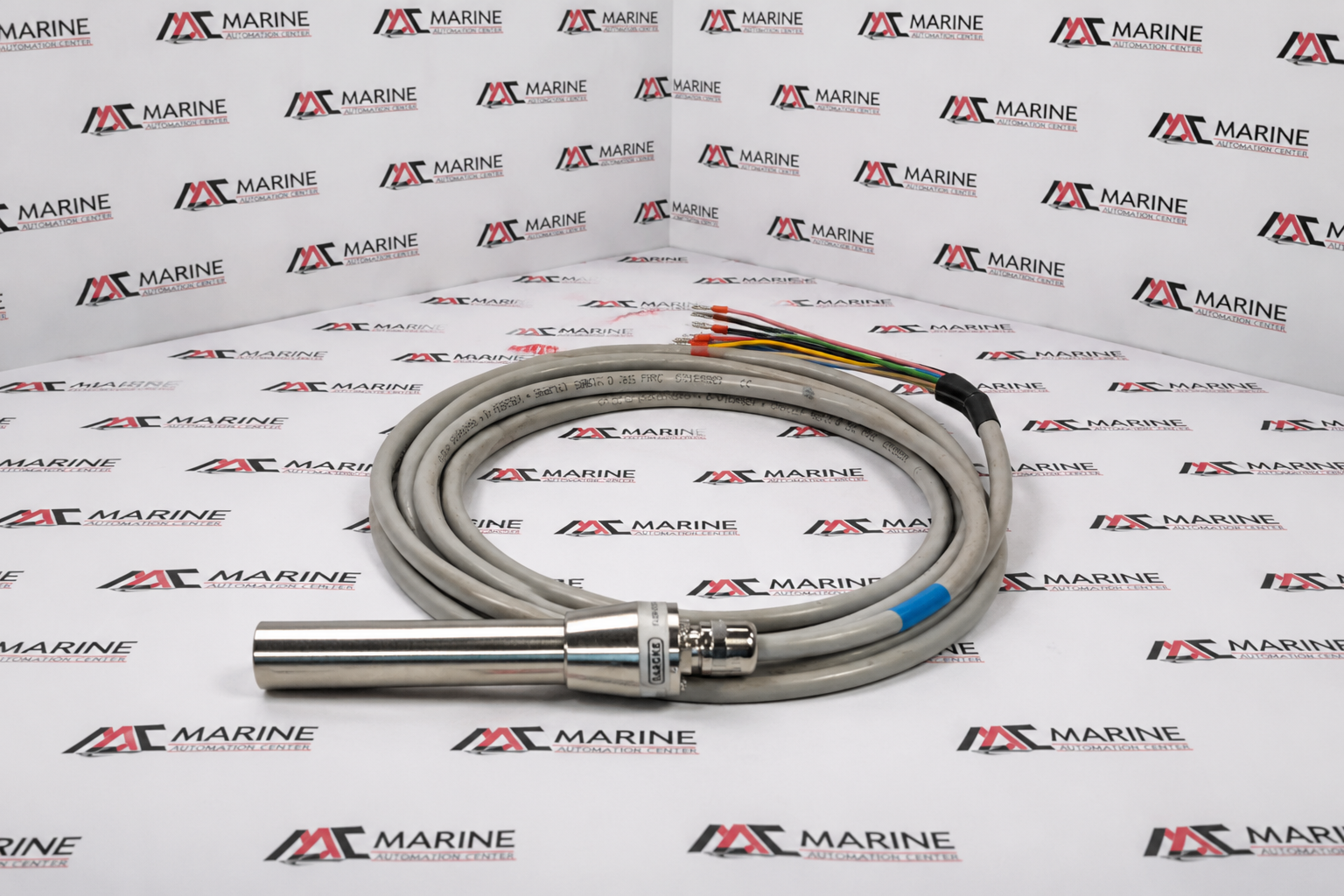

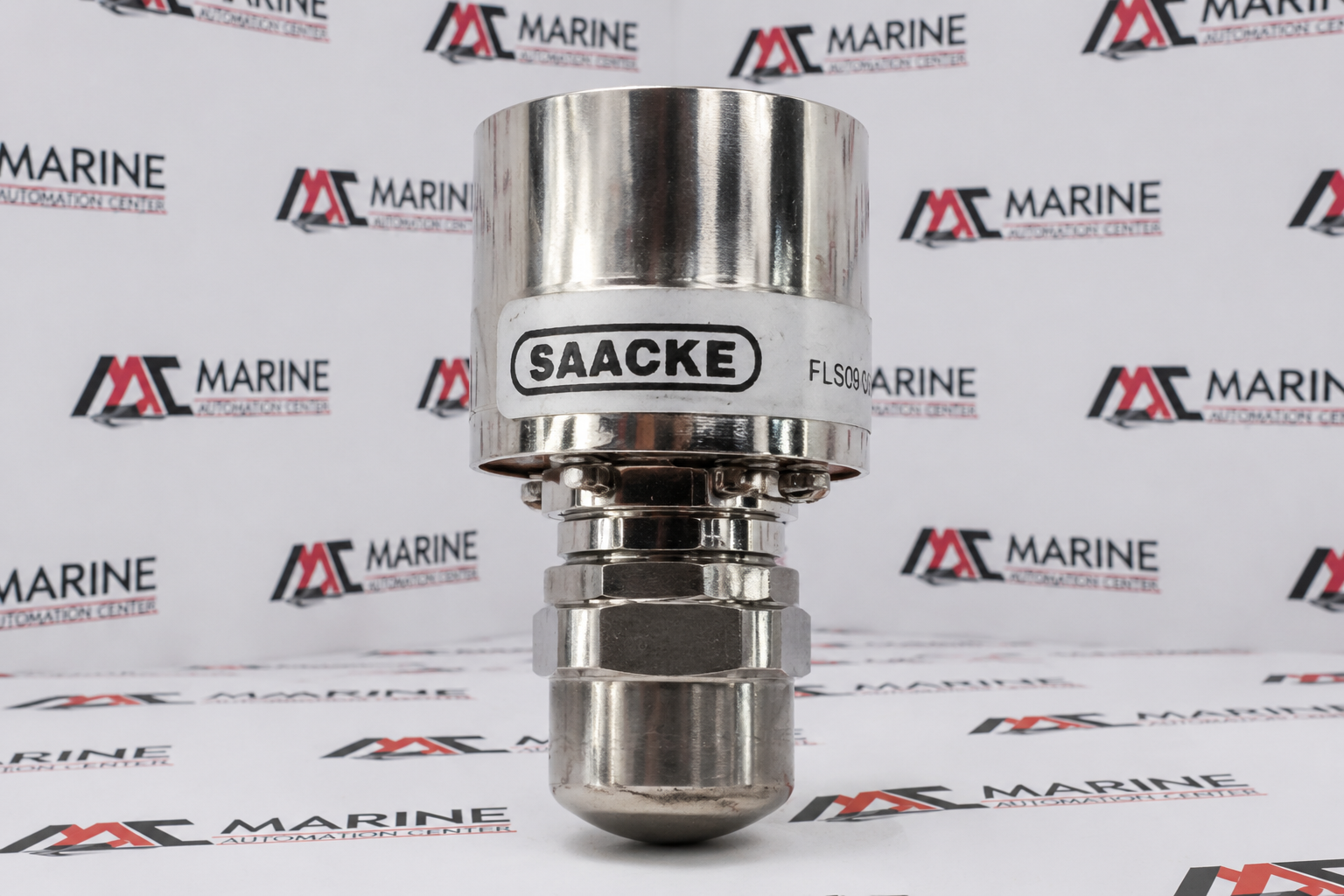

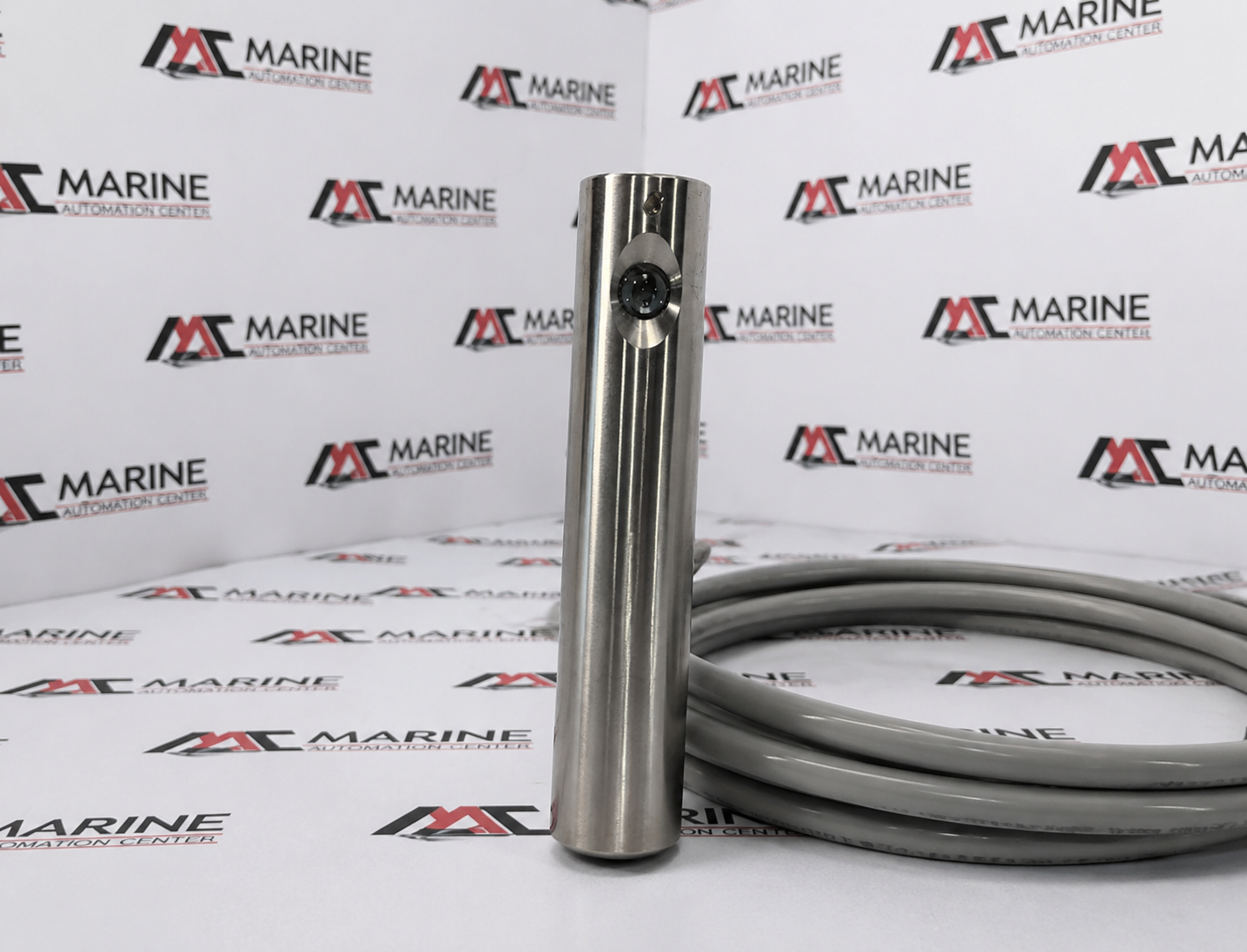

SAACKE FLS09 UV-5 R.2 Flame Scanner Sensor
SAACKE FLS09 UV-5 R.2 Flame Scanner Sensor is an ultraviolet (UV) flame detection sensor designed to monitor and verify flame presence in industrial burners and boiler systems. It provides fast, reliable flame supervision to enhance burner safety, ensure stable combustion, and support automatic burner management in marine and industrial applications
BRAND
SAACKE
TYPE
Ultraviolet (UV) Flame Scanner / Sensor
PART NO.
7-7955-10642723
MODEL
FLS09 UV-5 R.2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SAACKE |
| TYPE | Ultraviolet (UV) Flame Scanner / Sensor |
| PART NO. | 7-7955-10642723 |
| MODEL | FLS09 UV-5 R.2 |
| Voltage Rating | 24 V DC Power Supply |
| Application | Industrial combustion systems, automatic marine boiler control sequences, furnace monitoring, and continuous gas/oil burner safety operations. |
| IEC | CE Marked; meets industrial combustion safety and emission engineering regulations |
| Detection Operational Principle | Gas discharge tube mechanism responsive specifically to narrow-band Ultraviolet (UV) radiation wavelengths |
| Spectral Sensitivity Detection Range | 190 nm to 270 nm |
| Ingress Protection Sealing Rating | IP65 classification according to EN 60529 |
| Operating Ambient Temperature | -20 °C to +60 °C |
| Housing Body Assembly Material | Heavy-duty, corrosion-resistant passivated stainless steel alloy block layout optimized for harsh engine rooms |
| Integration Functionality | Signals safety burner control sequence devices instantly to initiate complete automation emergency gas shutoffs during flame failure conditions |
| Made In | Germany |
| REF NO | 336 |
