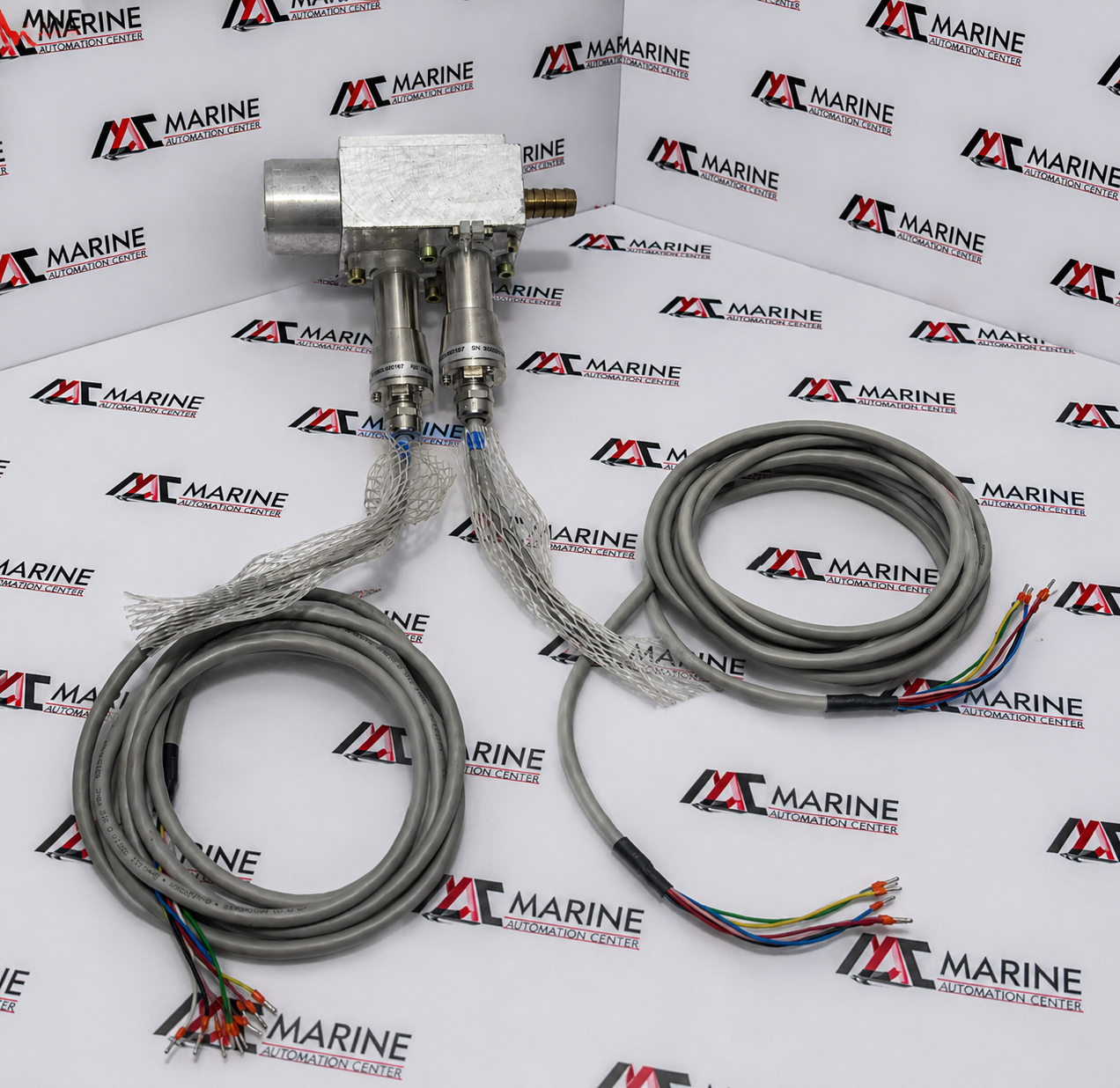

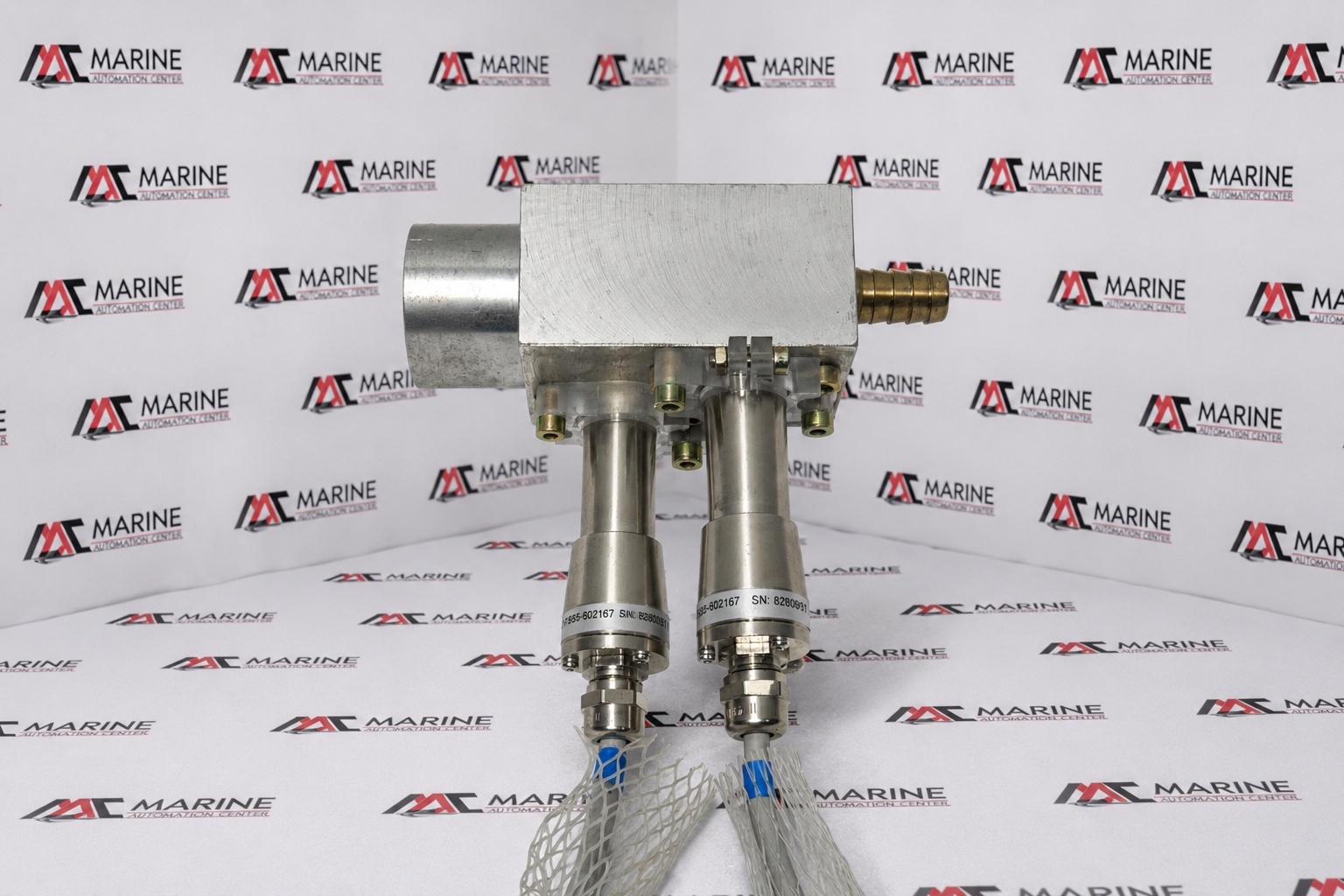

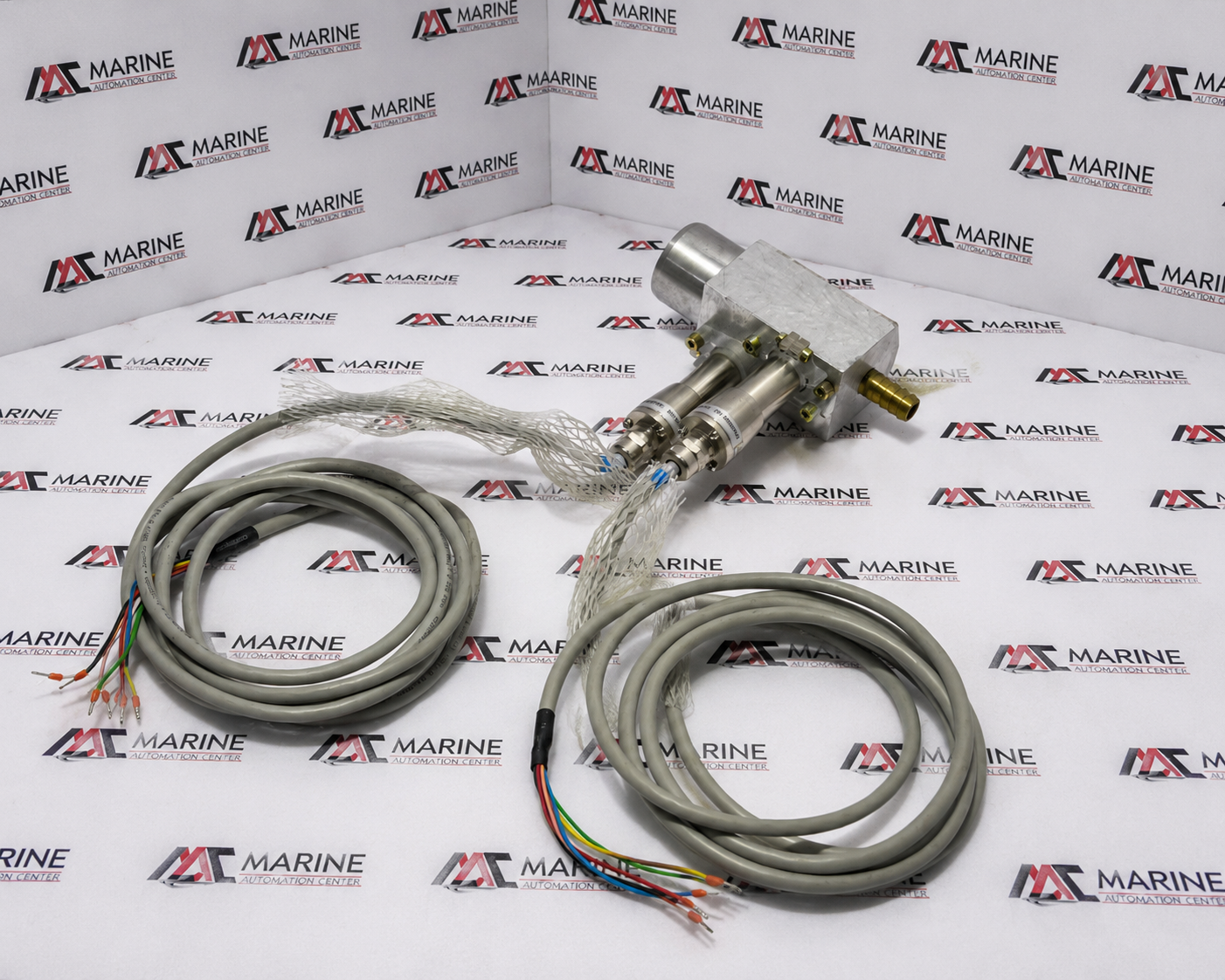

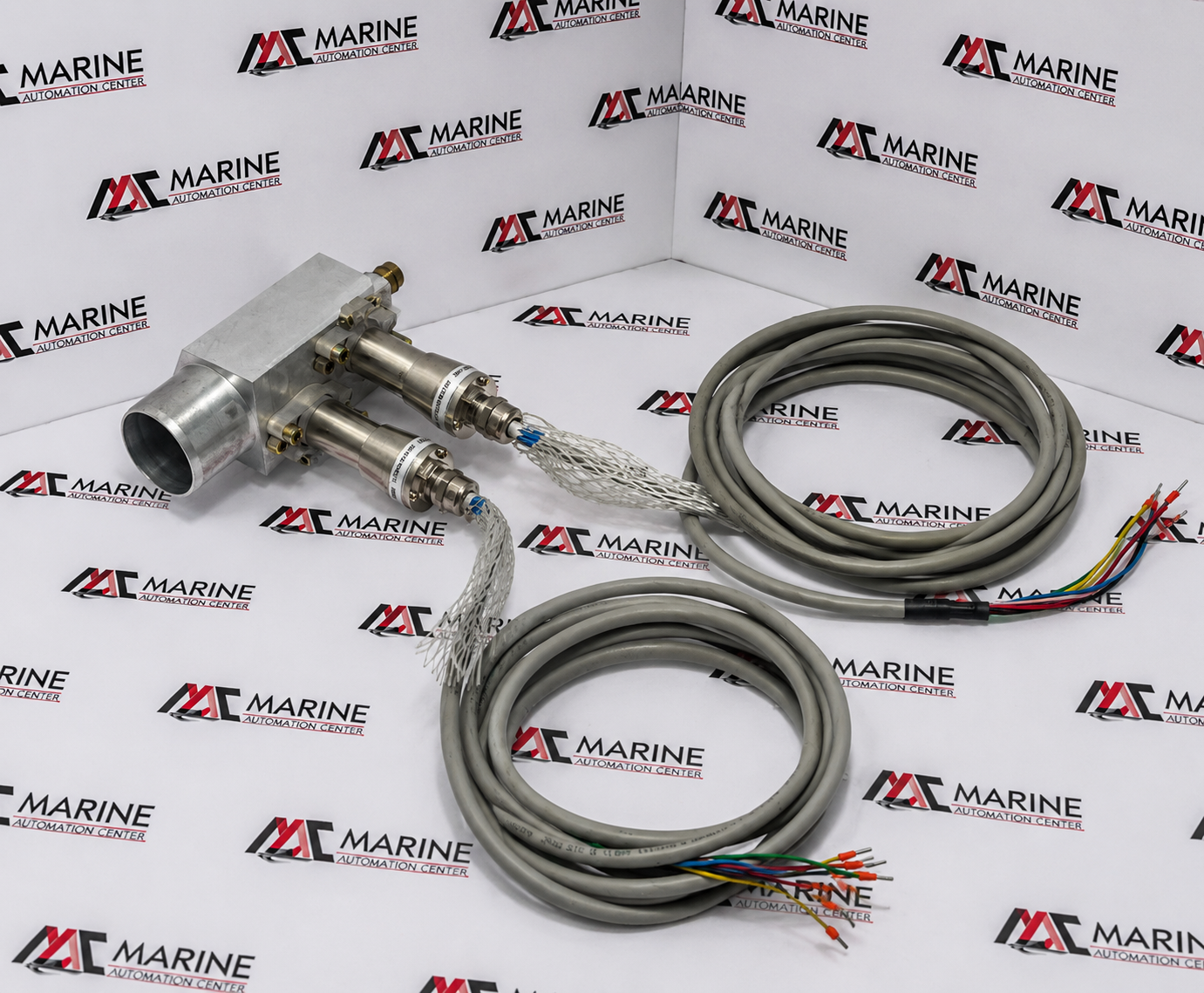

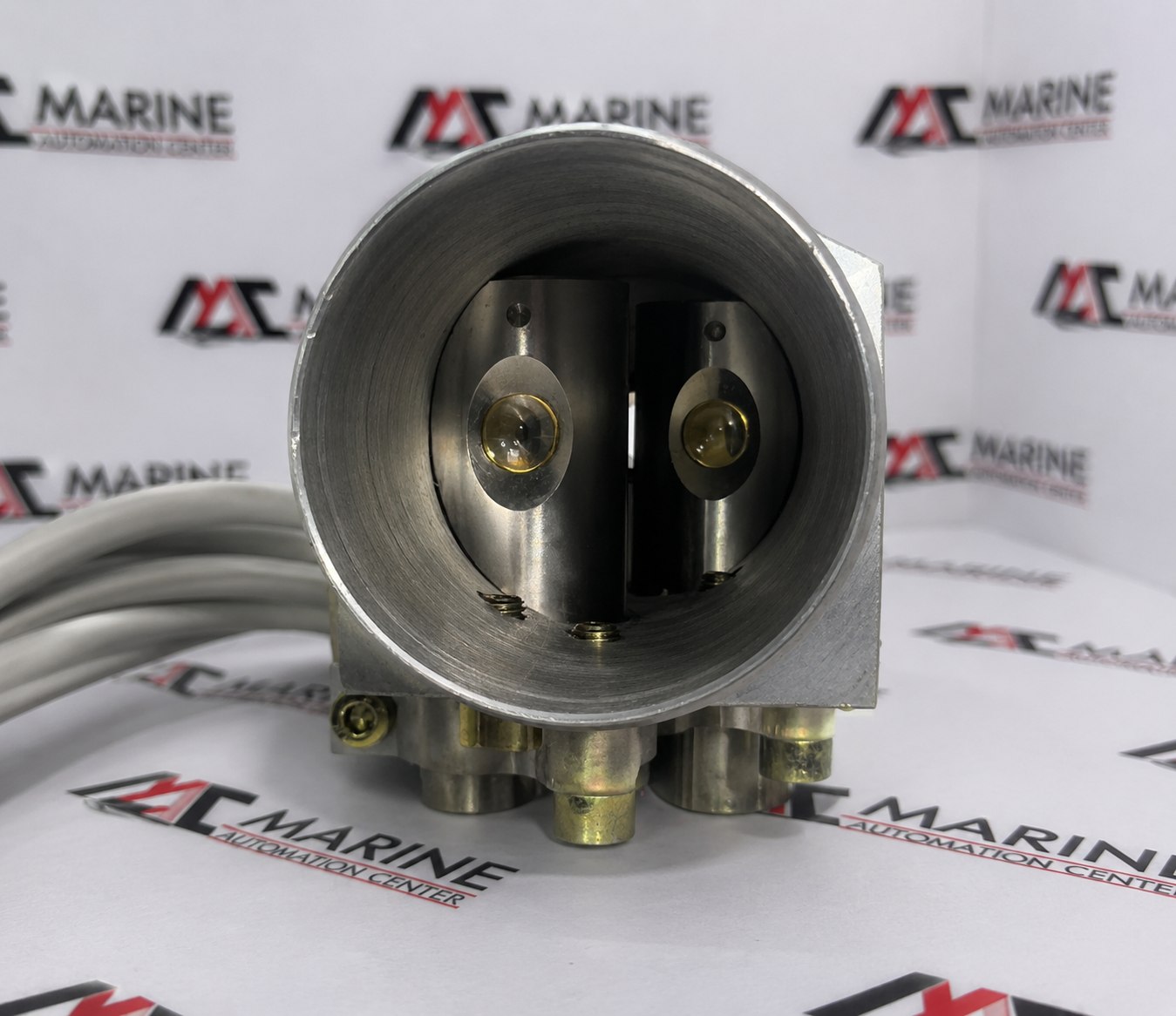

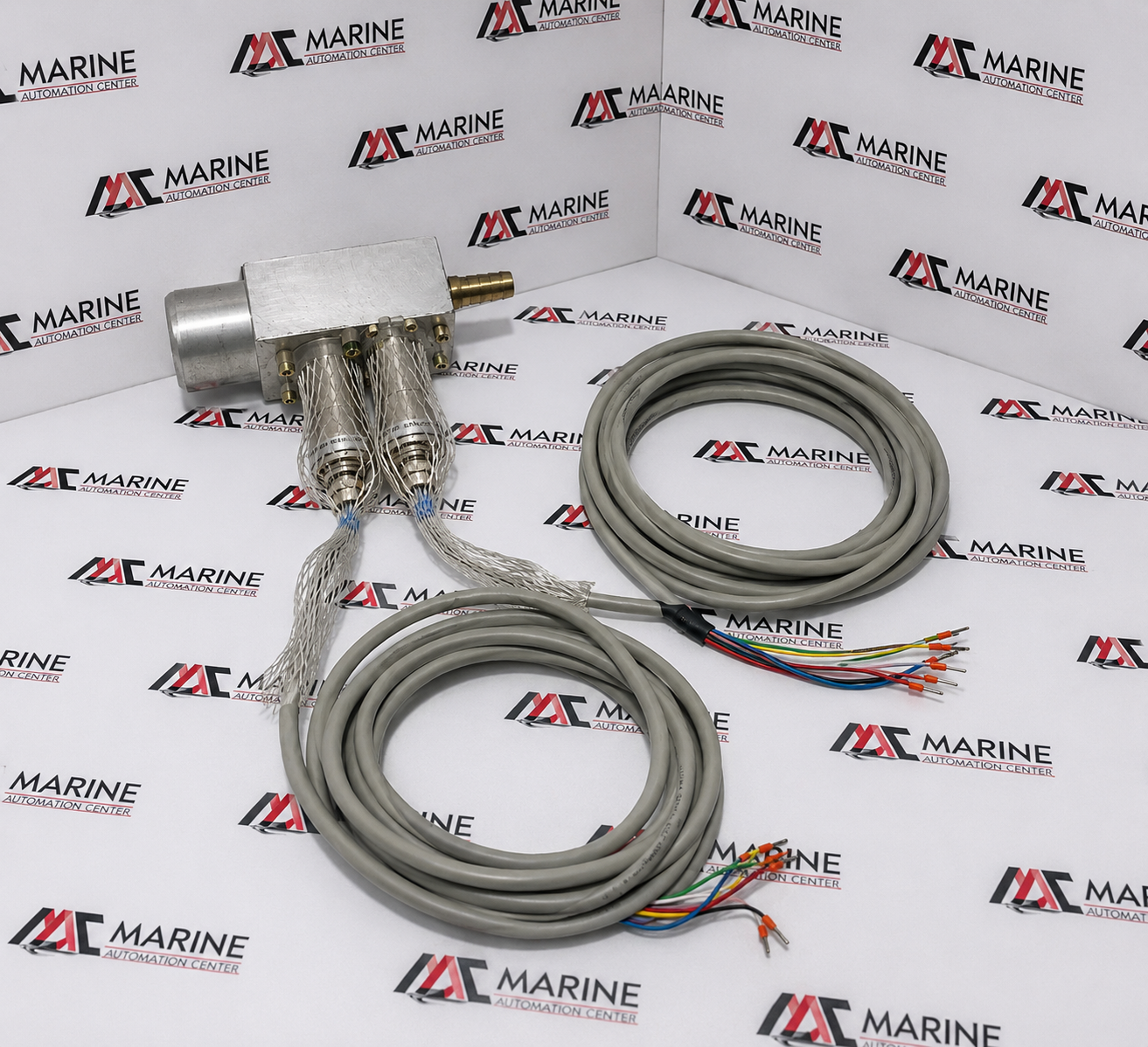

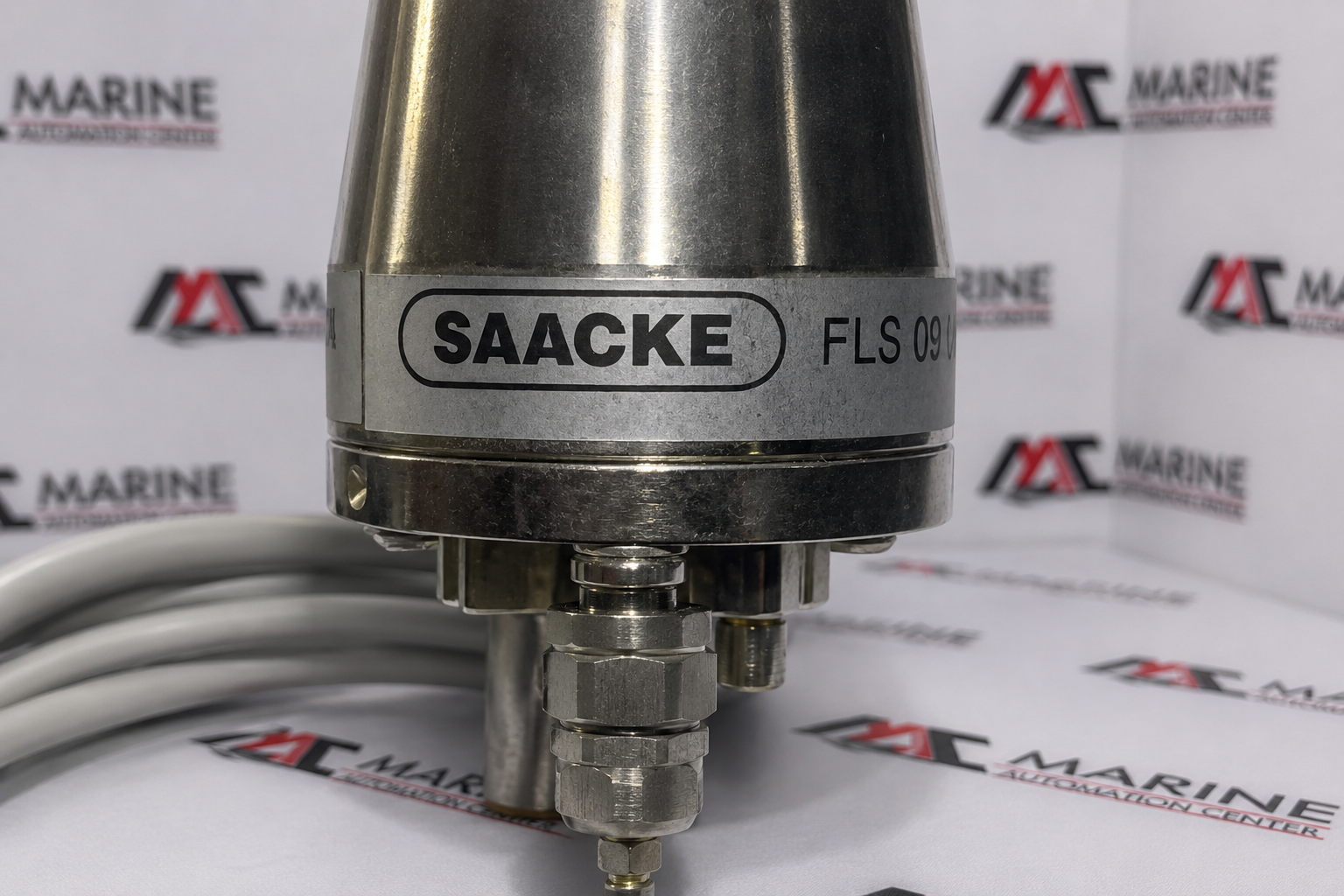

SAACKE FLS 09 UV-5 UV Flame Scanner Sensor Assembly
**Short Description:** The **SAACKE FLS 09 UV-5 (P/N: 7-7955-602167)** is a **dual UV flame scanner / UV flame sensor assembly** designed for continuous flame detection and supervision in marine and industrial burner management systems. Using ultraviolet flame sensing technology, it provides fast and reliable flame monitoring for oil, gas, and dual-fuel burners, ensuring safe combustion by detecting flame presence and initiating burner shutdown in the event of flame failure. The dual-sensor c
BRAND
SAACKE
TYPE
Dual UV Flame Scanner
PART NO.
7-7955-602167
MODEL
FLS 09 UV-5
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SAACKE |
| TYPE | Dual UV Flame Scanner |
| PART NO. | 7-7955-602167 |
| MODEL | FLS 09 UV-5 |
| Detection Principle | Ultraviolet (UV) Flame Detection |
| Sensor Configuration | Dual UV Flame Scanner Assembly |
| Protection Class | IP65 |
| Housing Material | Stainless Steel Sensor Housing with Aluminum Mounting Block |
| Mounting Type | Burner Mounted / Sight Tube Mounted |
| Electrical Connection | Factory-installed Multicore Shielded Cable |
| Output Signal | Flame Presence / Flame Failure Signal to Burner Management System |
| Compatible Controller | SAACKE FLUS 06 / FLUS 06 UV Flame Monitoring Unit |
| Compatible Sensor System | SAACKE se@vis Burner Management System |
| Application | Marine boilers, industrial boilers, thermal oil heaters, oil burners, gas burners, dual-fuel burners, combustion monitoring systems |
| Operating Function | Continuous UV flame supervision with rapid flame loss detection for burner safety shutdown |
| Cable Type | Heavy-duty Industrial Shielded Multicore Cable |
| Made In | Germany |
| Ref no. | 1316 |
