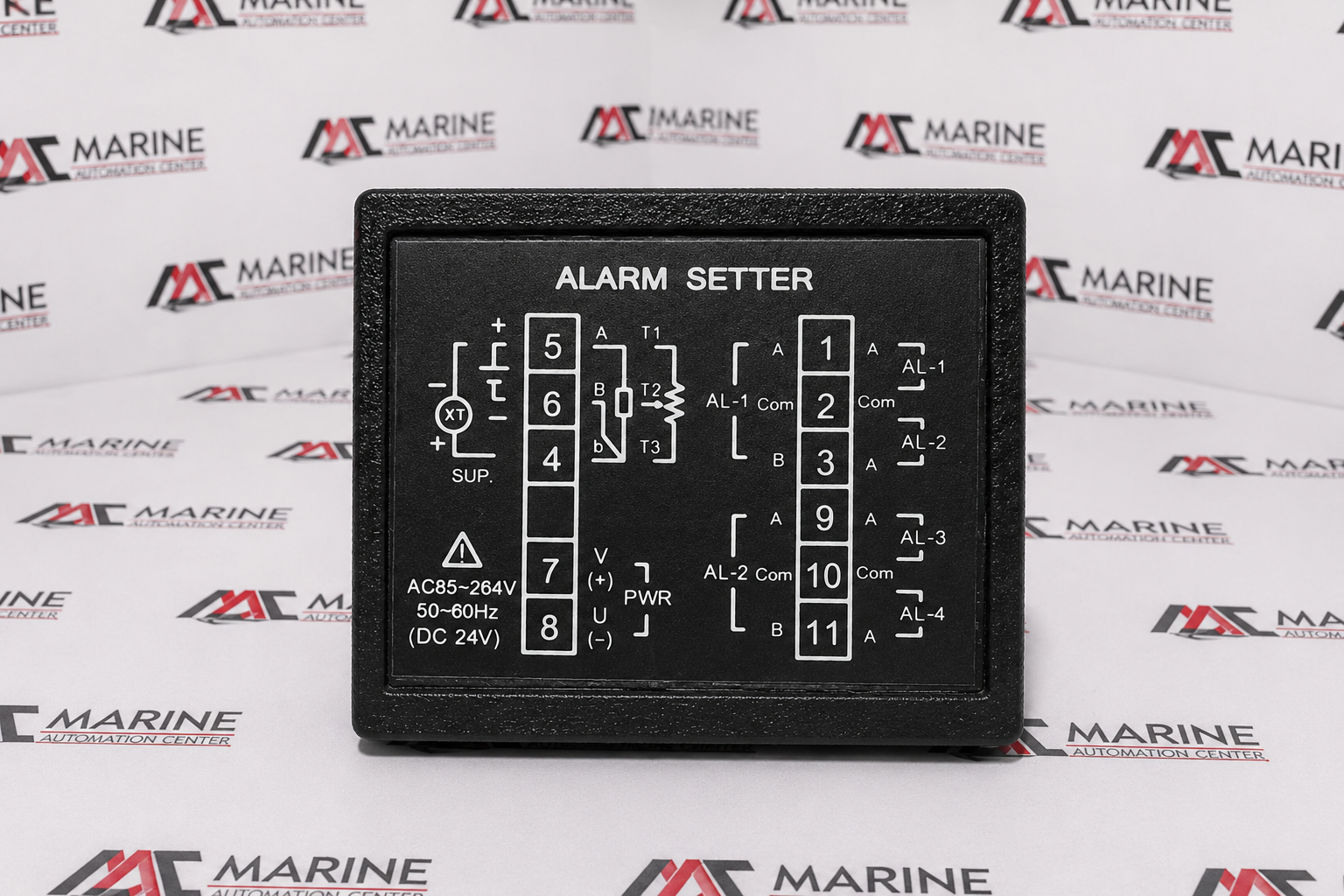

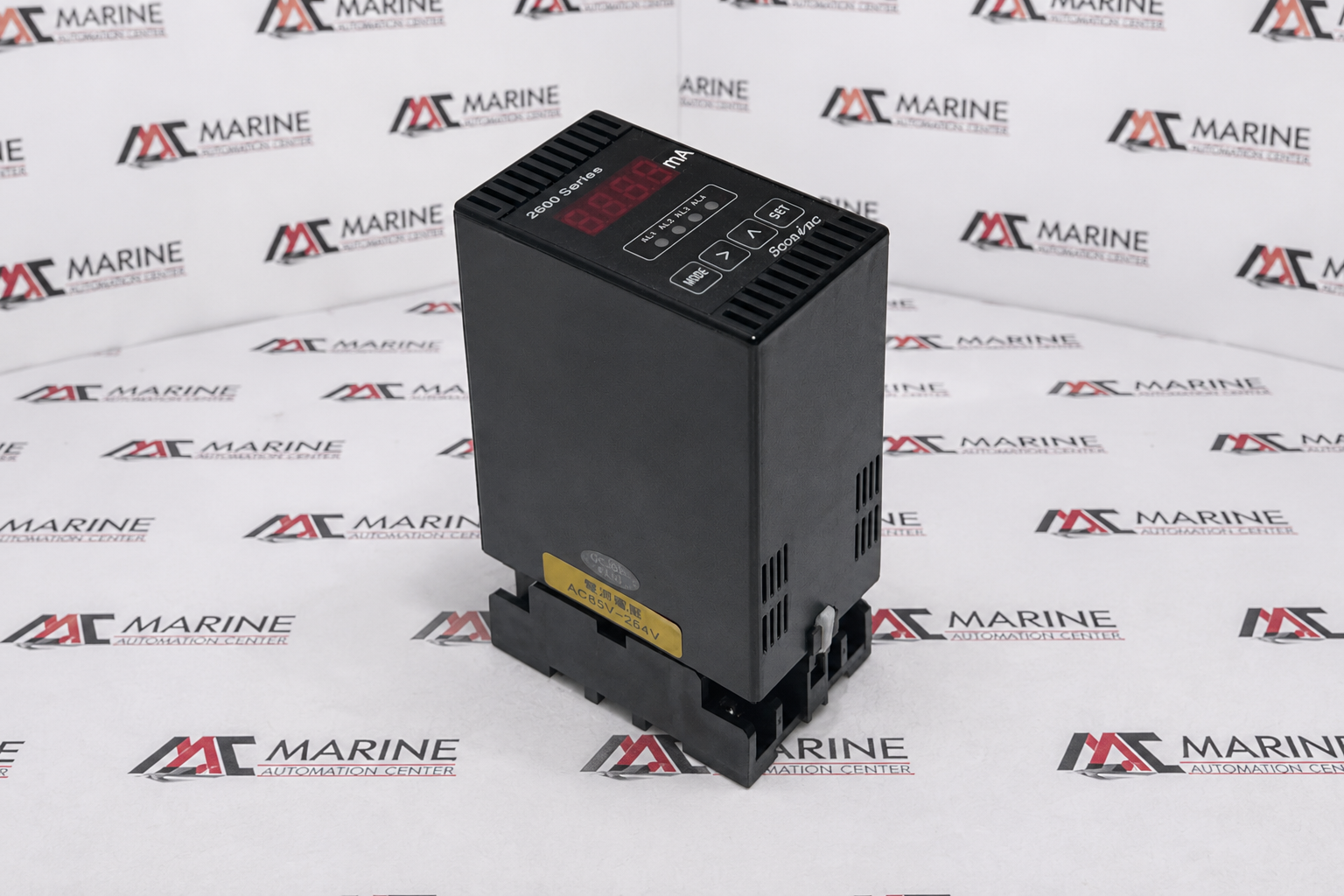

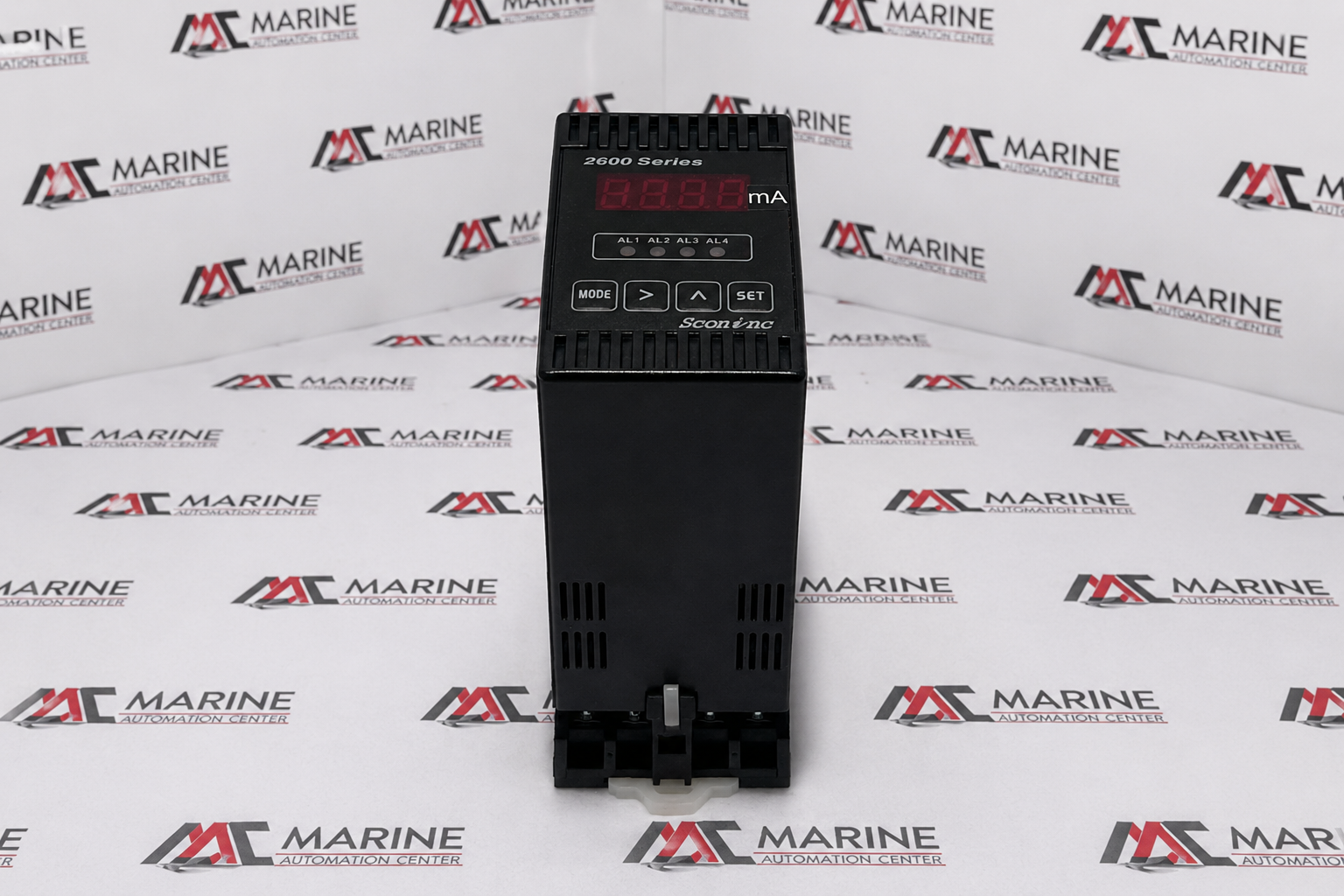

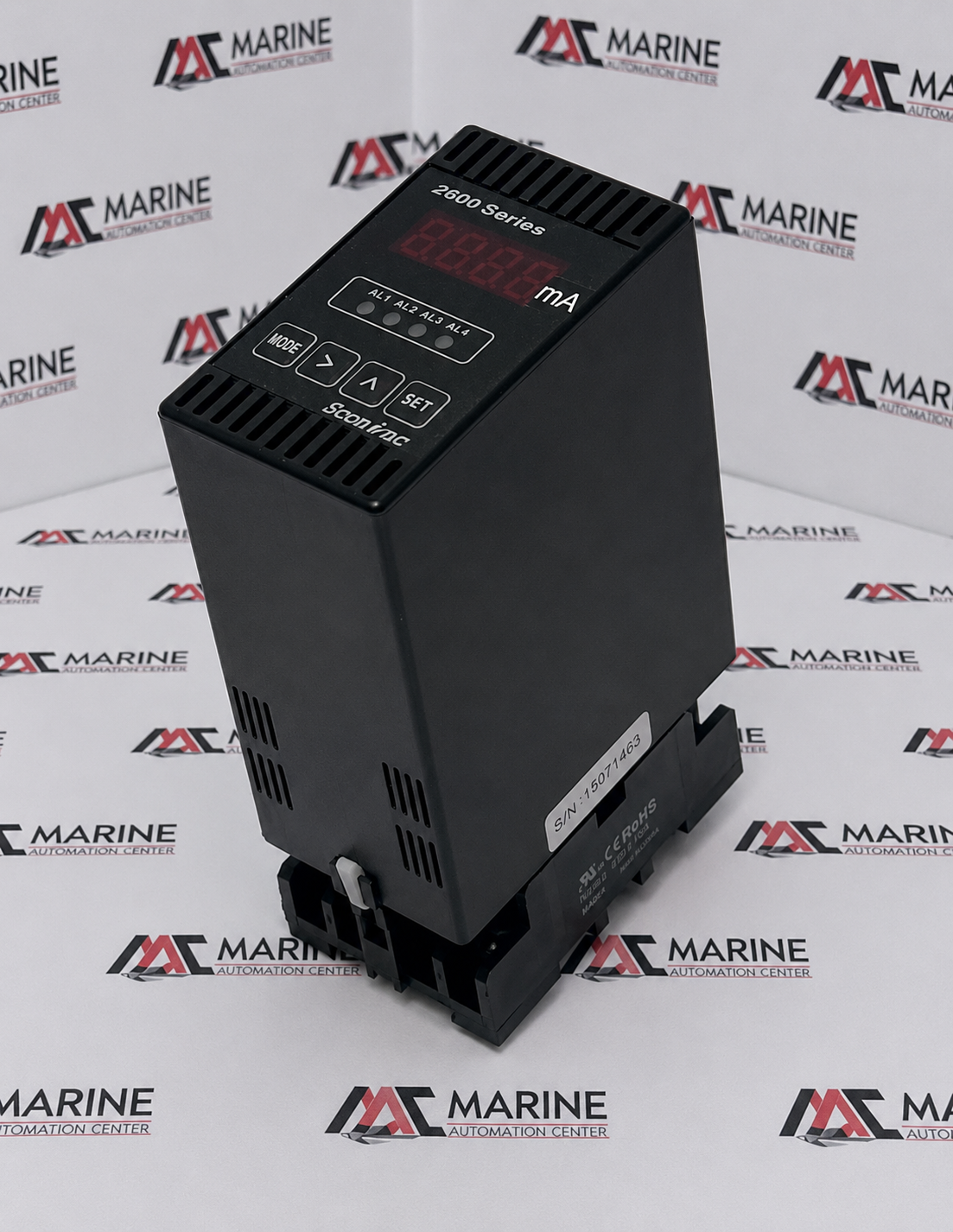

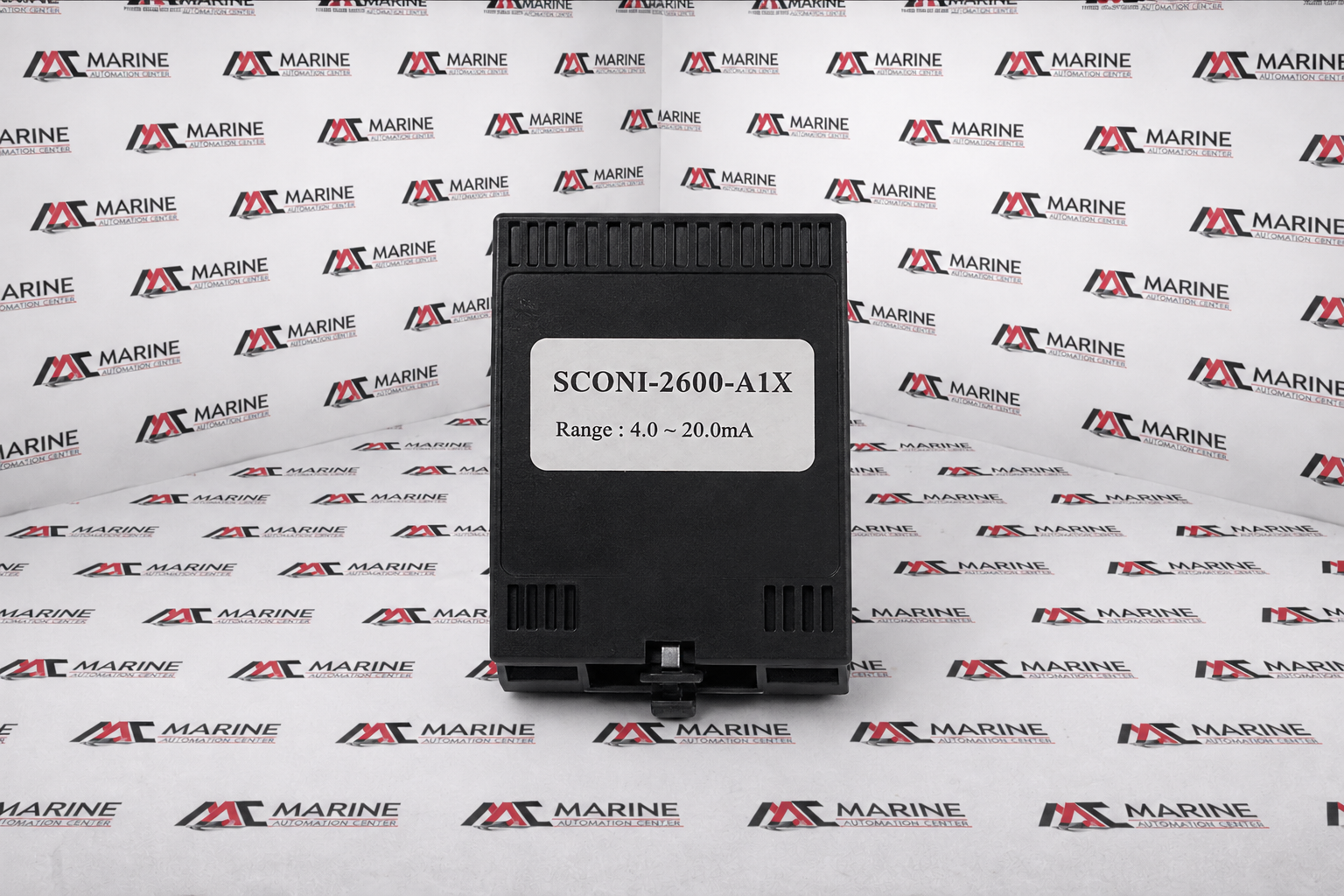

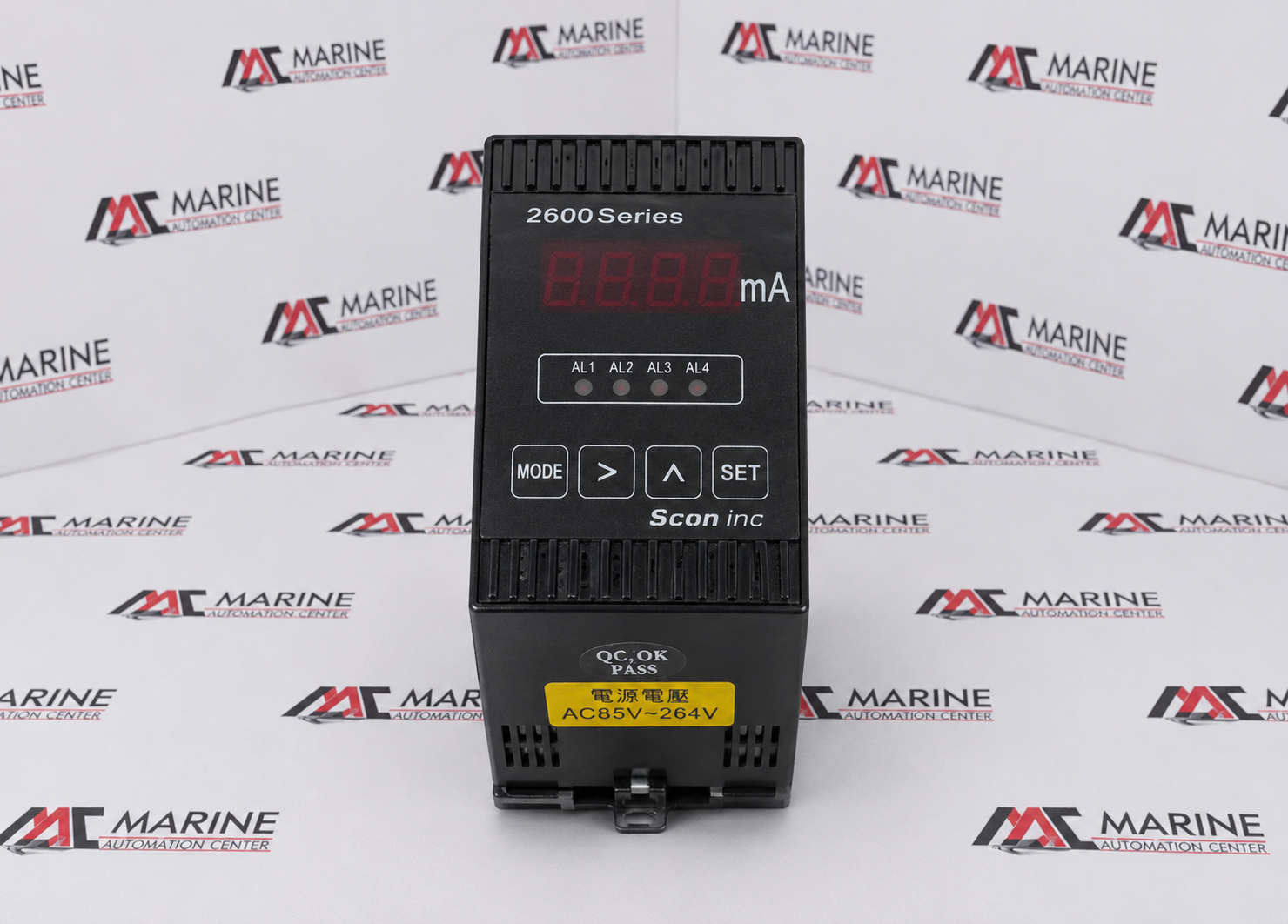

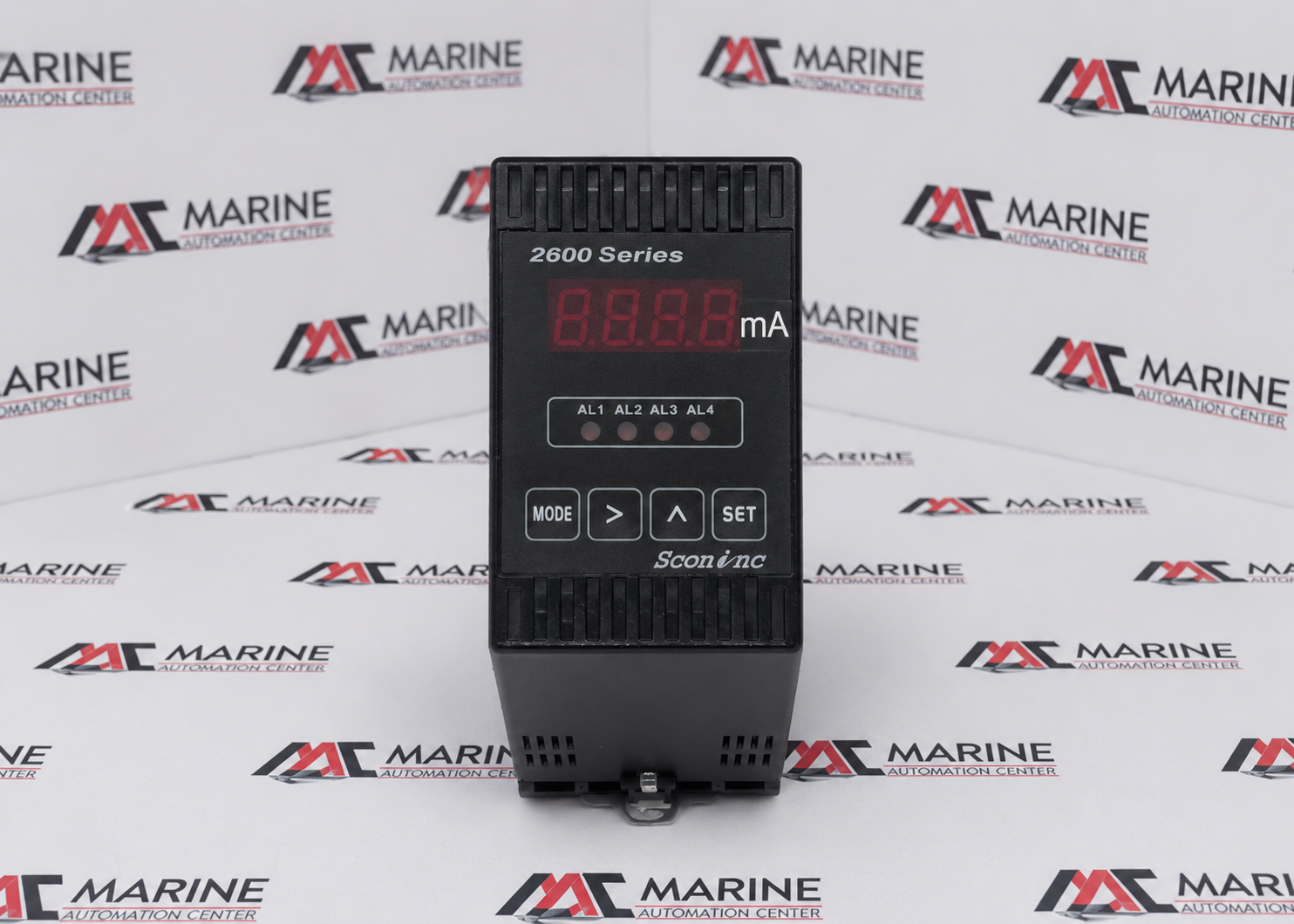

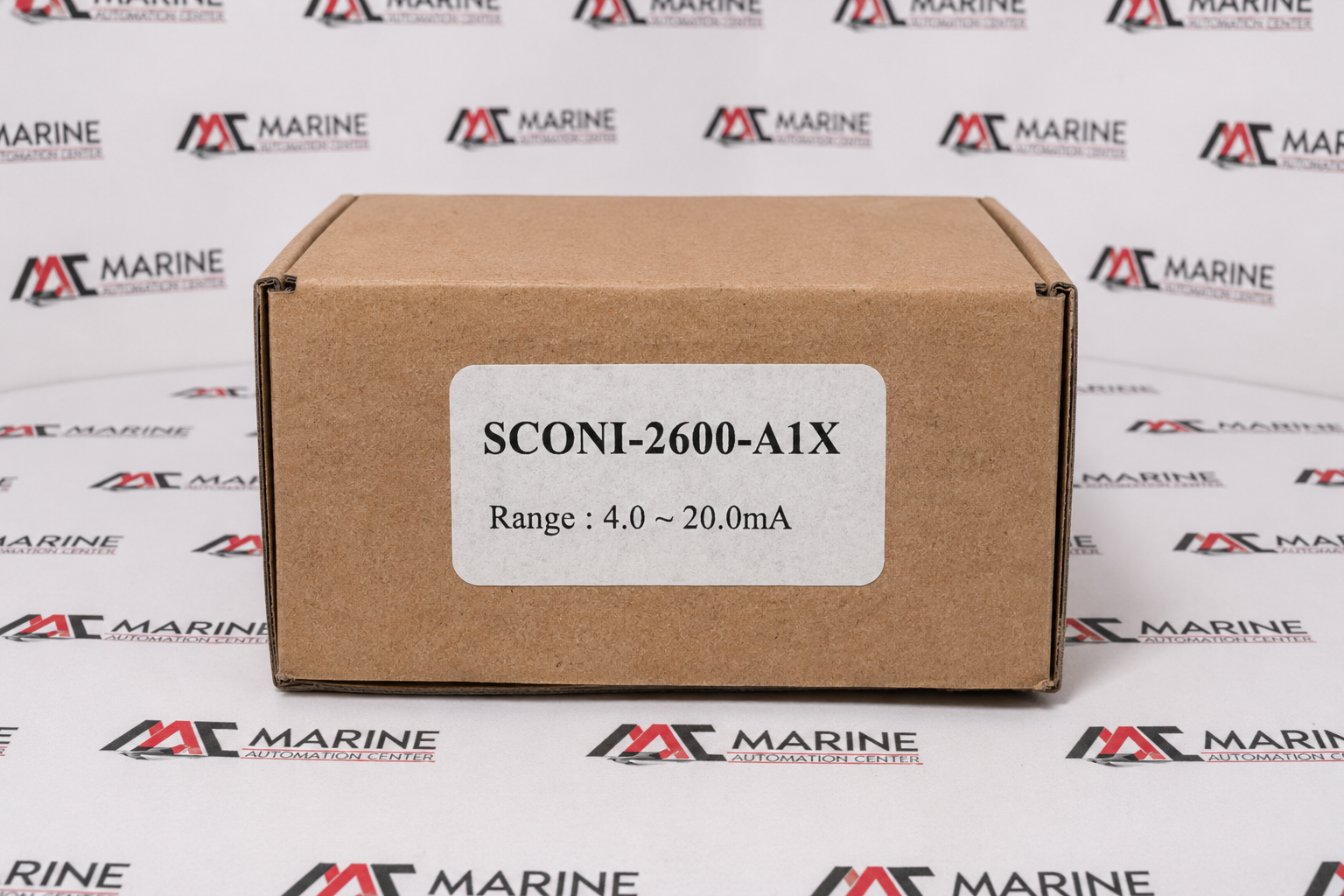

S-CON Semi Multi Alarm Setter
The S-CON SCONI-2600-A1X Semi Multi Alarm Setter is a reliable industrial alarm setting and monitoring unit designed for use in process control and automation systems. Manufactured by S-CON, it enables precise alarm configuration and monitoring of multiple process parameters, helping to improve system safety and operational efficiency. Its robust construction, dependable performance, and easy integration make it suitable for industrial plants, marine applications, control panels, and process aut
BRAND
S-CON
TYPE
Alarm Setter
PART NO.
Semi Multi Alarm Setter SCONI-2600-A1X
MODEL
SCONI-2600-A1X
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | S-CON |
| TYPE | Alarm Setter |
| PART NO. | Semi Multi Alarm Setter SCONI-2600-A1X |
| MODEL | SCONI-2600-A1X |
| MANUFACTURER | S-CON Inc. Co., Ltd. |
| INPUT SIGNAL | 4–20 mA DC |
| INPUT RANGE | 4.0–20.0 mA |
| DISPLAY TYPE | Digital LED Display |
| ALARM OUTPUTS | 4 Alarm Outputs (AL1, AL2, AL3, AL4) |
| POWER SUPPLY | AC 85–264 V, 50/60 Hz (DC 24 V Compatible) |
| MOUNTING TYPE | Panel / DIN Rail Mount |
| APPLICATION | Process monitoring, current loop monitoring, boiler automatic combustion control, marine automation, industrial process control, and alarm monitoring systems. |
| OUTPUT TYPE | Relay Alarm Outputs |
| CONTROL FUNCTION | Multi-point Alarm Setting and Current Monitoring |
| OPERATING SIGNAL | Analog Current Loop |
| FRONT PANEL CONTROLS | MODE, SET, UP, NEXT |
| INDICATORS | AL1, AL2, AL3, AL4 Status LEDs |
| RANGE | 4.0–20.0 mA |
| MADE IN | South Korea |
| REF NO | 1301 |
