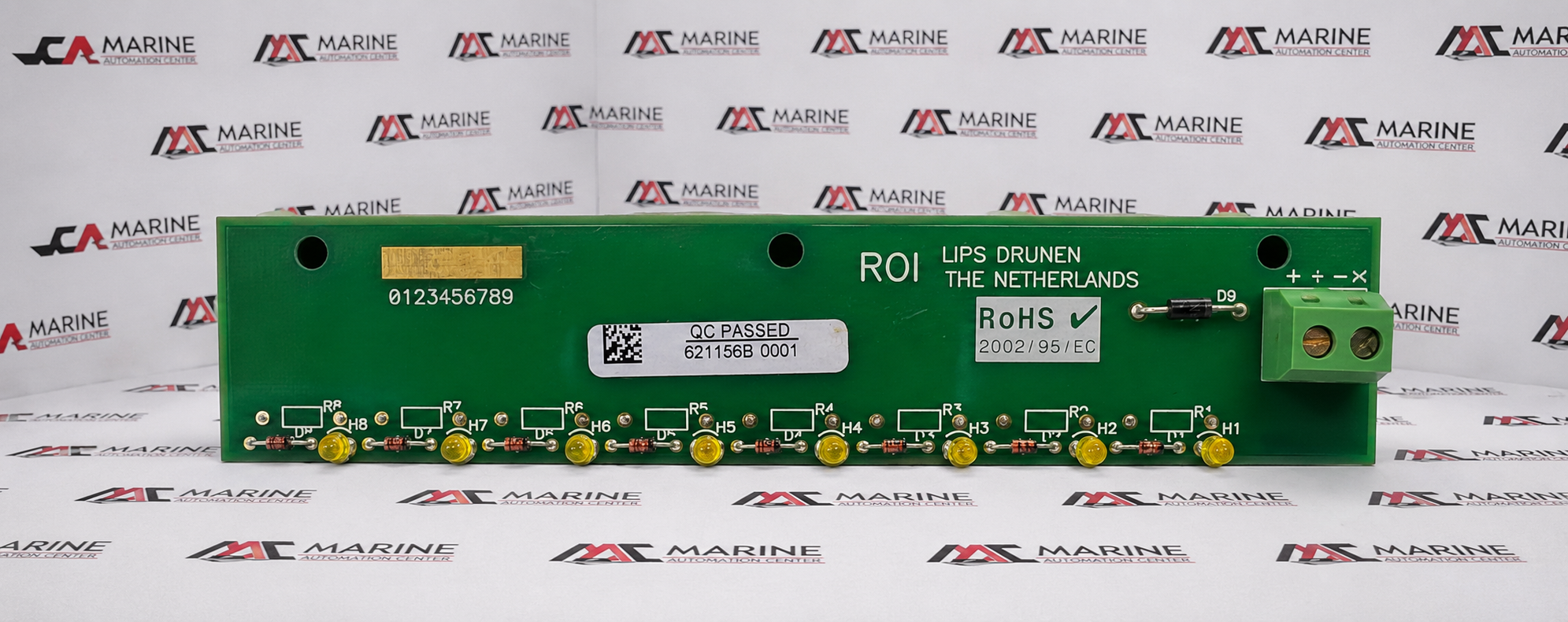

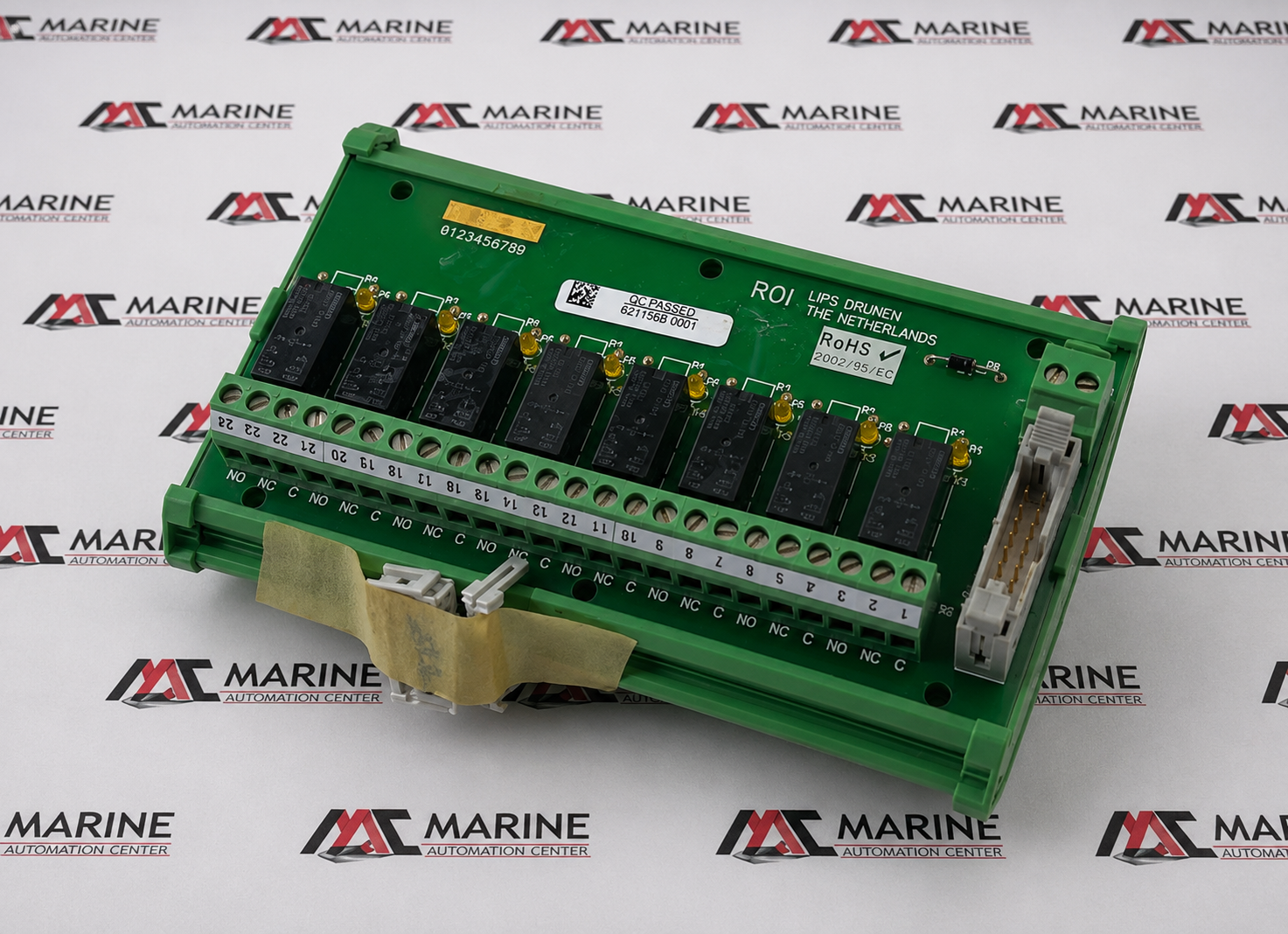

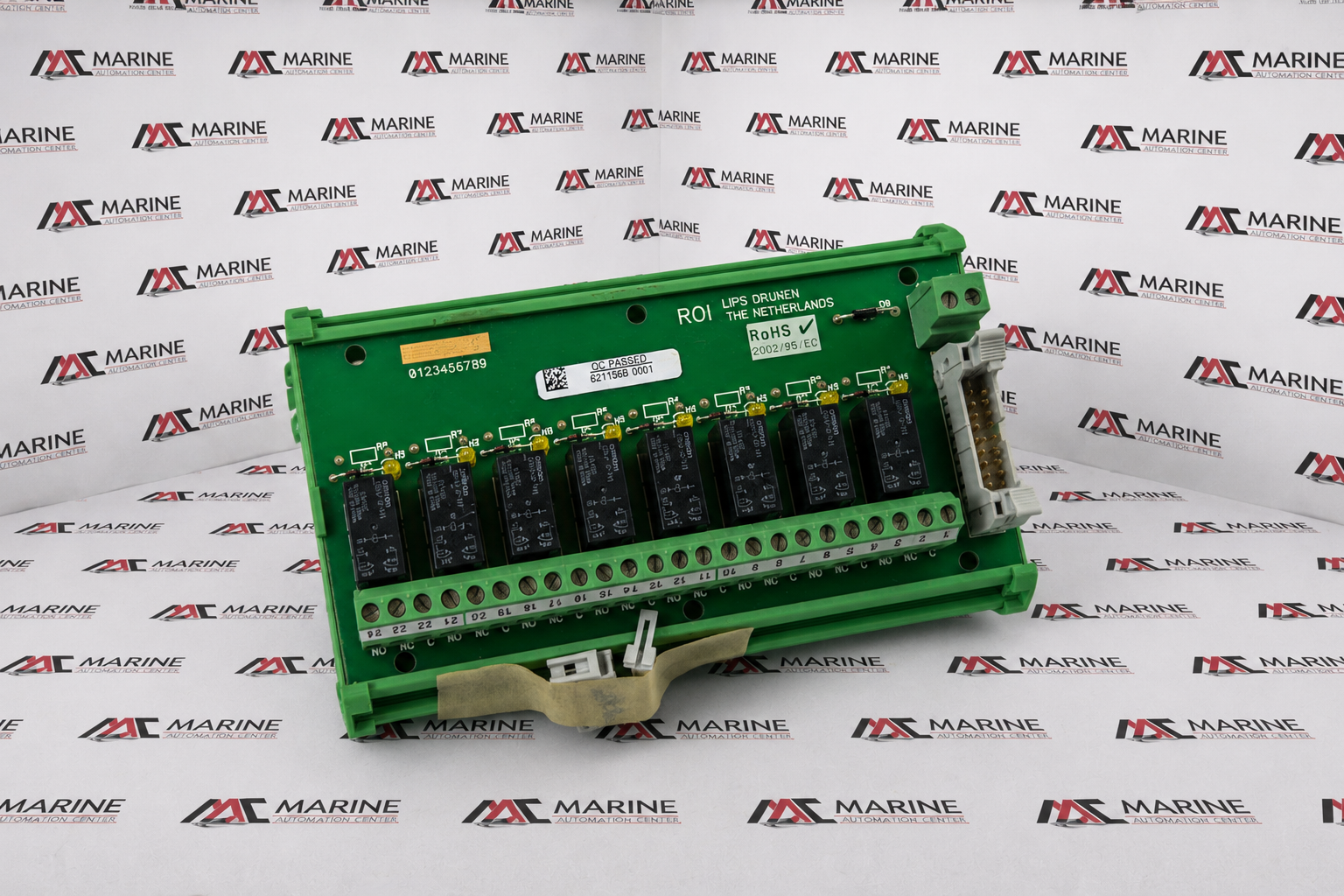

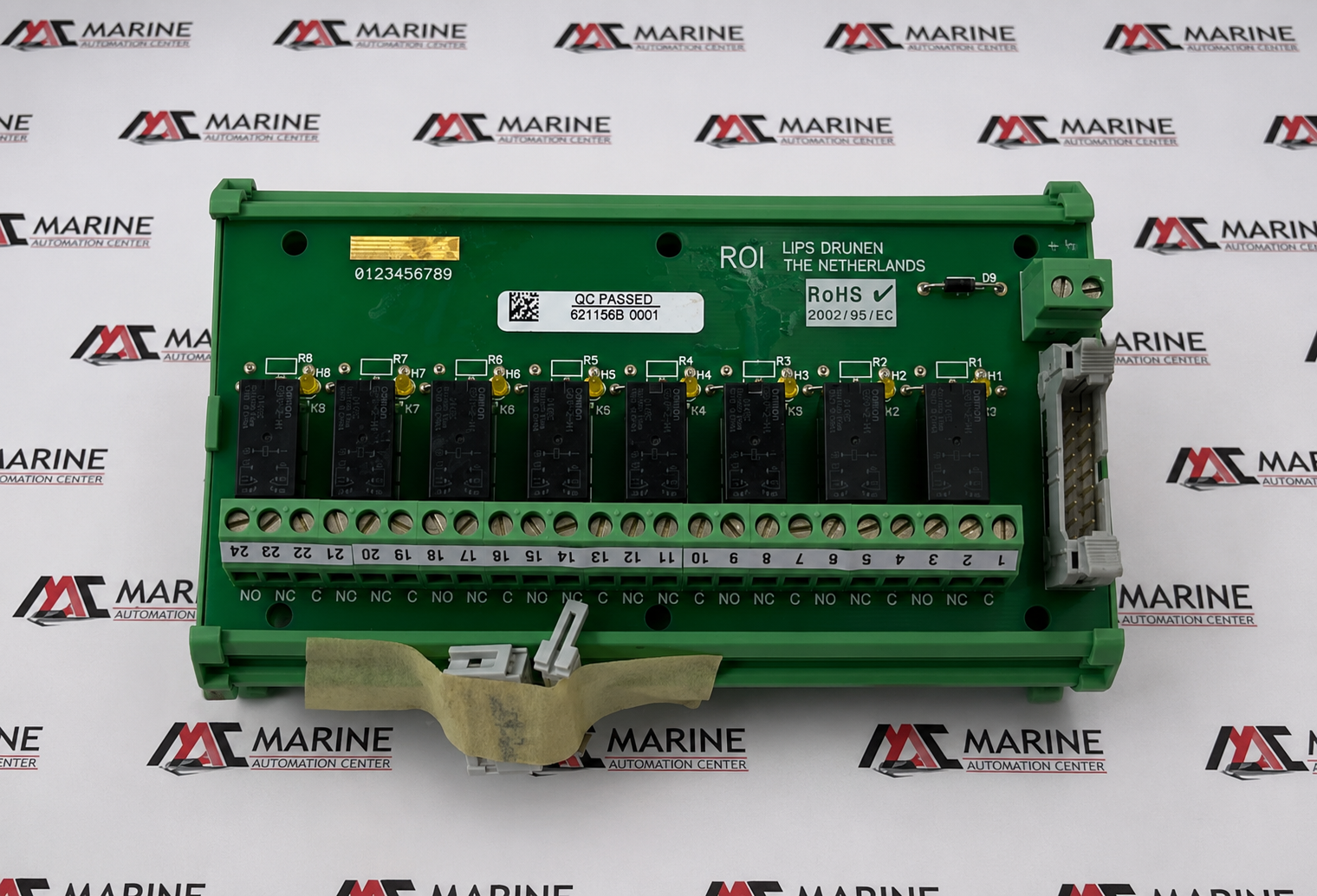

Roi Lips Drunen 621156B 0001 8-Channel Relay Board
ROI / Lips Drunen 621156B 0001 8-Channel Relay Board is an 8-channel relay interface module designed for industrial control and automation systems. It provides reliable switching of multiple electrical circuits, enabling efficient control, signal isolation, and integration of field devices in marine and industrial applications
BRAND
ROI / LIPS DRUNEN
TYPE
8-Channel Relay Board Module
PART NO.
621156B 0001
MODEL
621156B Interface Board
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | ROI / LIPS DRUNEN |
| TYPE | 8-Channel Relay Board Module |
| PART NO. | 621156B 0001 |
| MODEL | 621156B Interface Board |
| Voltage Rating | 24 V DC nominal control loop / contact paths rated up to 250 V AC |
| Application | Maritime steering gear automation, heavy-duty thruster distribution loops, and industrial propulsion remote alarm signaling setups. |
| IEC | RoHS Compliant directive 2002/95/EC layout guidelines |
| Channel Relay Capacity | Features 8 individually addressable electro-mechanical relays equipped with Omron G2R series rugged components |
| Secondary Interface Connector | Integrates a heavy-duty multi-pin vertical ribbon cable bus socket on the right profile for safe logic trunk line linking |
| Chassis Attachment Base | Built onto a green plastic DIN-rail carrier profile complete with lower extraction snapping clips for toolless installation inside control cabinets |
| Made In | Netherlands |
| REF NO | 396 |
