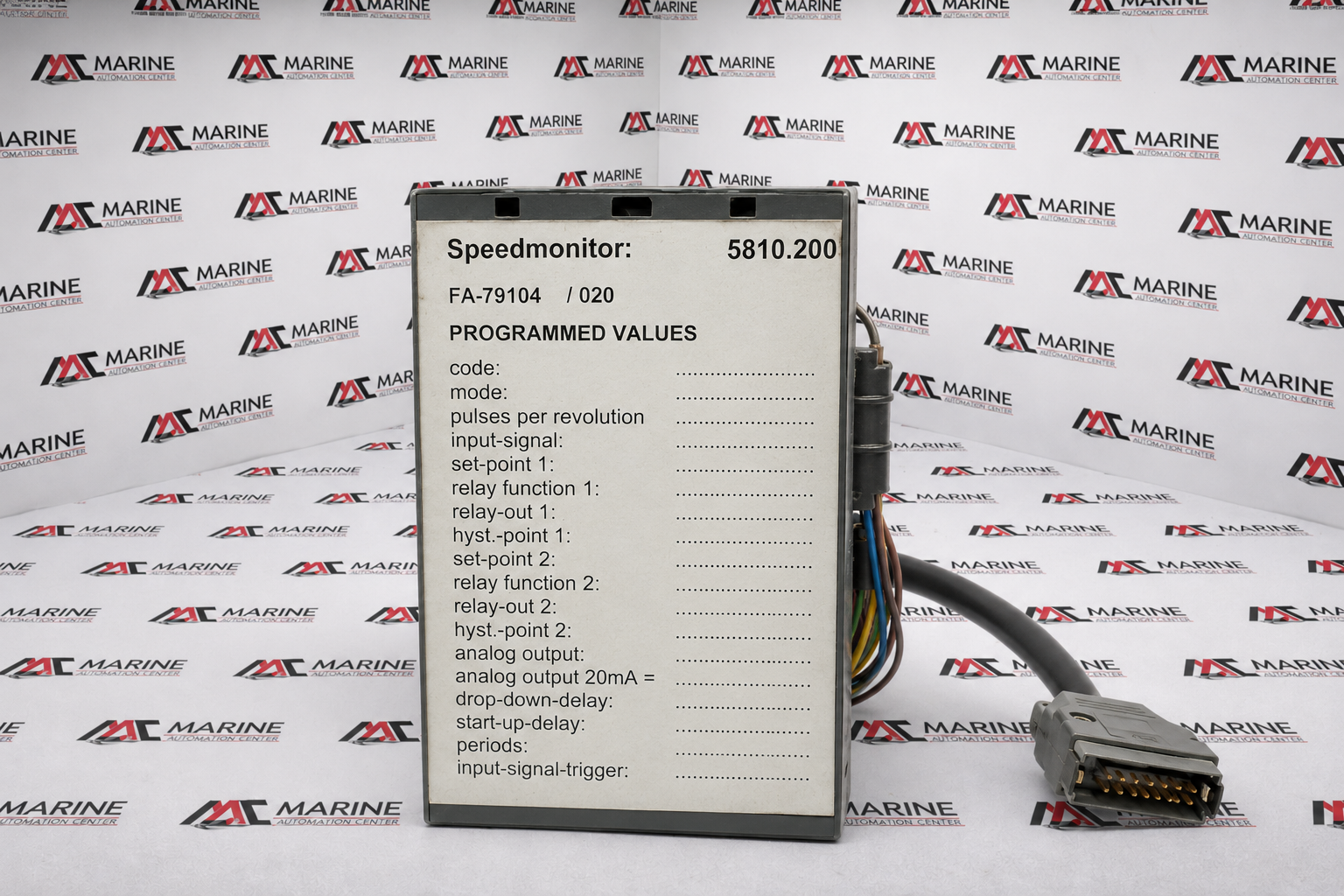

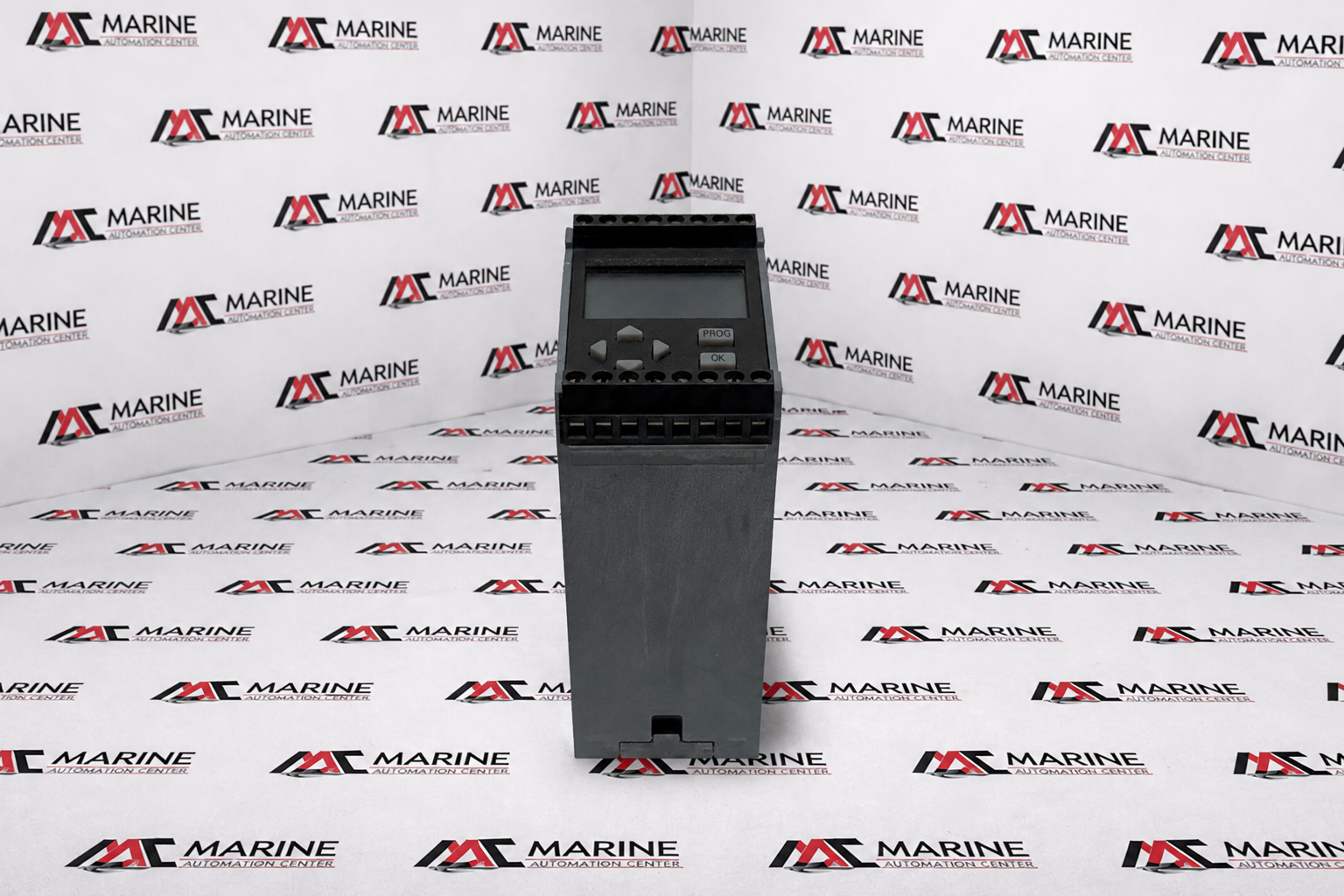

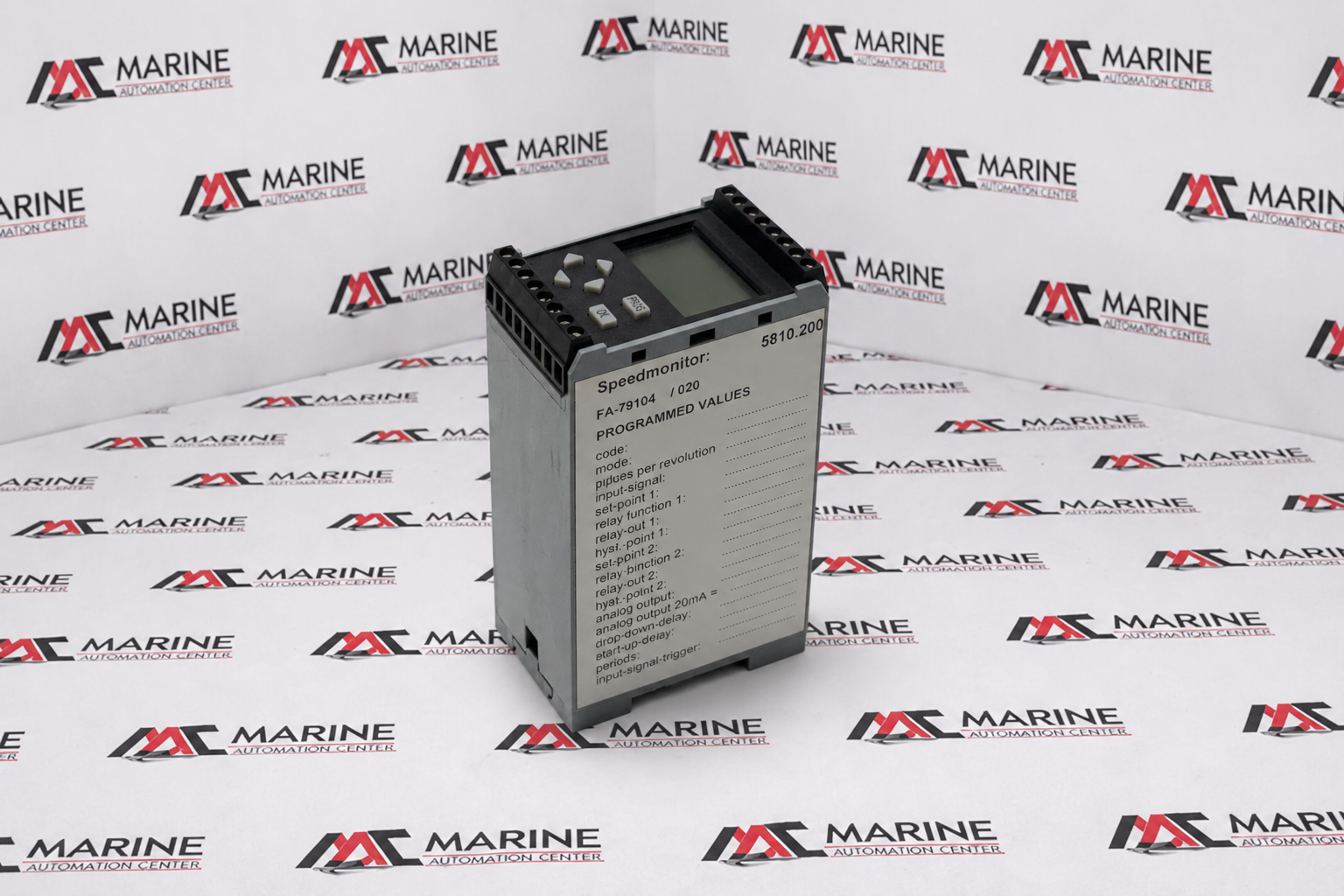

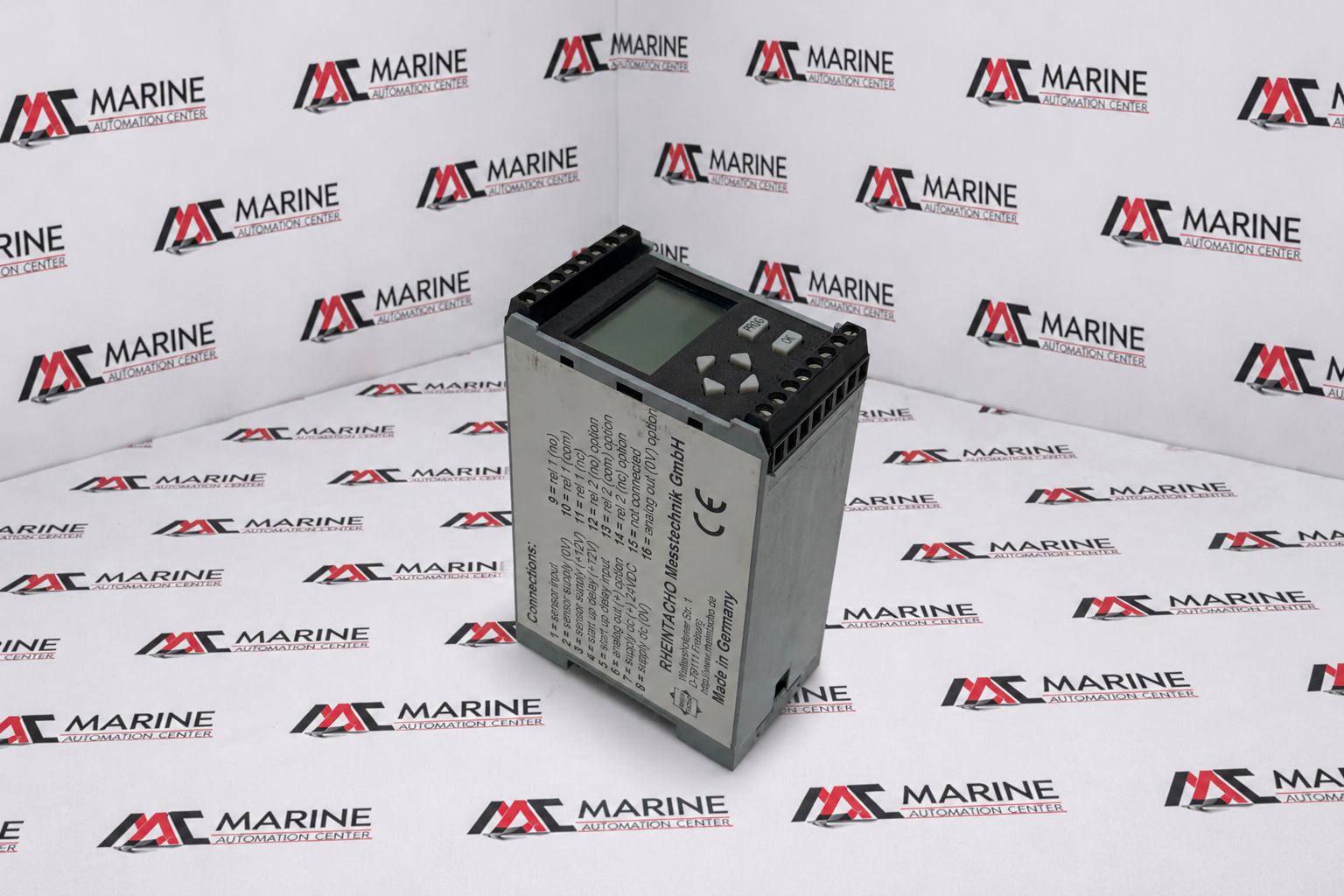

RHEINTACHO Digital Speed Monitor / Speed Monitoring Relay Speedmonitor 5810.200
The RHEINTACHO Speedmonitor 5810.200 is a programmable digital speed monitoring relay designed for precise monitoring and protection of rotating machinery. It features an LCD display, configurable alarm setpoints, relay outputs, and optional analog output, making it ideal for marine engines, generators, turbines, and industrial automation systems requiring reliable overspeed and underspeed monitoring.
BRAND
RHEINTACHO
TYPE
Digital Speed Monitor / Speed Monitoring Relay
PART NO.
5810.200
MODEL
Speedmonitor 5810.200
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | RHEINTACHO |
| TYPE | Digital Speed Monitor / Speed Monitoring Relay |
| PART NO. | 5810.200 |
| MODEL | Speedmonitor 5810.200 |
| MANUFACTURER | RHEINTACHO Messtechnik GmbH |
| Display | LCD Display with keypad |
| Input Signal | Speed sensor input (pulse/frequency input) |
| Sensor Supply | +12 VDC |
| Supply Voltage | +24 VDC |
| Relay Outputs | 1 Standard Relay Output (NO/COM/NC), Optional Relay 2 |
| Start-up Delay | Programmable |
| Analog Output | Optional 0/4–20 mA Analog Output |
| Monitoring Functions | Speed monitoring, overspeed/underspeed supervision, programmable switching points, hysteresis, pulse-per-revolution configuration |
| Application | Monitoring rotational speed of diesel engines, generators, turbines, pumps, compressors, marine propulsion systems, and industrial machinery |

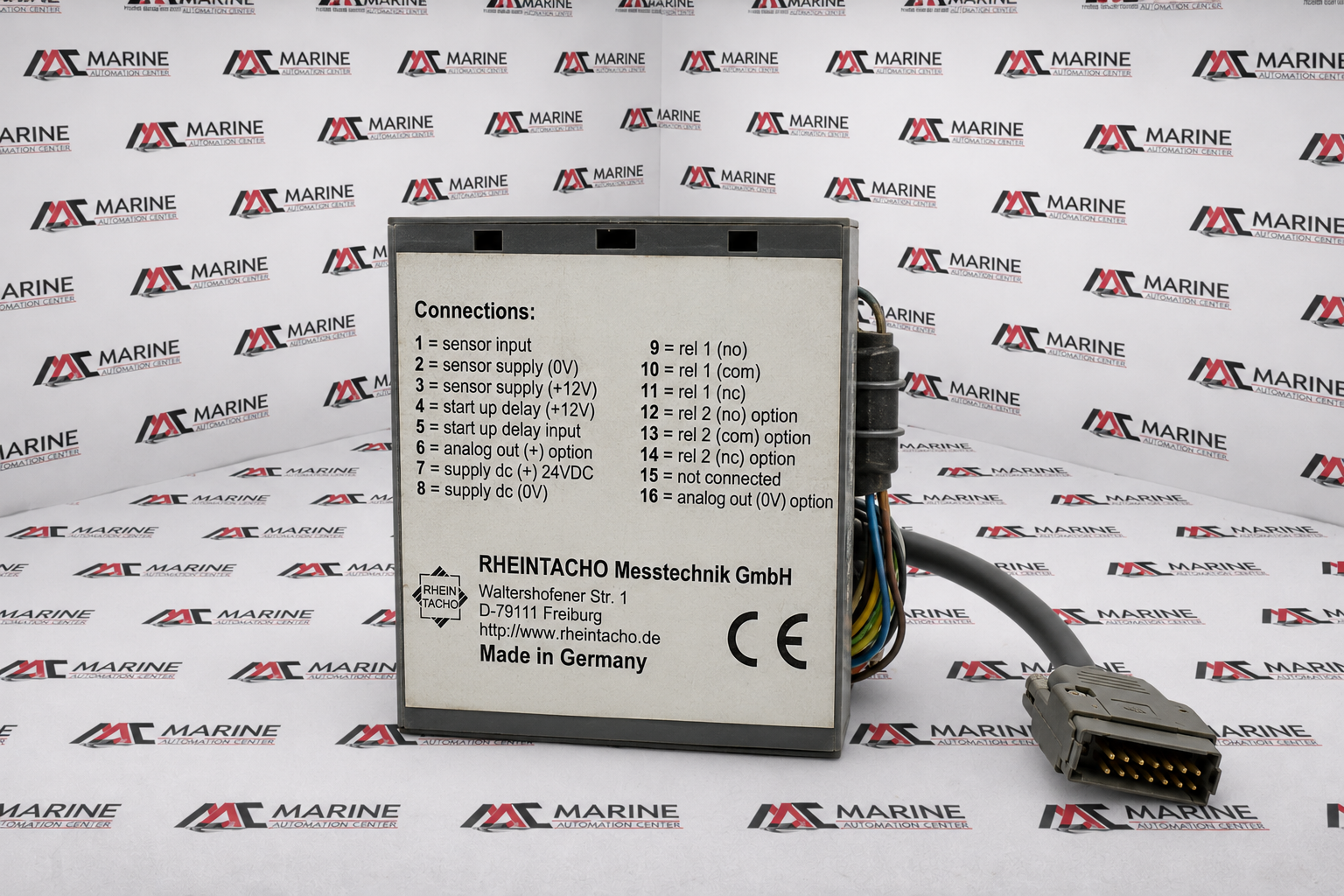

| Connections | 16-terminal screw connection (sensor input, sensor supply, relay outputs, analog output option, 24 VDC supply) |
| Made In | Germany |
| REF NO. | 1431 |
