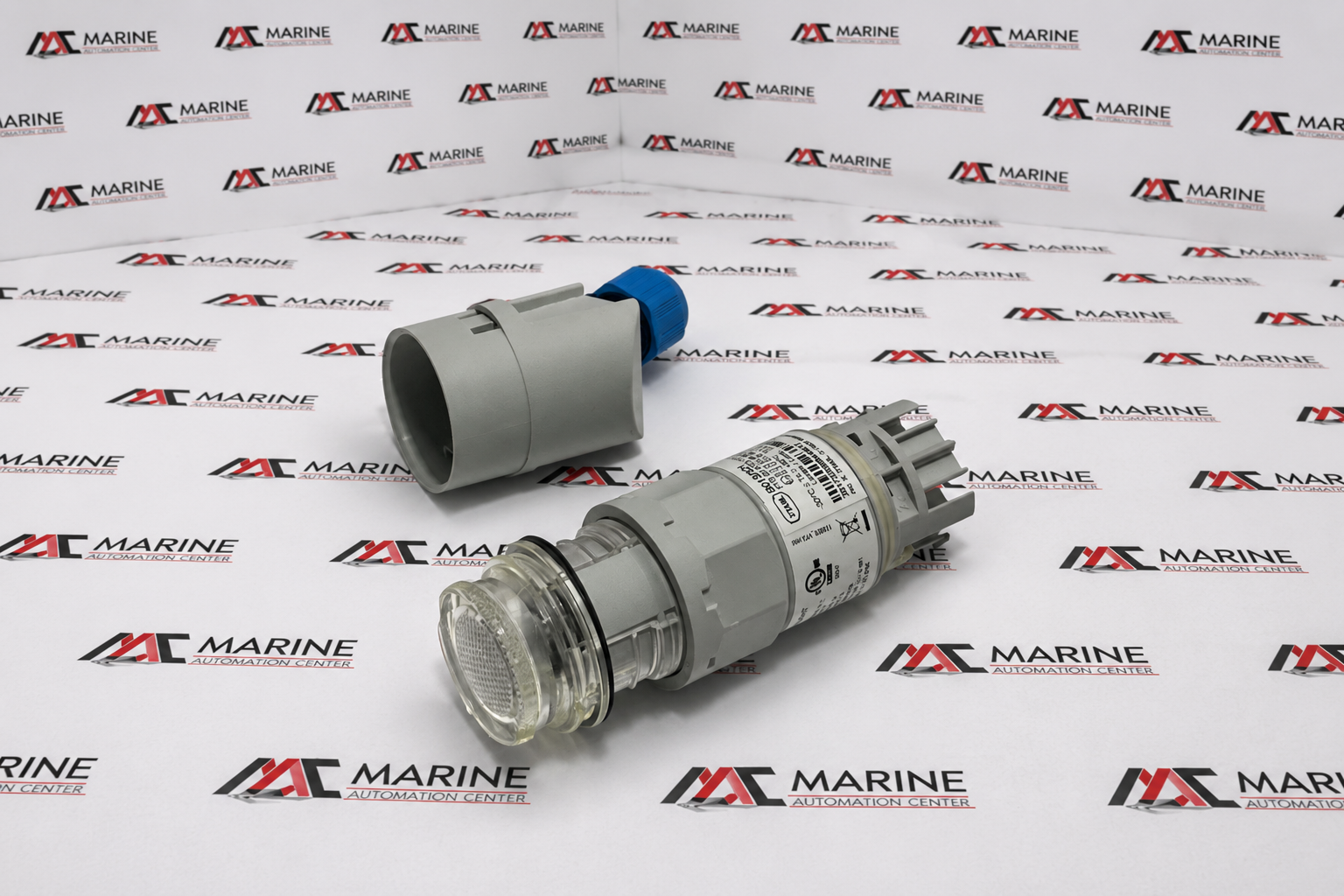

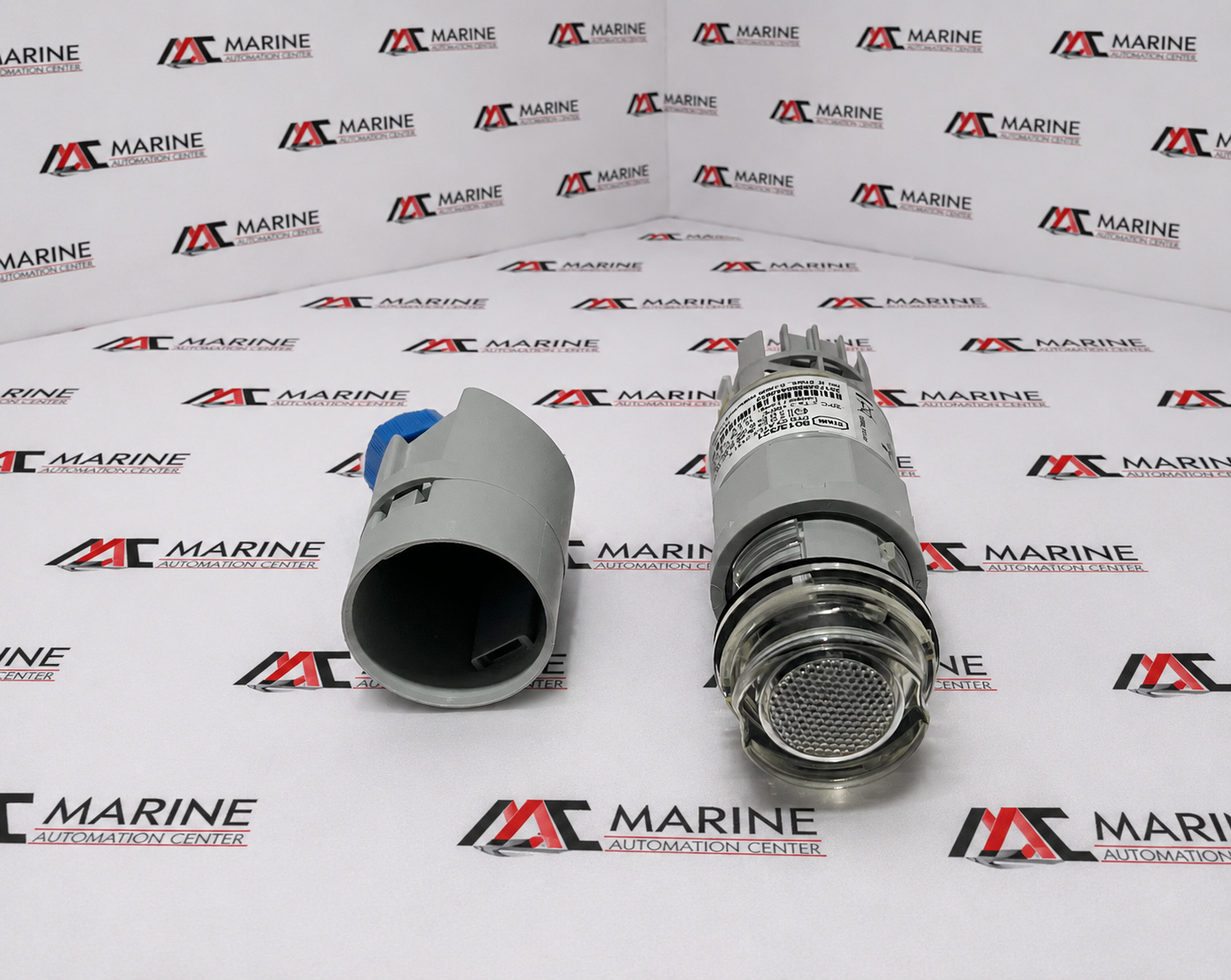

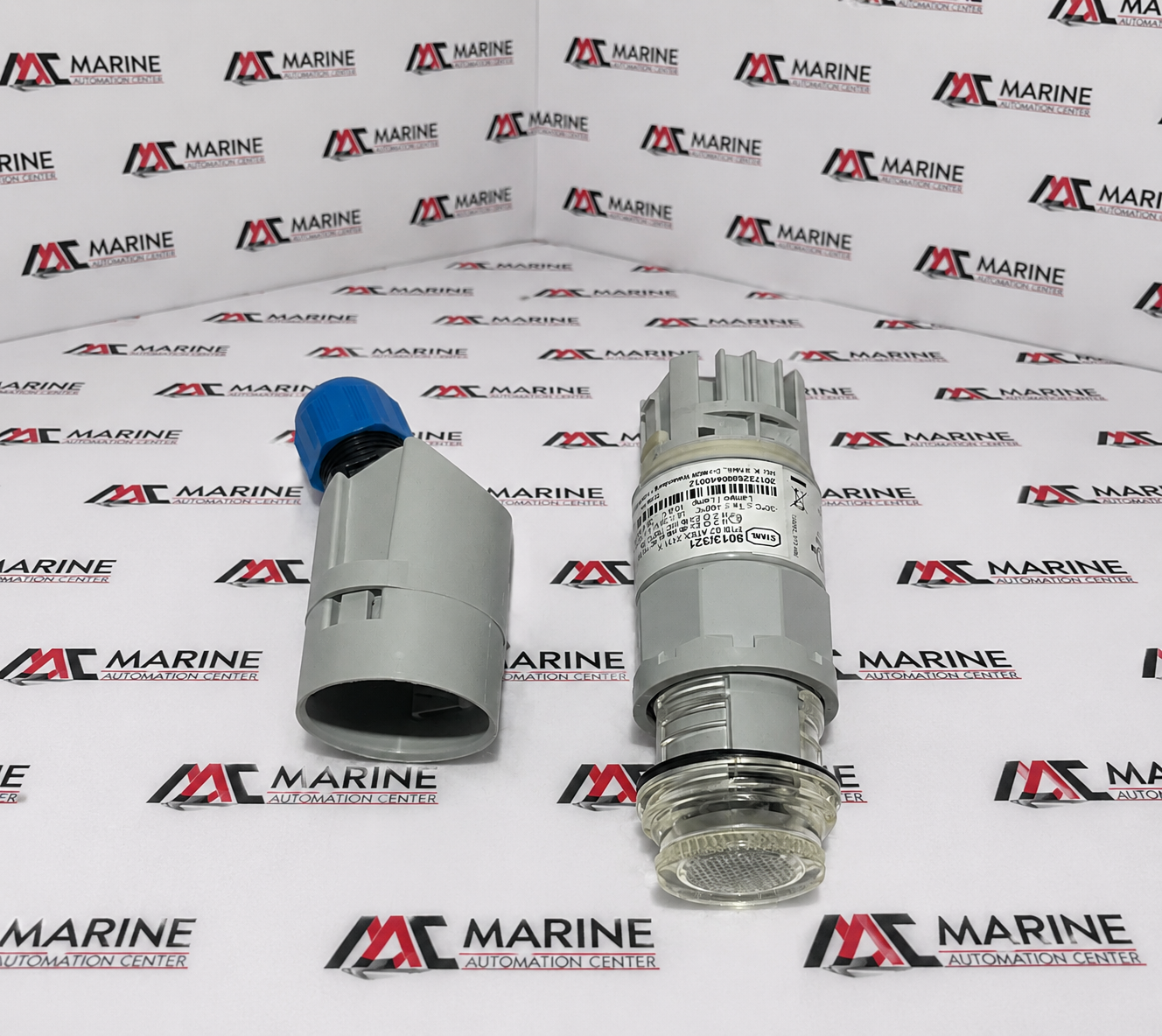

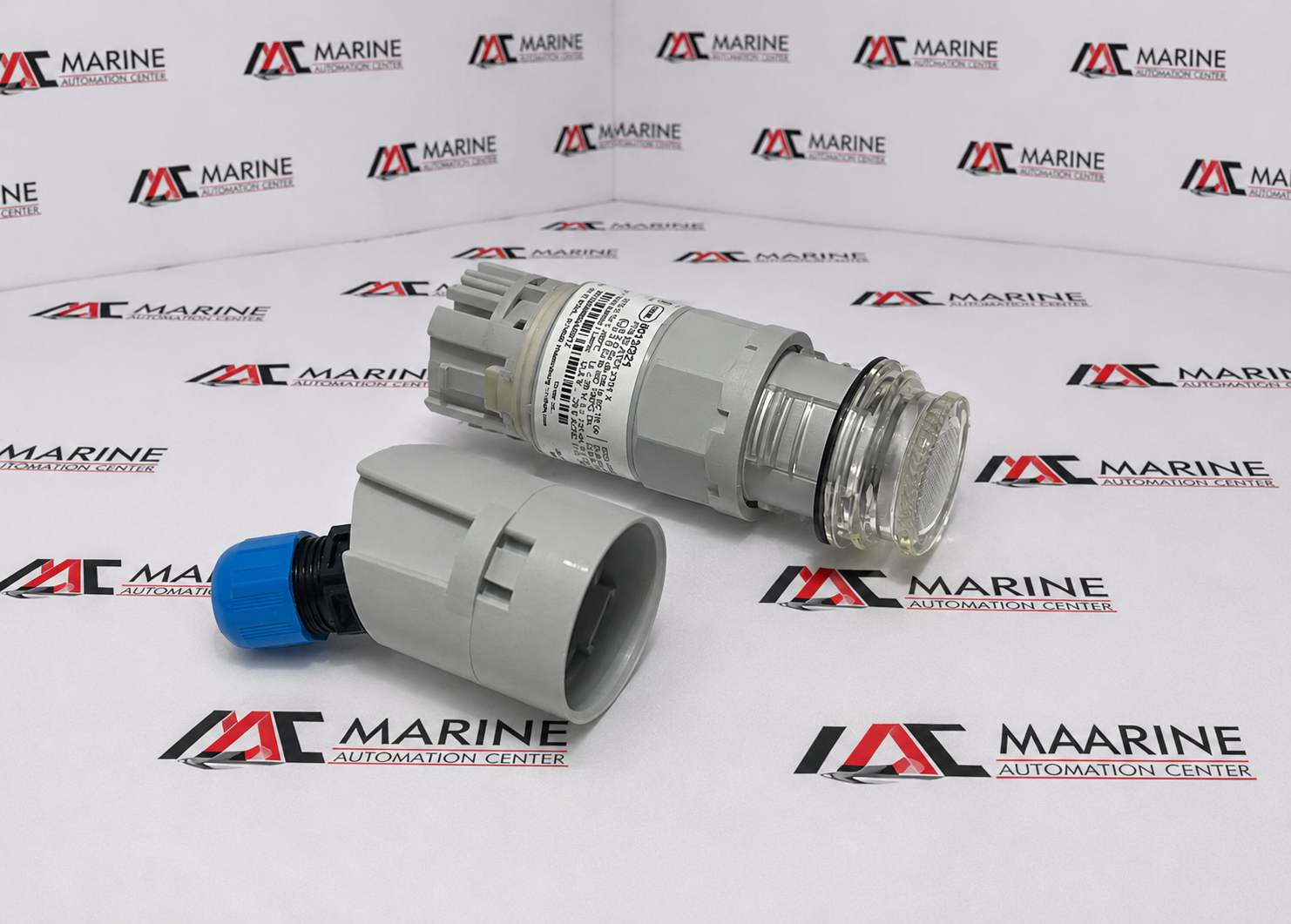

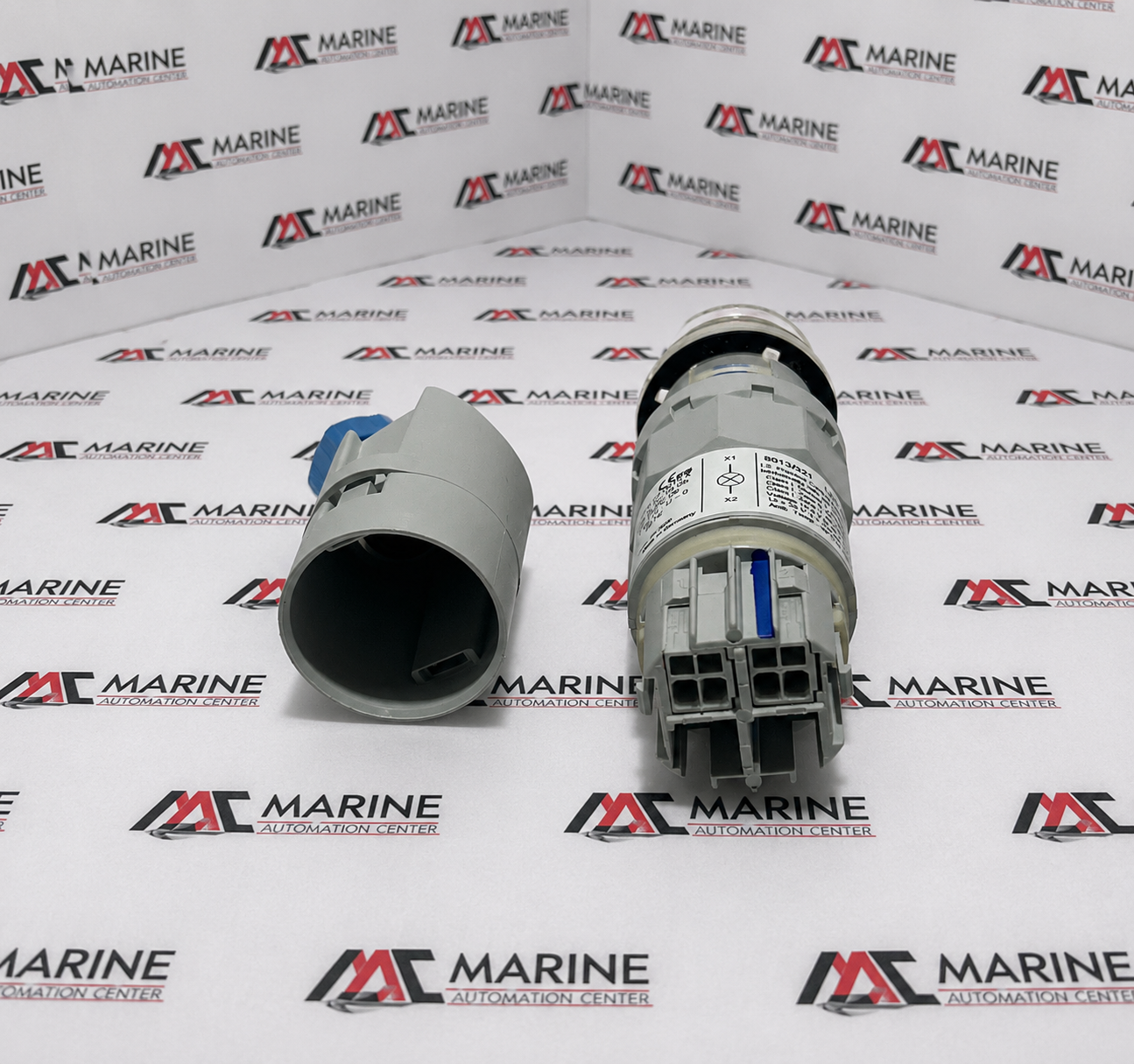

R. STAHL LED Indicator
The R. STAHL 8013/321 is an industrial LED indicator designed to provide clear and reliable visual status indication in control panels and hazardous-area applications. Built for durability and long service life, it offers high visibility, low power consumption, and dependable performance, making it suitable for process automation, industrial control, and safety signaling systems.
BRAND
R. STAHL
TYPE
LED Indicator
PART NO.
R. STAHL LED Indicator 8013/321
MODEL
8013/321
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | R. STAHL |
| TYPE | LED Indicator |
| PART NO. | R. STAHL LED Indicator 8013/321 |
| MODEL | 8013/321 |
| LAMP TYPE | Integrated LED Indicator Lamp |
| OPERATING VOLTAGE | 10.8–28 V AC/DC |
| FREQUENCY | 0–60 Hz |
| CURRENT (Ii) | ≤150 mA |
| INPUT VOLTAGE (Ui) | ≤28 V |
| POWER INPUT (Pi) | ≤1 W |
| INTERNAL CAPACITANCE / INDUCTANCE | Ci, Li ≈ 0 |
| AMBIENT TEMPERATURE | -30°C to +60°C |
| ATEX CERTIFICATION | PTB 02 ATEX 2131 X |
| IECEx CERTIFICATION | IECEx PTB 07.0010X |

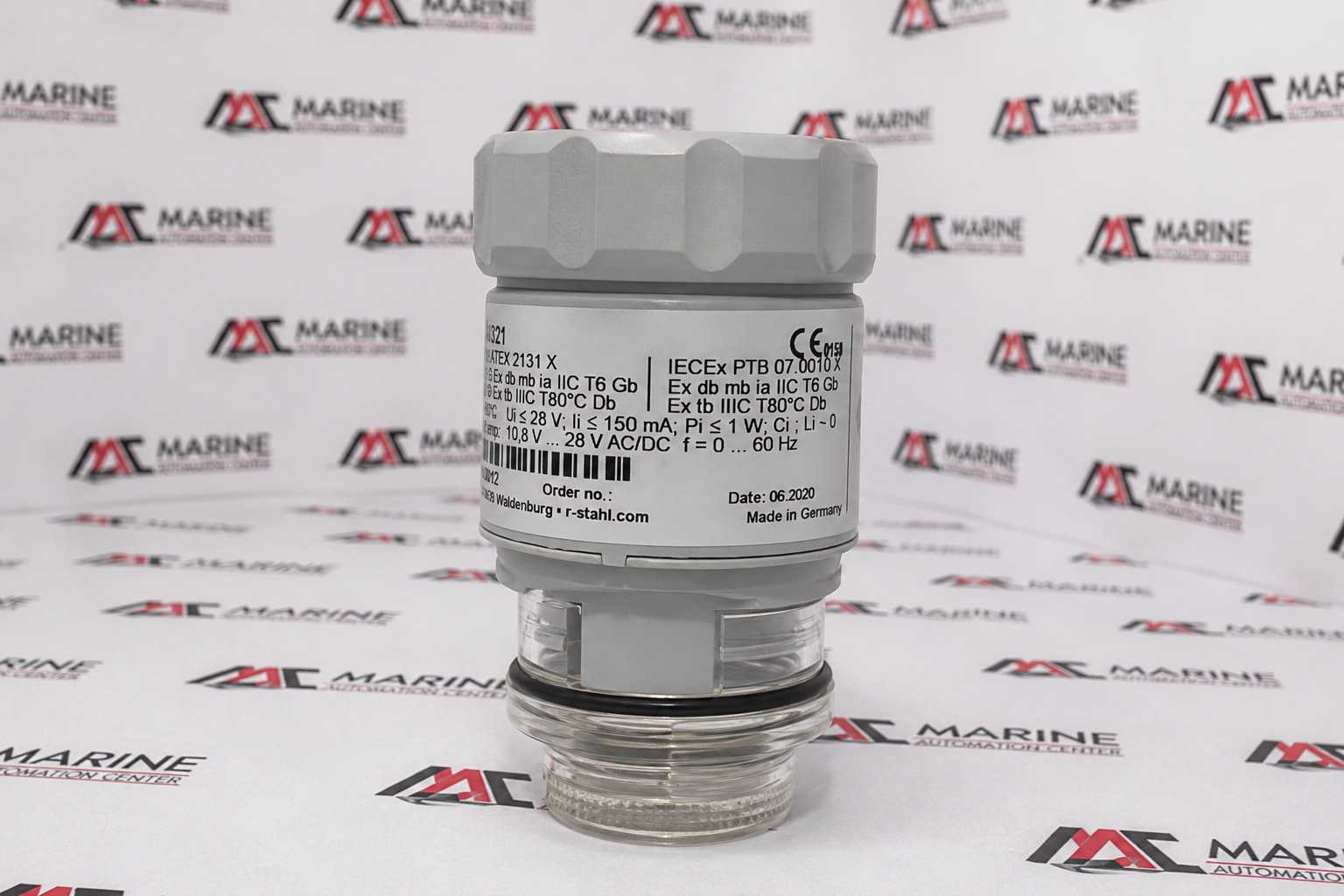

| ATEX MARKING (GAS) | II 2 G Ex db mb ia IIC T6 Gb |
| ATEX MARKING (DUST) | II 2 D Ex tb IIIC T80°C Db |
| IECEx MARKING (GAS) | Ex db mb ia IIC T6 Gb |
| IECEx MARKING (DUST) | Ex tb IIIC T80°C Db |
| Temperature Class | T6 |
| Maximum Surface Temperature | T80°C |
| Gas Group | IIC |
| Dust Group | IIIC |
| Ingress Protection | Suitable for hazardous-area panel installation (as per 8013 series approval) |
| Lens Type | Clear Lens (Interchangeable Colour Filters Included) |

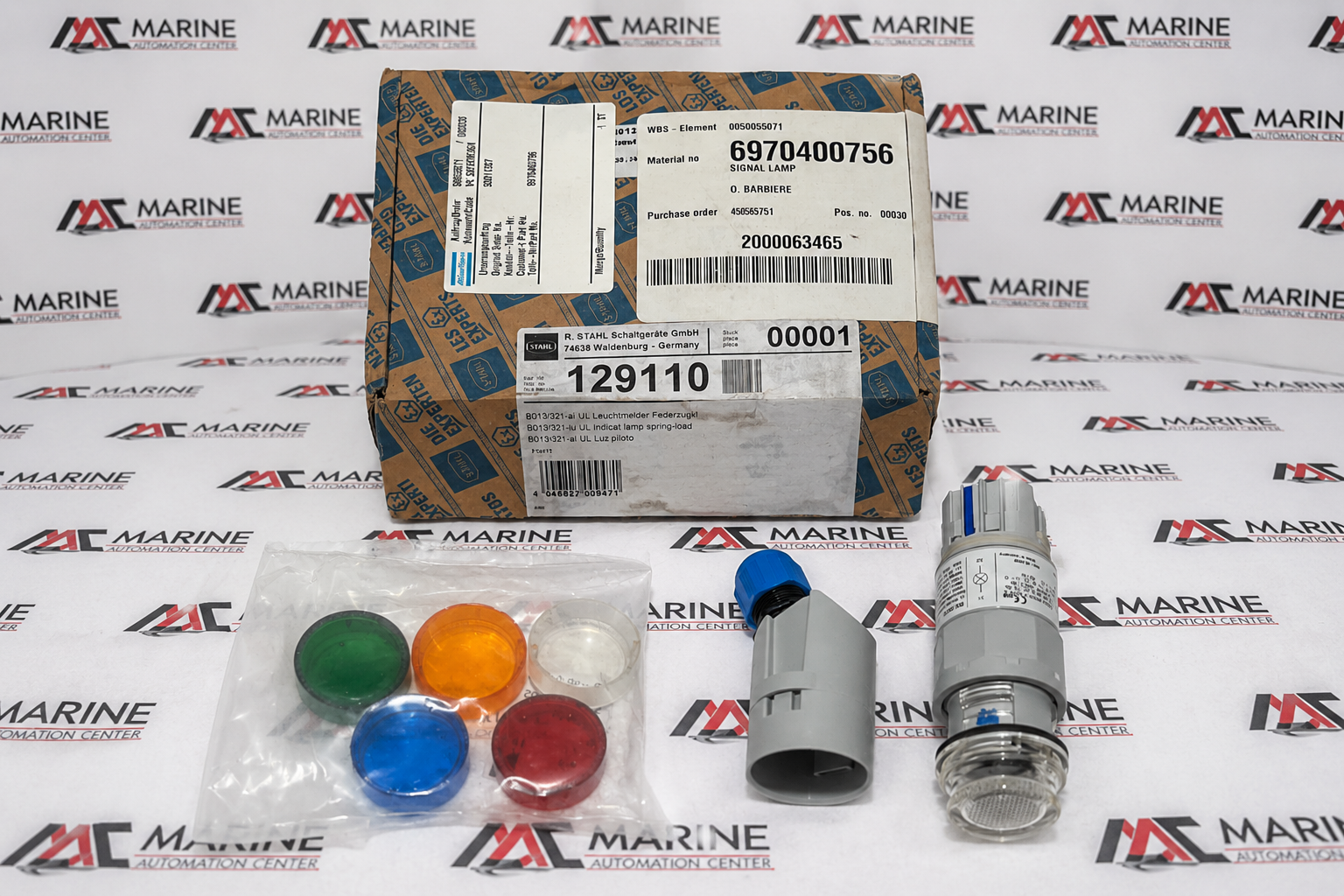

| Included Accessories | Green, Amber, Blue, Red and Clear Colour Lenses |
| Application | Visual status indication for hazardous-area control panels, marine automation systems, offshore installations, process plants, petrochemical facilities and industrial control equipment. |
| MADE IN | Germany |
| REF NO. | 1292 |
