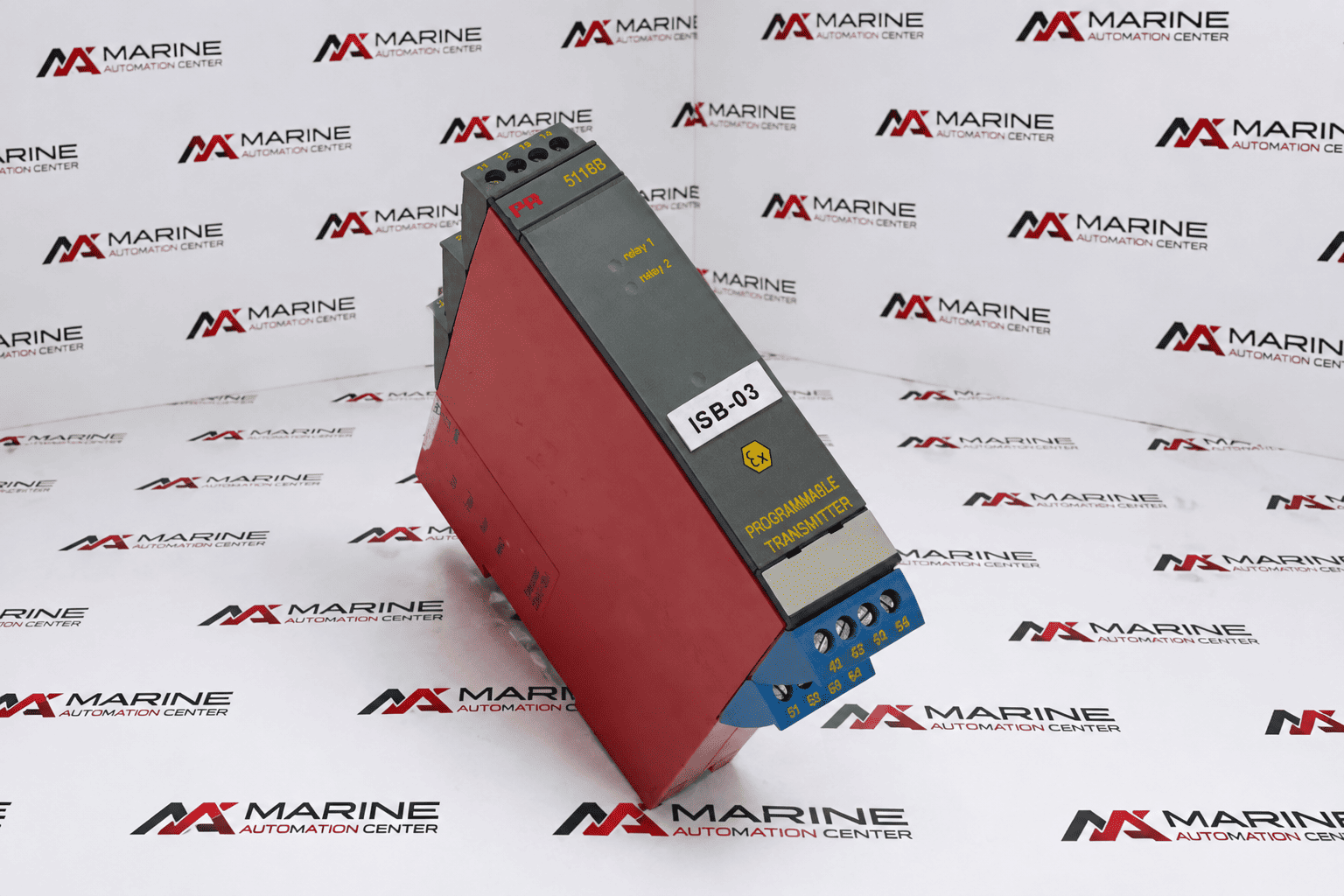

PR electronics Ex Programmable Transmitter 5116B
The PR electronics 5116B is a universal Ex programmable transmitter and intrinsically safe (I.S.) barrier manufactured in Denmark. Powered by a universal 24–250 VDC / 24–230 VAC supply, it is designed to measure, isolate, and convert a wide range of hazardous-area sensor inputs into standard linear process signals.
BRAND
PR electronics
TYPE
Transmitter
PART NO.
5116B
MODEL
5116B
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | PR electronics |
| TYPE | Transmitter |
| PART NO. | 5116B |
| MODEL | 5116B |
| Voltage Rating | 24–250 VDC / 24–230 VAC (Universal Supply) |
| Catalog No. | 5116B |
| Application | Hazardous area temperature and process signal isolation, conversion and transmission |
| Product Name | PR electronics 5116B Ex Programmable Transmitter |
| Hardware Variant | Variant B |
| Universal Inputs | RTD (Pt100), Thermocouple (TC), Resistance, Potentiometer, Voltage and Current Signals |
| Analog Output | Configurable 0/4–20 mA or 0–10 V Signal Output |
| Power Supply | Universal AC/DC Supply |
| Safe Area Power Input | Terminals 11 & 12 |
| Safe Area Analog Output | Terminals 13 & 14 |
| Primary Function | Converts, isolates and transmits hazardous-area sensor signals while providing programmable alarm relay outputs for process monitoring |
| Made In | Denmark |
| REF NO | 111 |
