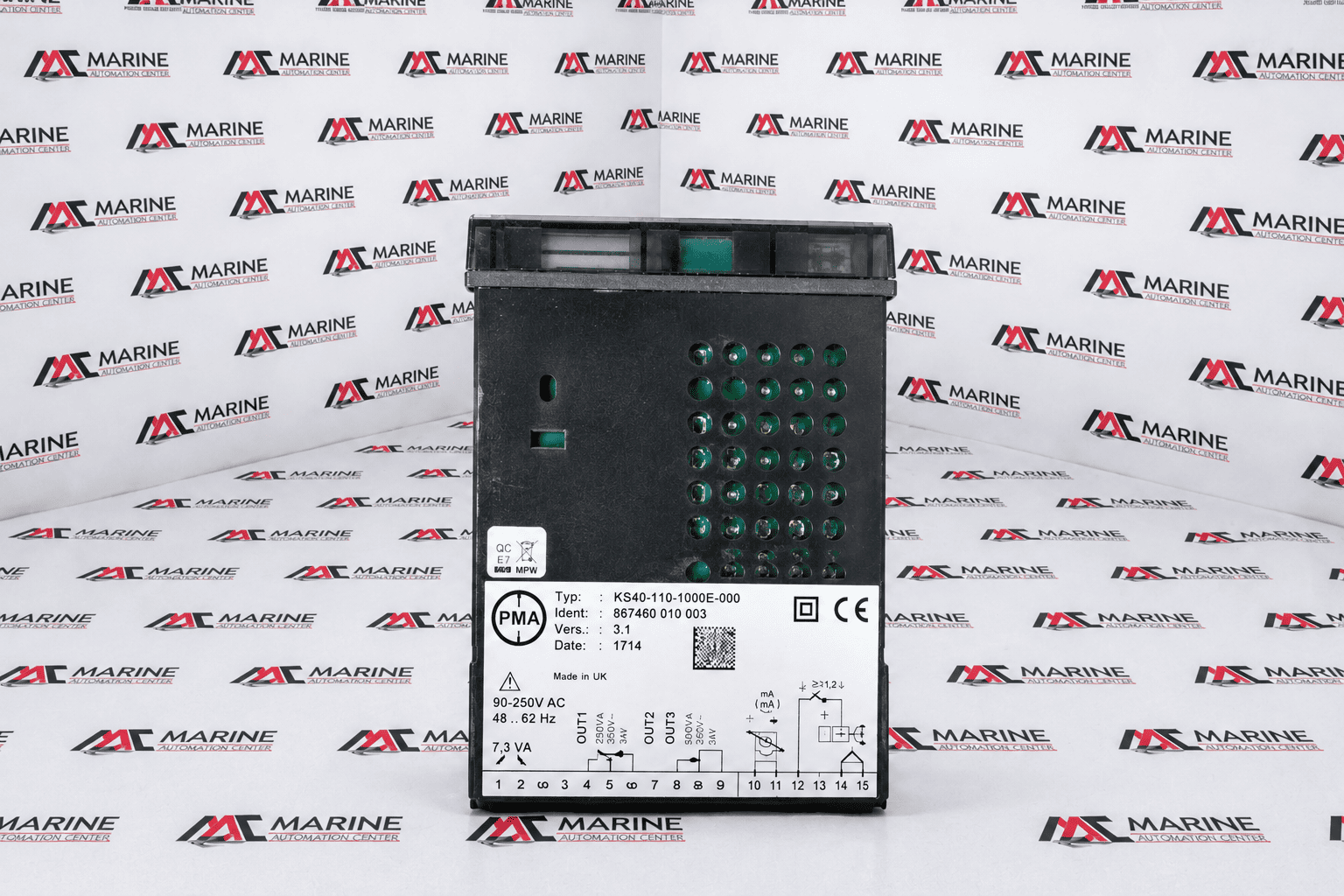

PMA KS 40-1 Universal Industrial PID Temperature & Process Controller
The PMA KS 40-1 (Model: KS40-110-1000E-000 / Part Number: 867460 010 003) is a high-precision, universal compact Industrial Process Controller manufactured in the United Kingdom. Operating on a flexible 90–250 V AC supply, this plug-in module features a rapid 100 ms loop scanning interval and a built-in program logic matrix capable of executing 4 distinct ramp/dwell segments for advanced thermal management in furnaces, environmental chambers, and marine boilers.
BRAND
PMA
TYPE
Industrial Temperature / Process Controller
PART NO.
867460 010 003
MODEL
KS40-110-1000E-000
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | PMA |
| TYPE | Industrial Temperature / Process Controller |
| PART NO. | 867460 010 003 |
| MODEL | KS40-110-1000E-000 |
| Voltage Rating: | 90-250V AC ~ 48...62 Hz, 7.3 VA power consumption |
| Application: | Precise thermal management, environmental chambers, furnace regulation, and maritime engineering boilers |
| IEC | Double-insulated safety design architecture with standard panel compliance |
| Intelligent Program Logic Matrix | 4 distinct ramp/dwell segments |
| Fast Loop Execution Time | 100 ms loop scanning and cycle interval |
| Extended Thermal Field Resiliency | Protected by a splash-water and dustproof IP65 front panel seal, this plug-in module is engineered to operate reliably in harsh ambient environments up to 60°C |
| Condition | New in Box (NIB) / Unused Surplus |
| Made In | United Kingdom (Made in UK) |
| REF NO | 68 |
