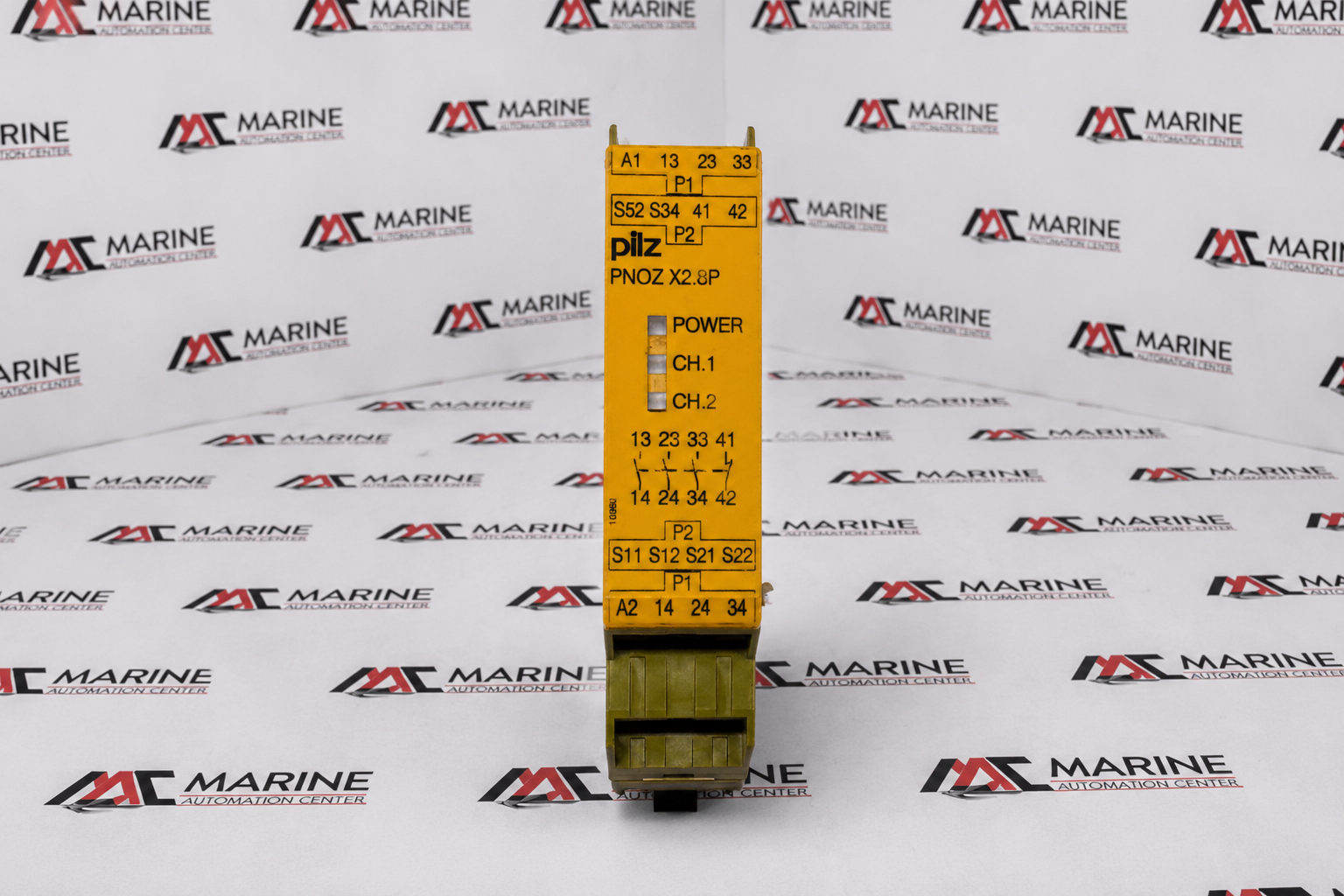

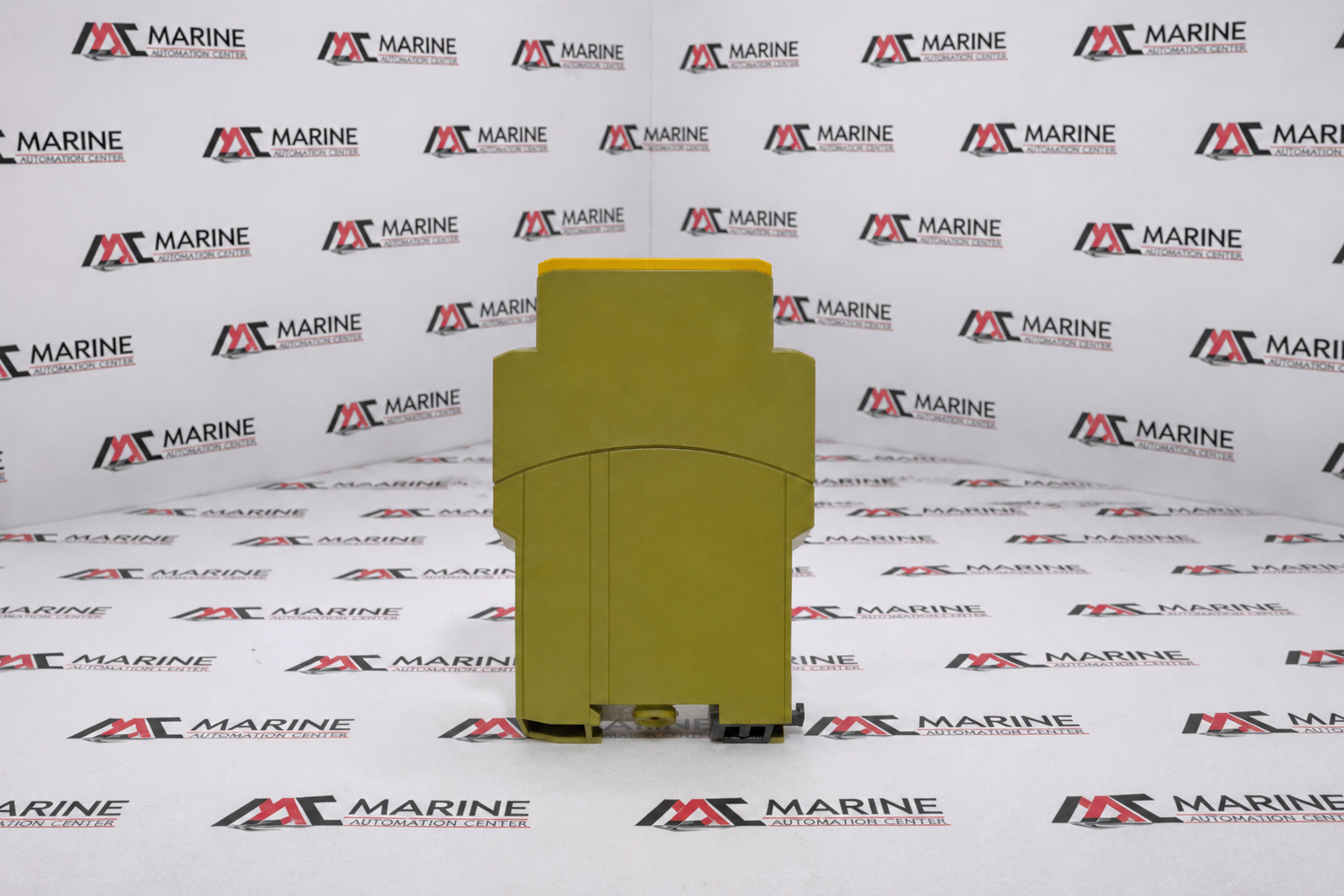

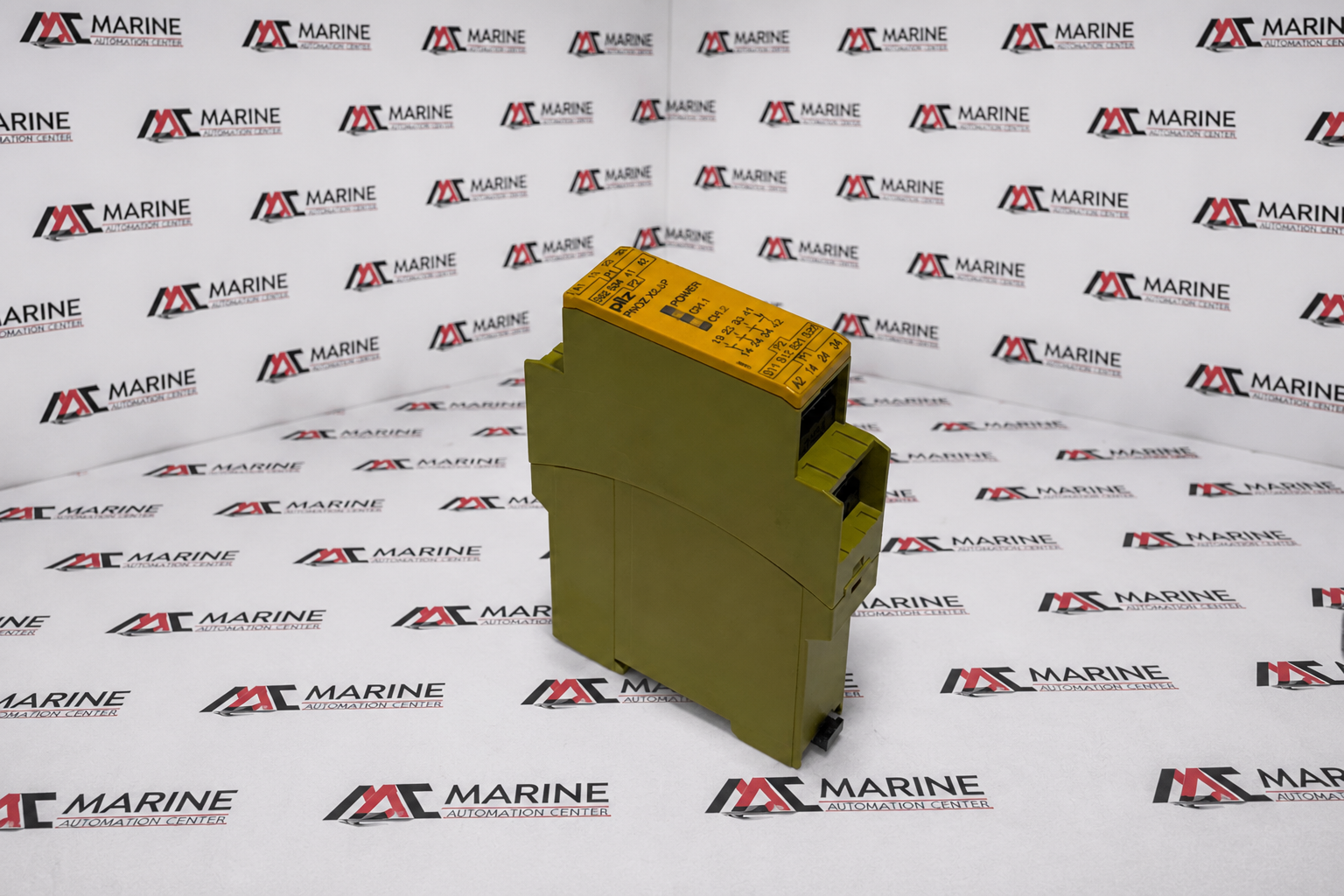

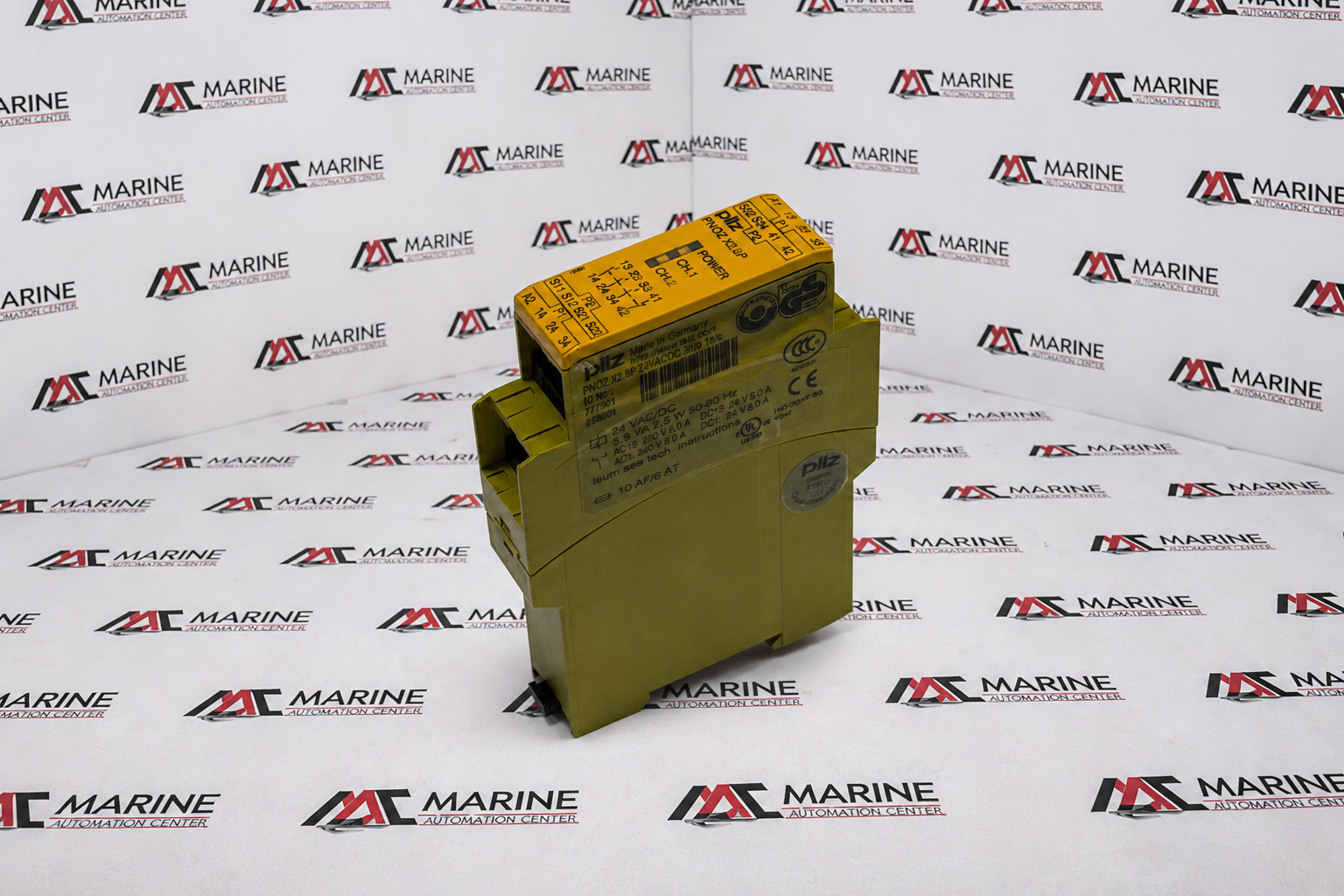

Pilz Emergency Stop Monitoring Relay PNOZ X2.8P
The Pilz PNOZ X2.8P (Part No. 777301) is a compact safety relay / emergency stop monitoring relay designed to monitor emergency stop circuits, safety gates, and protective devices in industrial automation systems. It provides reliable machine safety with 3 safety NO contacts and 1 auxiliary NC contact, supporting automatic or manual reset functions and ensuring compliance with international machine safety standards.
BRAND
Pilz
TYPE
Safety Relay
PART NO.
777301
MODEL
PNOZ X2.8P
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pilz |
| TYPE | Safety Relay |
| PART NO. | 777301 |
| MODEL | PNOZ X2.8P |
| MANUFACTURER | Pilz GmbH & Co. KG |
| Voltage Rating | 24 V AC/DC |
| Application | Monitoring of emergency stop circuits, safety gates, interlock switches, light curtains, and other machine safety functions in industrial automation. |
| IEC | IEC / EN 60947-5-1, EN 60204-1 Compliant Safety Relay |
| Series | PNOZ X |
| Supply Voltage (U1) | 24 V AC/DC |
| Power Consumption | 5.5 VA / 2.5 W, 50–60 Hz |
| Safety Outputs | 3 Normally Open (3 N/O) Safety Contacts |
| Auxiliary Output | 1 Normally Closed (1 N/C) Auxiliary Contact |
| Input Configuration | 1-channel or 2-channel with/without short-circuit detection |
| Operating Modes | Automatic Start / Manual Reset |
| Fuse Rating | 10 AF / 6 AT |
| Frequency | 50–60 Hz |
| Made In | Germany |
| Reference No. | 1455 |
