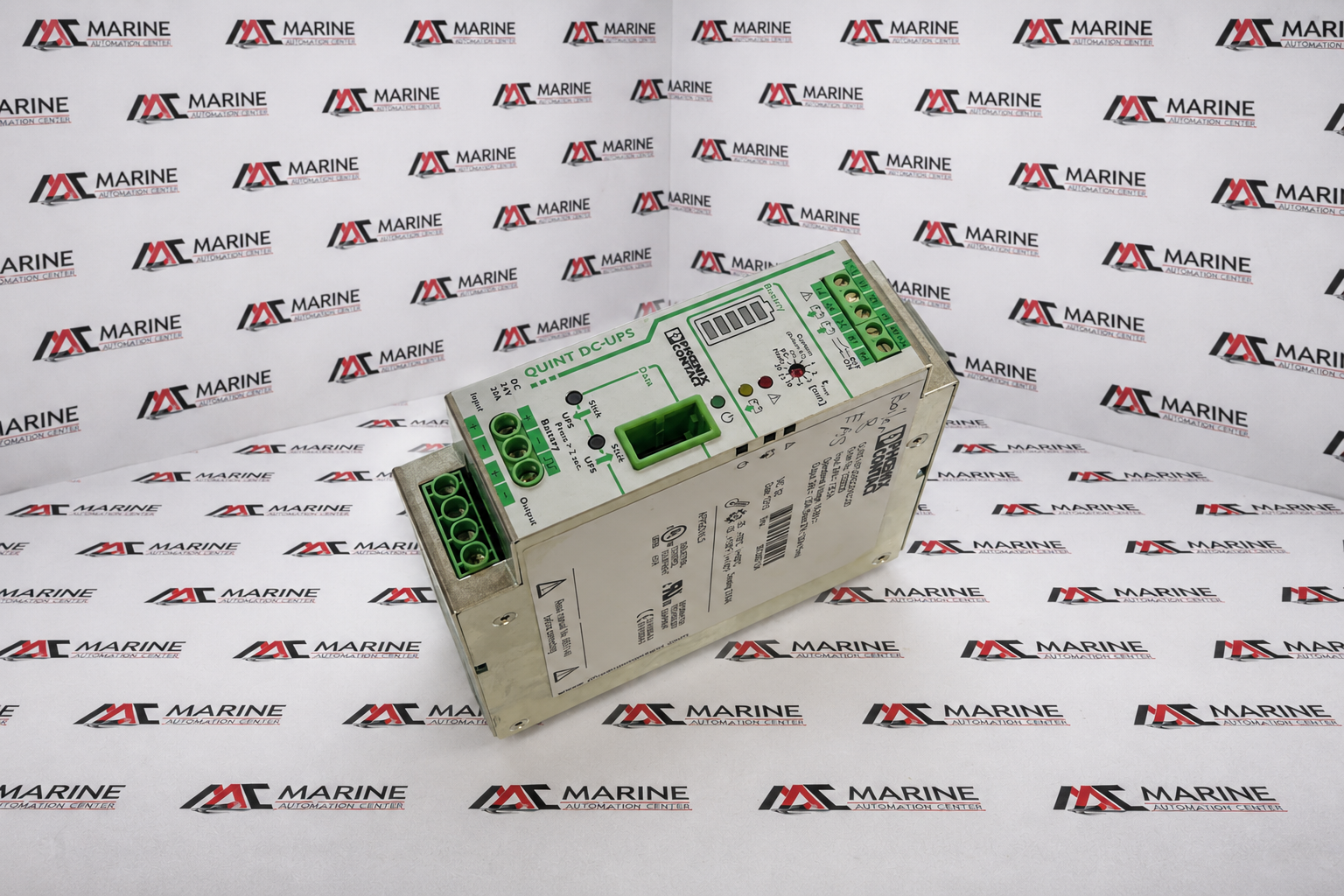

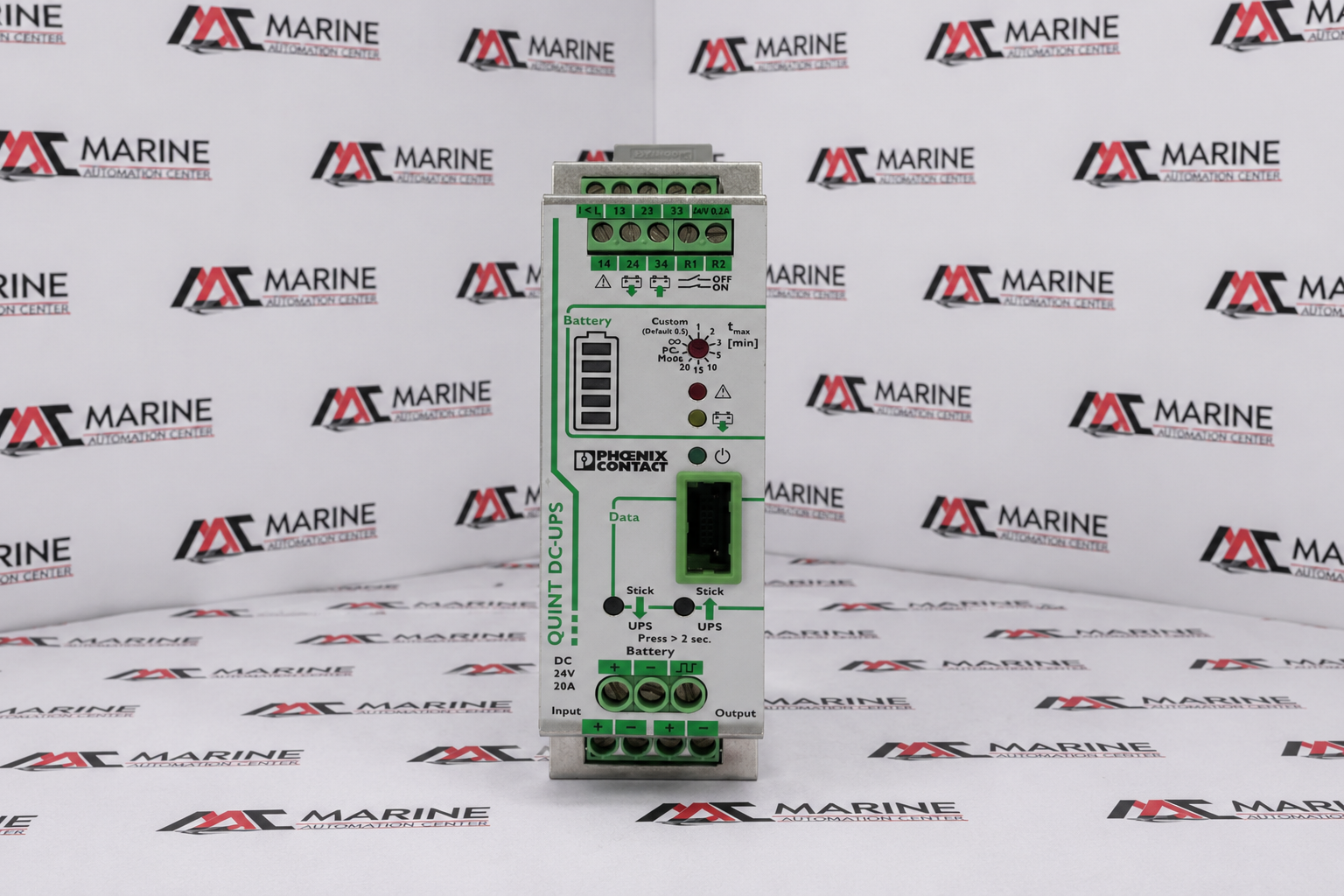

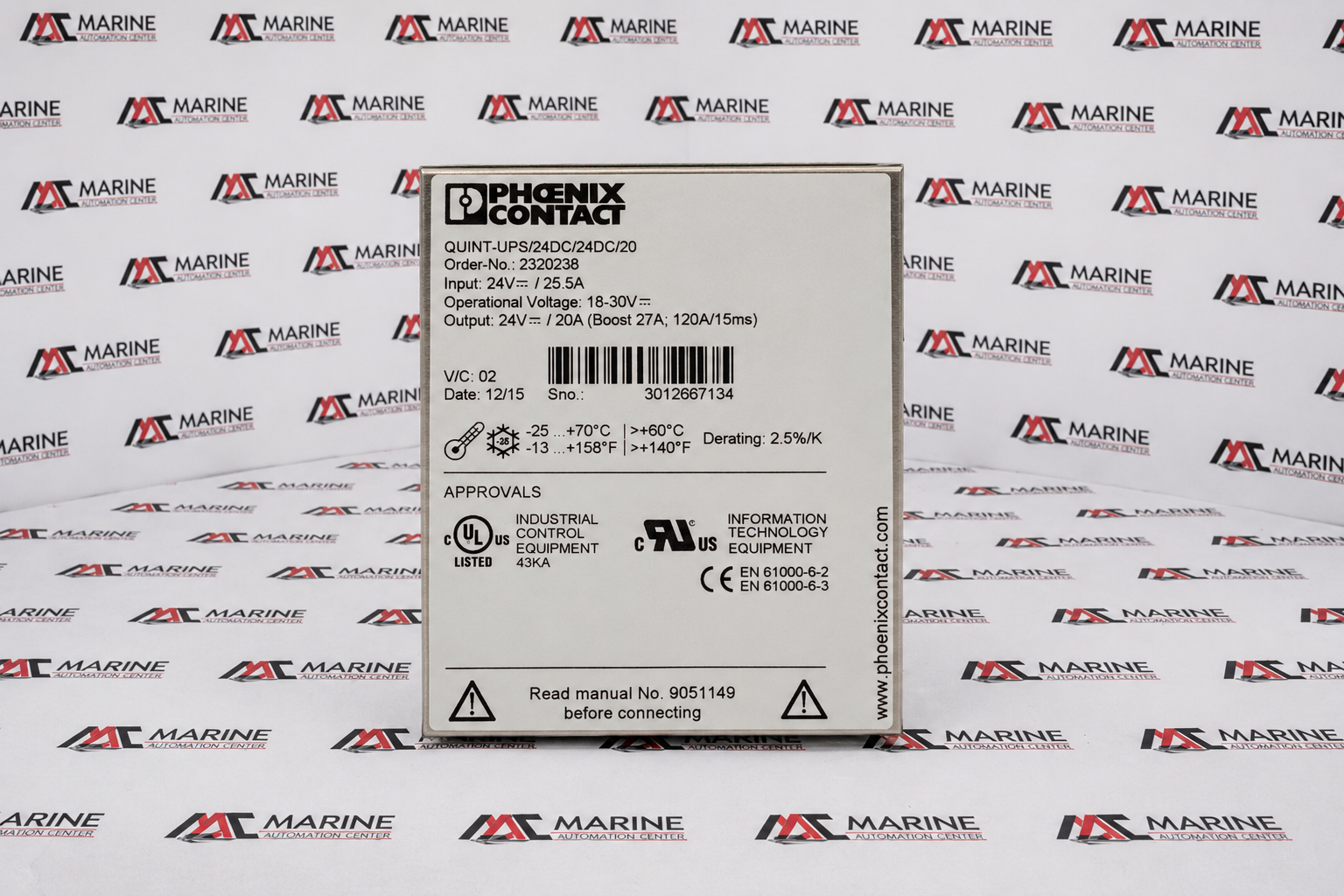

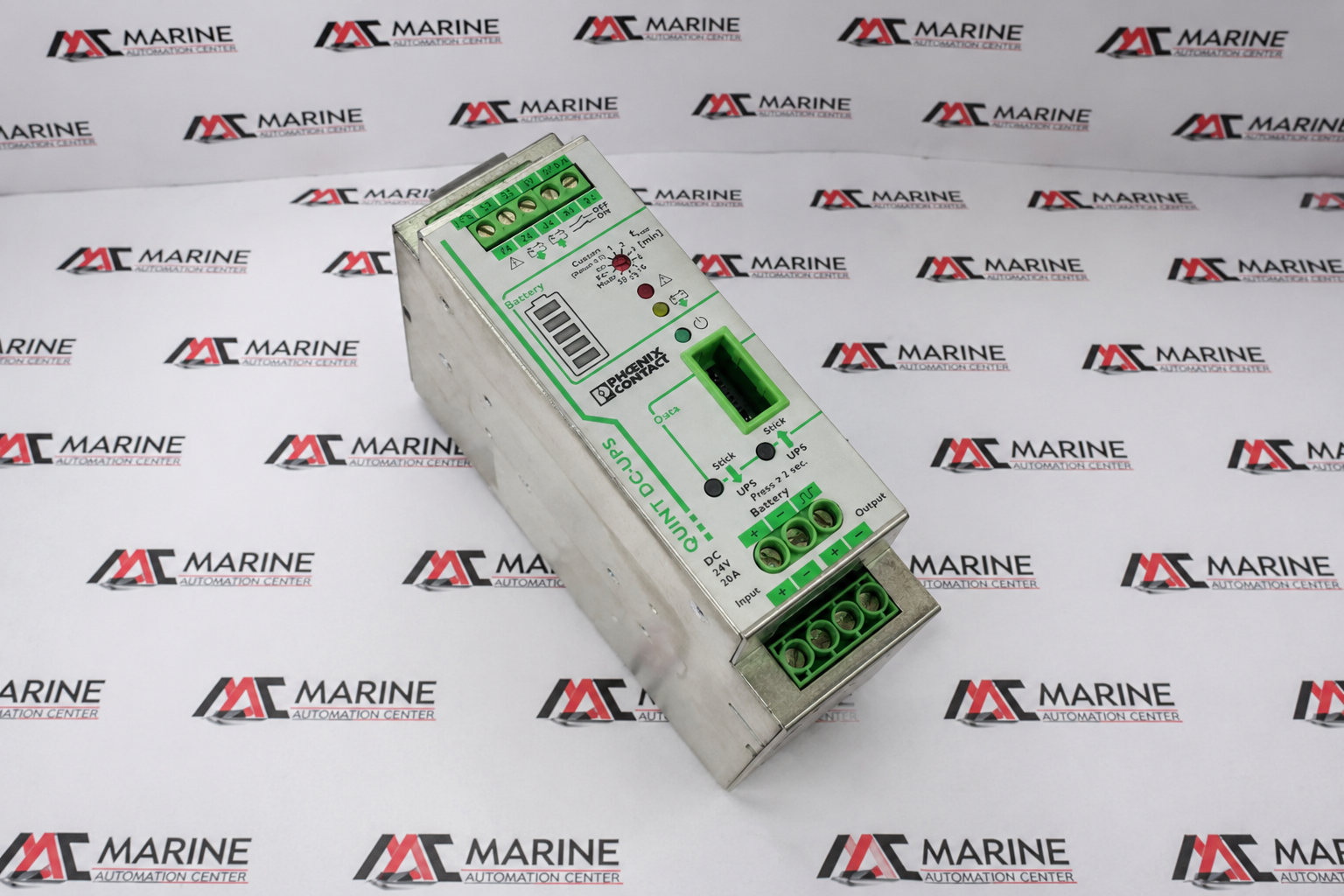

Phoenix Contact QUINT-UPS/24DC/24DC/20 Uninterruptible Power Supply
Phoenix Contact QUINT-UPS/24DC/24DC/20 Uninterruptible Power Supply (Part No. 2320238) is a high-performance industrial UPS designed to maintain a stable 24 VDC power supply during mains failures and voltage fluctuations. It provides seamless backup power, intelligent battery management, and reliable protection for critical automation systems, making it ideal for PLCs, control panels, process control, industrial machinery, and factory automation applications.
BRAND
Phoenix Contact
TYPE
Uninterruptible Power Supply (UPS)
PART NO.
2320238
MODEL
QUINT-UPS/24DC/24DC/20
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Phoenix Contact |
| TYPE | Uninterruptible Power Supply (UPS) |
| PART NO. | 2320238 |
| MODEL | QUINT-UPS/24DC/24DC/20 |
| MANUFACTURER | Phoenix Contact |
| Voltage Rating | 24 V DC Input / Output |
| Application | Industrial automation, PLC backup power, marine control systems, process control, and critical DC power continuity |
| Nominal Current Capacity | 20 A |
| Boost Current | 27 A |
| SFB Technology | 120 A pulse for 15 ms |
| Input Terminals | 24 V DC (+ / -) |
| Battery Terminals | Battery Pack (+ / -) |
| Output Terminals | 24 V DC (+ / -) |
| Green Status LED | Power / Battery operation indication |
| Red Alarm LED | Configuration error, battery fault, or wiring alarm |
| Data Interface | IFS-USB-DATACABLE / IFS-RS232-DATACABLE compatible |
| Battery Status Indicator | LED State-of-Charge (SOC) bar |
| Rotary Buffer Time Switch | 1–20 min / PC mode / Custom / ∞ |
| Unlimited Mode | Runs until deep discharge protection activates |
| PC Mode | Automatic safe shutdown for industrial PCs |
| Operating Temperature | -25°C to +70°C |
| Thermal Derating | 2.5% per Kelvin above +60°C |
| Function | Maintains stable 24 V DC output during supply interruptions |
| Mounting Type | DIN Rail Mount |
| Made In | Germany |
| REF NO | 465 |
