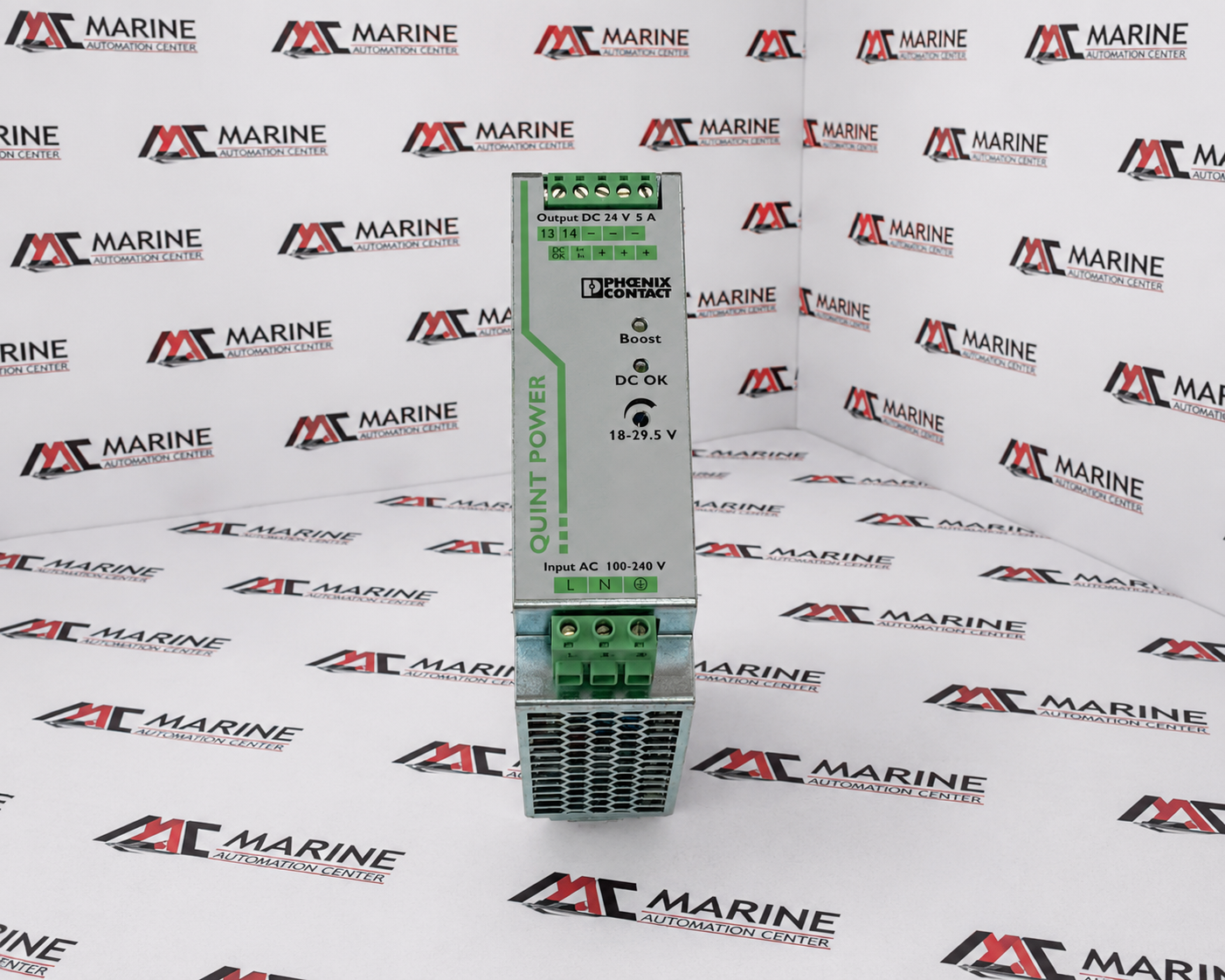

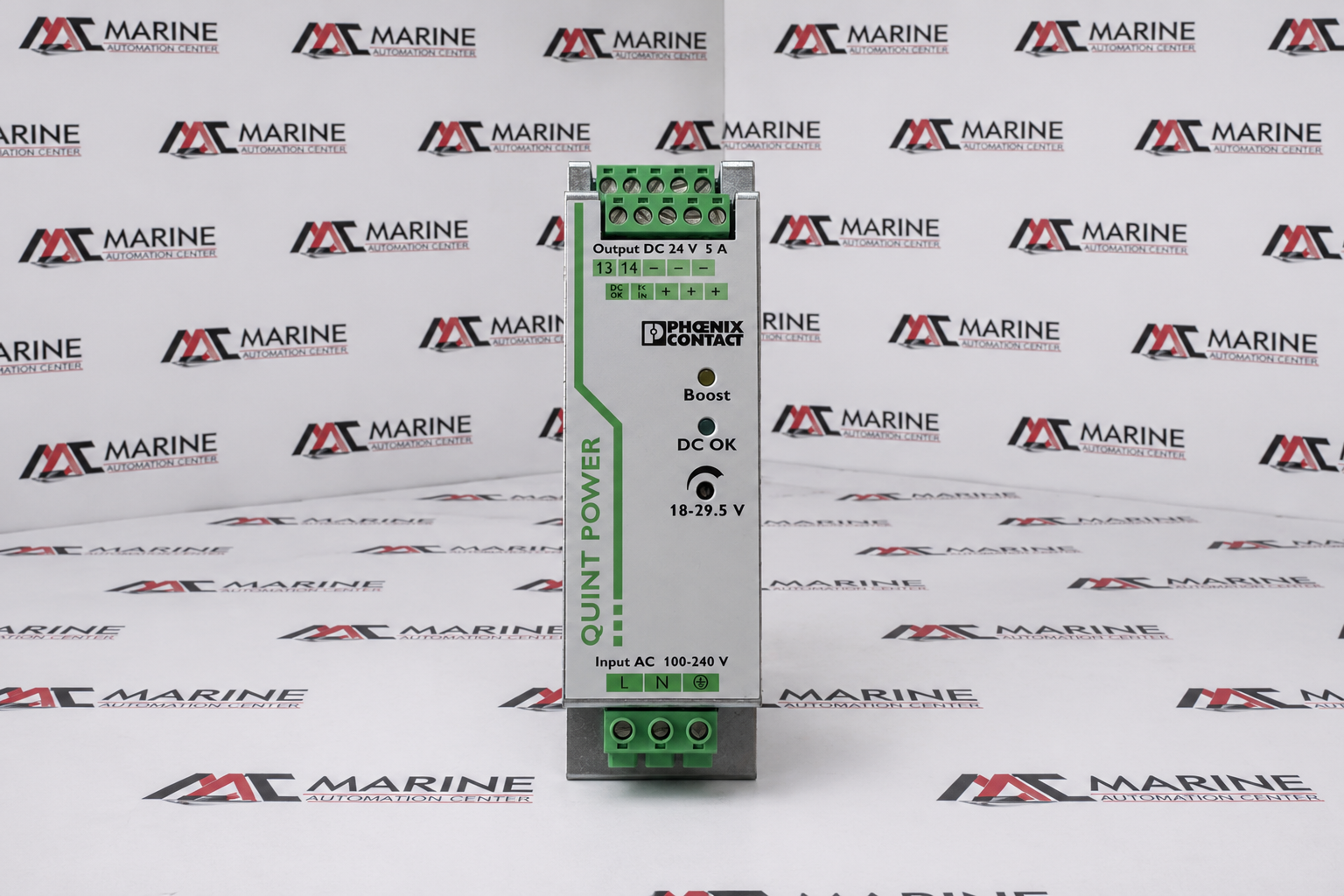

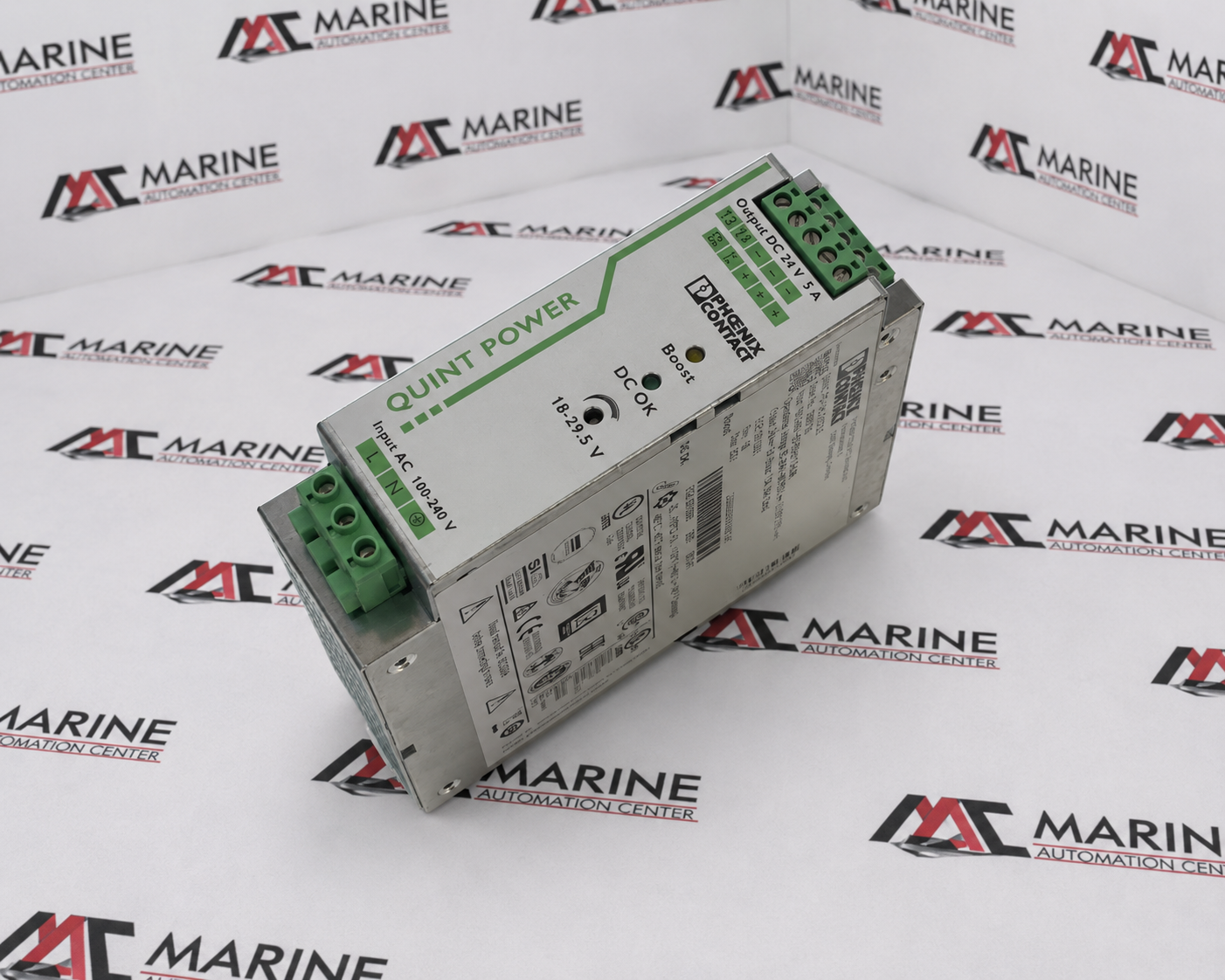

Phoenix Contact QUINT-PS/1AC/24DC/5 Power Supply
Phoenix Contact QUINT-PS/1AC/24DC/5 (2866750) is a DIN-rail mounted AC/DC power supply that converts a single-phase AC input into a regulated 24 V DC output at 5 A (120 W). Designed for industrial automation, it features high efficiency, reliable performance, and advanced protection functions to ensure stable power delivery in demanding applications
BRAND
Phoenix Contact
TYPE
Power Supply (AC/DC)
PART NO.
2866750
MODEL
QUINT-PS/1AC/24DC/5
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Phoenix Contact |
| TYPE | Power Supply (AC/DC) |
| PART NO. | 2866750 |
| MODEL | QUINT-PS/1AC/24DC/5 |
| Voltage Rating | Input: 100-240V AC (~50/60Hz, 1.5-0.6A) or 90-350V DC (UL508: 250V DC) | Output: 24V DC / 5A (Boost 7.5A; SFB 30A for 12ms) |
| Application | Industrial automation networks, marine control panels, and critical system power distribution |
| IEC Standards | Conforms to EN 61000-6-2 (Immunity) and EN 61000-6-3 (Emissions) |
| Selective Fuse Breaking (SFB) Technology | Delivers up to 6 times the nominal output current (30A for 12 milliseconds) |
| Power Boost Capability | continuous static power expansion up to 7.5A |
| Thermal Performance & Derating | Operates reliably from -25°C to +70°C |
| Maritime Approvals | approvals from DNV-GL, American Bureau of Shipping (ABS), and Lloyd's Register (LR) |
| Hazardous Location Ratings | Listed under code 31ZN for North American Class I, Division 2, Groups A, B, C, and D environments |

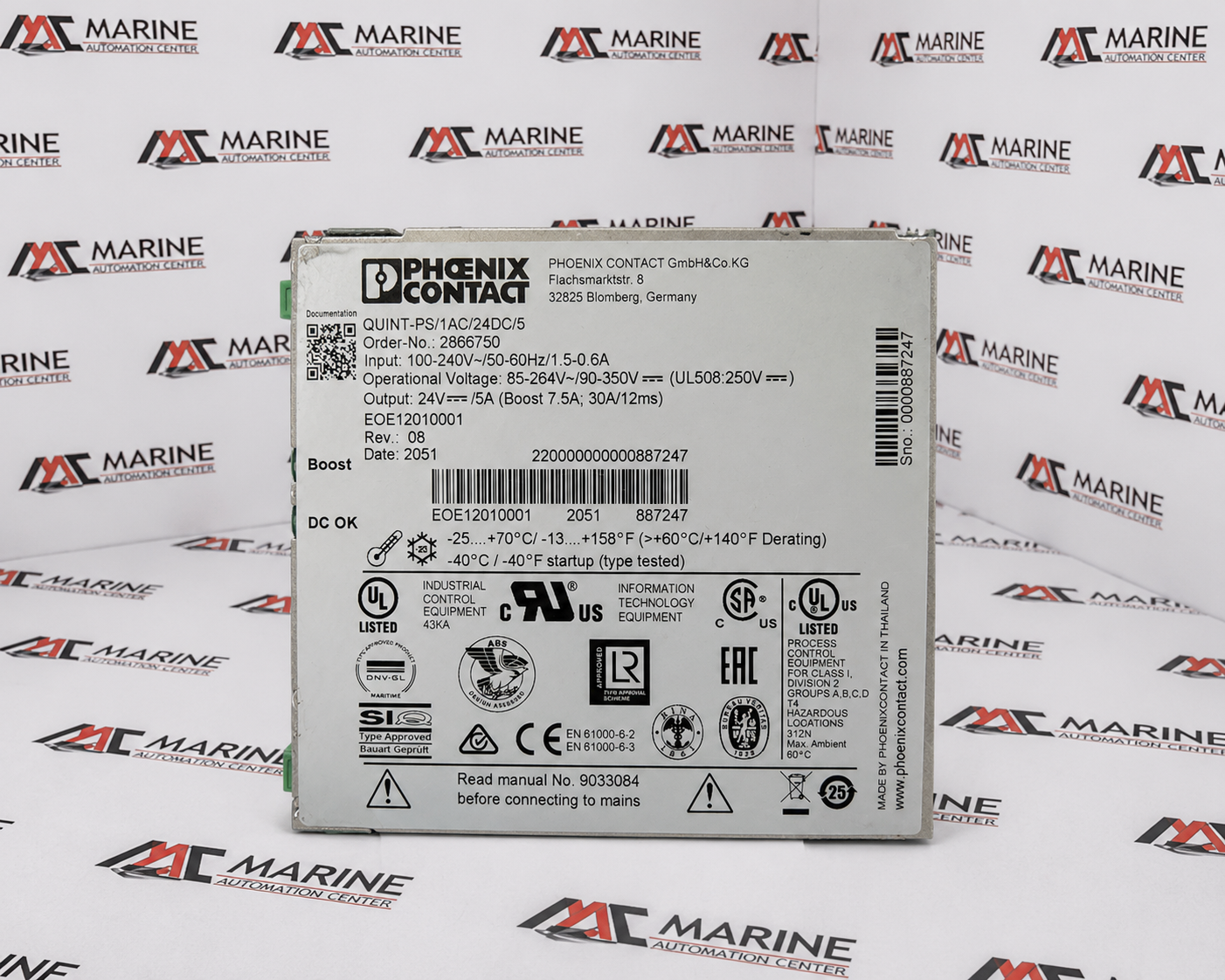

| Manufacturing Tracking Codes | Maintained under hardware revision tier Rev.: 08, manufacturing date marker Date: 2051, internal matrix tag EOE12010001, and global EAC industrial conformance distribution indicators |
| Made In | Thailand |
| REF NO | 476 |
