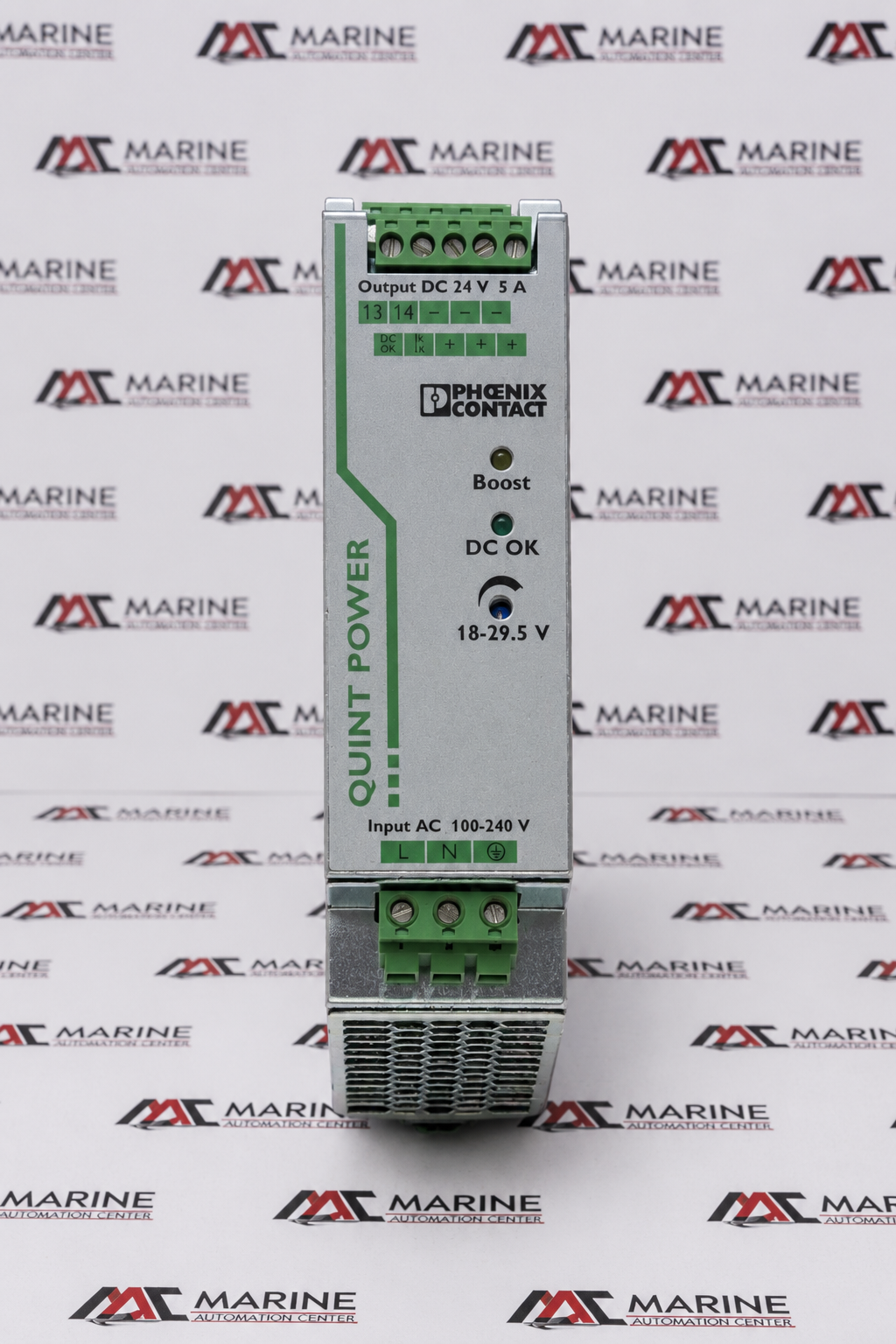

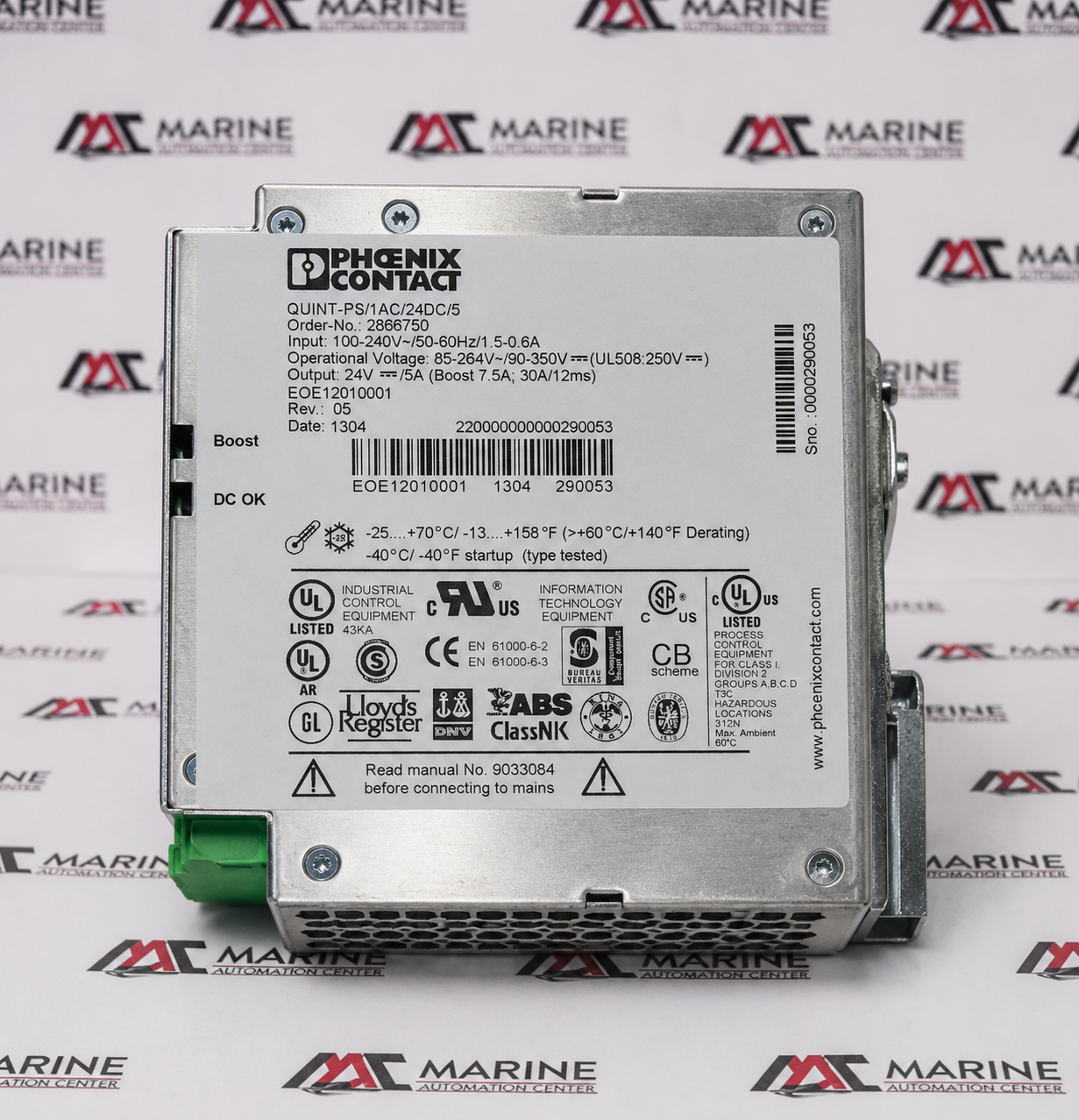

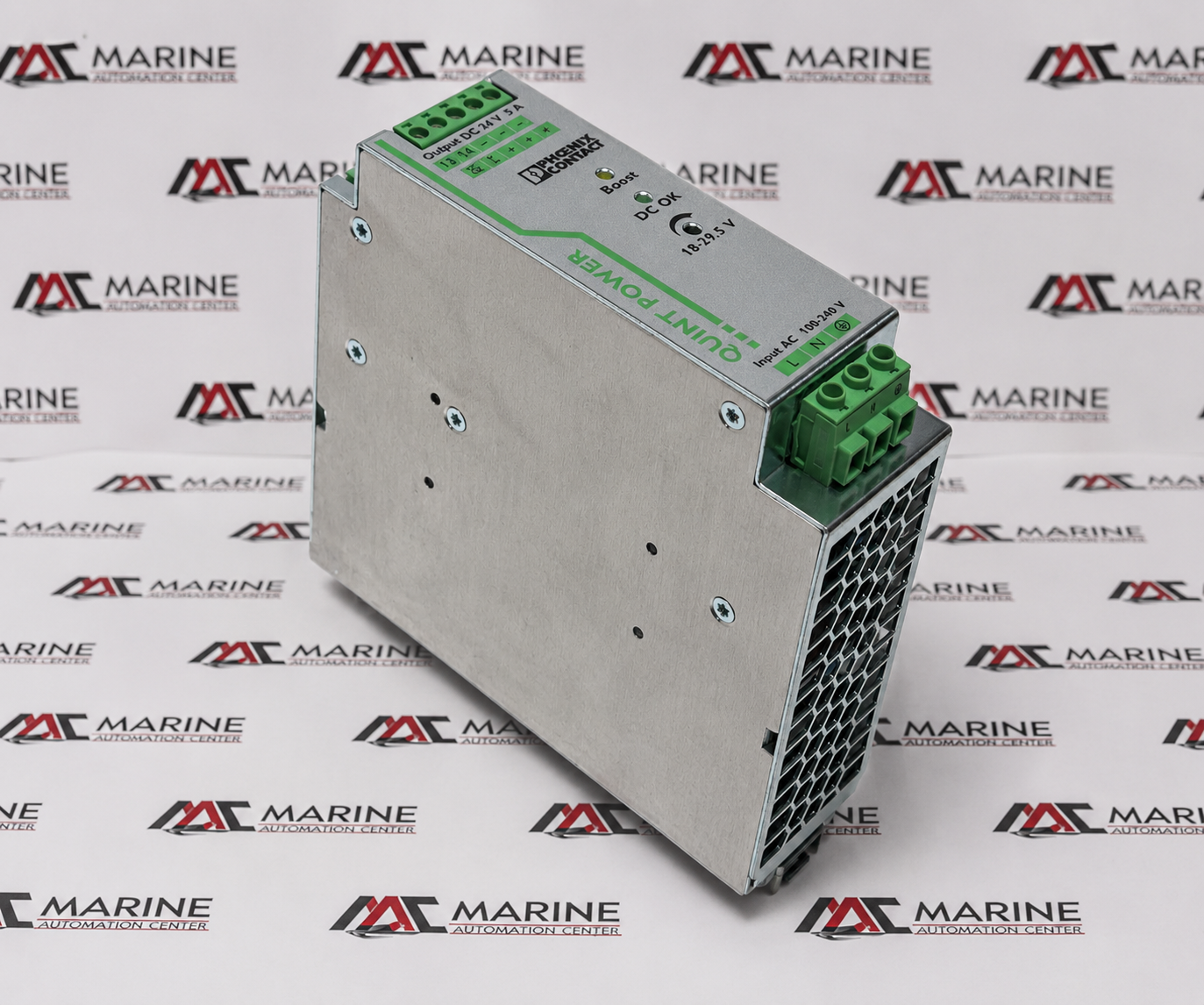

Phoenix Contact QUINT Power Supply Unit (PSU)
The Phoenix Contact QUINT-PS/1AC/24DC/5 (Part No. 2866750) is a primary-switched DIN rail power supply unit from the QUINT POWER series. It delivers a regulated 24 V DC output (5 A) and features Selective Fuse Breaking (SFB) technology for reliable protection, high operational availability, and dependable performance in industrial automation and control applications.
BRAND
Phoenix Contact
TYPE
Primary-Switched Power Supply Unit
PART NO.
2866750
MODEL
QUINT-PS/1AC/24DC/5
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Phoenix Contact |
| TYPE | Primary-Switched Power Supply Unit |
| PART NO. | 2866750 |
| MODEL | QUINT-PS/1AC/24DC/5 |
| Product Code | EOE12010001 |
| Output Power | 120 W |
| Mounting Type | DIN Rail (EN 60715) |
| Cooling | Natural Convection |
| Housing | Metal |
| Degree of Protection | IP20 |
| Protection Class | Class I |
| Operating Temperature | −25°C to +70°C |
| Startup Temperature | −40°C |
| Derating | Above +60°C |
| MTBF | >635,000 hours @ 40°C |
| Efficiency | >90% |
| Isolation Voltage | 4 kV AC |
| Pollution Degree | 2 |
| Overvoltage Category | III |
| Frequency | 50–60 Hz |
| Input Voltage | 100–240 V AC (Single Phase) |
| MADE IN | Thailand |
| Ref no | 1217 |
