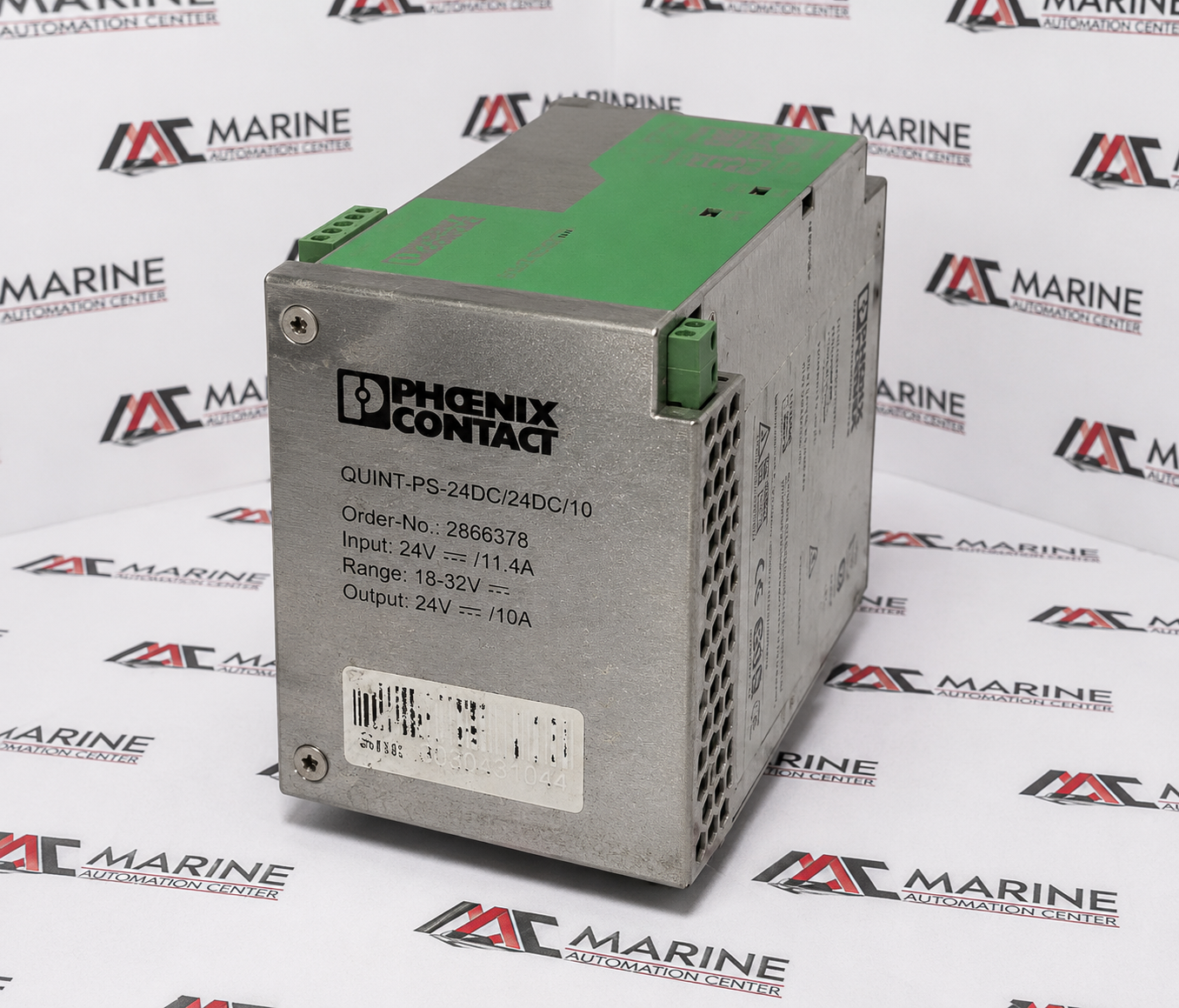

Phoenix Contact QUINT POWER 24V 10A DC Converter
The Phoenix Contact QUINT-PS-24DC is a primary-switched isolated DC/DC converter that provides a stable 24 V DC output from a DC input source for industrial automation applications. It features galvanic isolation, high efficiency, and reliable protection against overload and short circuits, ensuring dependable power conversion for control systems, PLCs, and industrial equipment
BRAND
Phoenix Contact
TYPE
Primary-Switched Isolated DC/DC Converter
PART NO.
2866378
MODEL
QUINT-PS-24DC
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Phoenix Contact |
| TYPE | Primary-Switched Isolated DC/DC Converter |
| PART NO. | 2866378 |
| MODEL | QUINT-PS-24DC |
| Voltage Rating | Nominal Input: 24 V DC Input Range: 18 V DC ... 32 V DC Nominal Output: 24 V DC ±1% (Adjustable 22.5 V ... 28.5 V) |
| Application | Used for electrical isolation and stabilization of 24 V DC voltage lines in industrial environments, buffering long cable drops, and protecting sensitive automation equipment from unstable battery networks |
| IEC | Conforms to EN 60950-1/VDE 0805 (SELV) and EN 50178/VDE 0160 (PELV) |
| Input voltage range | 18 V DC ... 32 V DC |
| Wide-range input | yes |
| Voltage type of supply voltage | DC |
| Inrush current | < 20 A (typical) |
| Inrush current integral (I2t) | 0.3 A2s |
| Efficiency | > 88% under nominal conditions |
| Integrated Safety & Protection | 25 A slow-blow input fuse |
| Enclosure Design | 80 mm wide metal housing |
| Marine Approvals | DNV GL (EMC A) and ABS |
| Made In | China |
| REF NO | 1471 |
