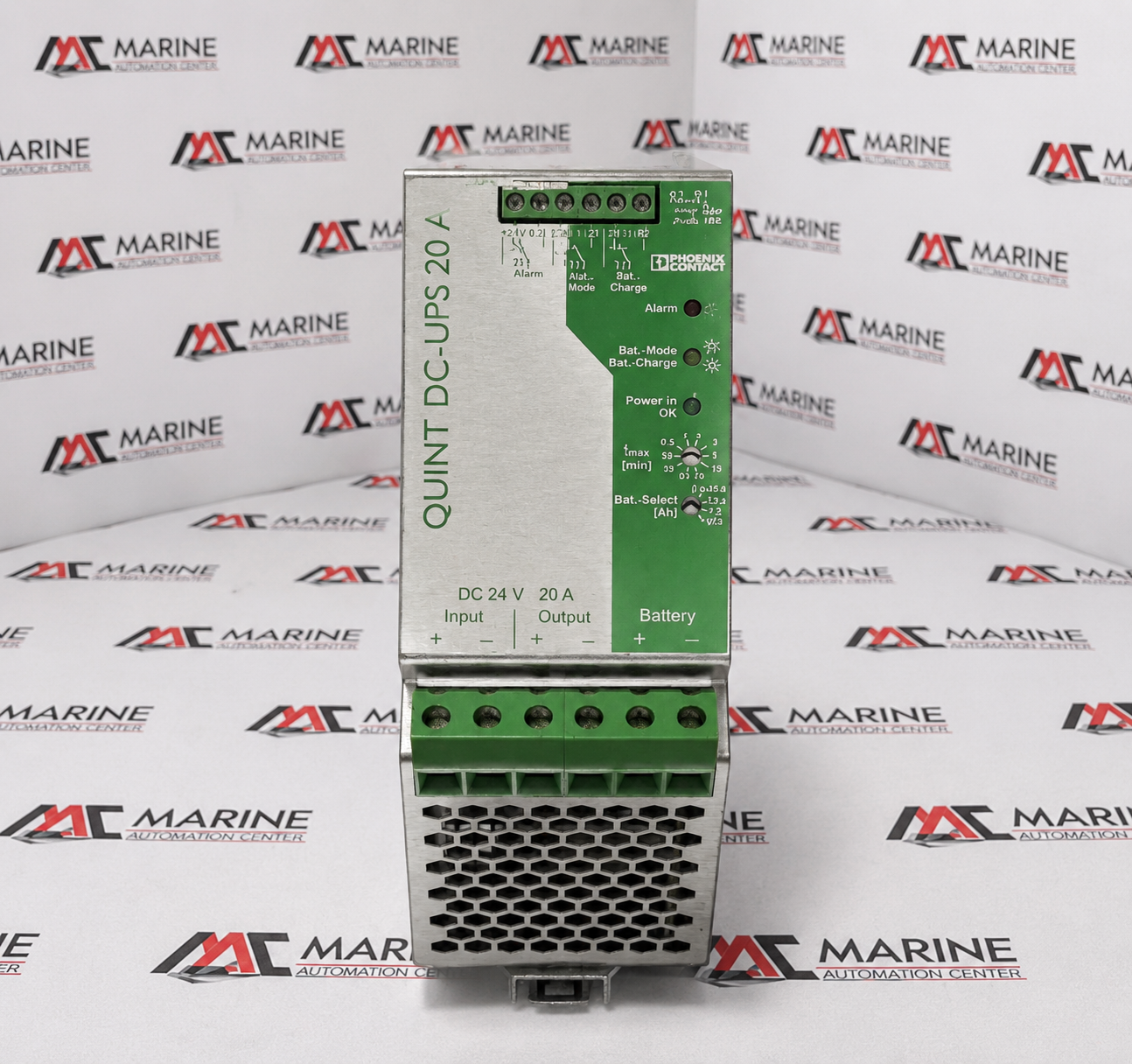

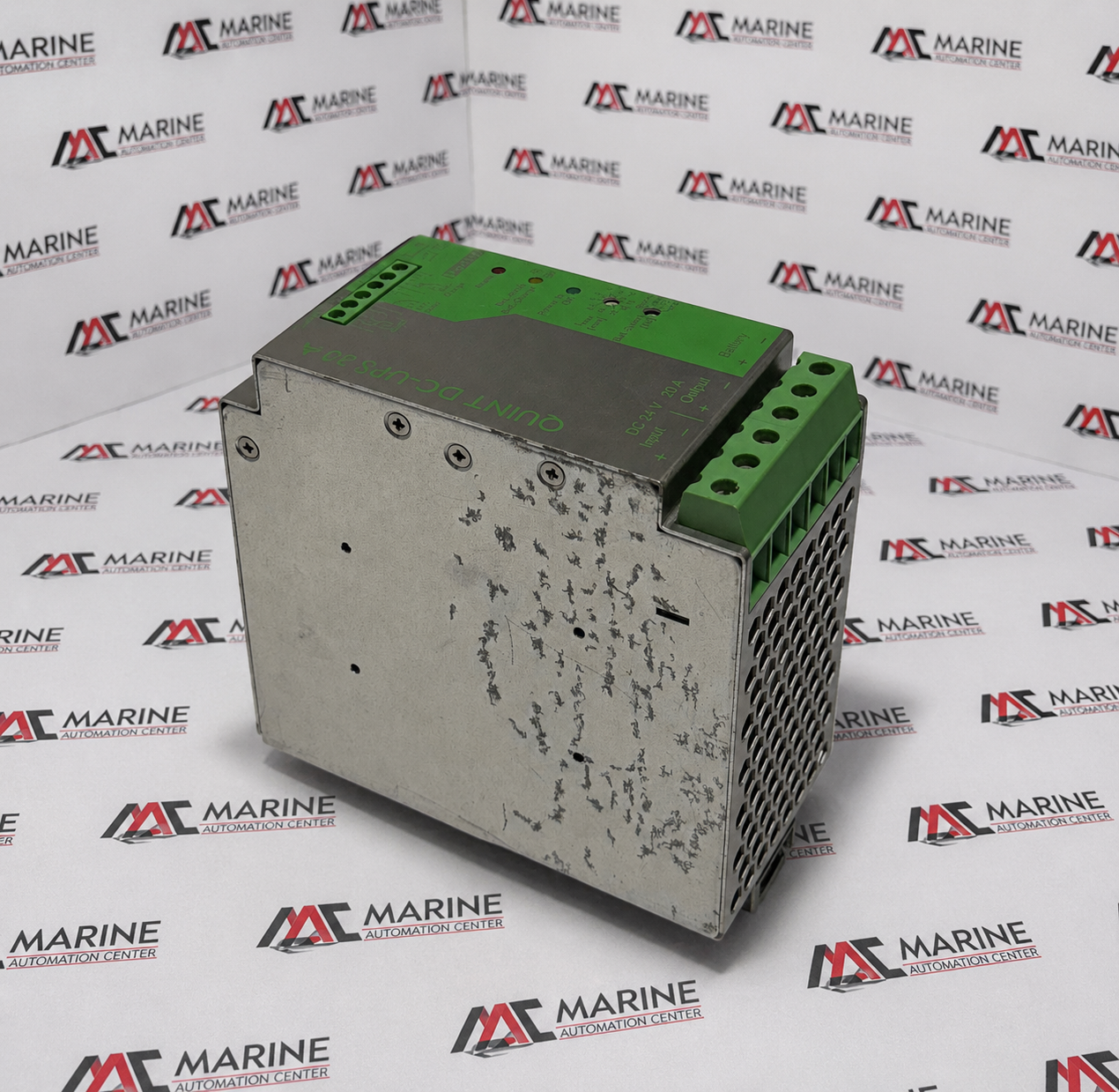

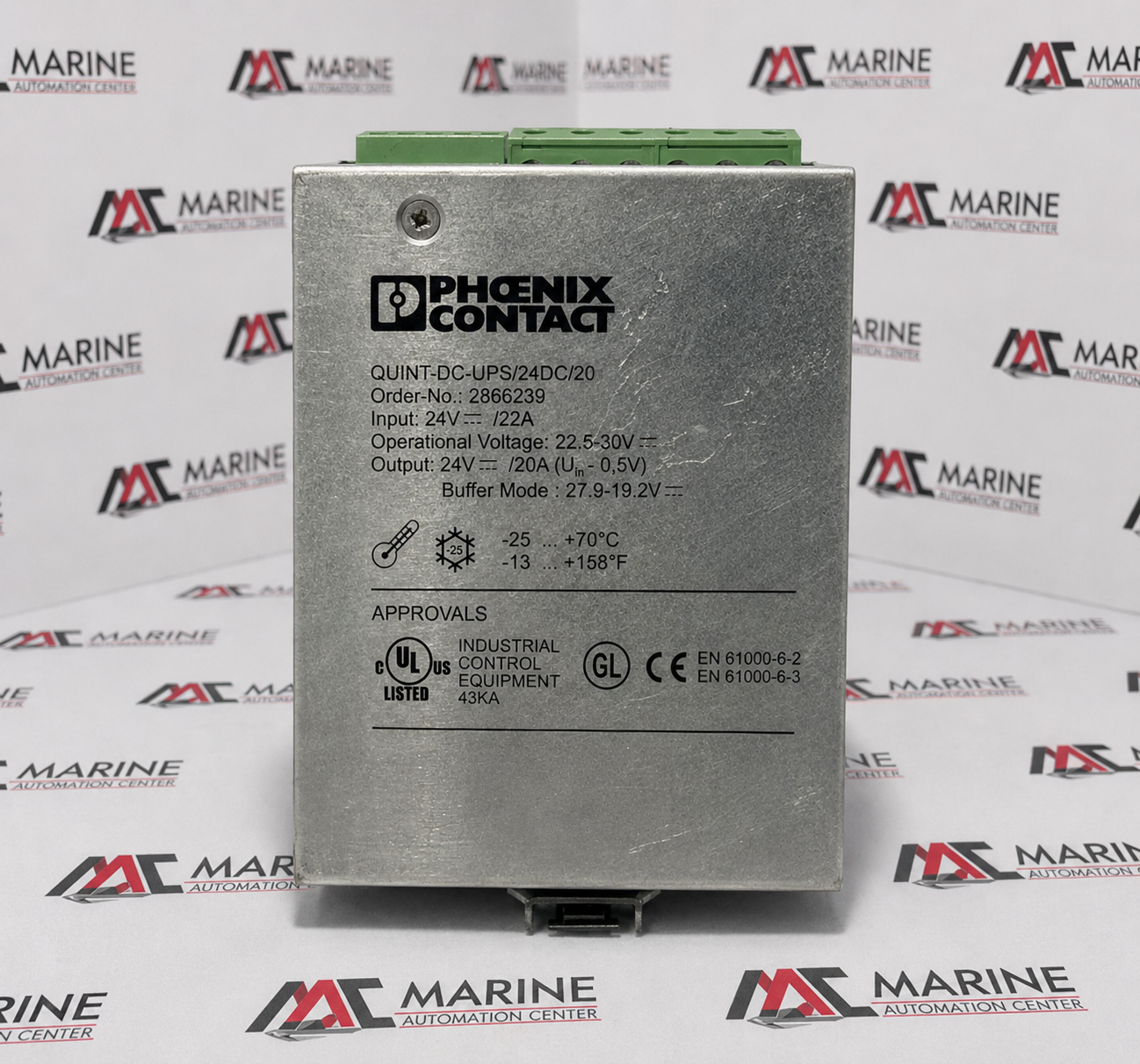

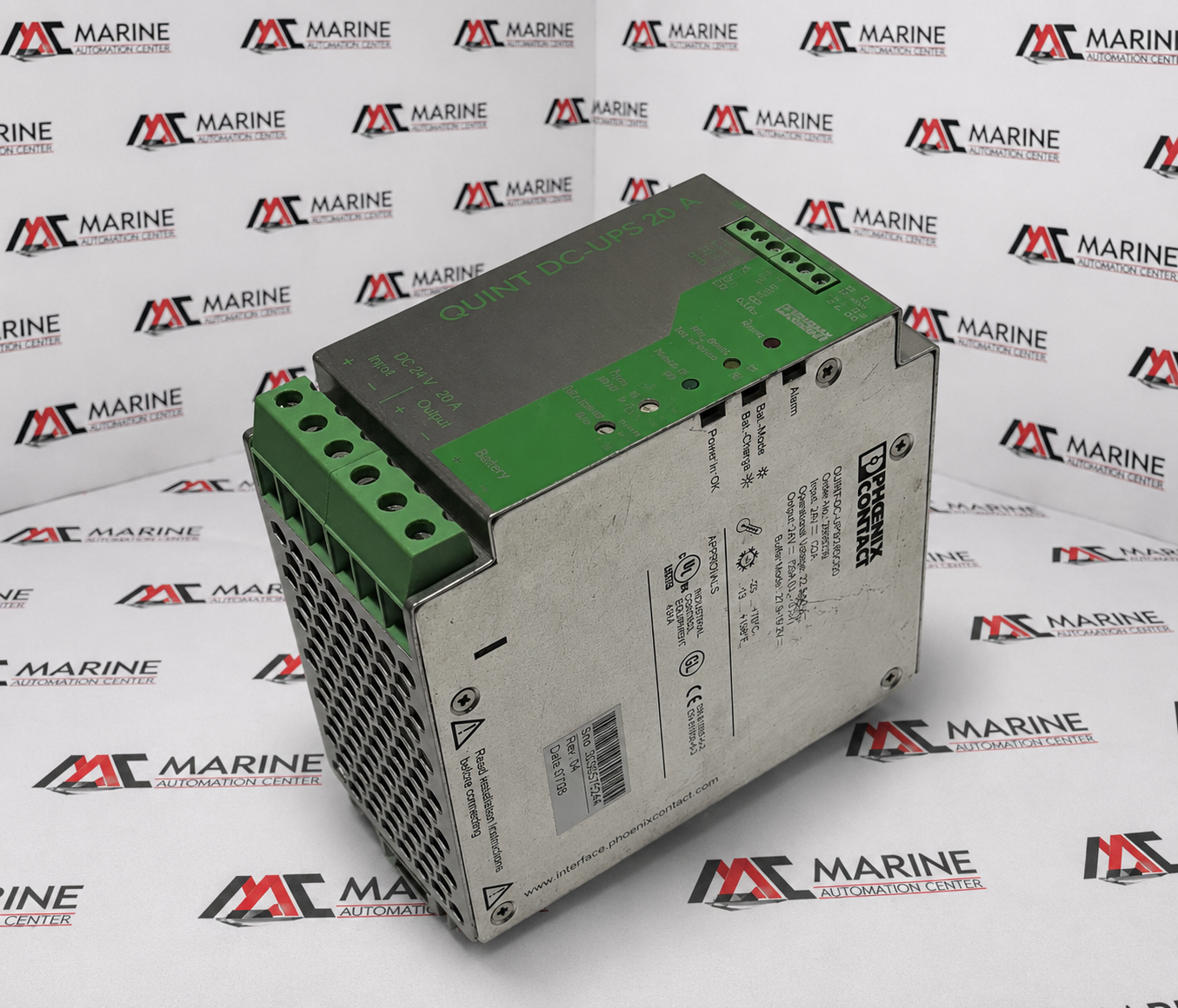

Phoenix Contact QUINT-DC-UPS/24DC/20 DC UPS Module
Phoenix Contact QUINT-DC-UPS/24DC/20 DC UPS Module (Part No. 2866239) is a high-performance uninterruptible power supply module designed to maintain a stable 24 VDC power supply during mains power failures and voltage fluctuations. It provides seamless backup power, intelligent battery management, and reliable protection for critical industrial control systems. Ideal for PLCs, automation panels, process control, industrial machinery, and factory automation applications.
BRAND
Phoenix Contact
TYPE
Power Supply Module
PART NO.
2866239
MODEL
QUINT-DC-UPS/24DC/20
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| MANUFACTURER | Phoenix Contact GmbH & Co. KG |
| Input Voltage | 24 V DC |
| Input Current | 22 A Max. |
| Operational Voltage Range | 22.5–30 V DC |
| Output Voltage | 24 V DC (Normal Operation: Uin − 0.5 V; Buffer Mode: 27.9–19.2 V DC) |
| Output Current | 20 A |
| Output Power | 480 W |
| Buffer Mode Voltage | 27.9–19.2 V DC |
| Status Indicators | Power In OK (Green), Battery Charge / Battery Mode (Yellow), Alarm (Red) |
| Alarm Outputs | Alarm, Battery Mode, Battery Charge, Remote ON/OFF |
| Alarm Outputs | Alarm, Battery Mode, Battery Charge, Remote ON/OFF |
| Mounting Type | DIN Rail Mount (EN 60715) |
| Application | Industrial automation, PLC systems, marine automation, process control, control cabinets, industrial DC backup power systems, instrumentation, and critical 24 V DC loads |
| Made in | Germany |
| REF NO | 1484 |
