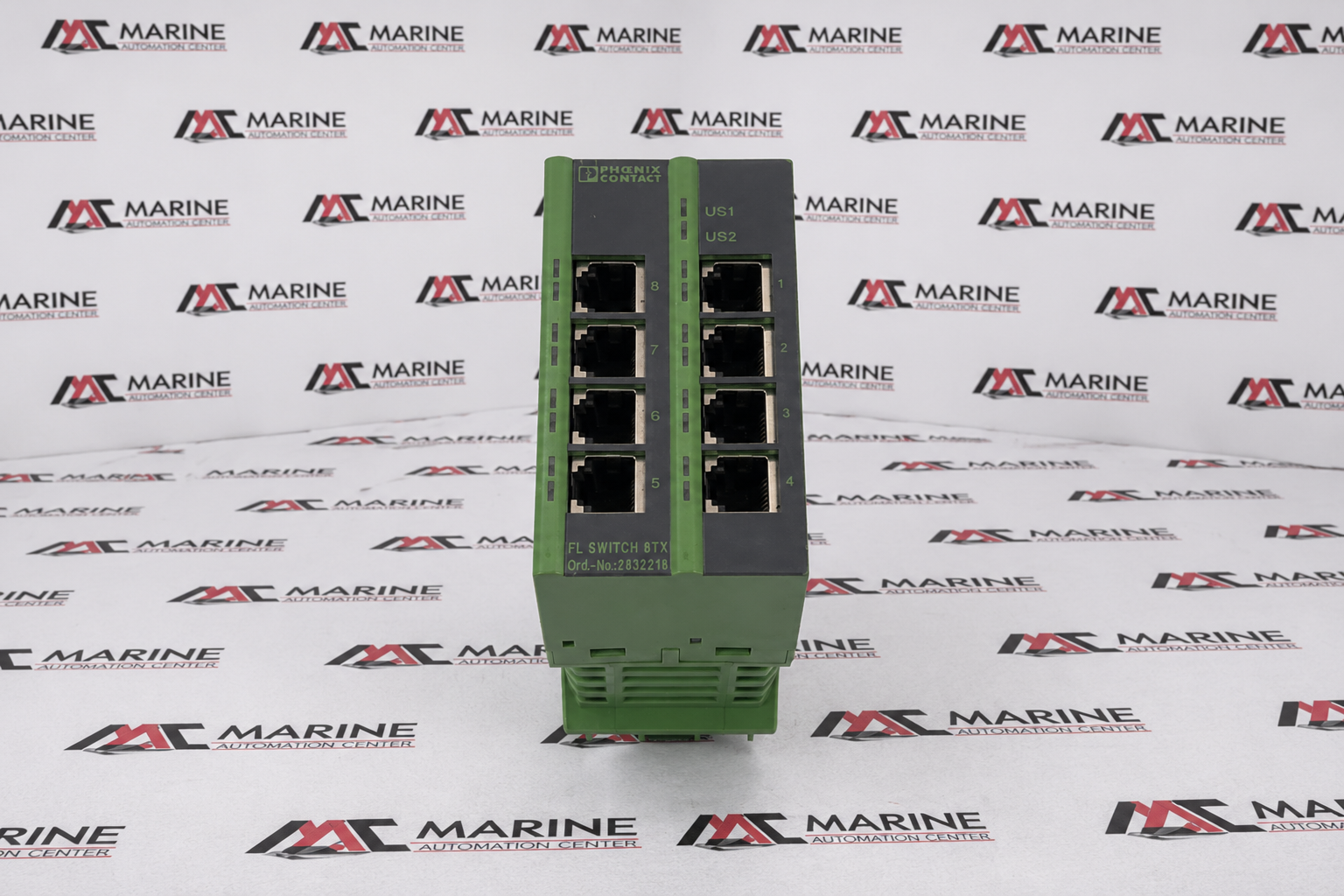

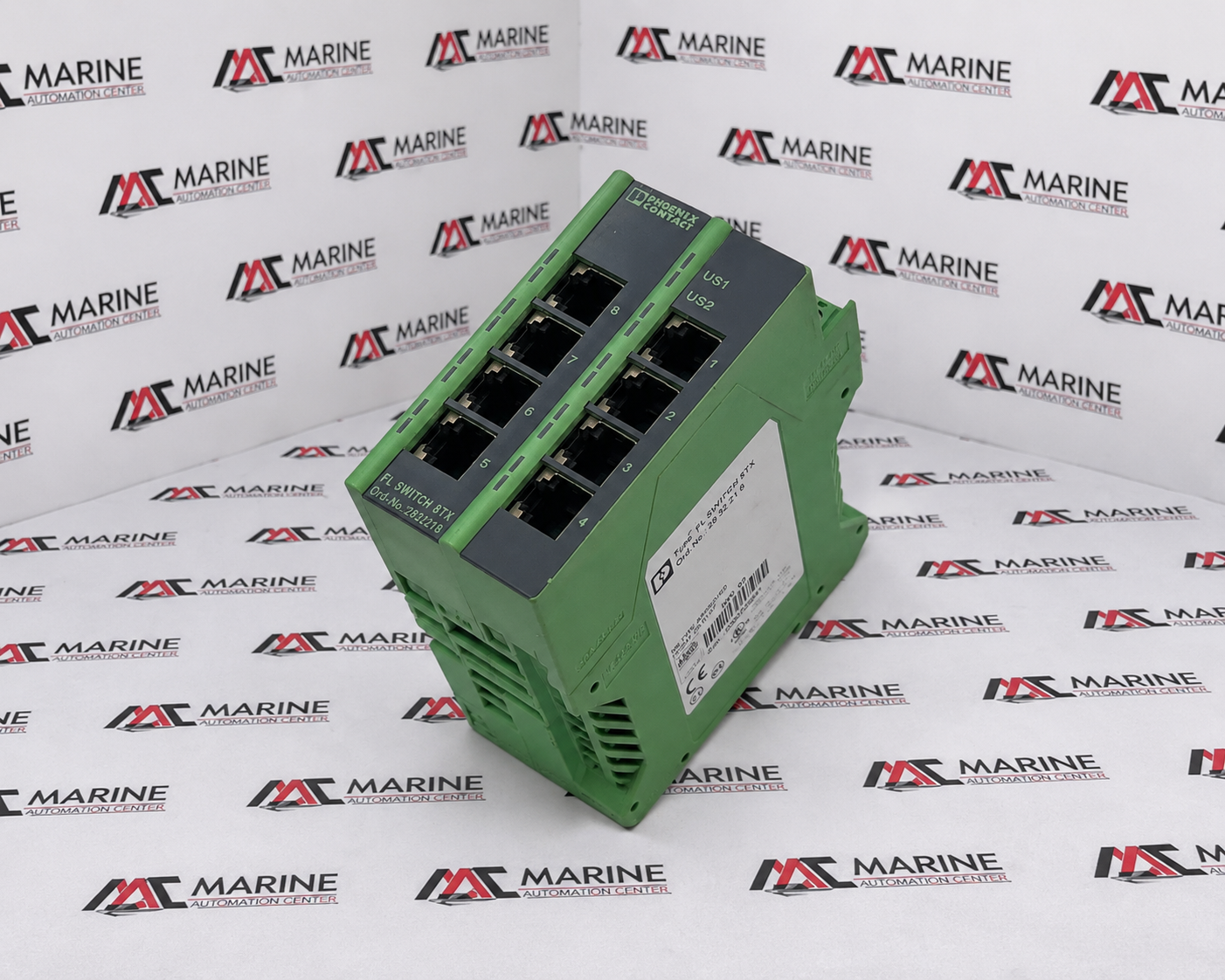

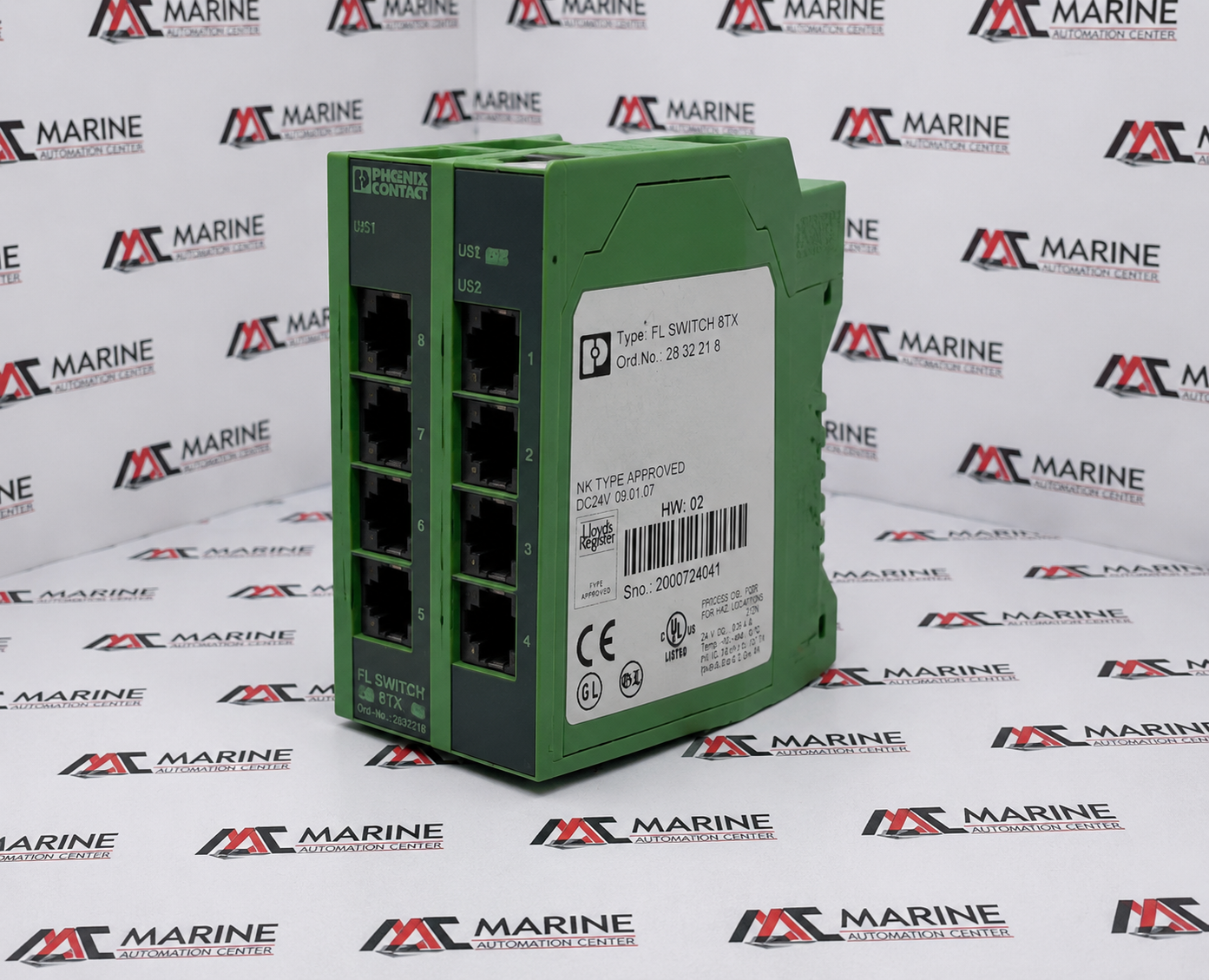

Phoenix Contact FL SWITCH 8TX
Phoenix Contact FL SWITCH 8TX (2832218) is an unmanaged industrial Ethernet switch featuring 8 RJ45 ports with 10/100 Mbps auto-negotiation capability. Designed for reliable industrial networking, it supports DIN rail mounting, automatic crossover detection, and provides stable communication for automation and control applications
BRAND
Phoenix Contact
TYPE
Industrial Ethernet Switch
PART NO.
2832218
MODEL
FL SWITCH 8TX
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Phoenix Contact |
| TYPE | Industrial Ethernet Switch |
| PART NO. | 2832218 |
| MODEL | FL SWITCH 8TX |
| Voltage Rating | 24 V DC nominal (Permissible range: 18.5 V DC to 30.2 V DC) |
| Application | Industrial automation, networking, and marine applications |
| IEC Standards | Complies with IEEE 802.3, IEC 61140 Protection Class III |
| Port Configuration | 8 front-facing RJ45 ports supporting automatic 10/100 Mbps data transmission speed detection |
| Network Features | Auto-negotiation and auto-crossing functions for seamless segment coupling |
| Physical Dimensions | 45 mm Width x 99 mm Height x 112 mm Depth |
| Housing Material | Polyamide (PA 6.6), green color, self-extinguishing V0 flammability class |
| Mounting Type | Integrated NS 35 DIN rail mounting clip |
| Redundant Supply | Dual power terminal support (US1 / US2) for failover protection |
| Signaling Contact | COMBICON plug-in/screw connection for external error/status alerts |
| Certifications | NK Type Approved, Lloyd's Register marine certified, CE, UL |
| Made In | Germany |
| REF NO | 513 |
