Phoenix Contact DIN-Rail Power Supply Module

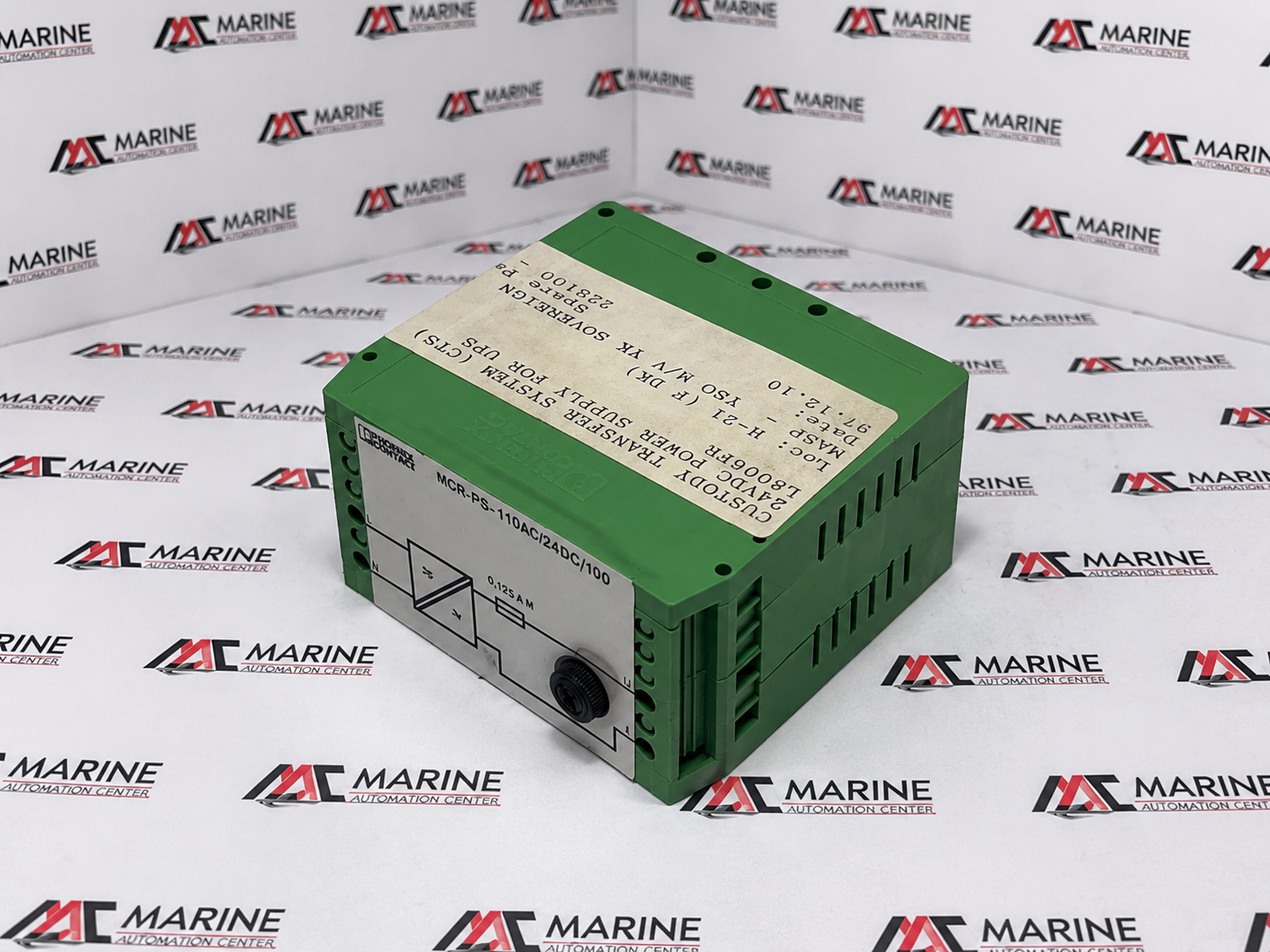

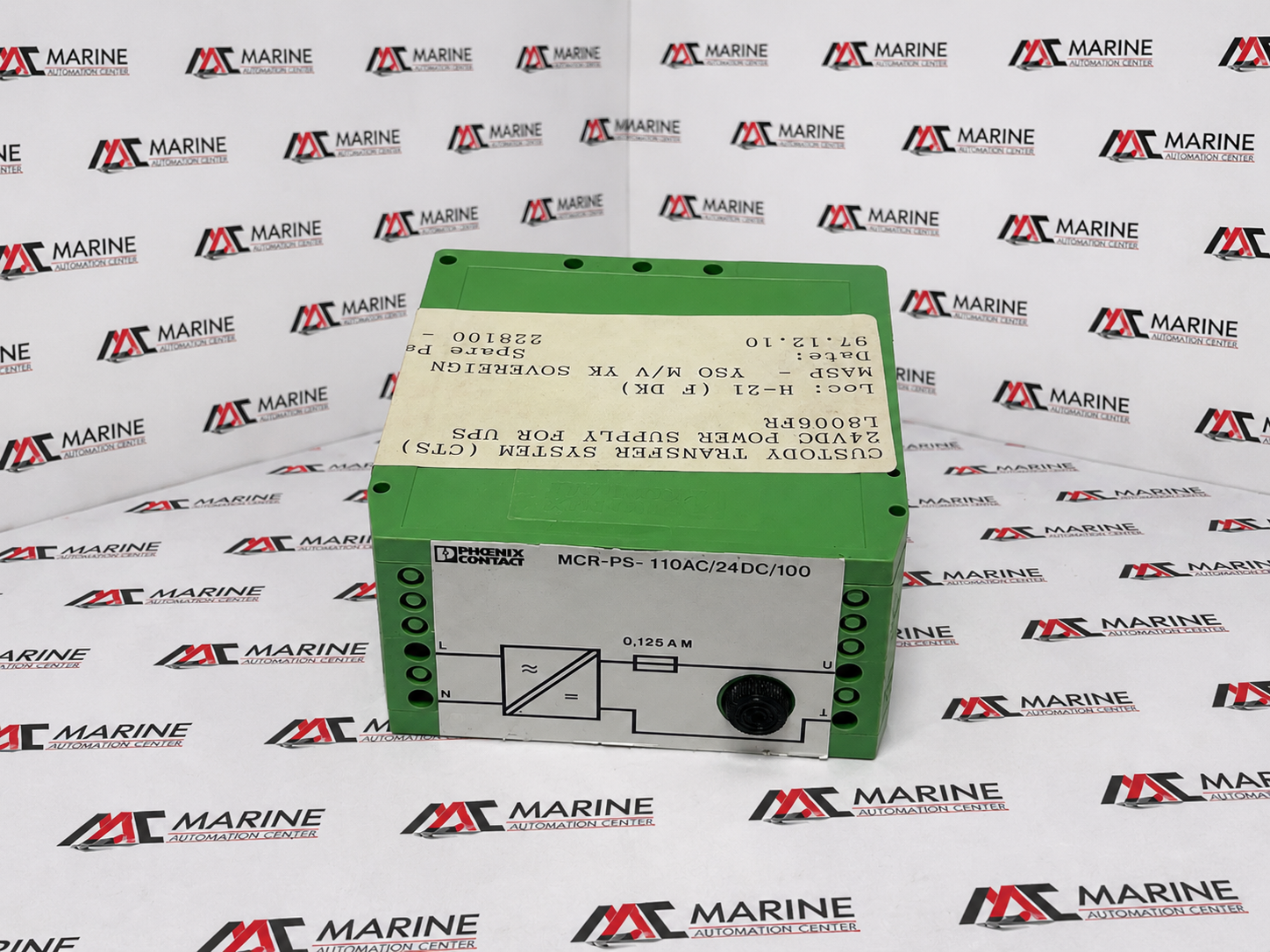

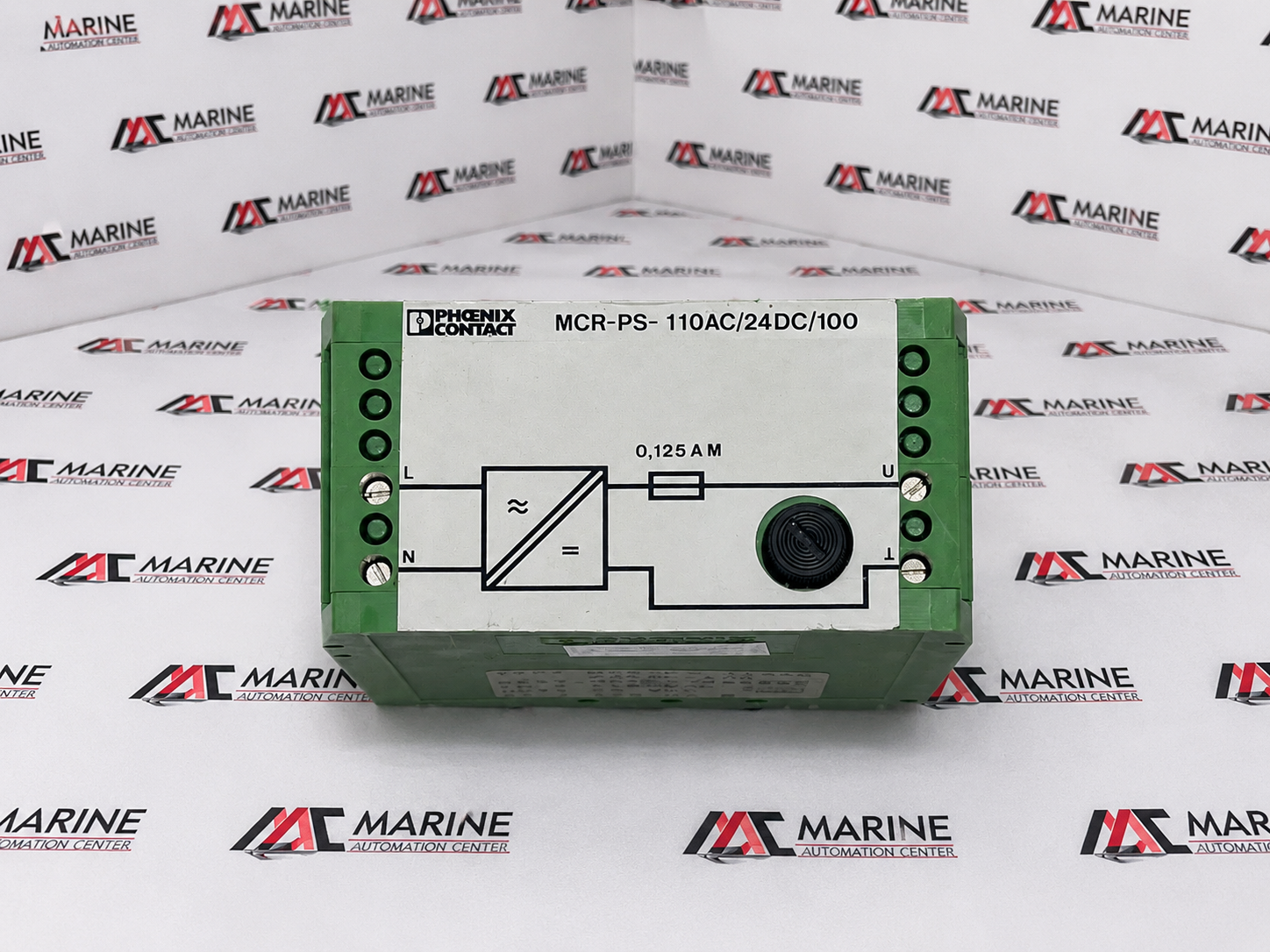

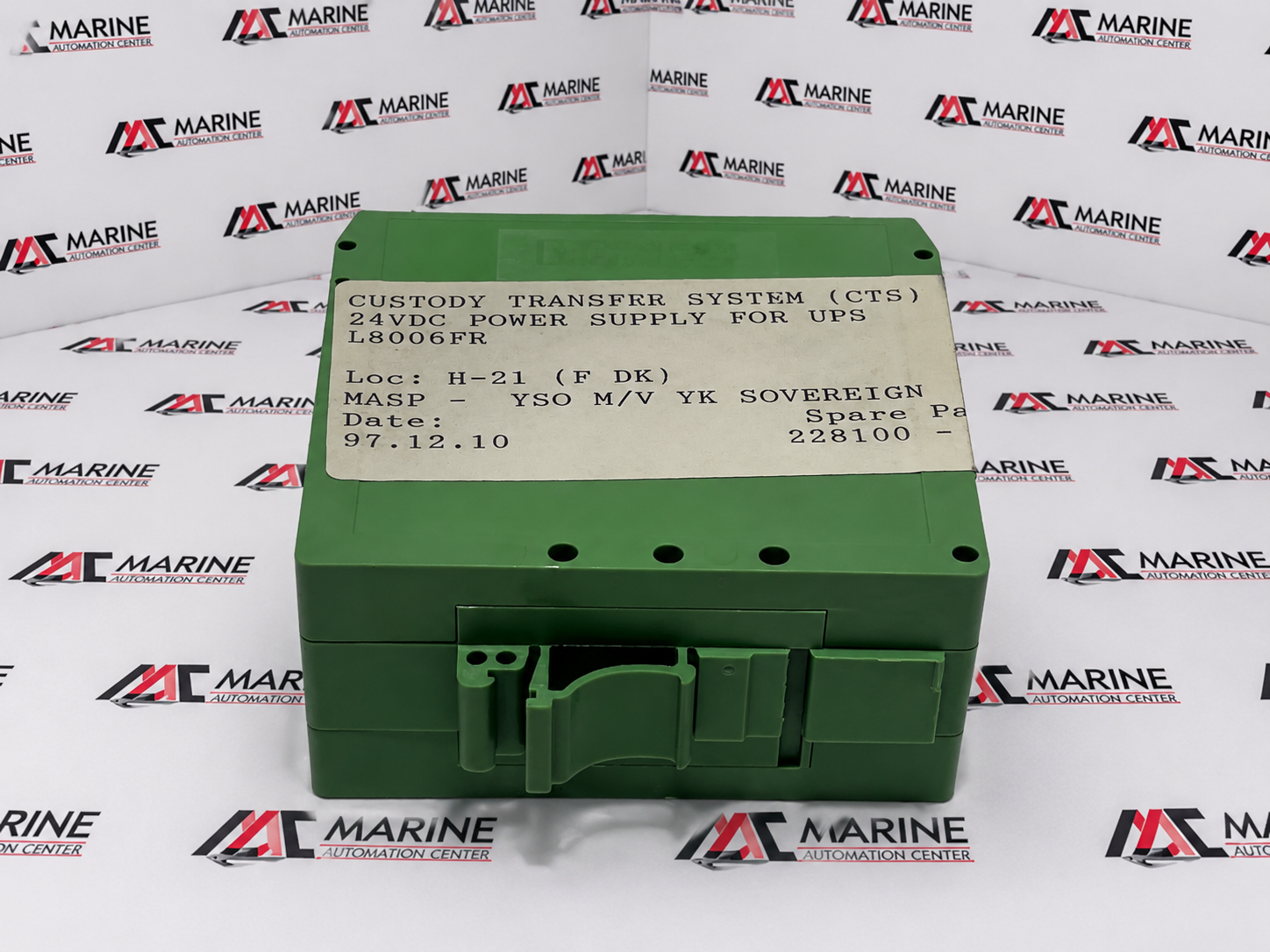

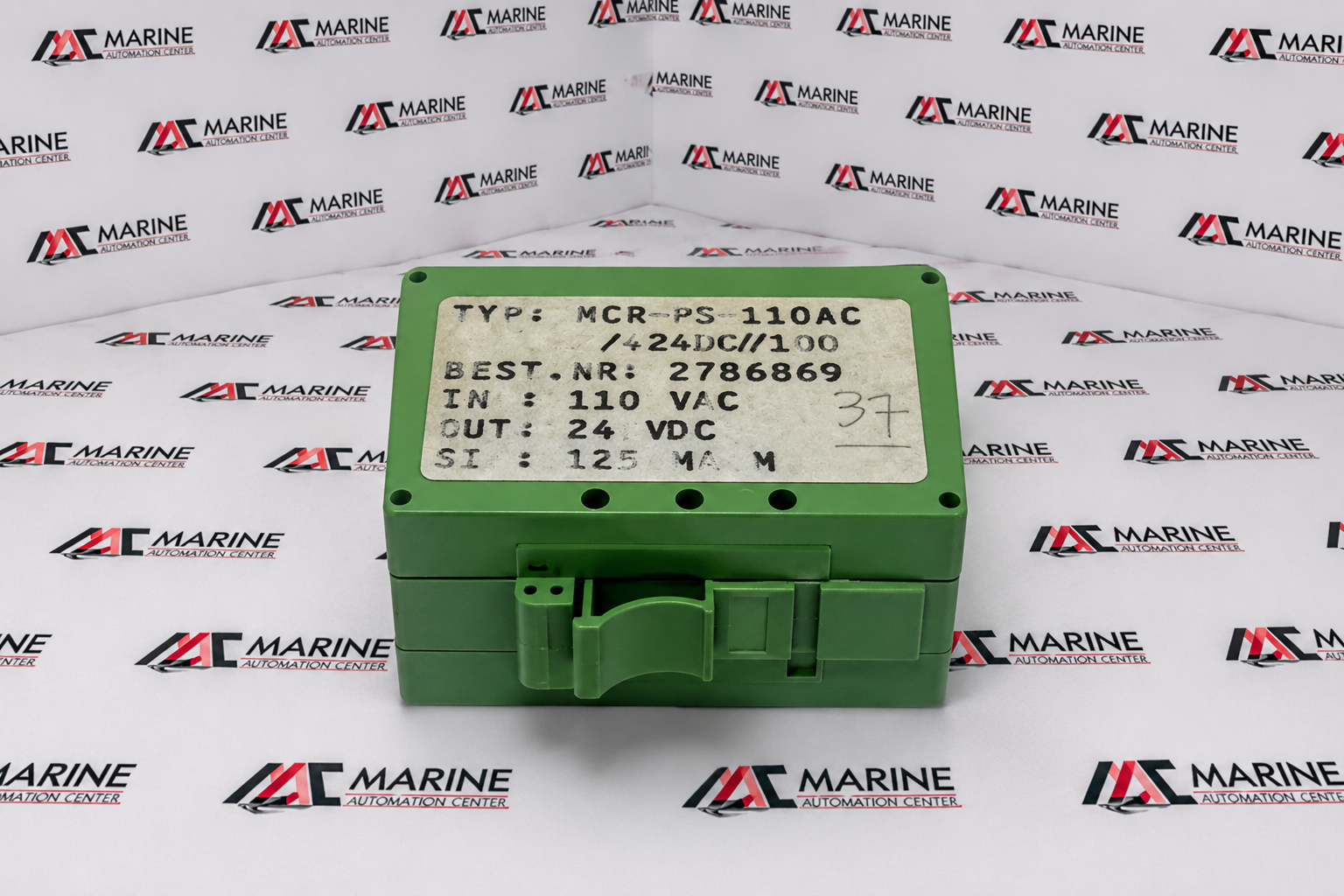

The Phoenix Contact MCR-PS-110AC/24DC/100 Power Supply Module (Part No. 2786869) is a reliable DIN rail-mounted fixed voltage power supply designed to convert 110V AC input to a stable 24V DC output for industrial control and automation systems. Manufactured by Phoenix Contact, it delivers efficient power conversion, excellent voltage regulation, and dependable performance for PLCs, instrumentation, sensors, and process control equipment. Its compact design, robust construction, and long service
BRAND
Phoenix Contact
TYPE
Power Supply
PART NO.
2786869.
MODEL
MCR-PS-110AC/24DC/100
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Phoenix Contact |
| TYPE | Power Supply |
| PART NO. | 2786869. |
| MODEL | MCR-PS-110AC/24DC/100 |
| MANUFACTURER | Phoenix Contact GmbH & Co. KG |
| Input Voltage | 110 V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 V DC ±4% |
| Output Current | 100 mA (0.1 A) |
| Output Fuse | 0.125 A (Normal Blow) |
| Nominal Power Consumption | Approx. 8.4 VA |
| Isolation Voltage | 4 kV AC (Input / Output) |
| Connection Type | Screw Terminal |
| Mounting Type | 35 mm DIN Rail Mount |
| Degree of Protection | IP20 |
| IP20 | 0°C to +60°C |
| Application | Provides stabilized 24 V DC power for MCR signal conditioners, transmitters, PLC interface modules, process instrumentation, marine automation systems, control panels, UPS auxiliary circuits, and industrial automation equipment. |
| IEC | IEC 664 / IEC 664A / DIN VDE 0110-1 / DIN VDE 0551 Compliant |
| Made In | Germany |
| REF NO. | 1306 |
