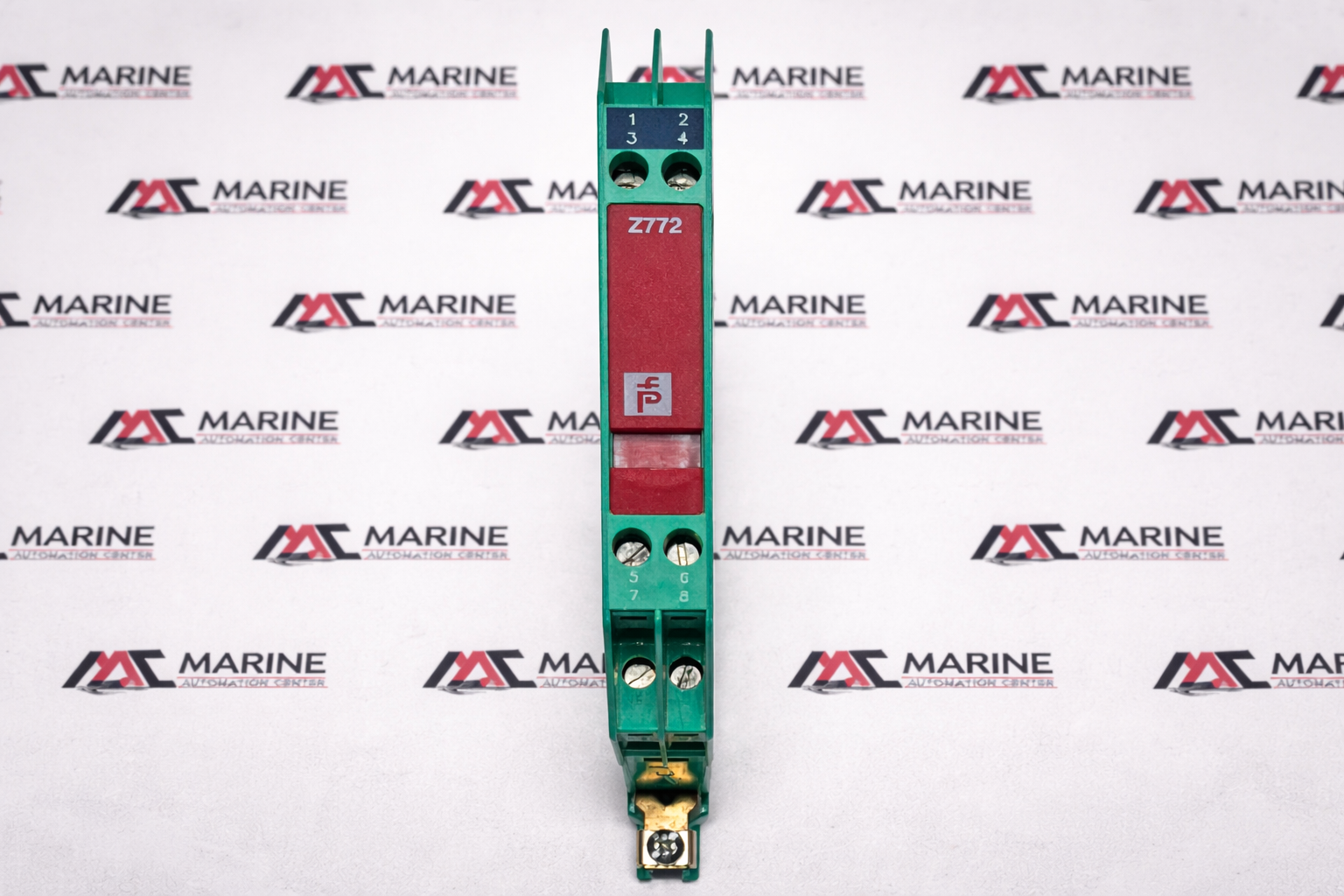

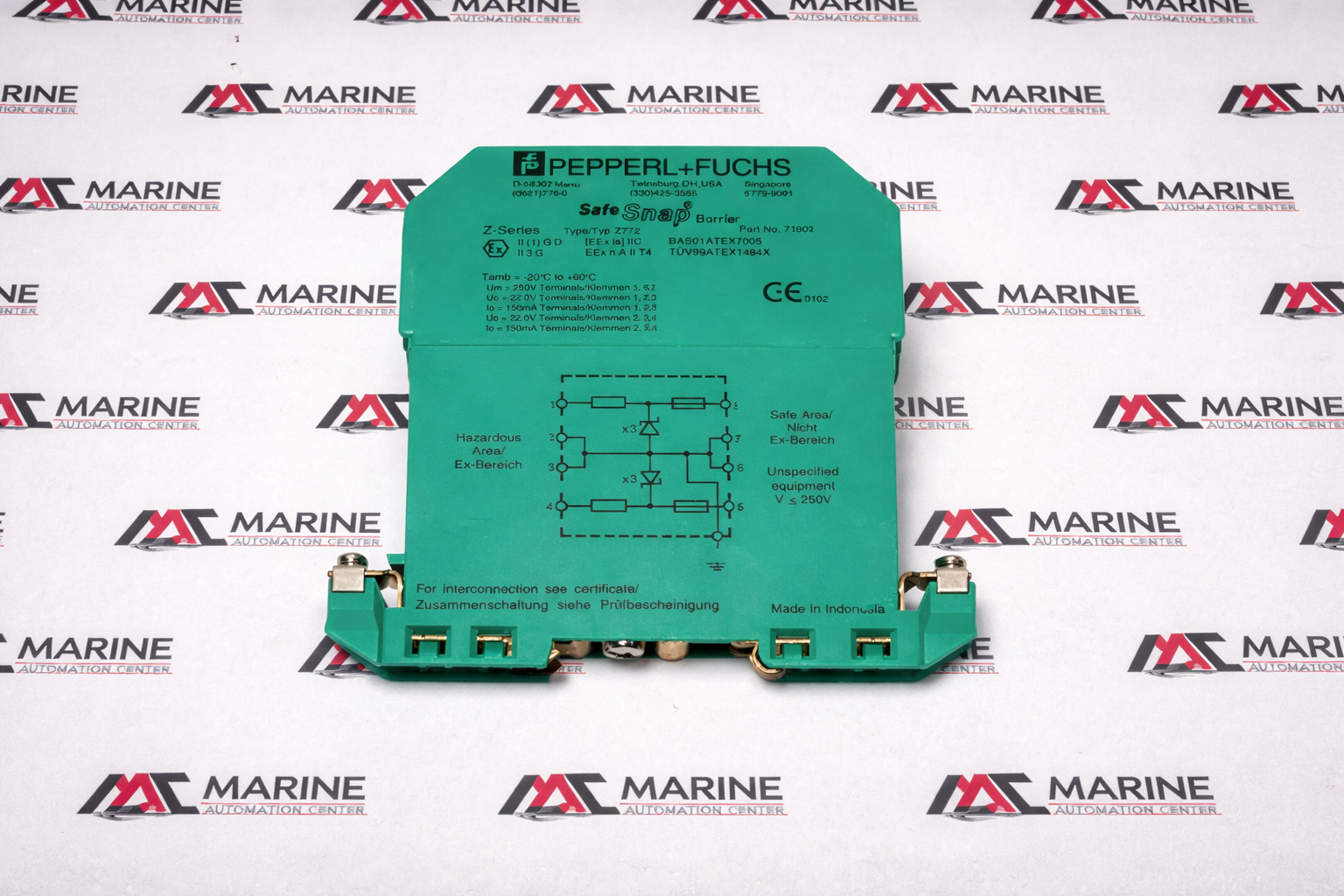

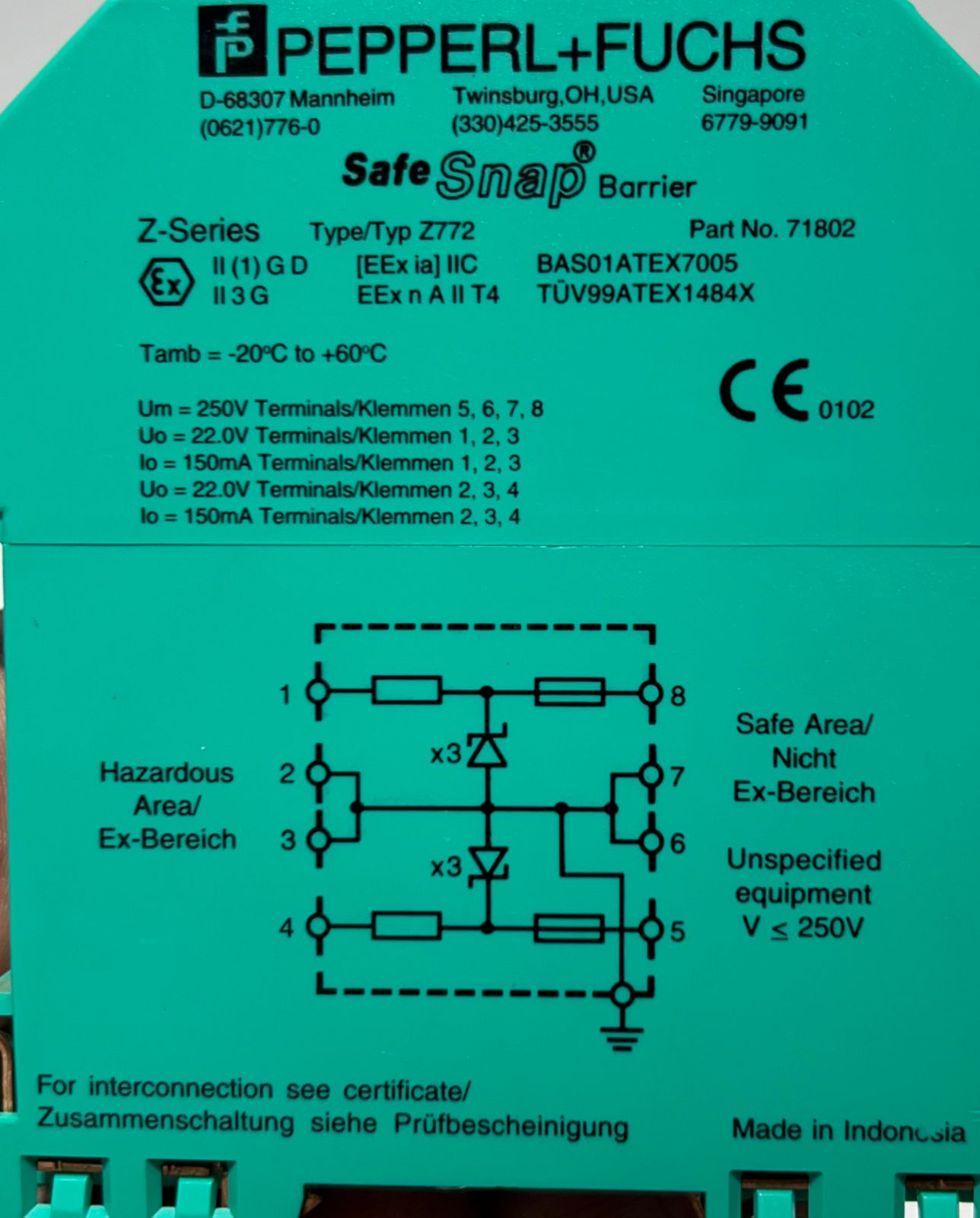

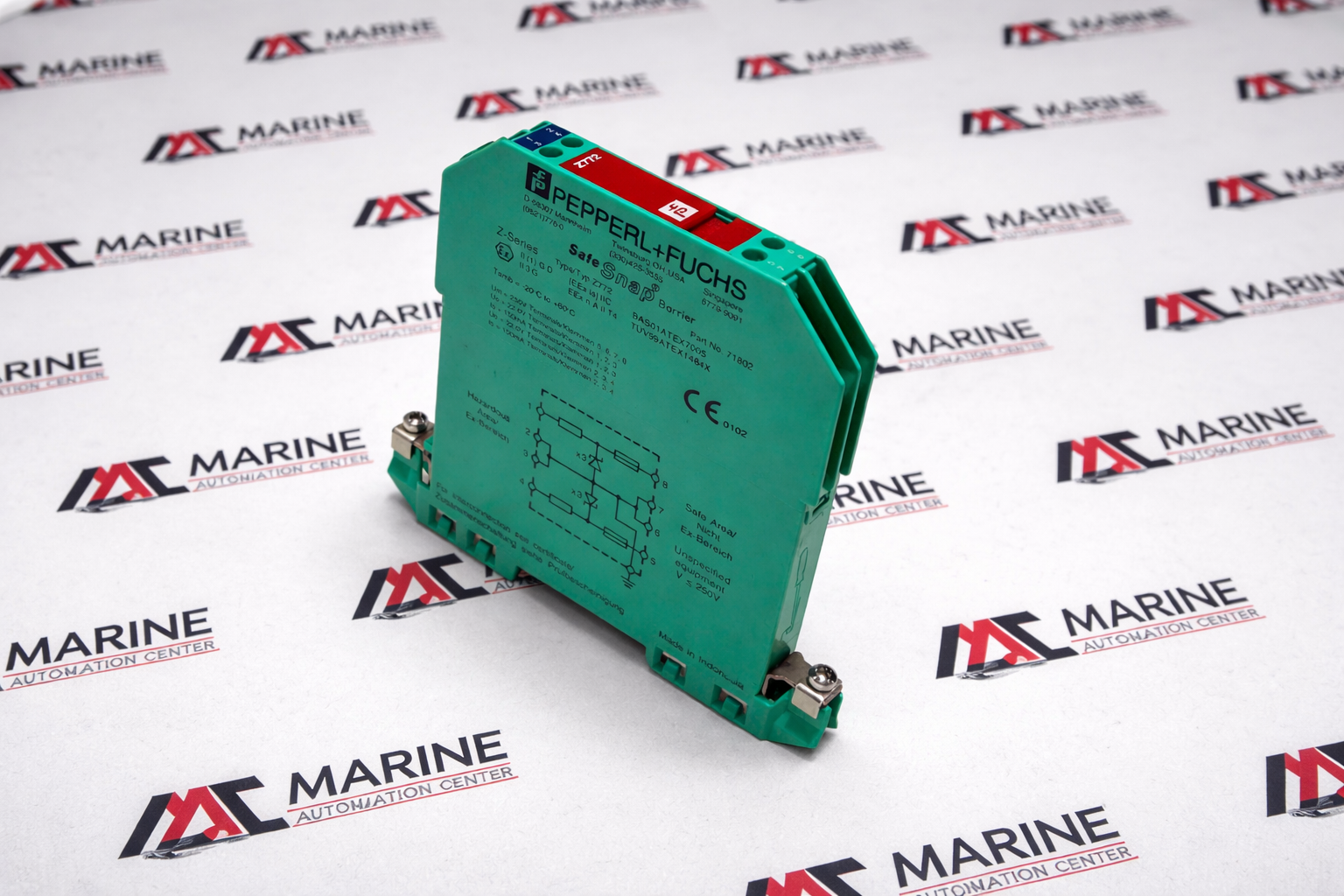

Pepperl+Fuchs Z772 Safe Snap Barrier Z-Series 71802
Buy Pepperl+Fuchs Z772 Safe Snap Barrier Z-Series (Part No. 71802), made in Indonesia. Intrinsically safe interface module with 250V max (Um), 22V output (Uo), 150mA (Io), and -20°C to +60°C operating range for hazardous area applications.
BRAND
Pepperl+Fuchs
TYPE
Safe Snap Barrier
PART NO.
71802
MODEL
Z772
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pepperl+Fuchs |
| TYPE | Safe Snap Barrier |
| PART NO. | 71802 |
| MODEL | Z772 |
| Ambient Temperature Range | -20°C to +60°C |
| Um | 250 V Terminals 5,6,7,8 |
| Uo | 22.0 V 1,2,3 |
| Io | 150 mA 1,2,3 |
| Uo | 22.0 V 2,3,4 |
| Io | 150 mA 2,3,4 |
| : | BAS01ATEX7005 |
| : | TUV99ATEX1484X |
| Unspecified equipment | V < 250v |
| Made In | Indonesia |
| Reference No | 861 |
