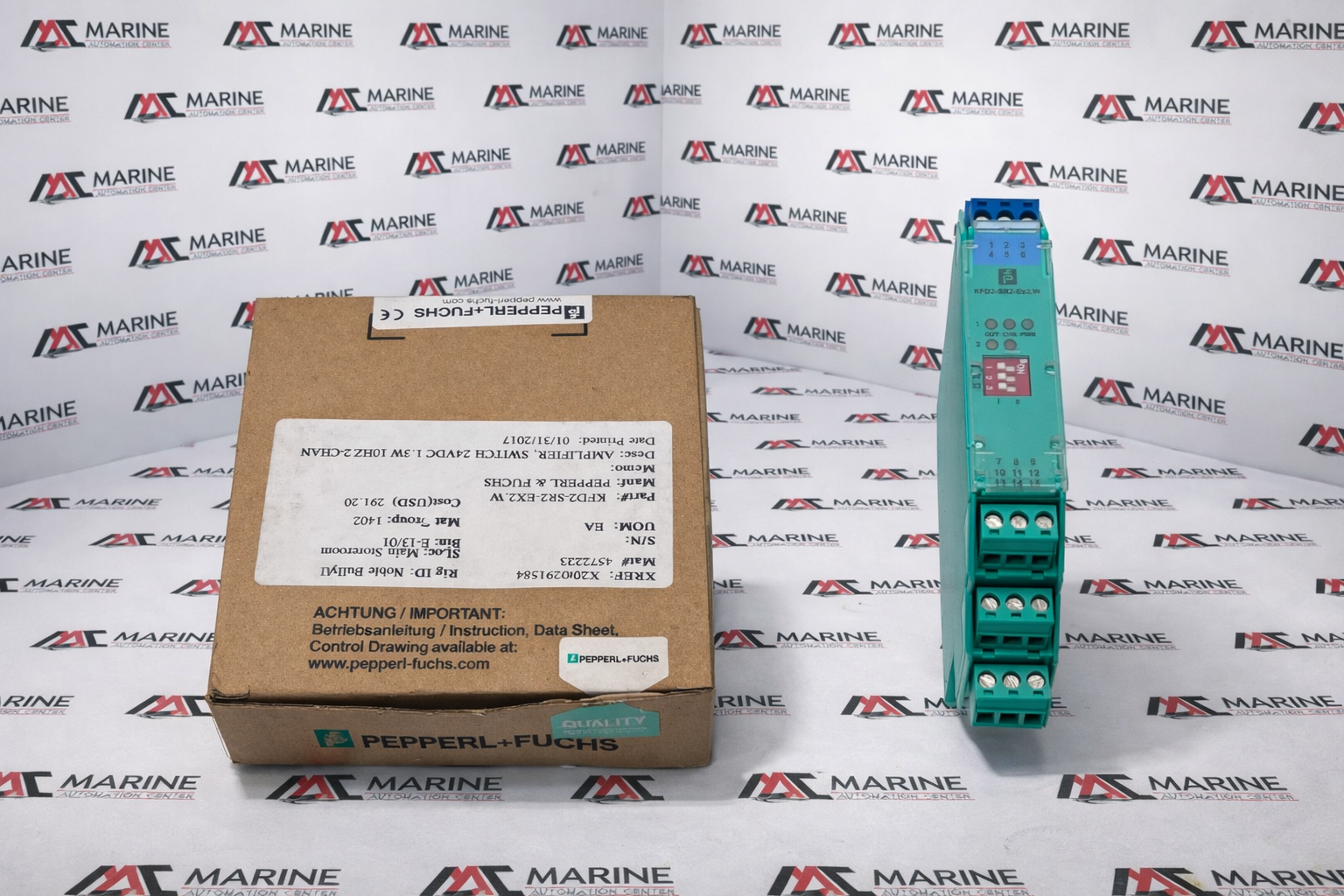

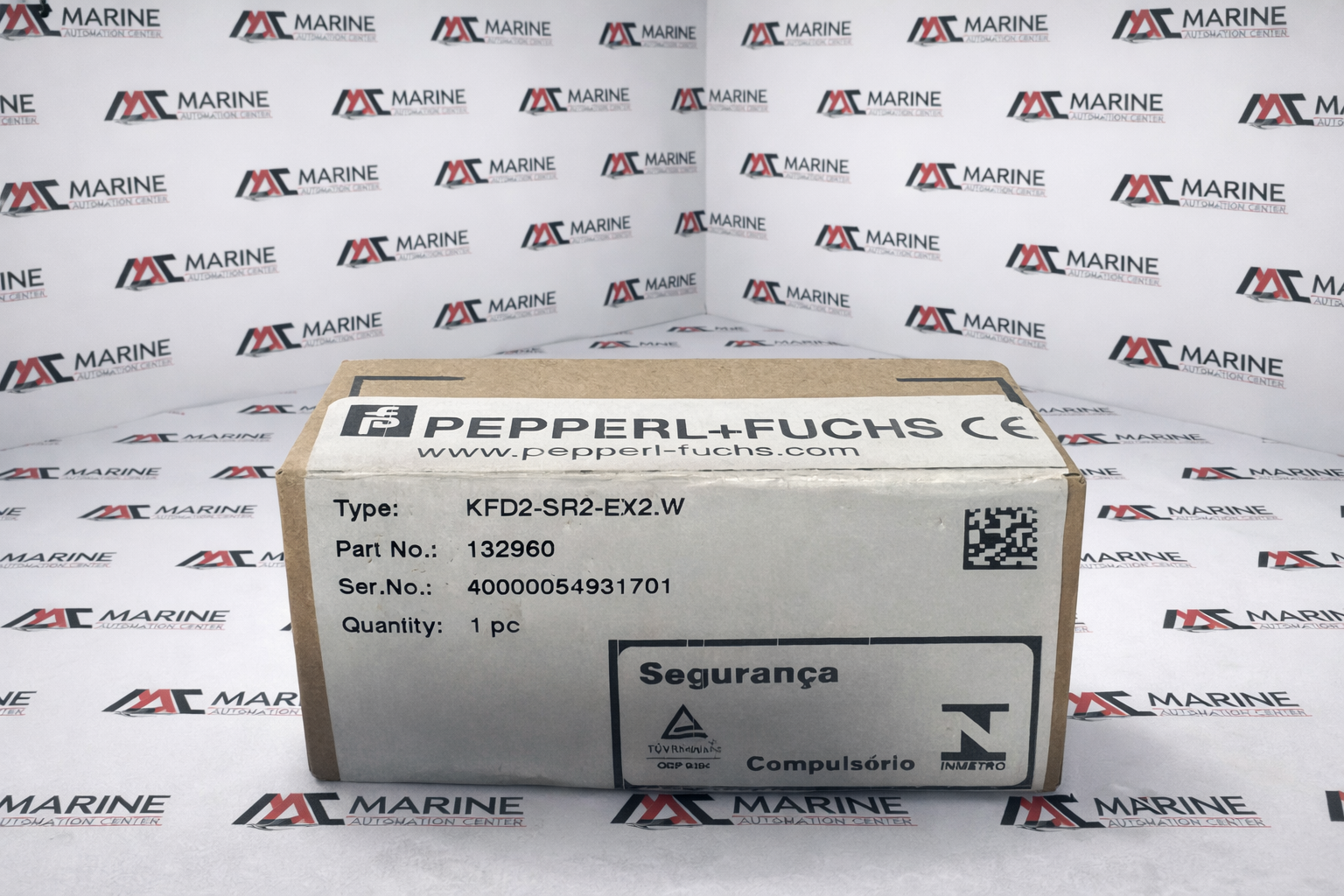

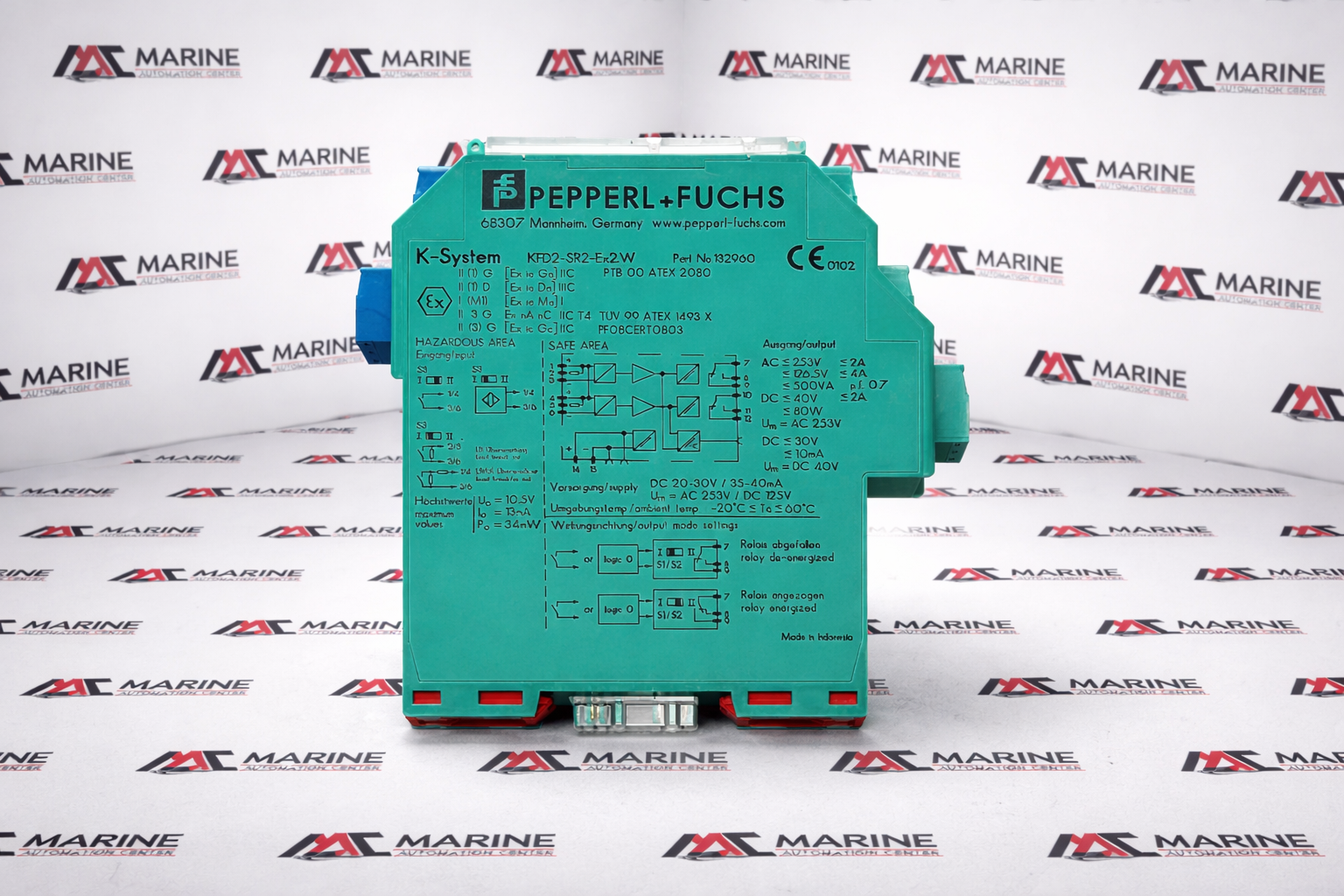

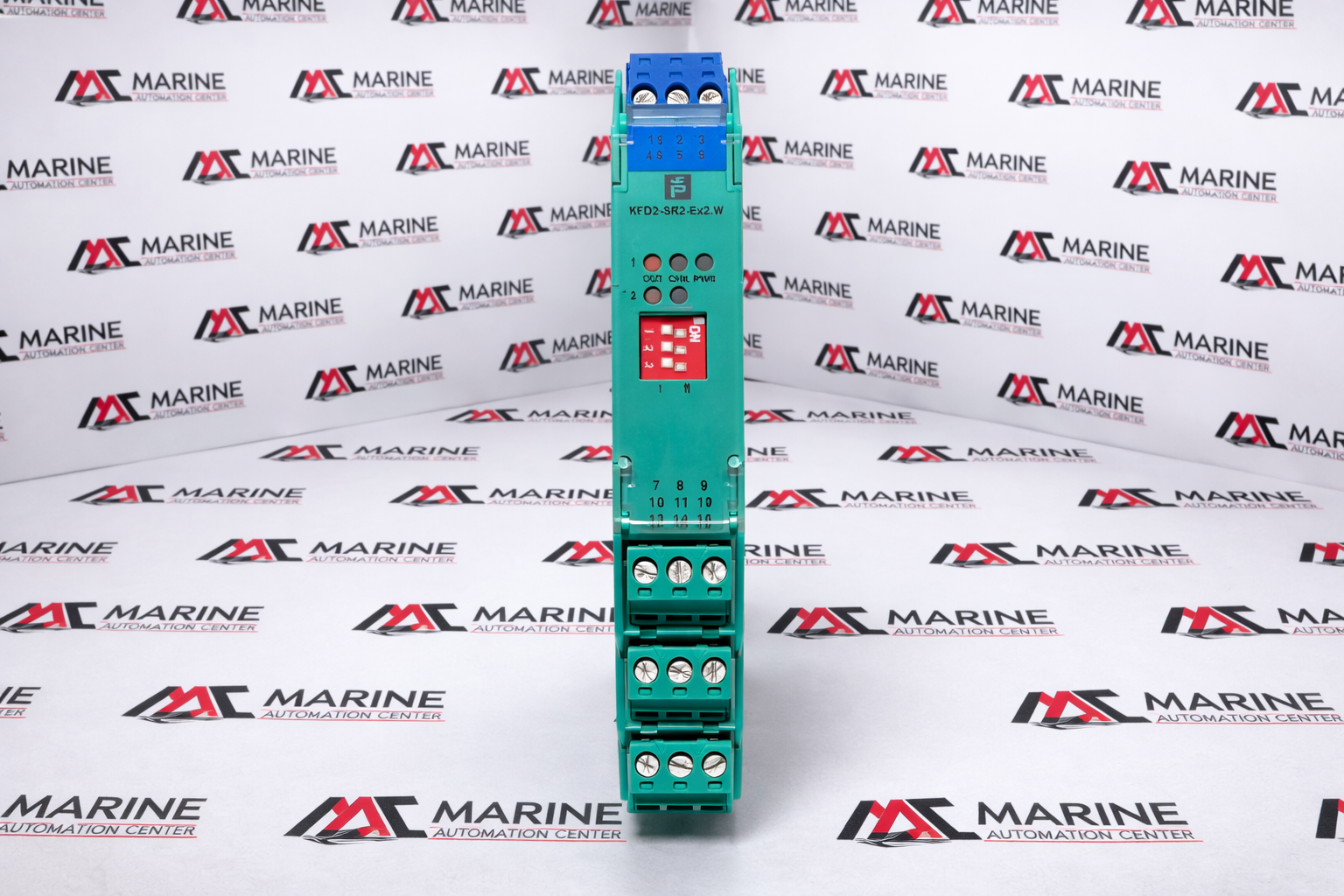

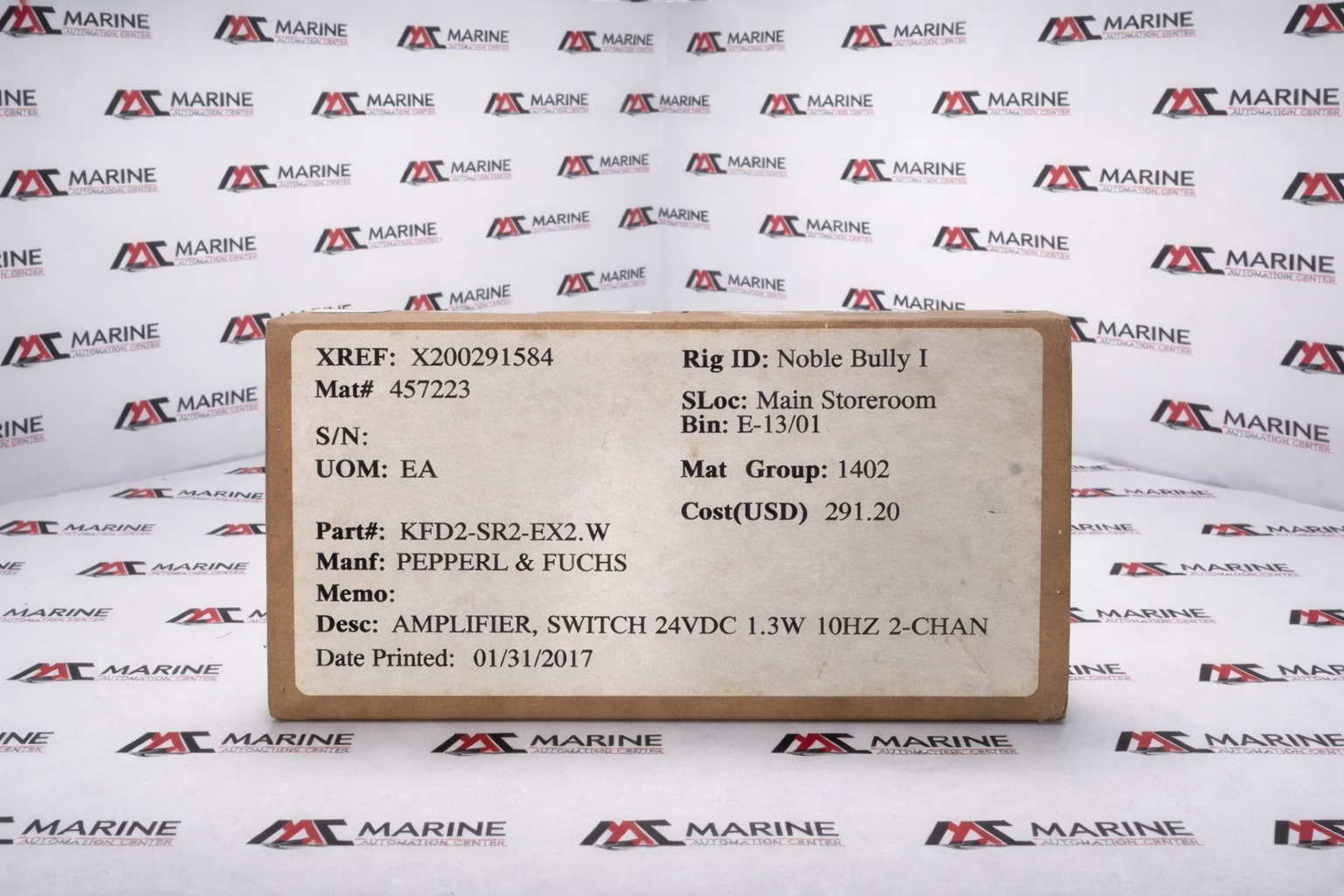

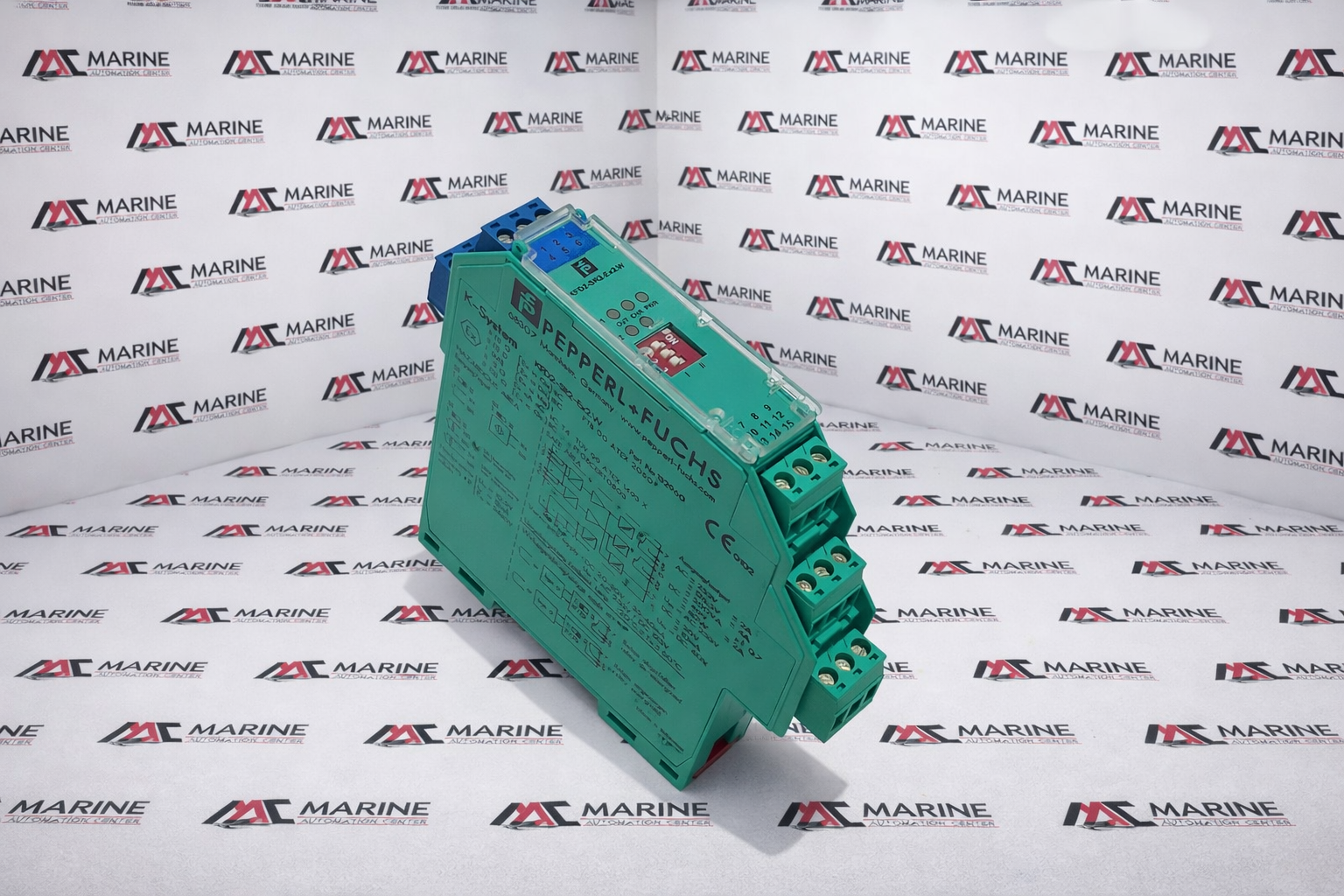

Pepperl+Fuchs Kfd2-Sr2-Ex2.w Switch Amplifier 132960
Buy Pepperl+Fuchs KFD2-SR2-EX2.W switch amplifier (Part No. 132960), 24VDC, 2-channel, 10Hz. Reliable industrial signal isolation with wide input/output range, made in Indonesia.
BRAND
Pepperl+Fuchs
TYPE
Switch Amplifier
PART NO.
132960
MODEL
KFD2-SR2-EX2.W
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pepperl+Fuchs |
| TYPE | Switch Amplifier |
| PART NO. | 132960 |
| MODEL | KFD2-SR2-EX2.W |
| Serial No | 40000054931701 |
| Ptb 00 | Atex 2080 |
| Xref | X200291584 |
| Mat | 457223 |
| Mat Group | 1402 |
| Rig Id | Noble Bully 1 |
| SLoc | Main Storeroom |
| Bin | E-13/01 |
| Desc | Amplifier, Switch 24vdc 1.3w 10hz 2-chan |
| Output | Ac < 253v <2a |
| : | < 126.5v <4a |
| : | < 500va P.f. 07 |
| : | Dc < 40v <2a |
| : | < 80w |
| Um | Ac 253v |
| : | Dc < 30v |
| : | < 10ma |
| Um | Dc 40v |
| Input | Maximum Values: Uo = 10.5v |
| Io | 13ma |
| Po | 34mw |
| Supply | Dc 20-30v/ 35-40ma |
| Um | Ac 253v/ Dc 125v |
| Ambient Temp | -20c < Ta < 60c |
| Made In | Indonesia |
| Reference No | 692 |
