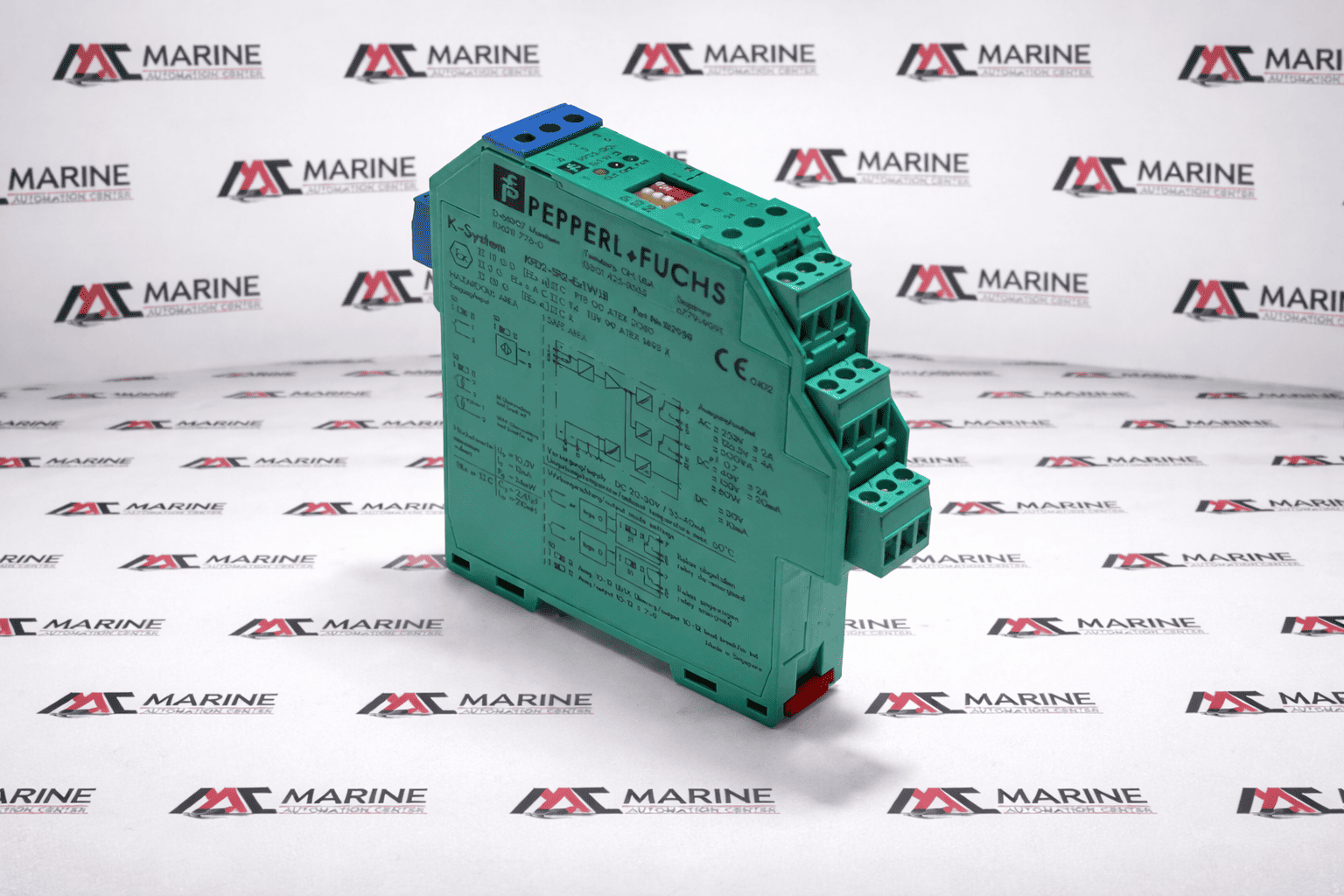

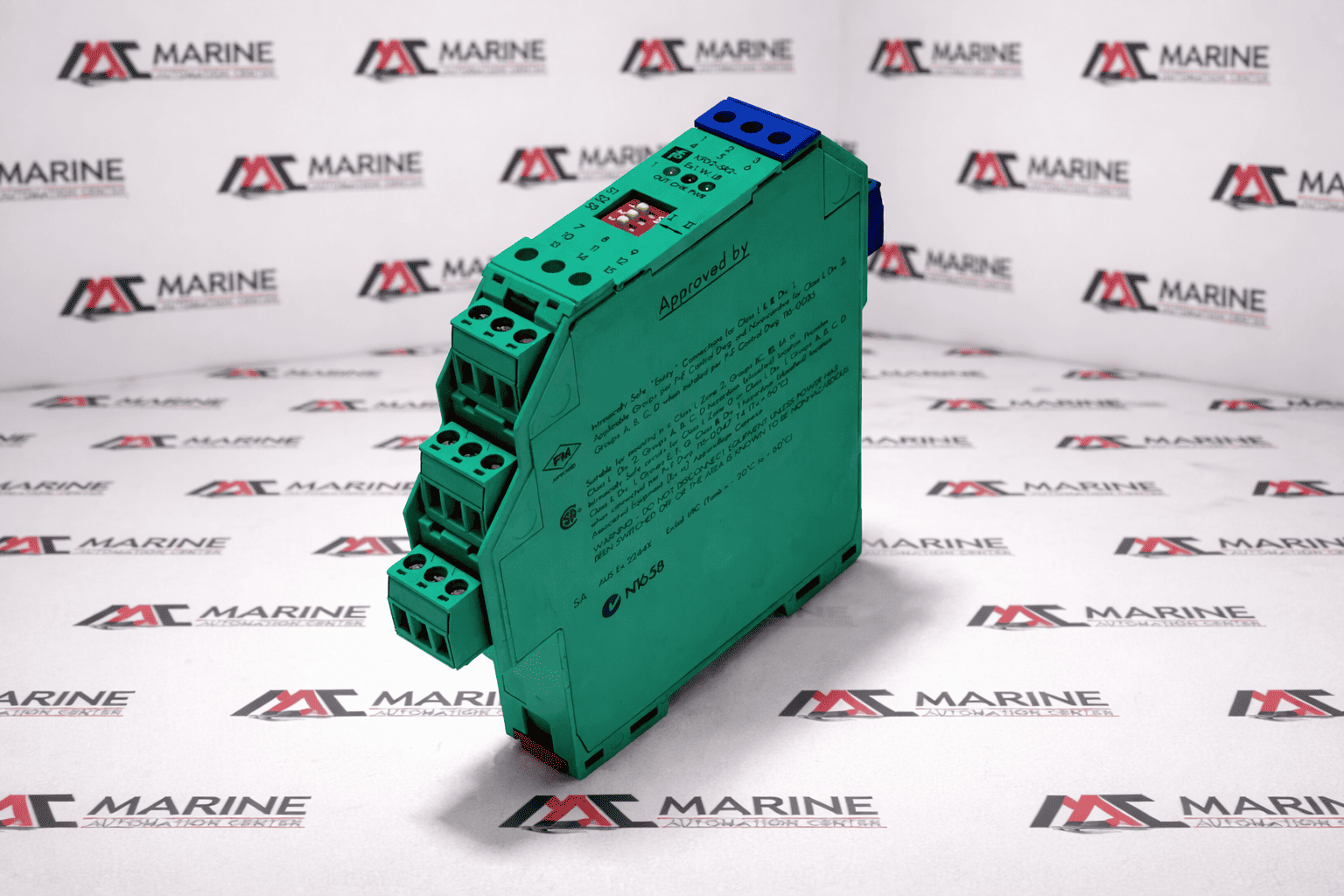

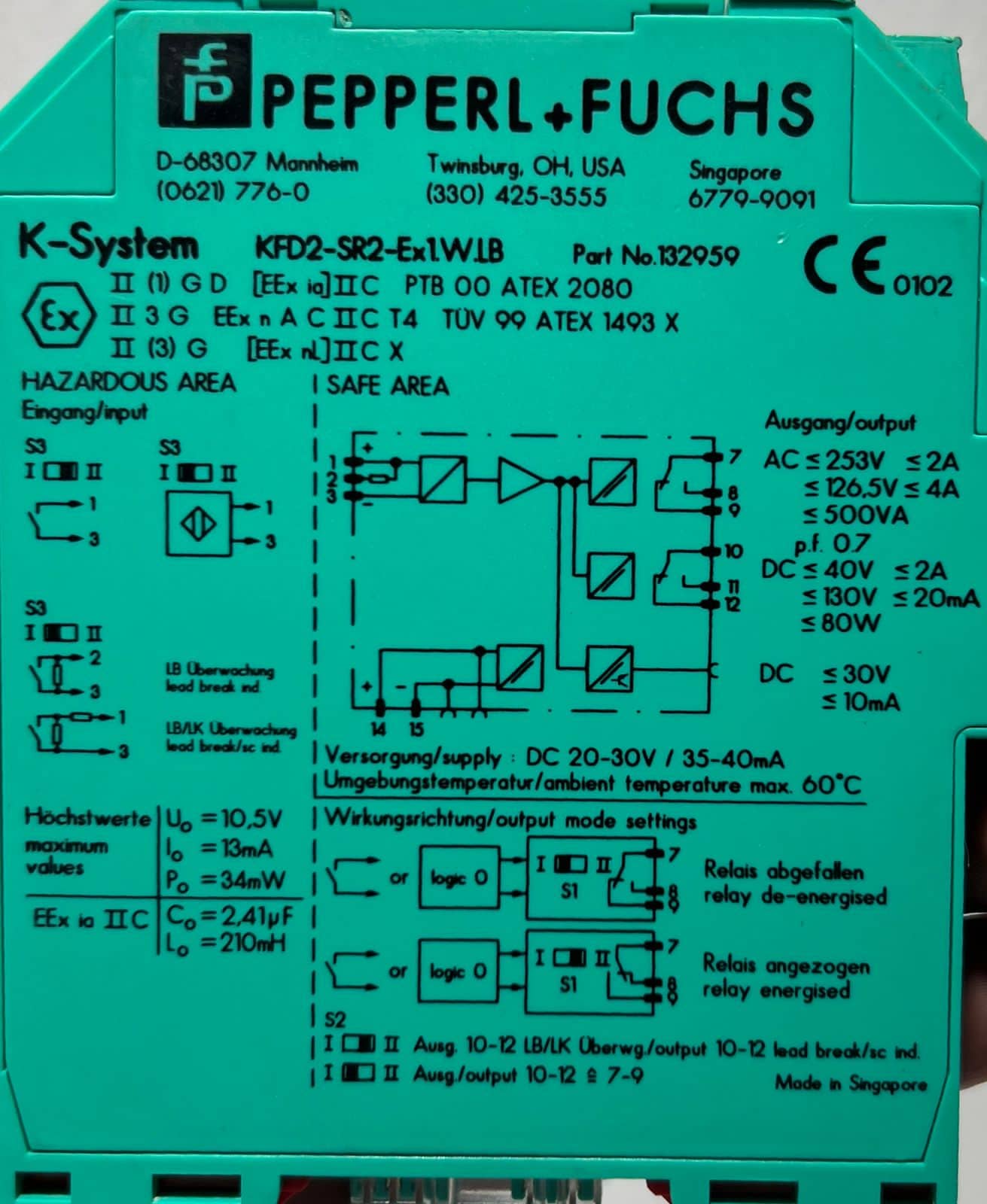

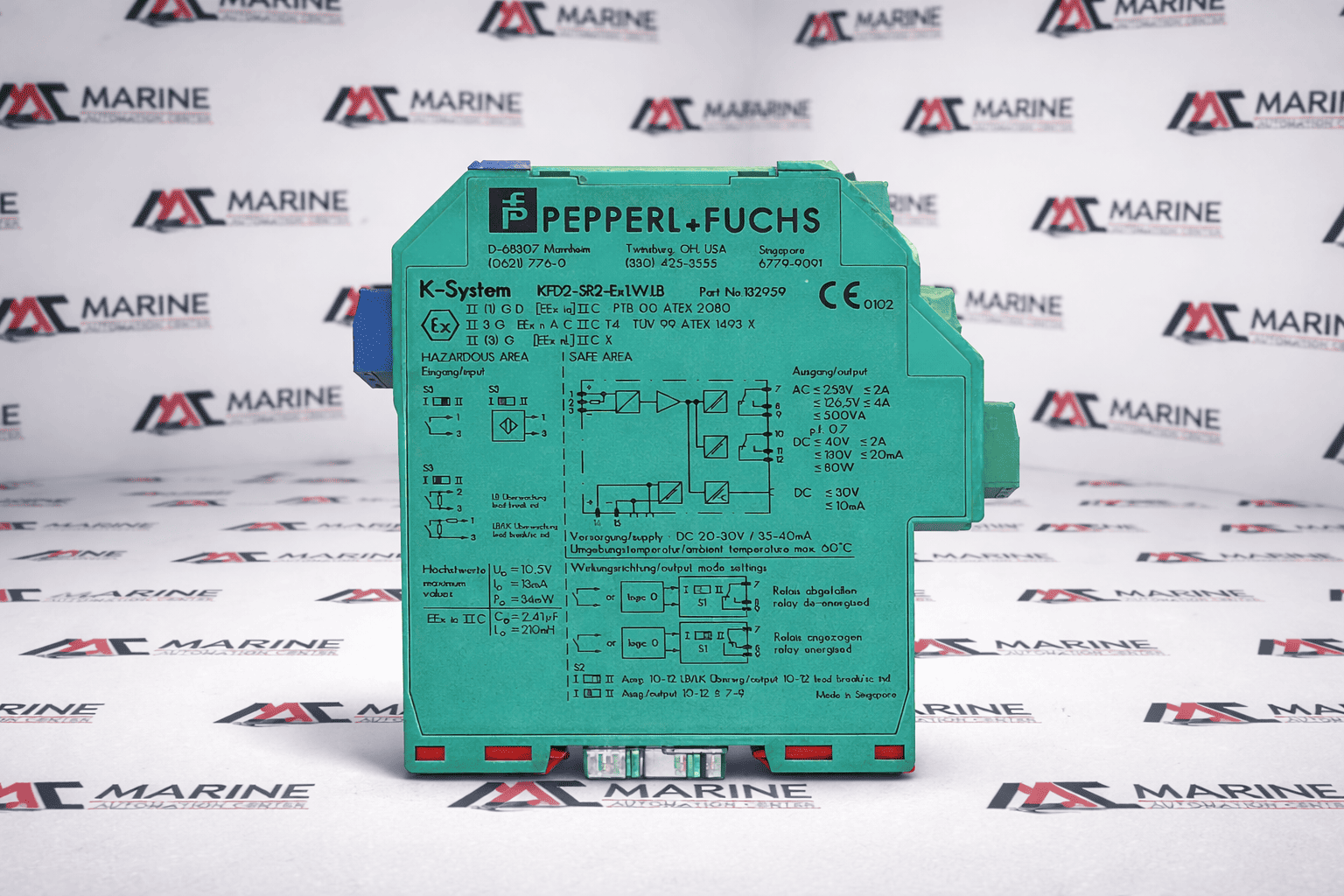

Pepperl+fuchs KFD2-SR2-Ex1.W1.B Relay Module 132959
Buy Pepperl+Fuchs KFD2-SR2-Ex1.W1.B Relay Module (132959) for intrinsic safety applications. Reliable signal isolation, compact design, and high-performance switching for hazardous industrial environments.
BRAND
Pepperl+fuchs
TYPE
Relay Module (K-System)
PART NO.
132959
MODEL
KFD2-SR2-Ex1.W1.B
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pepperl+fuchs |
| TYPE | Relay Module (K-System) |
| PART NO. | 132959 |
| MODEL | KFD2-SR2-Ex1.W1.B |
| System | K-System |
| Supply Voltage | DC 20–30 V |
| Supply Current | 35–40 mA |
| Ambient Temperature | Max 60°C |
| Uo | 10.5 V |
| Io | 13 mA |
| Po | 34 mW |
| Made in | Singapore |
| Reference No. | 898 |
