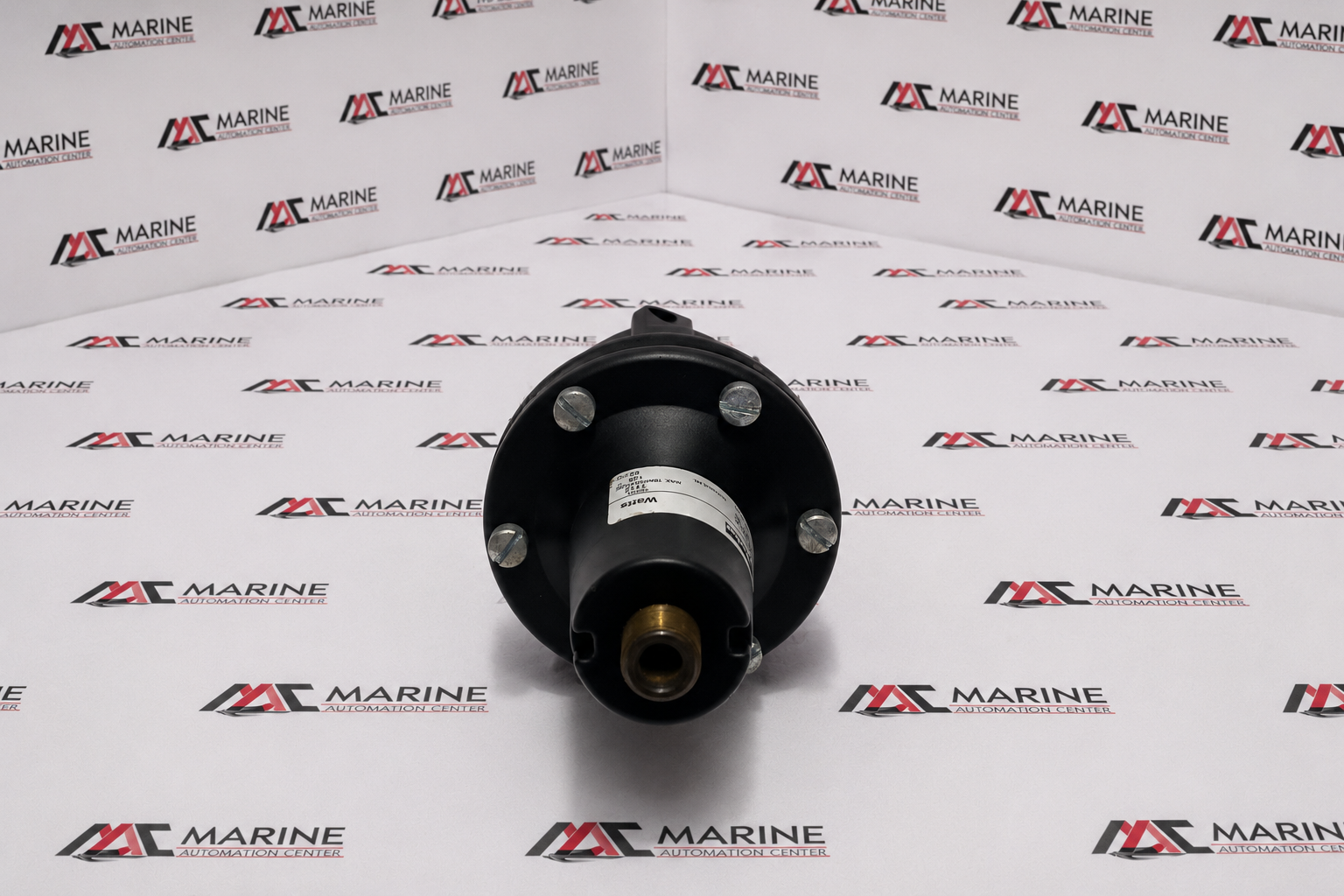

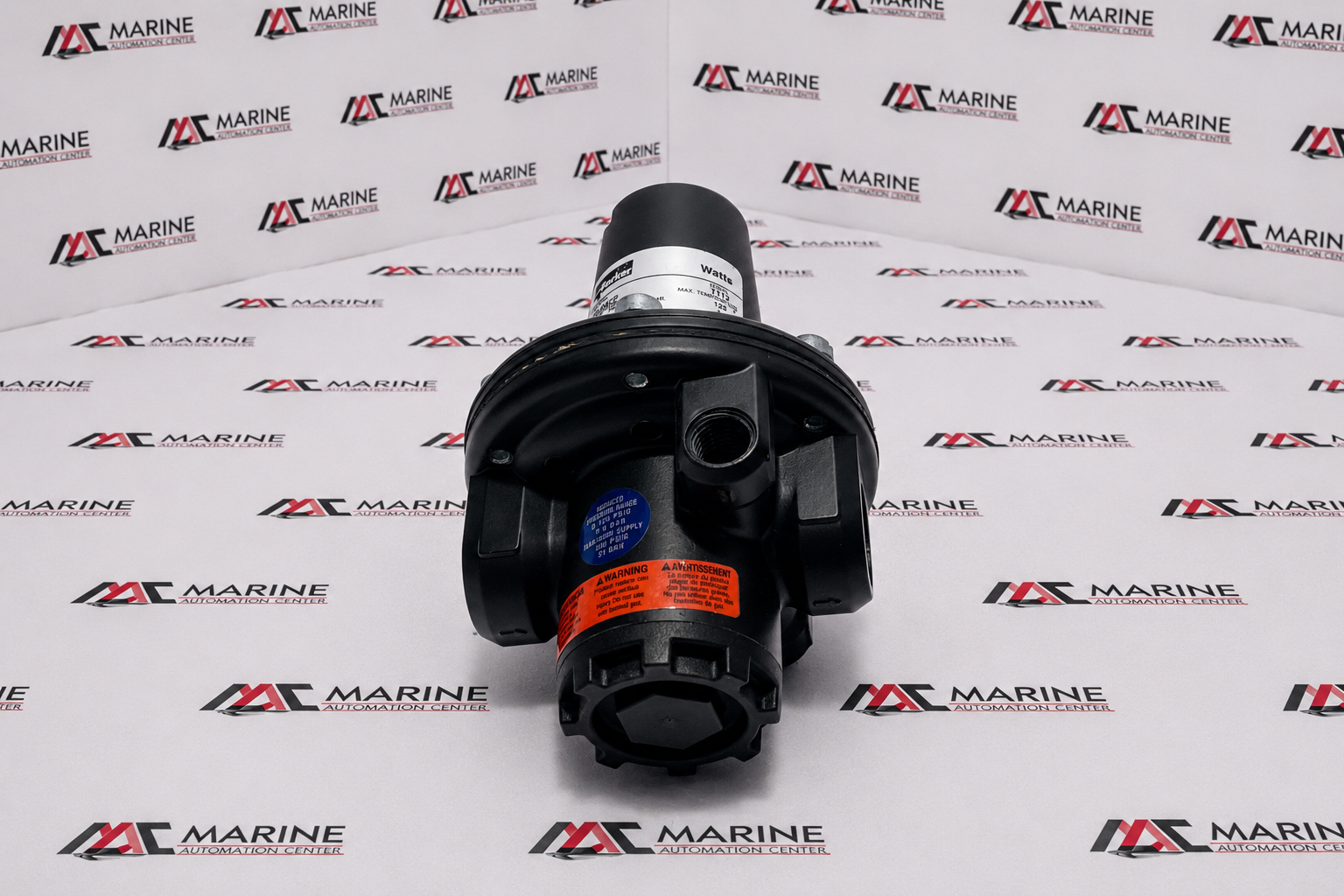

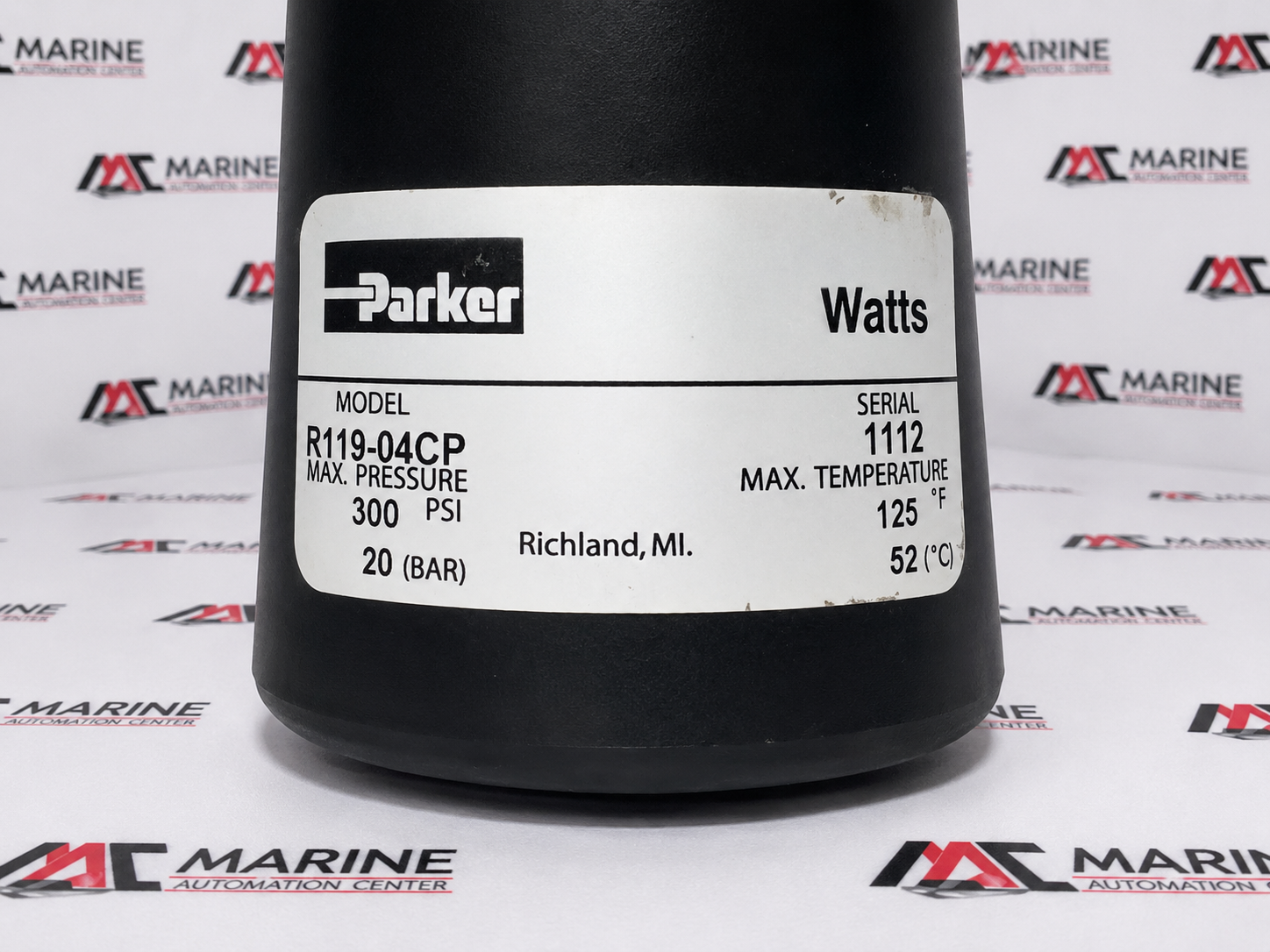

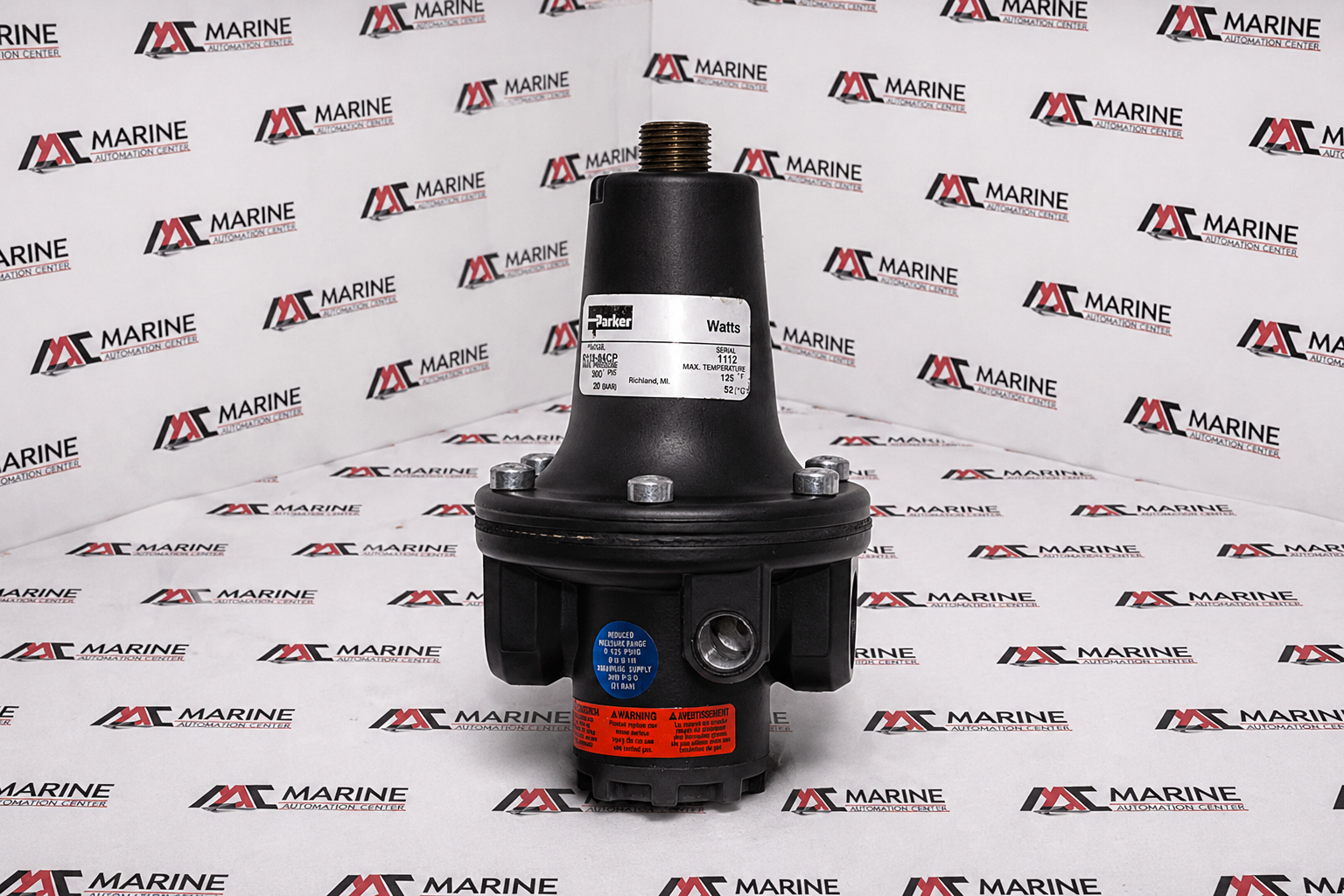

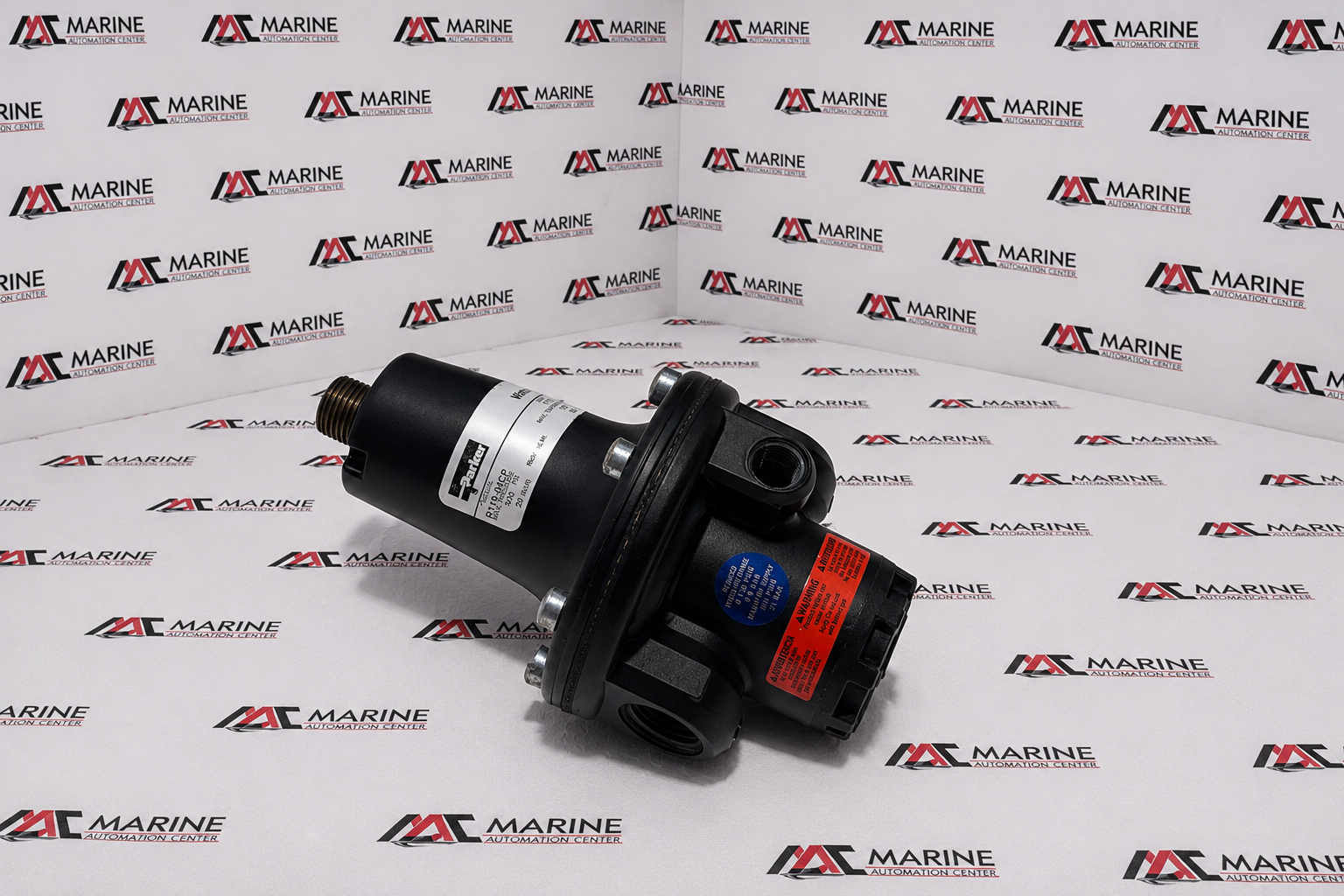

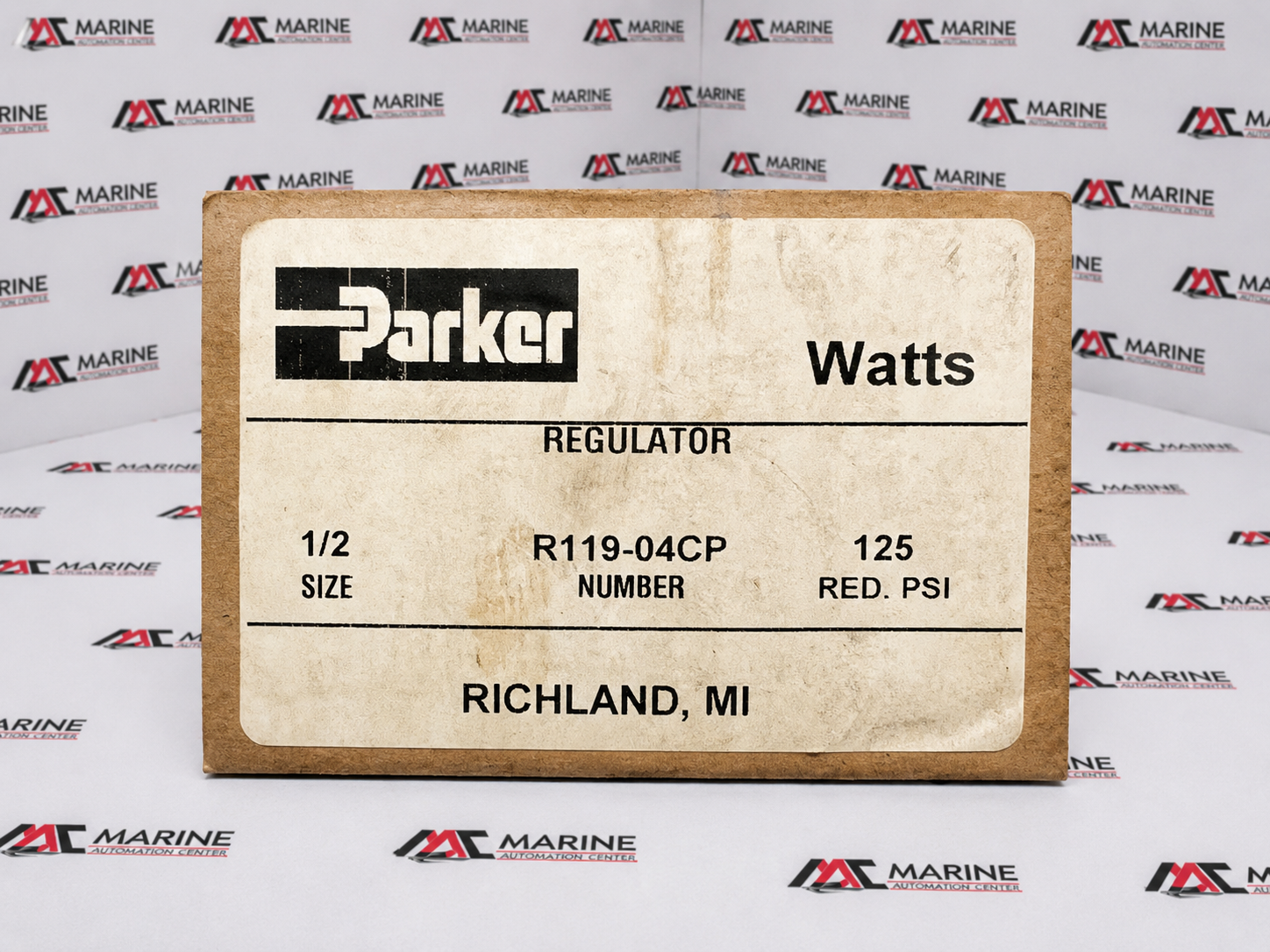

Parker-Watts R119 Series Standard Regulator
The Parker-Watts R119-04CP Standard Regulator is a diaphragm-operated, relieving pressure regulator designed to provide accurate and stable downstream pressure control in compressed air and industrial fluid systems. Built for reliable performance in demanding industrial and marine environments, it ensures consistent pressure regulation while protecting downstream equipment.
BRAND
Parker
TYPE
Standard Regulator
PART NO.
Parker-Watts R119 Series Standard Regulator
MODEL
R119-04CP
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Parker |
| TYPE | Standard Regulator |
| PART NO. | Parker-Watts R119 Series Standard Regulator |
| MODEL | R119-04CP |
| Port Size | 1/2" NPT Female threaded |
| Max Inlet Pressure | 300 PSI (20.7 Bar) |
| Pressure Range | 0 to 125 PSIG (0 to 8.5 Bar) |
| Flow Capacity | 150 SCFM (70.8 dm³/s) |
| Operating Temp | 40°F to 125°F (4.4°C to 52°C) |
| Body Material | Zinc Housing |
| Adjustment | Heavy-duty T-Handle |
| Made in | USA |
| Ref no | 1231 |
