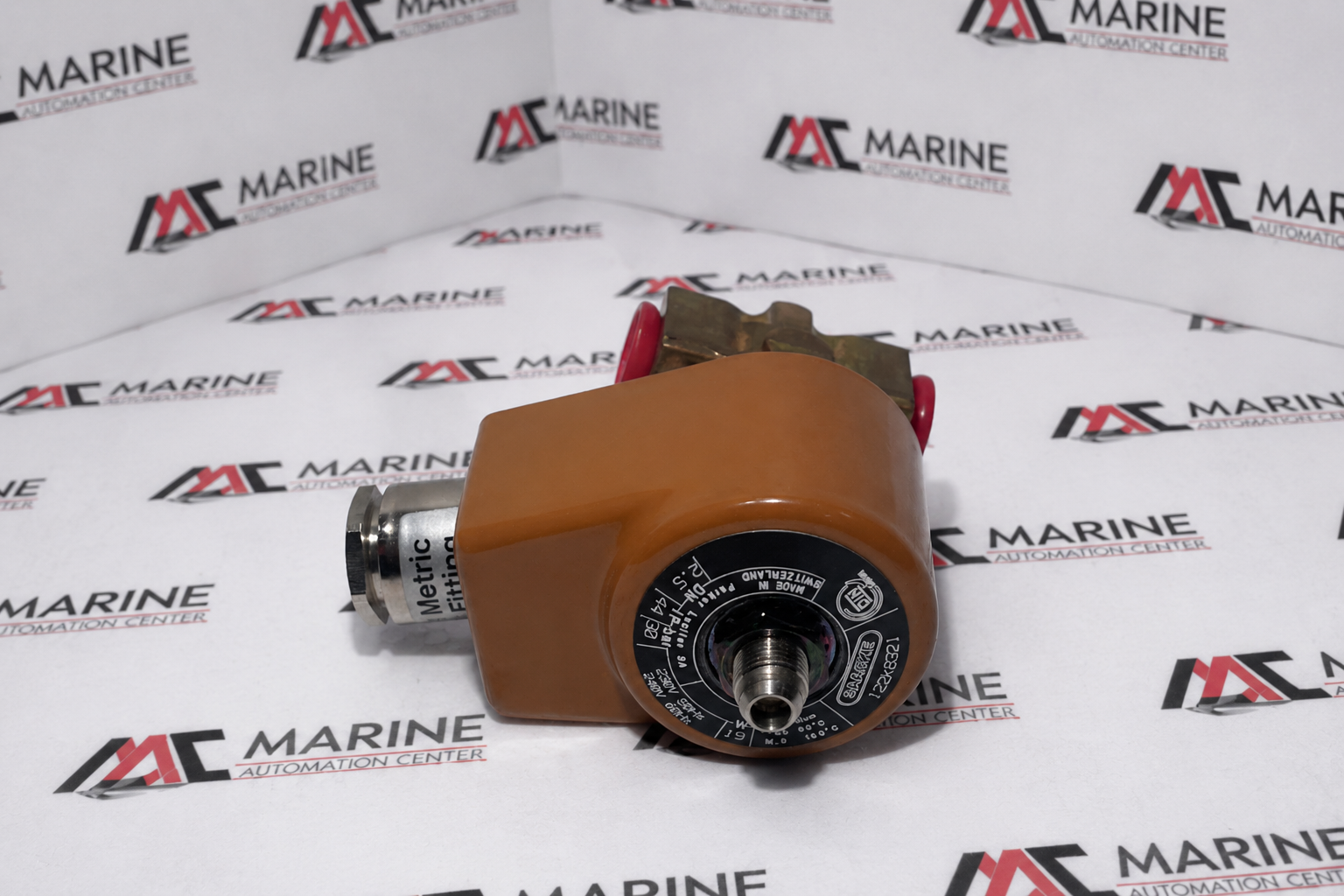

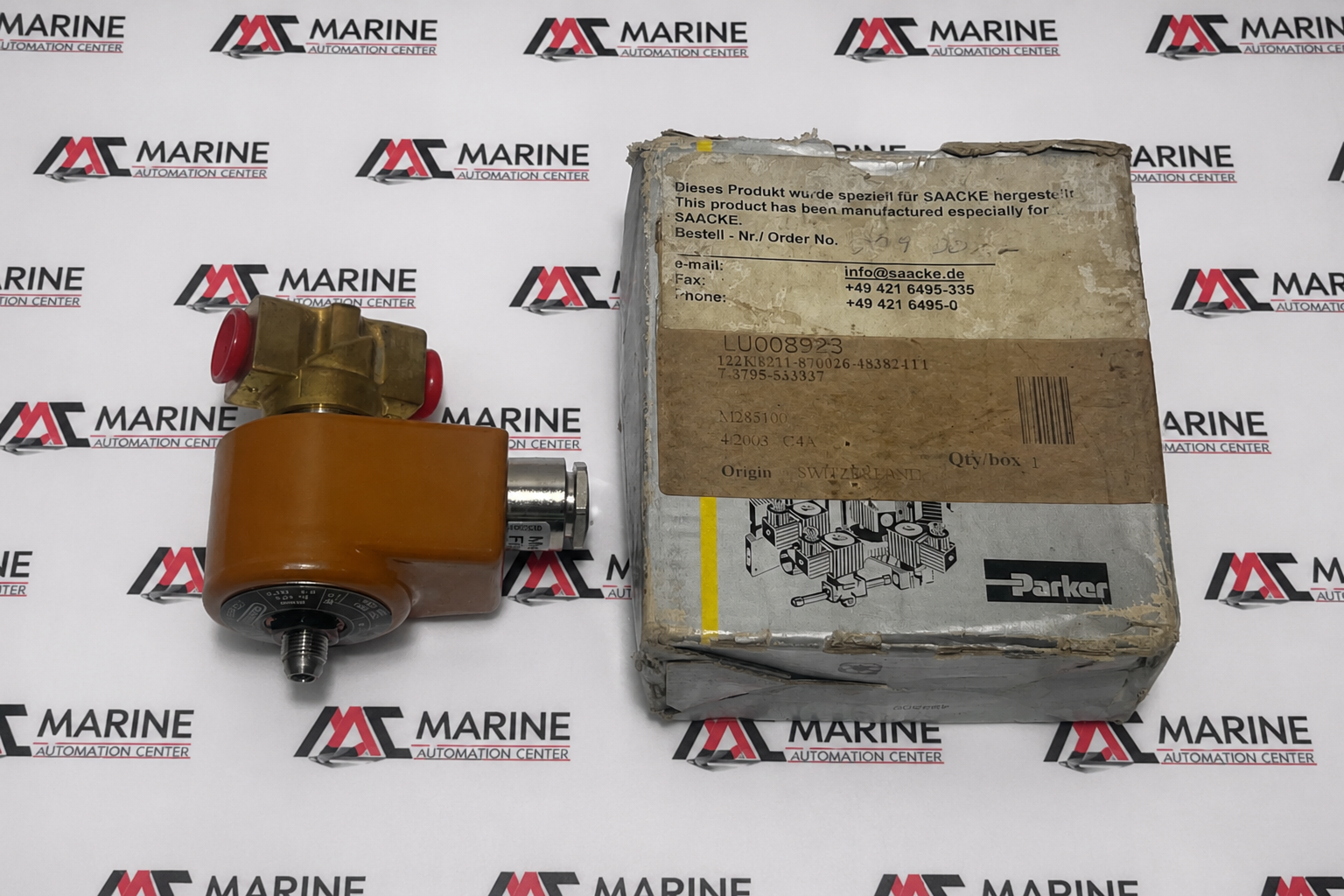

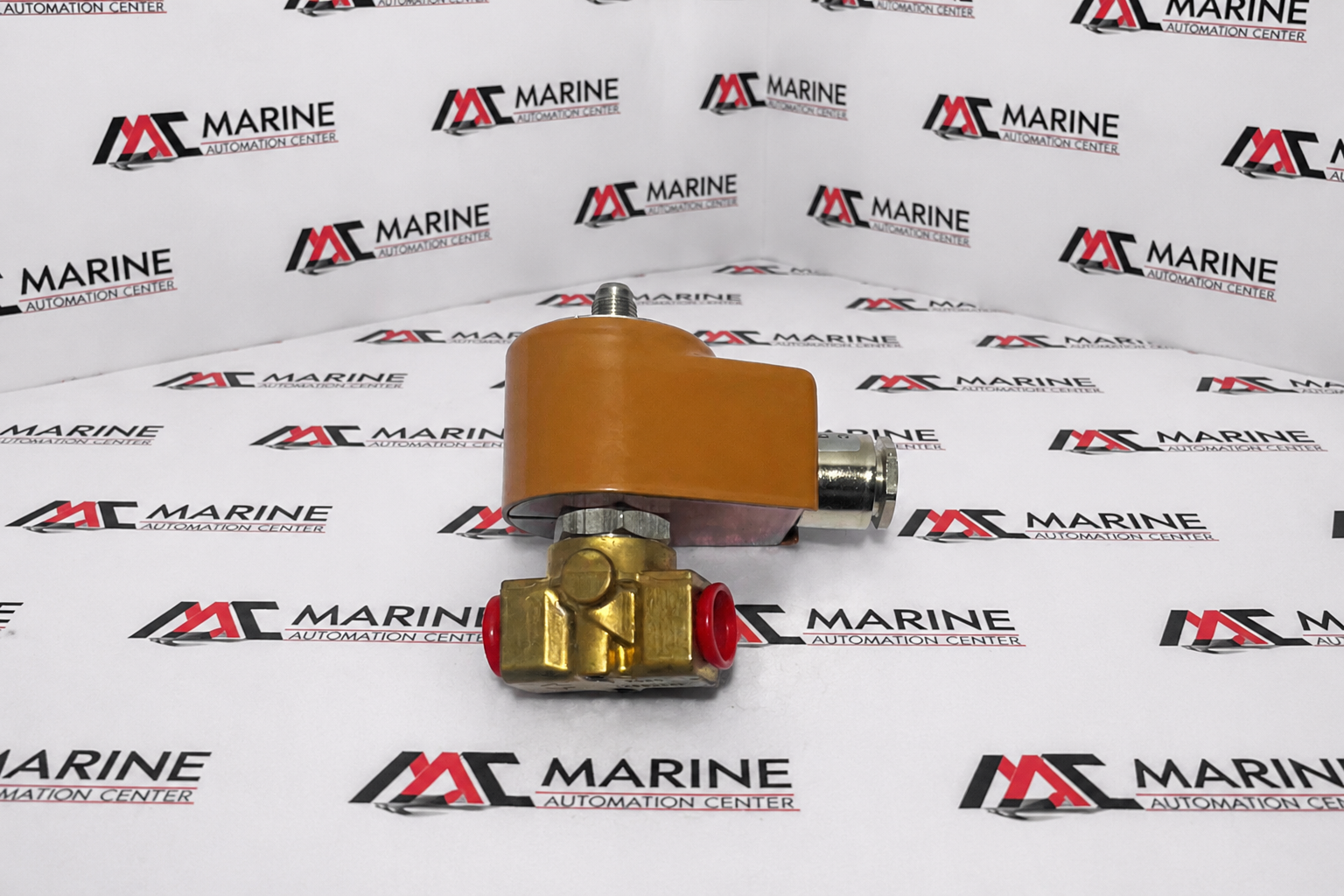

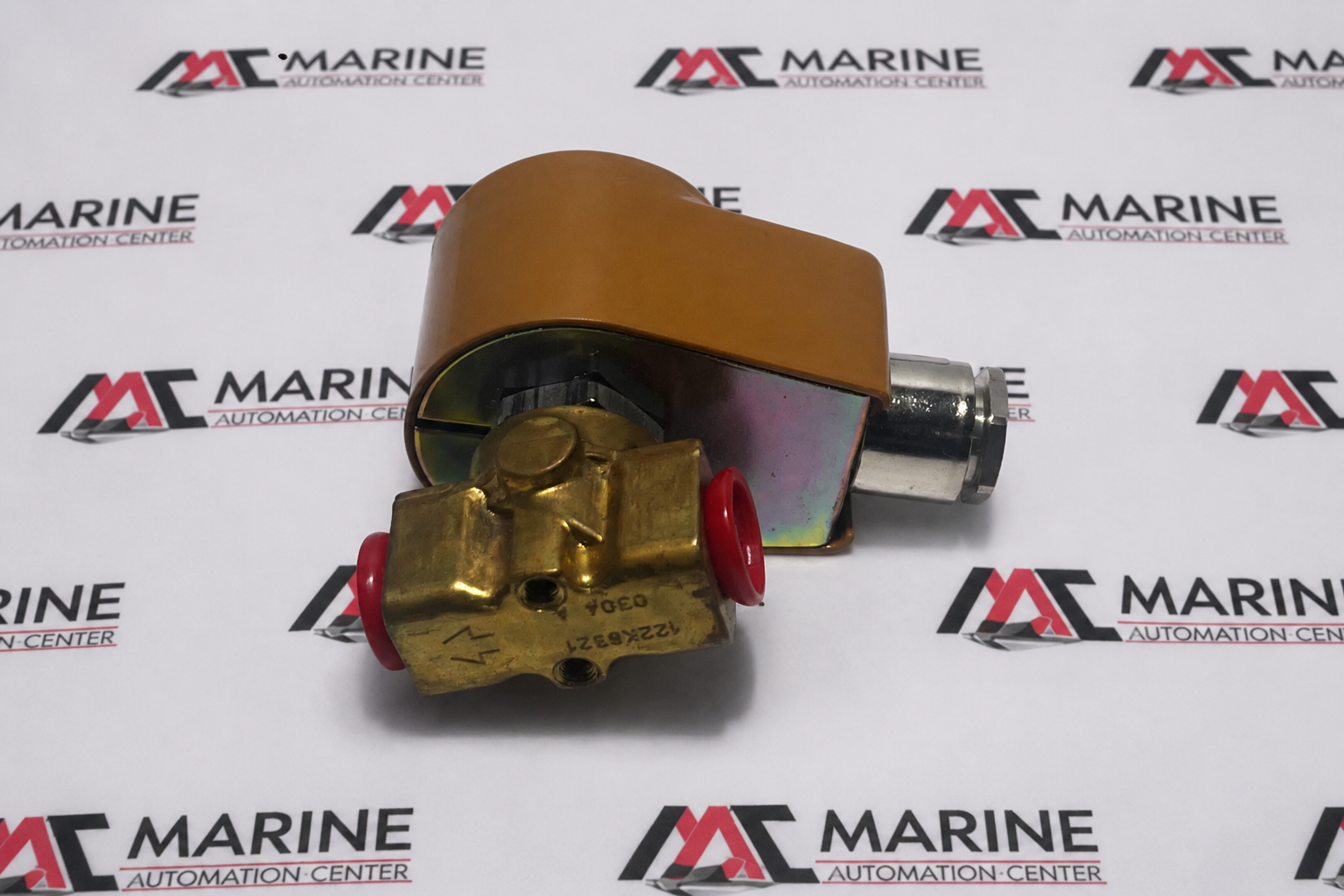

Parker Lucifer LU008923 Solenoid Valve for Oil Burners
The Parker Lucifer LU008923 Solenoid Valve is a high-performance fuel control valve designed for oil burner systems. It provides fast and reliable on/off control of fuel flow, ensuring safe burner operation, precise fuel delivery, and efficient combustion. Widely used in industrial boilers, heating equipment, and marine burner applications, it offers dependable performance and long service life in demanding operating environments
BRAND
Parker Lucifer
TYPE
Solenoid Valve / Oil Burner Fuel Valve
PART NO.
122K8321
MODEL
LU008923
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Parker Lucifer |
| TYPE | Solenoid Valve / Oil Burner Fuel Valve |

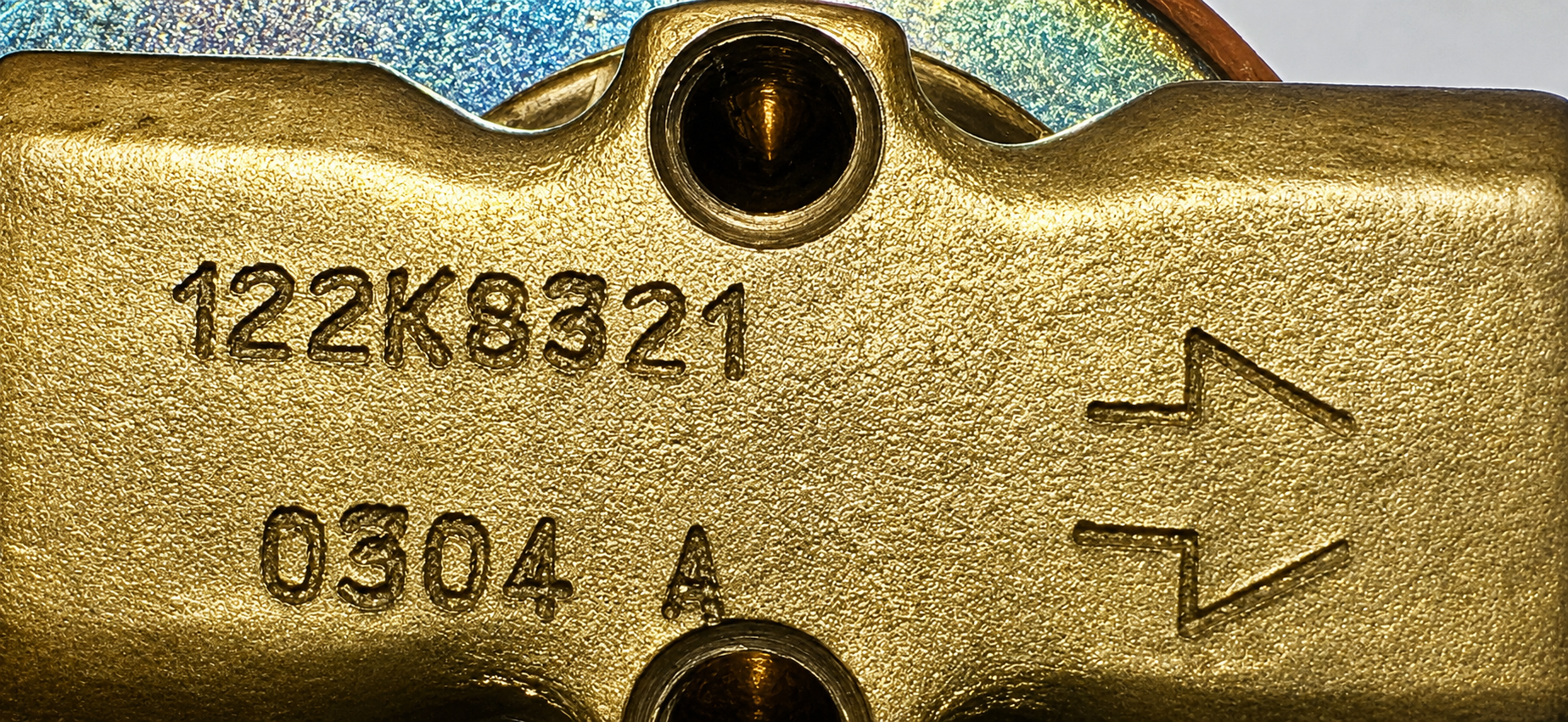

| PART NO. | 122K8321 |
| MODEL | LU008923 |

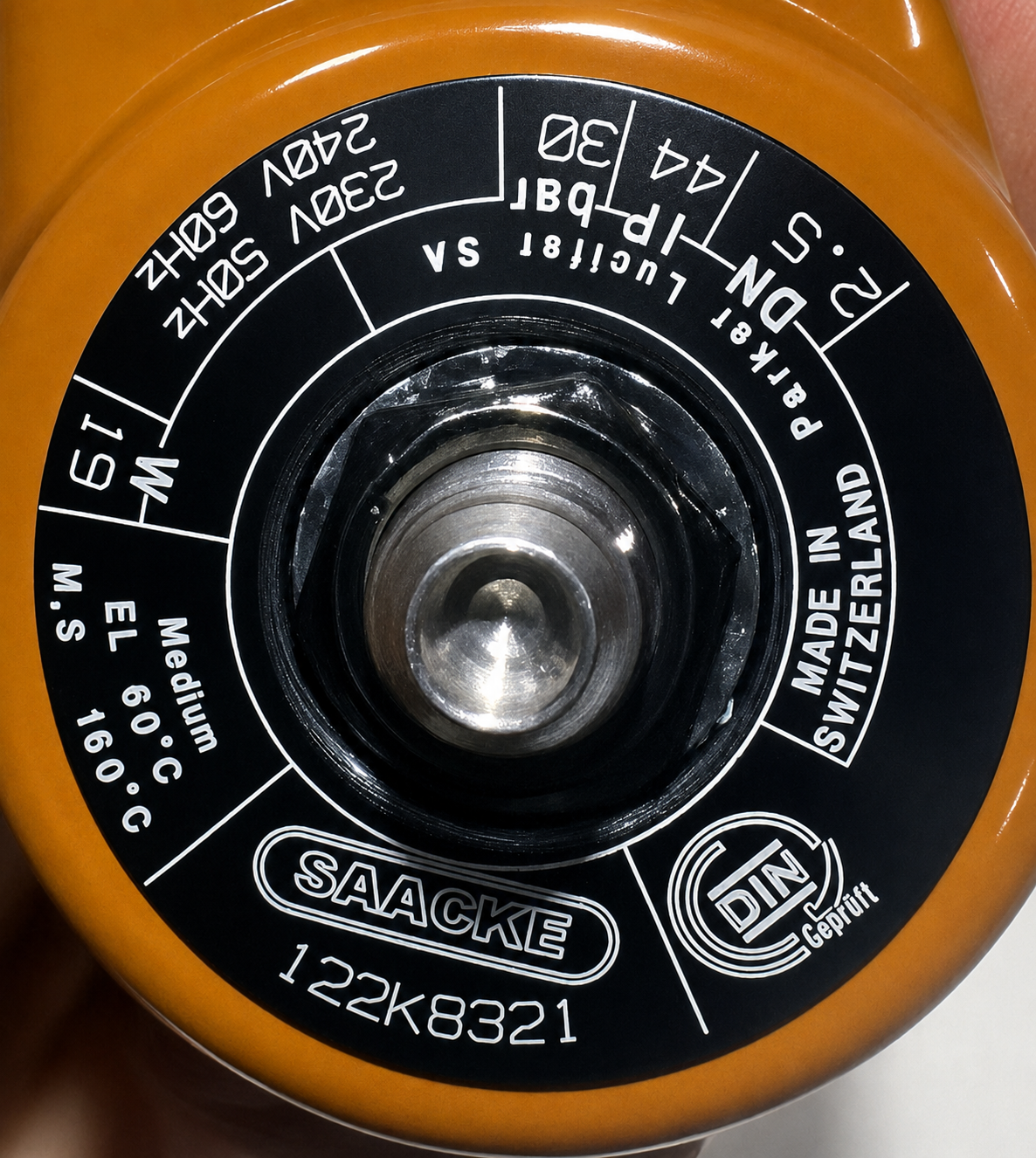

| Voltage Rating | 230V AC 50Hz / 240V AC 60Hz, 19W |
| Application | Fuel oil shut-off and control valve used in SAACKE oil burner systems, industrial boilers, marine boiler burners, combustion systems, and heating equipment |
| IEC / Standard | DIN EN ISO 23553-1 |
| Product Type | Solenoid Valve |
| Valve Type | 2/2 Way Normally Open (NO) |
| Operation | Direct Operated |
| Port Size | 1/4" G |
| Orifice Size | 2.5 mm |
| Pressure Range | 0–30 Bar |
| Voltage | 230V AC 50Hz / 240V AC 60Hz |
| Power Consumption | 19 W |
| Protection Class | IP44 |
| Body Material | Brass |
| Seal Material | Ruby |
| Media | EL Fuel Oil |
| Maximum Medium Temperature | 60°C (EL Oil) |
| Maximum Surface Temperature | 160°C |
| Weight | Approximately 480 g |
| Made In | Switzerland |
| REF NO. | 1187 |
