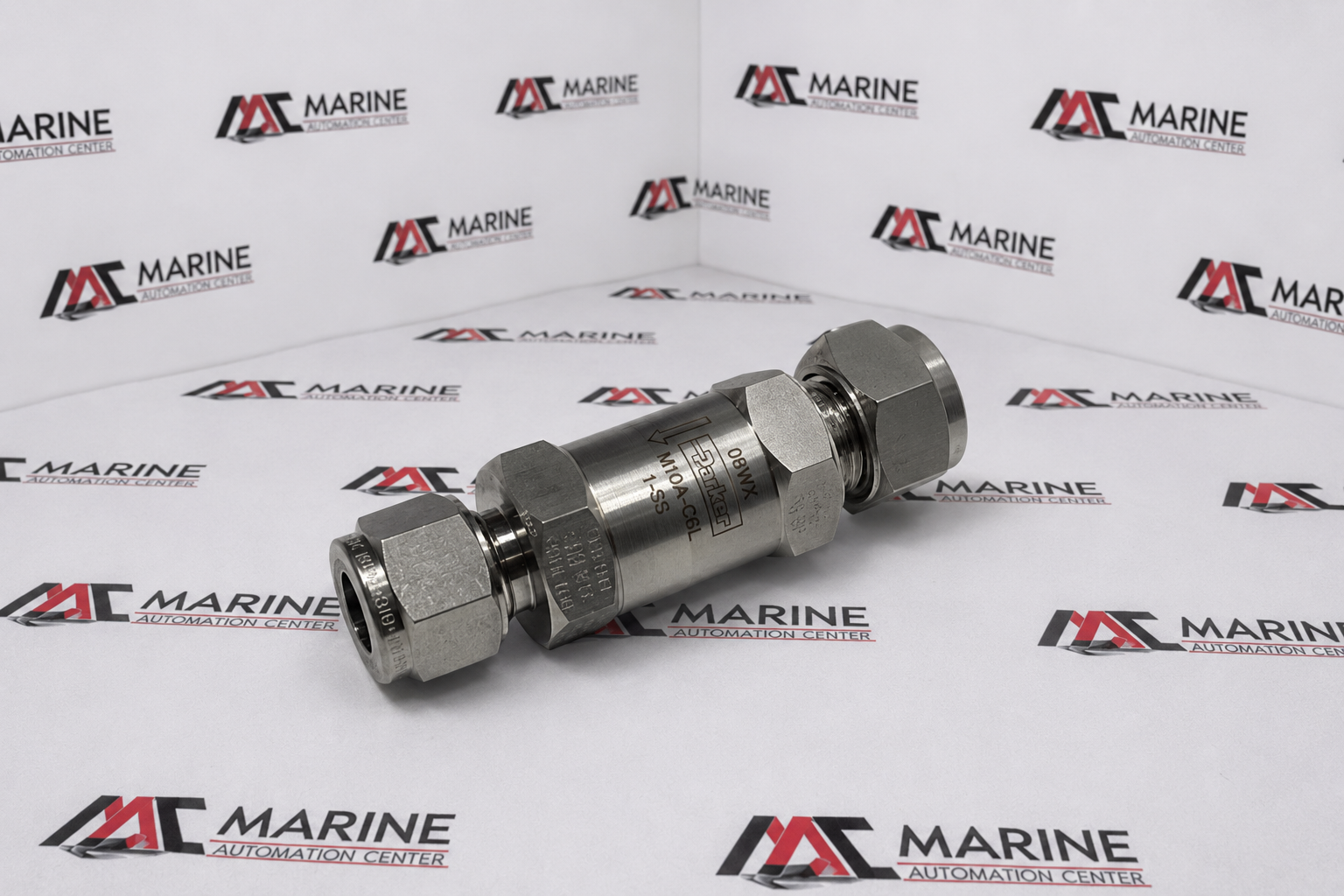

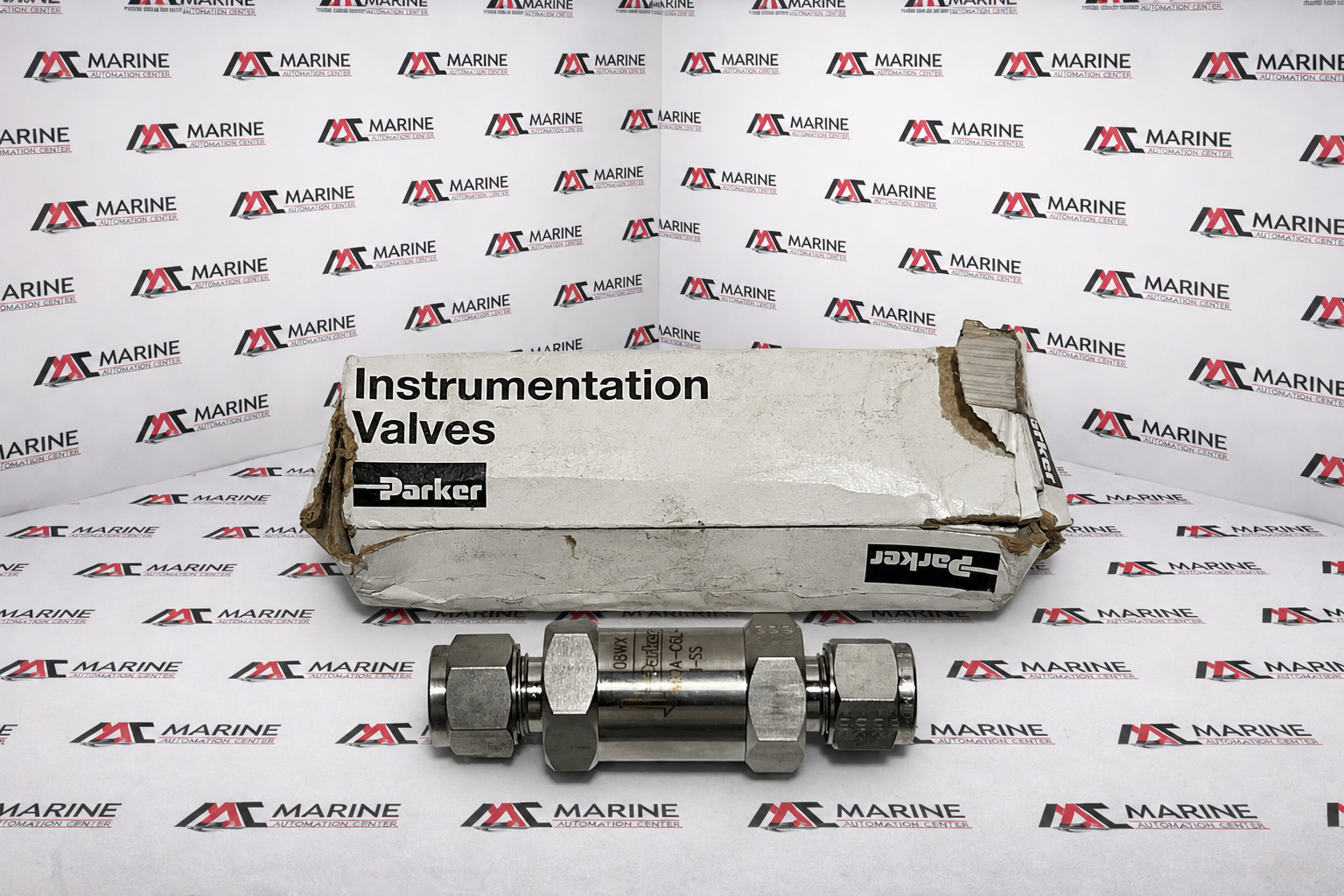

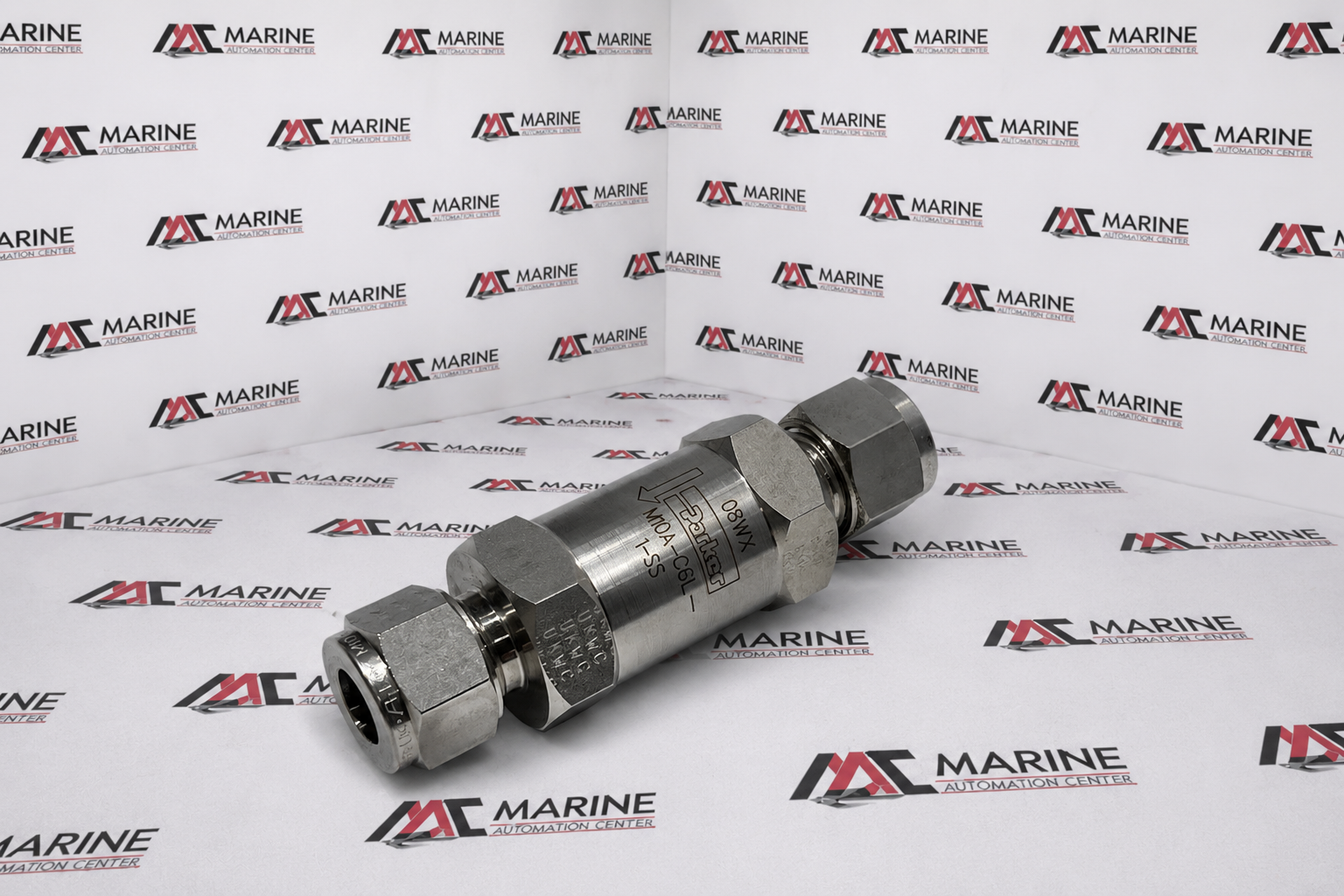

Parker C Series Instrumentation Check Valve
The Parker M10A-C6L-1-SS C Series Check Valve is a high-pressure stainless steel in-line instrumentation check valve with A-LOK® compression fittings, designed to prevent reverse flow in hydraulic, pneumatic, and process instrumentation systems. Its compact, corrosion-resistant design provides reliable one-way flow control for industrial, marine, oil & gas, and chemical processing applications.
BRAND
Parker
TYPE
In-Line Poppet Check Valve
PART NO.
M10A-C6L-1-SS
MODEL
C Series Check Valve
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Parker |
| TYPE | In-Line Poppet Check Valve |
| PART NO. | M10A-C6L-1-SS |
| MODEL | C Series Check Valve |
| MANUFACTURER | Parker Hannifin Corporation – Instrumentation Products Division |
| Connection Type | 10 mm A-LOK® Double Ferrule Compression × 10 mm A-LOK® Double Ferrule Compression |
| Nominal Tube Size | 10 mm × 10 mm |
| Valve Design | Compact In-Line Poppet Check Valve |
| Catalog No. | M10A-C6L-1-SS |

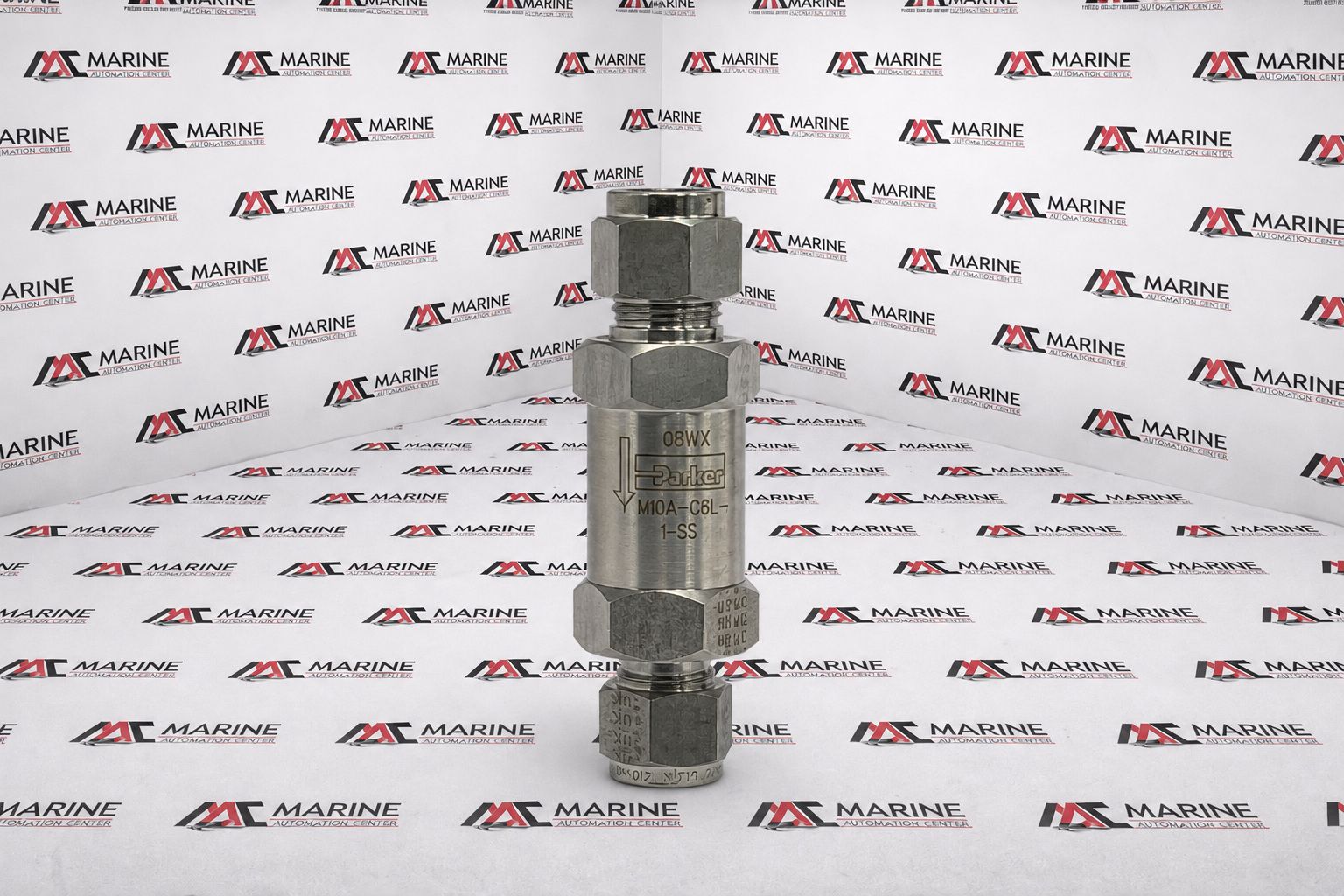

| Machine Label Information | Parker, 13VX, M10A-C6L-1-SS, Flow Direction Arrow |
| Made In | USA |
| Ref No. | 1319 |
