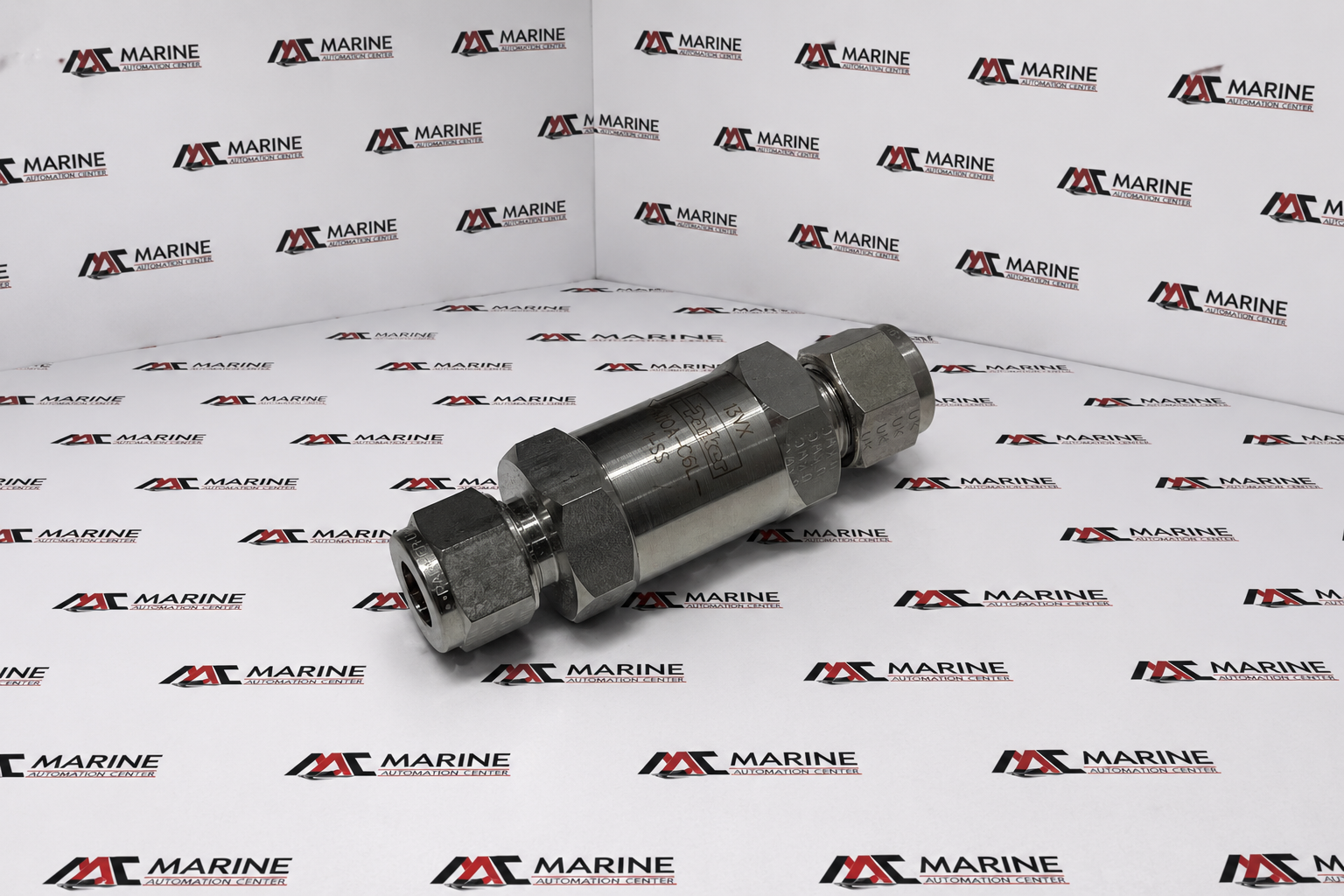

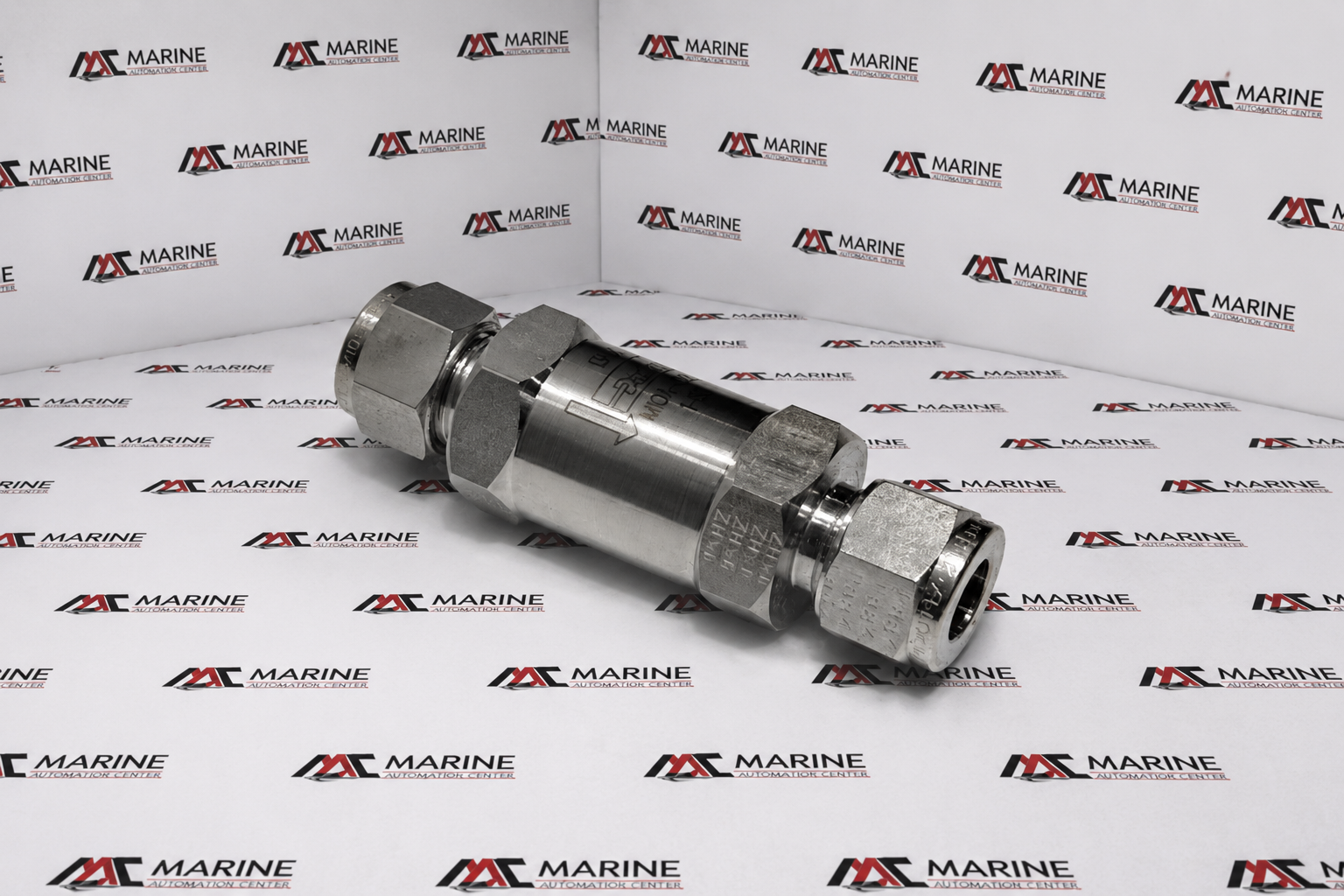

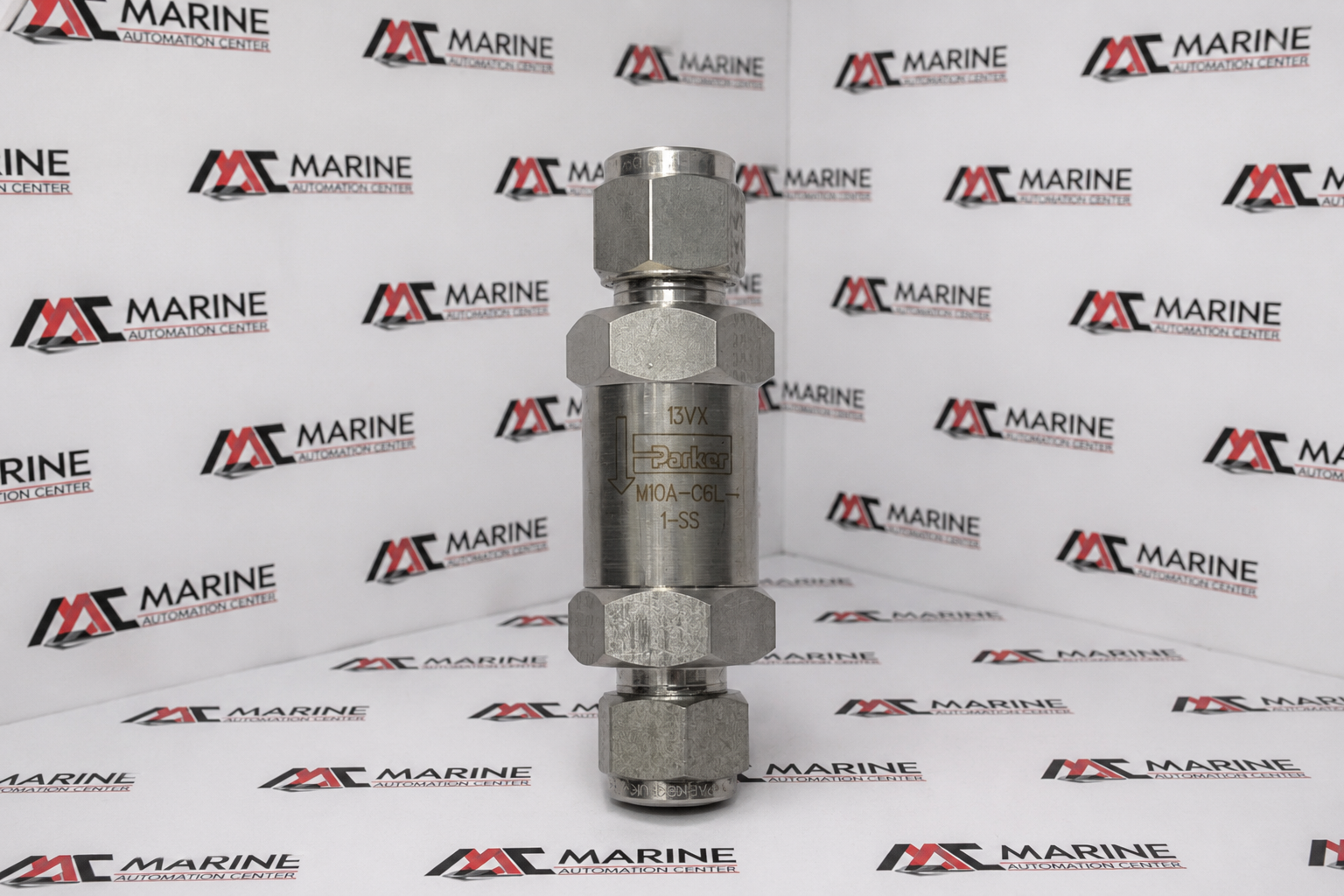

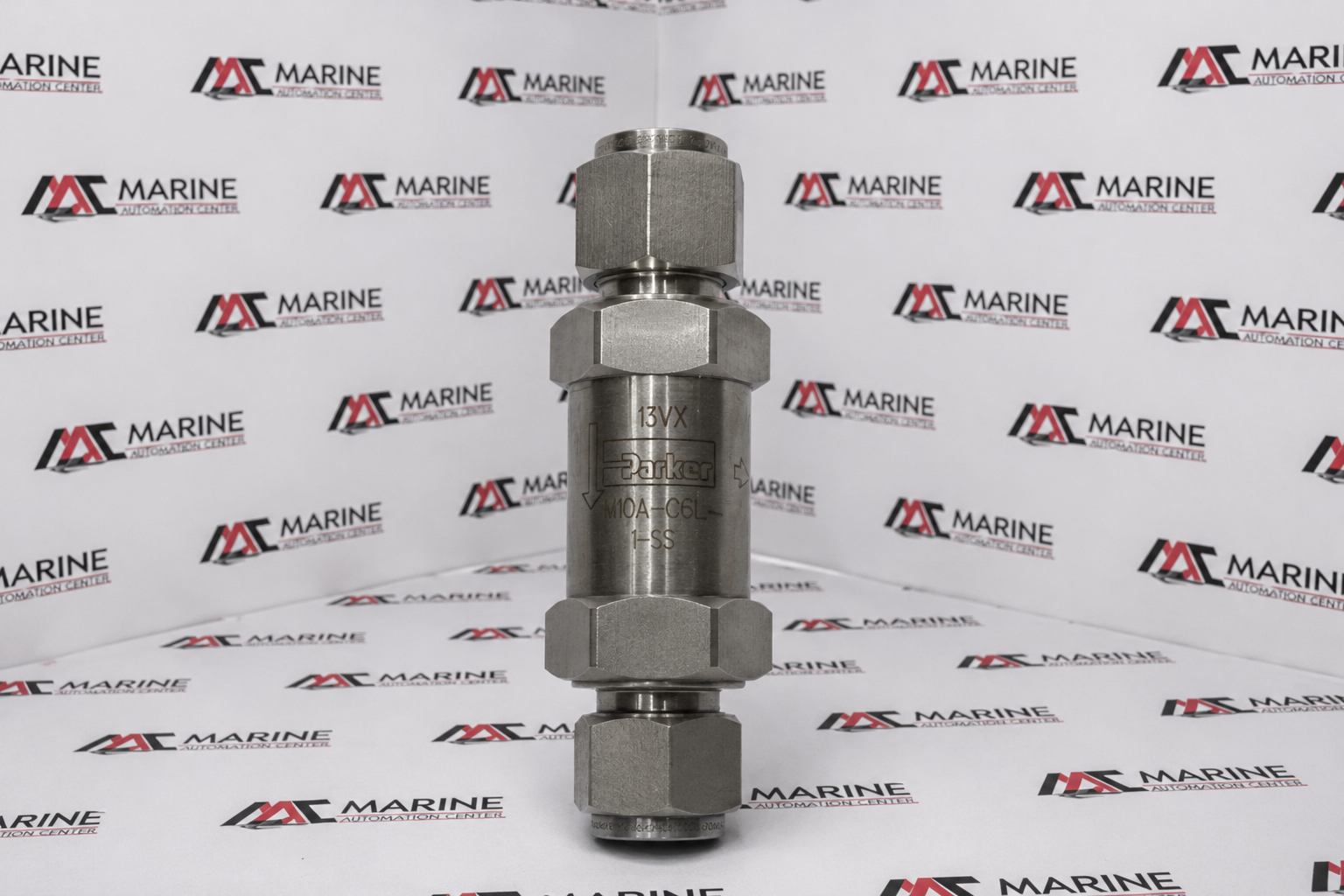

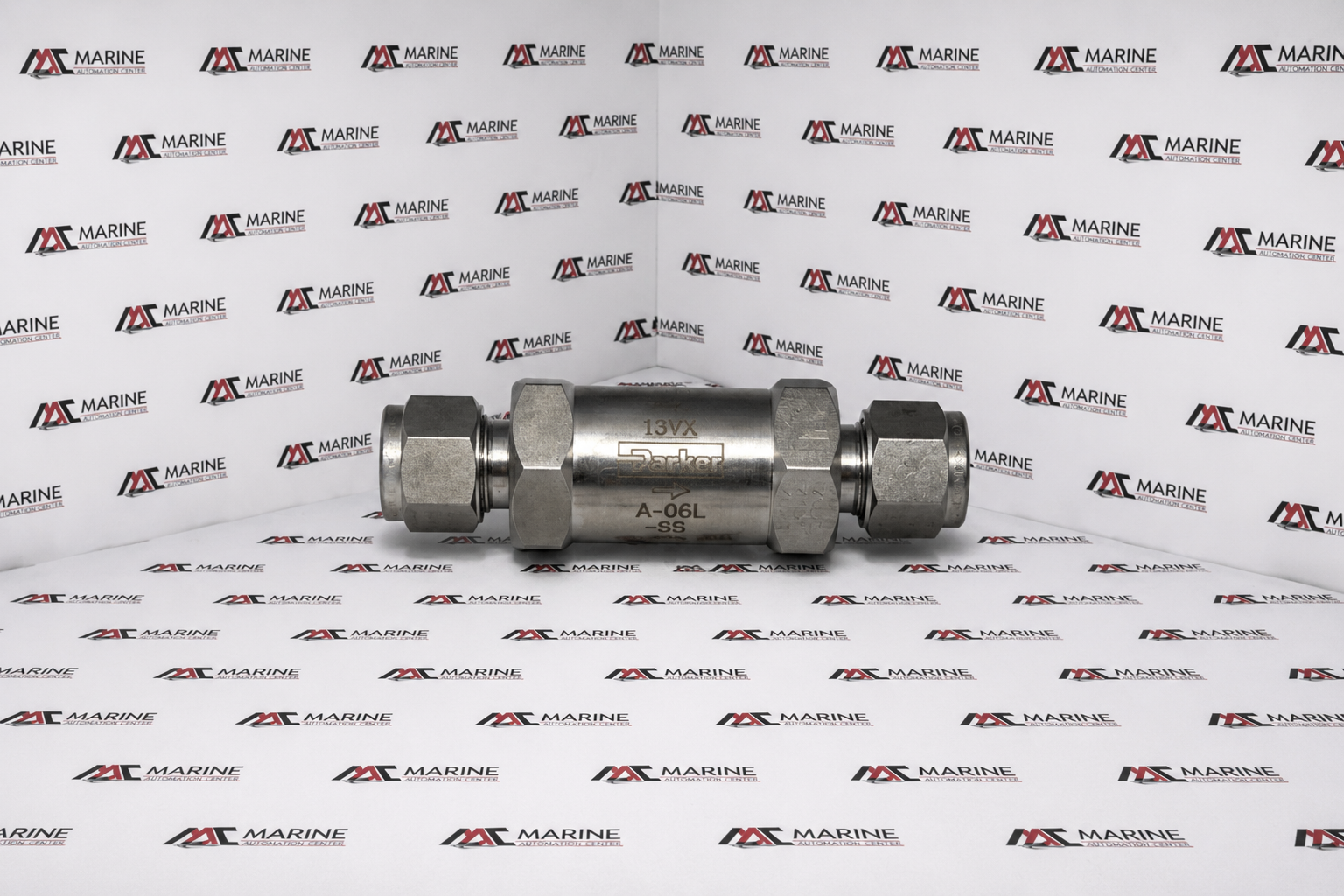

Parker C Series Instrumentation Check Valve
The **Parker M10A-C6L-1-SS C Series Check Valve** is a **stainless steel in-line instrumentation check valve** with **A-LOK® compression tube fittings**, designed to provide reliable one-way flow control and prevent reverse flow in hydraulic, pneumatic, and process instrumentation systems. Its corrosion-resistant construction ensures dependable performance in demanding industrial, marine, oil & gas, and chemical processing applications.
BRAND
Parker
TYPE
Instrumentation Check Valve
PART NO.
M10A-C6L-1-SS
MODEL
C Series Check Valve
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Parker |
| TYPE | Instrumentation Check Valve |
| PART NO. | M10A-C6L-1-SS |
| MODEL | C Series Check Valve |
| MANUFACTURER | Parker Hannifin Corporation – Instrumentation Products Division |
| Connection Type | 10 mm A-LOK® Double Ferrule Compression × 10 mm A-LOK® Double Ferrule Compression |
| Nominal Tube Size | 10 mm × 10 mm |
| Valve Design | Compact In-Line Poppet Check Valve |
| Flow Direction | Uni-directional |
| Orifice Diameter | 0.312 in (7.9 mm) |
| Maximum Working Pressure | 6000 psig (414 bar) |
| Cracking Pressure | 1 psig (0.07 bar) |
| Reseal Pressure | Approximately 4 psig below cracking pressure |
| Body Material | 316 Stainless Steel |
| Spring Material | 316 Stainless Steel |
| Poppet Material | Hardened Stainless Steel |
| Operating Temperature | -26°C to +204°C (-15°F to +400°F) |
| Application | Process instrumentation, hydraulic systems, pneumatic systems, marine automation, chemical processing, oil & gas, refineries, power plants and industrial fluid control |
| Series | Parker C Series |
| Made In | USA |
| Ref no | 1318 |
