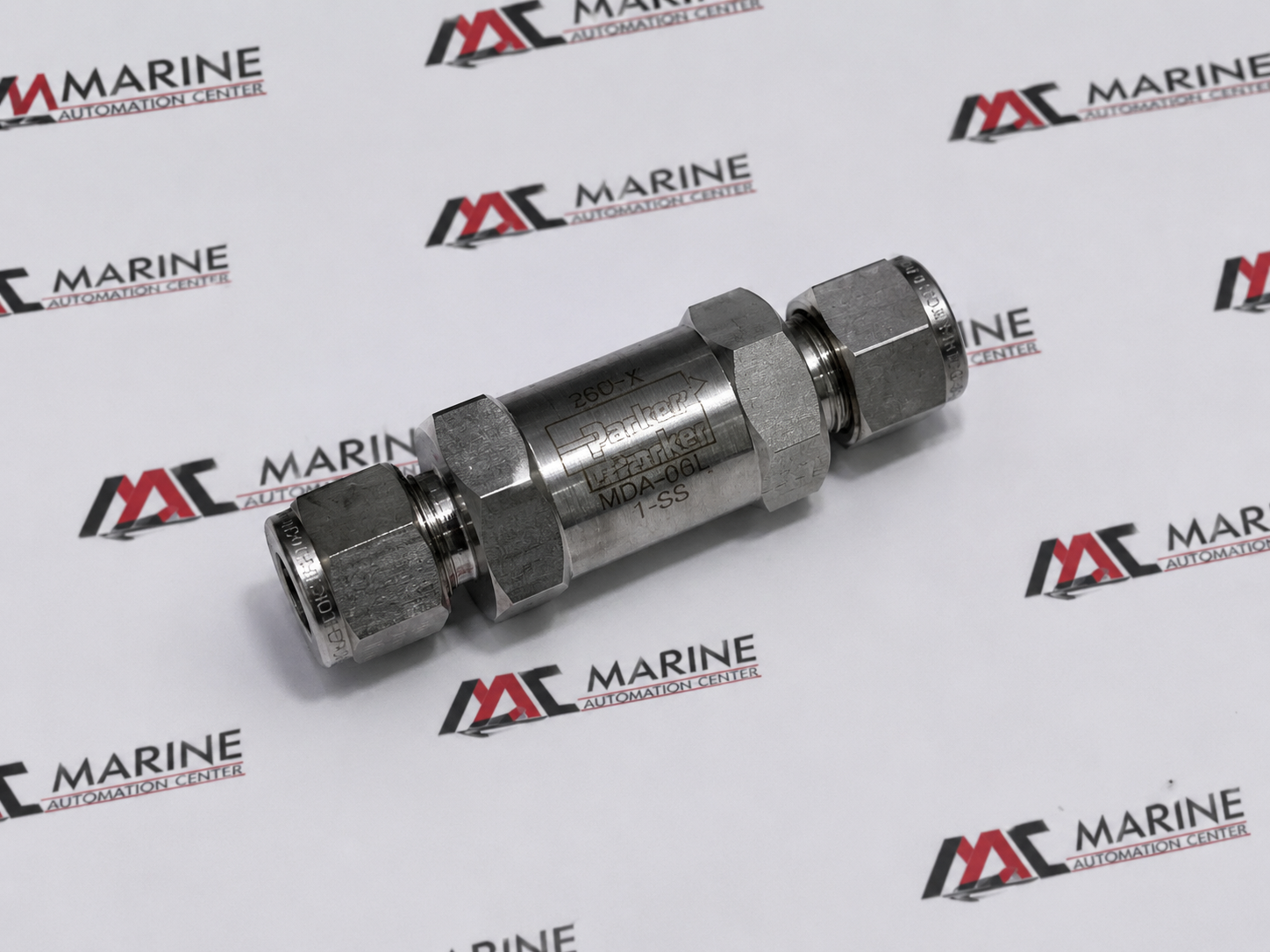

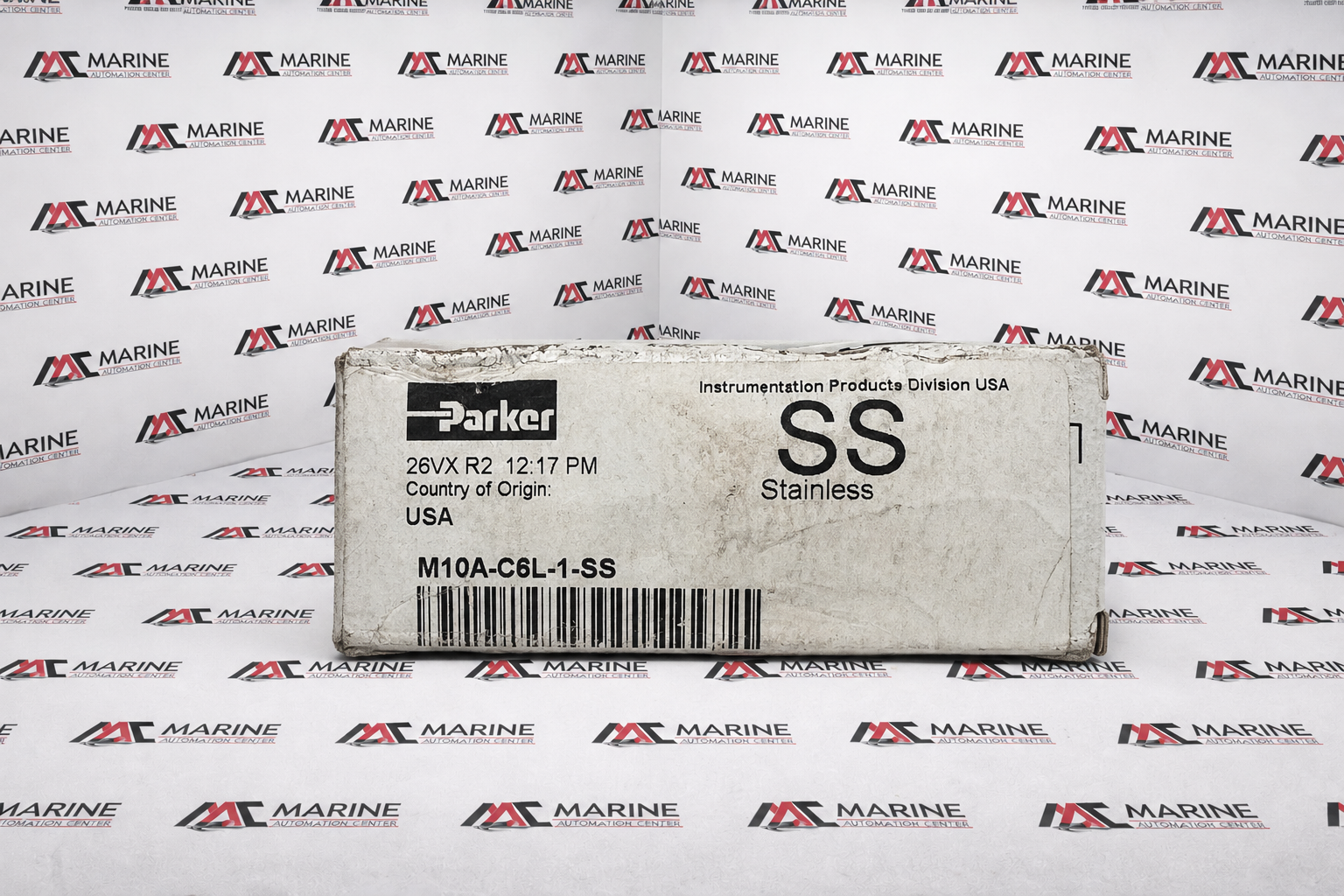

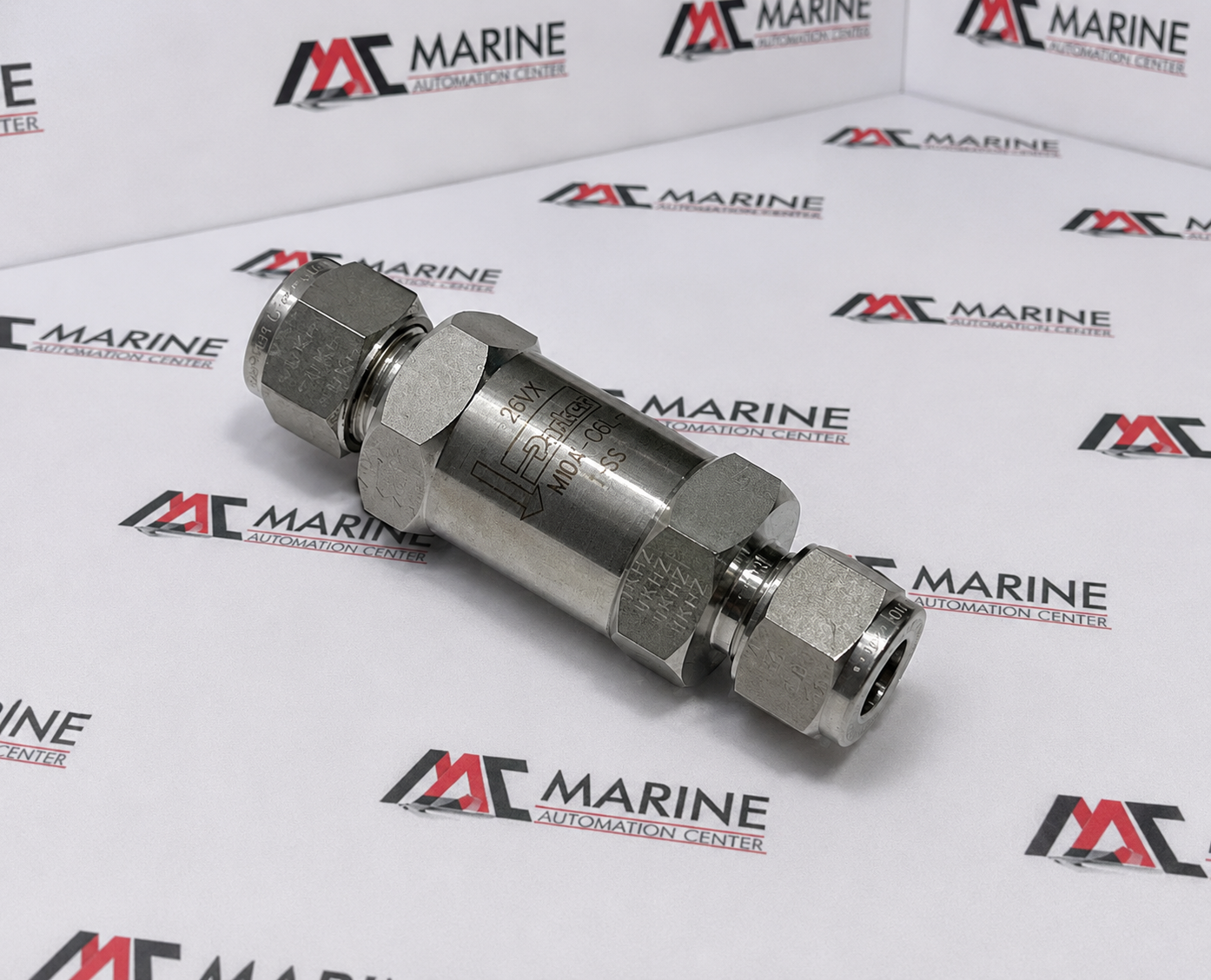

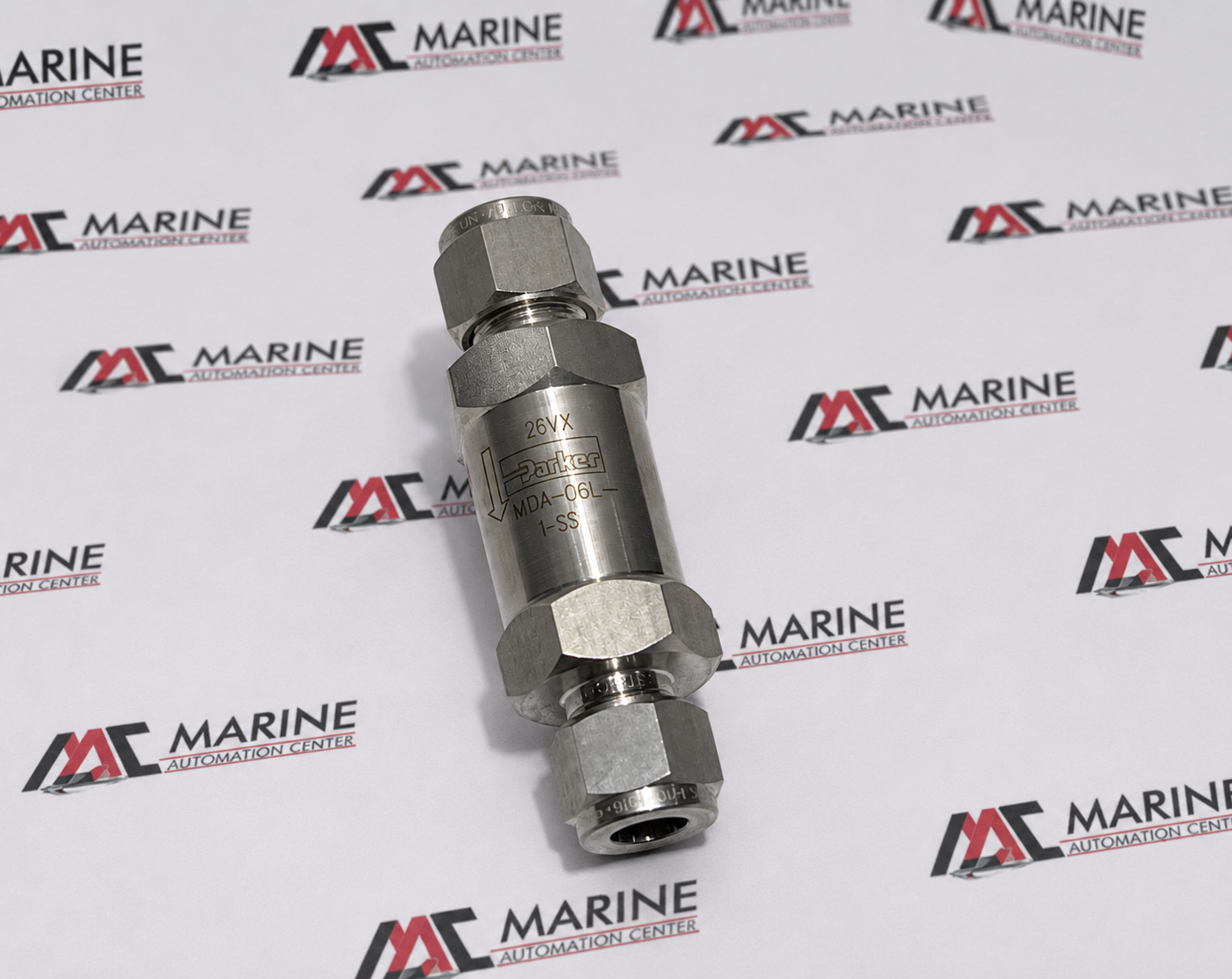

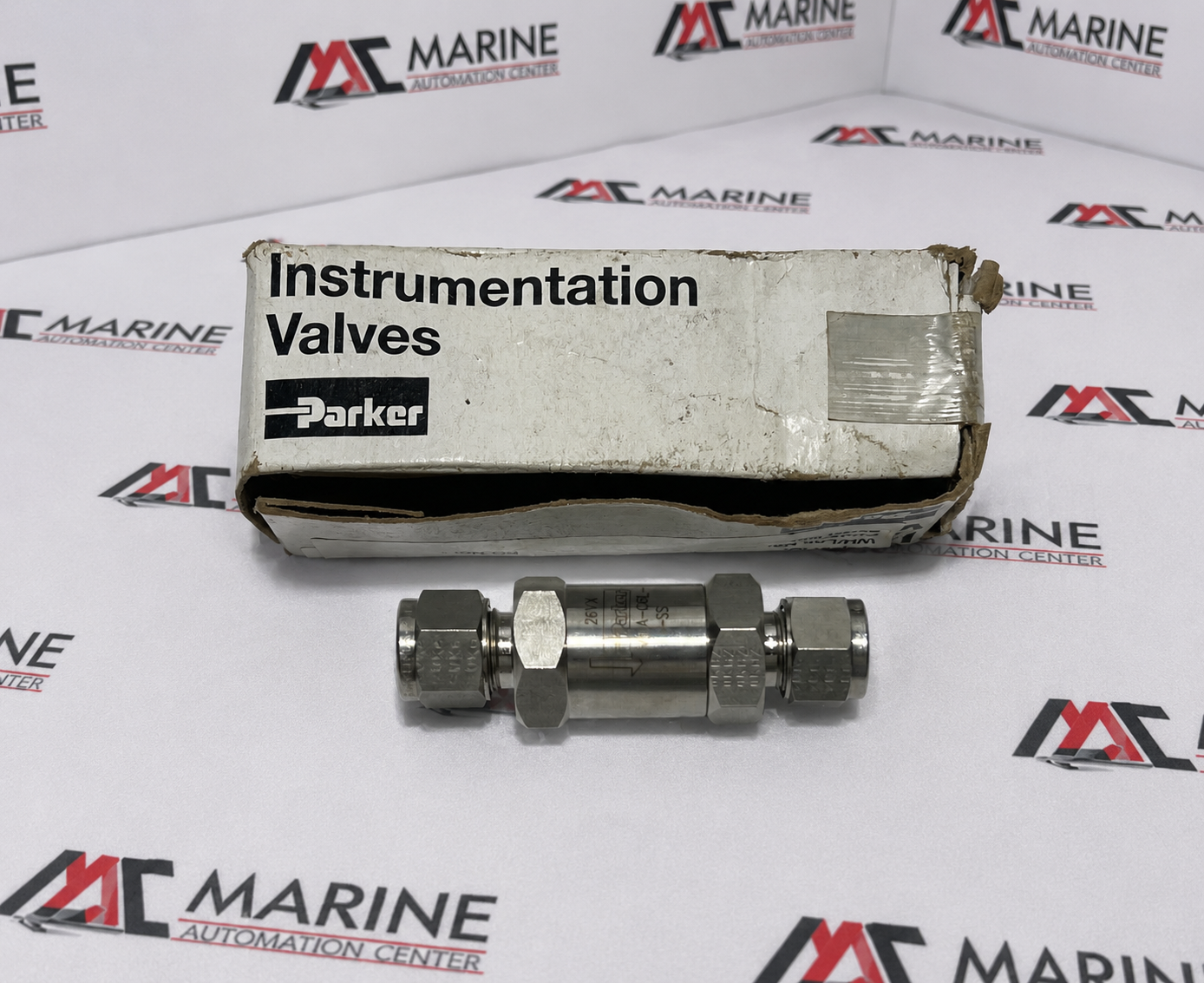

Parker C Series Instrumentation Check Valve
The Parker C Series Check Valve M10A-C6L-1-SS is a stainless steel in-line poppet check valve designed for reliable one-way flow control in instrumentation, hydraulic, pneumatic, and process systems. Featuring Parker A-LOK compression tube fittings, it prevents reverse flow, protects sensitive instruments and equipment, and provides leak-tight performance in high-pressure applications. Its corrosion-resistant stainless steel construction makes it suitable for demanding industrial, marine, oil &
BRAND
Parker
TYPE
Instrumentation Check Valve
PART NO.
M10A-C6L-1-SS
MODEL
C Series Check Valve
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Parker |
| TYPE | Instrumentation Check Valve |
| PART NO. | M10A-C6L-1-SS |
| MODEL | C Series Check Valve |
| MANUFACTURER | Parker Hannifin Corporation – Instrumentation Products Division |
| Connection Type | 10 mm A-LOK® Double Ferrule Compression × 10 mm A-LOK® Double Ferrule Compression |
| Nominal Size | 10 mm × 10 mm |
| Valve Design | In-Line Compact Poppet Check Valve |
| Flow Direction | Uni-directional |
| Orifice Diameter | 0.312 in (7.9 mm) |
| Maximum Working Pressure | 6000 psig (414 bar) |
| Cracking Pressure | 1 psig (0.07 bar) |
| Reseal Pressure | Approximately 4 psig below cracking pressure |
| Seat Material | Fluorocarbon (Standard) |
| Body Material | ASTM A182 Type F316 Stainless Steel |
| Spring Material | 316 Stainless Steel |
| Poppet Material | ASTM A564 Type 630 Stainless Steel |
| Application | Instrumentation systems, hydraulic circuits, pneumatic systems, chemical processing, marine systems, oil & gas, refineries, power plants and industrial process control |
| Made In | USA |
| Ref no. | 1317 |
