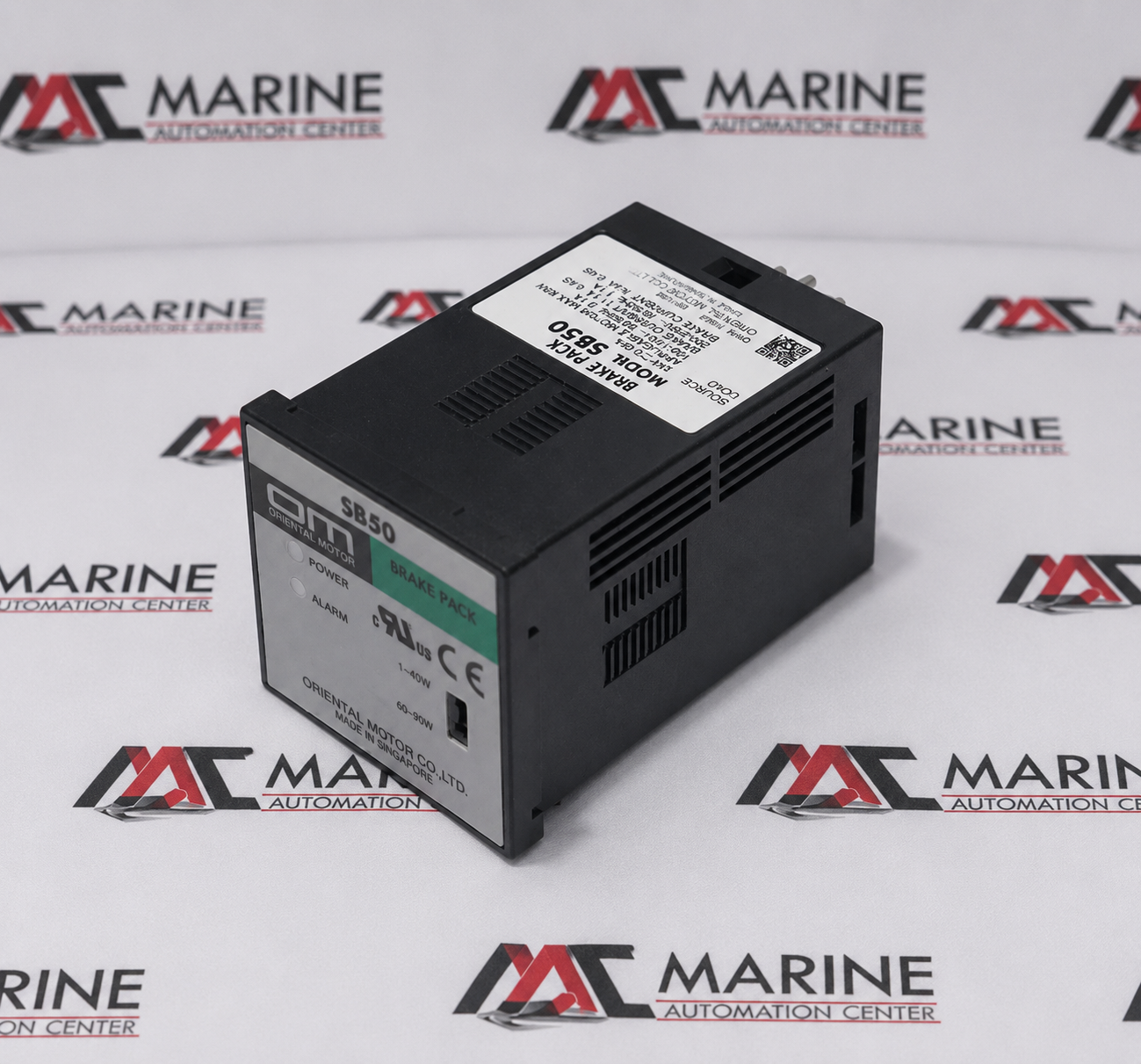

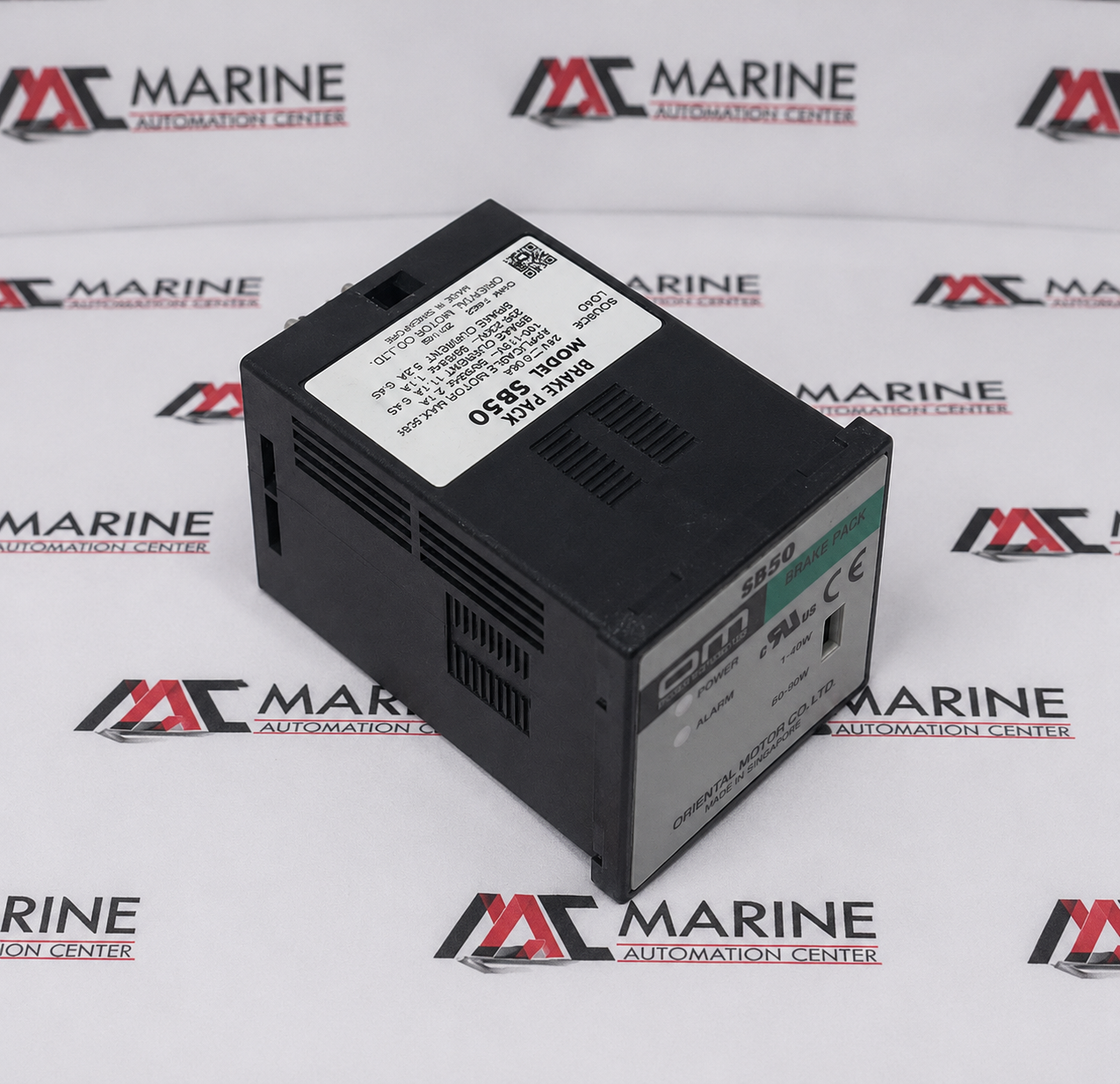

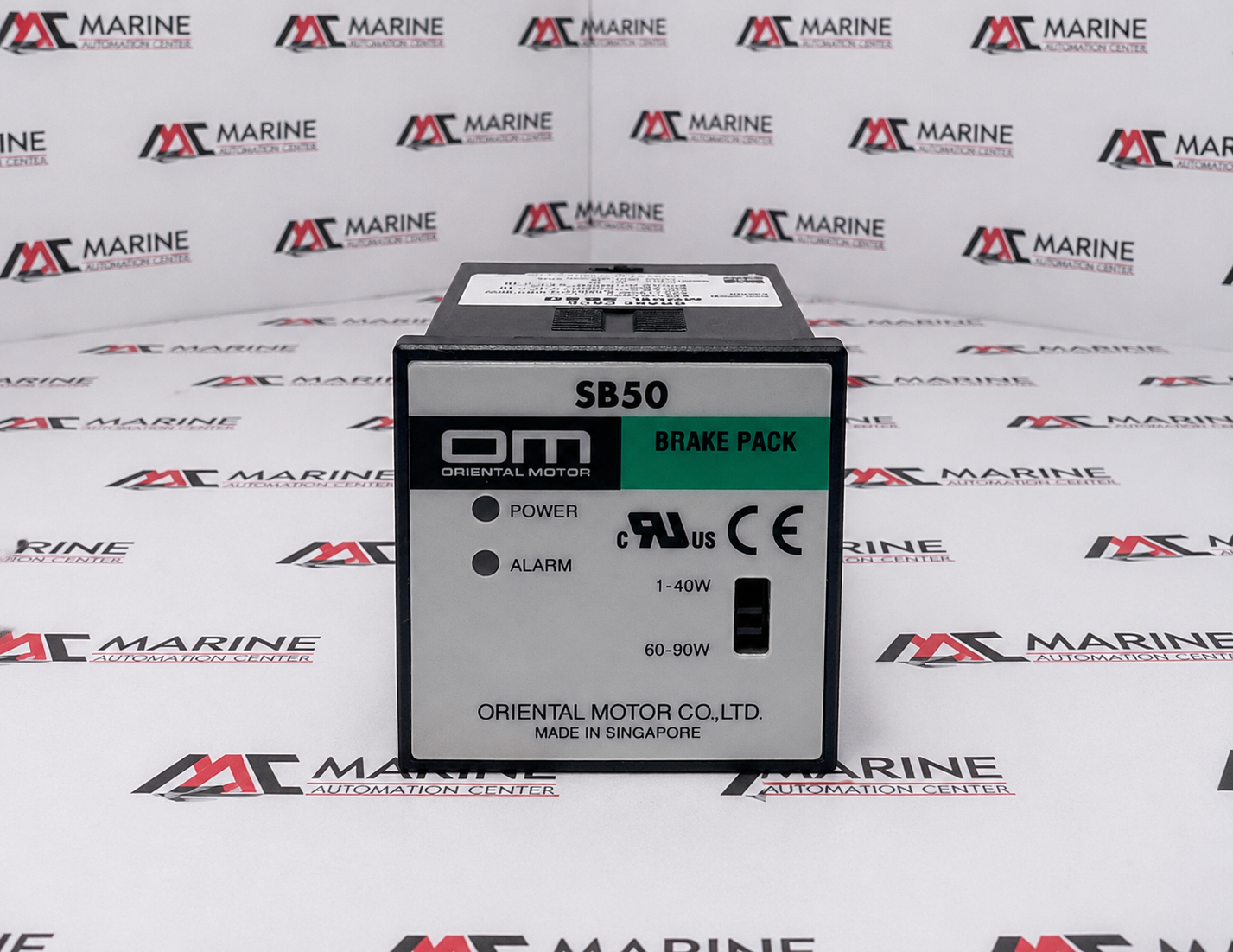

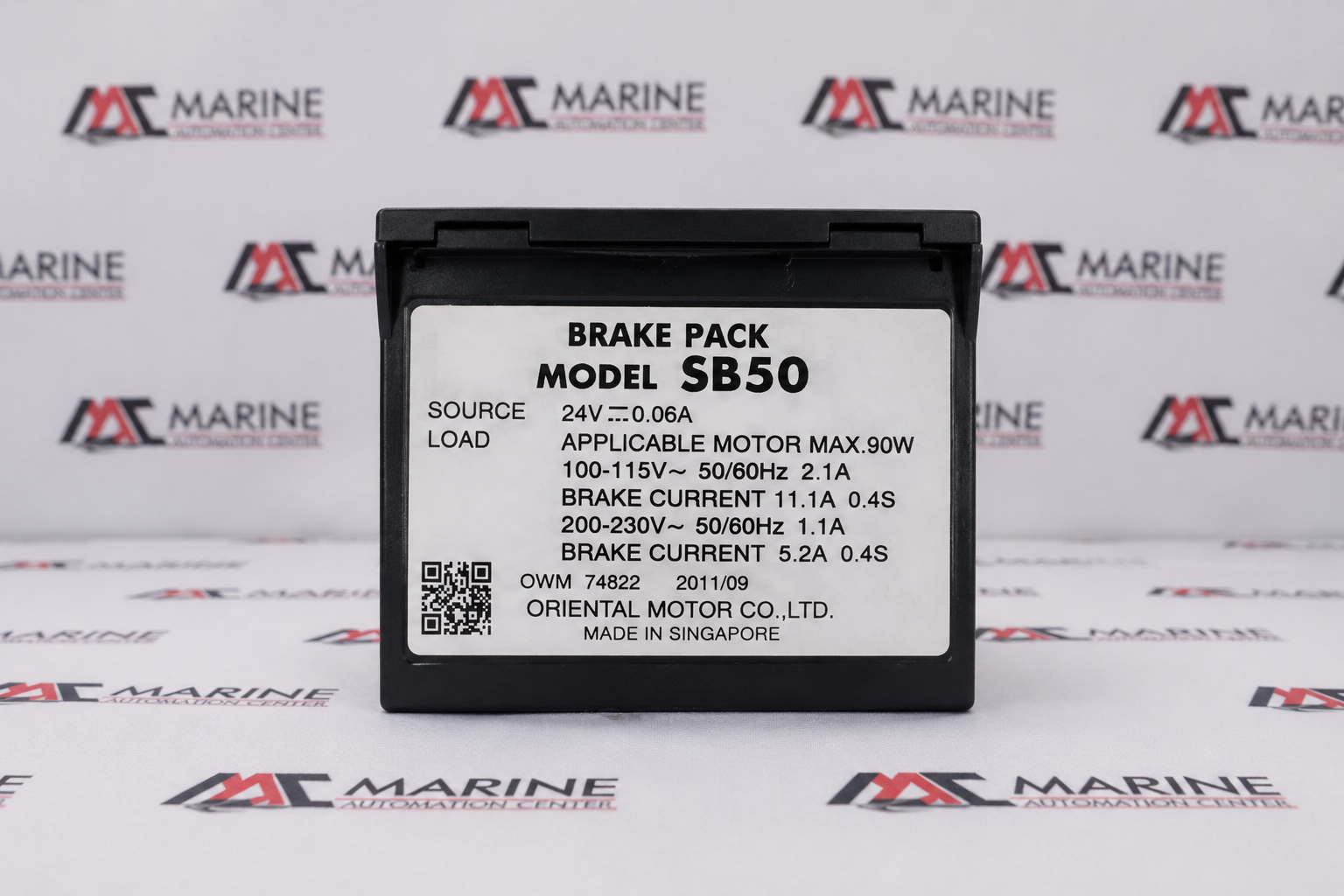

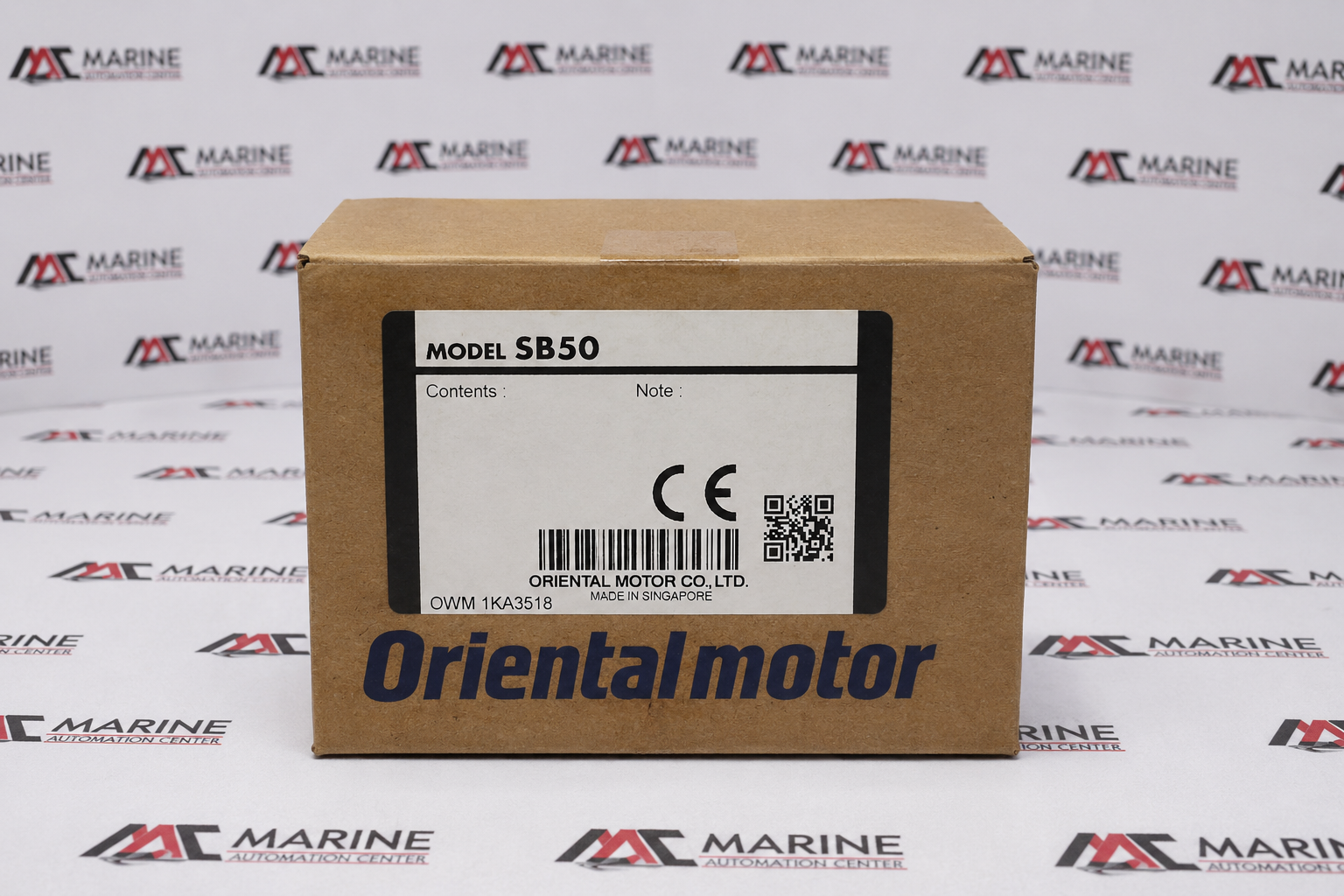

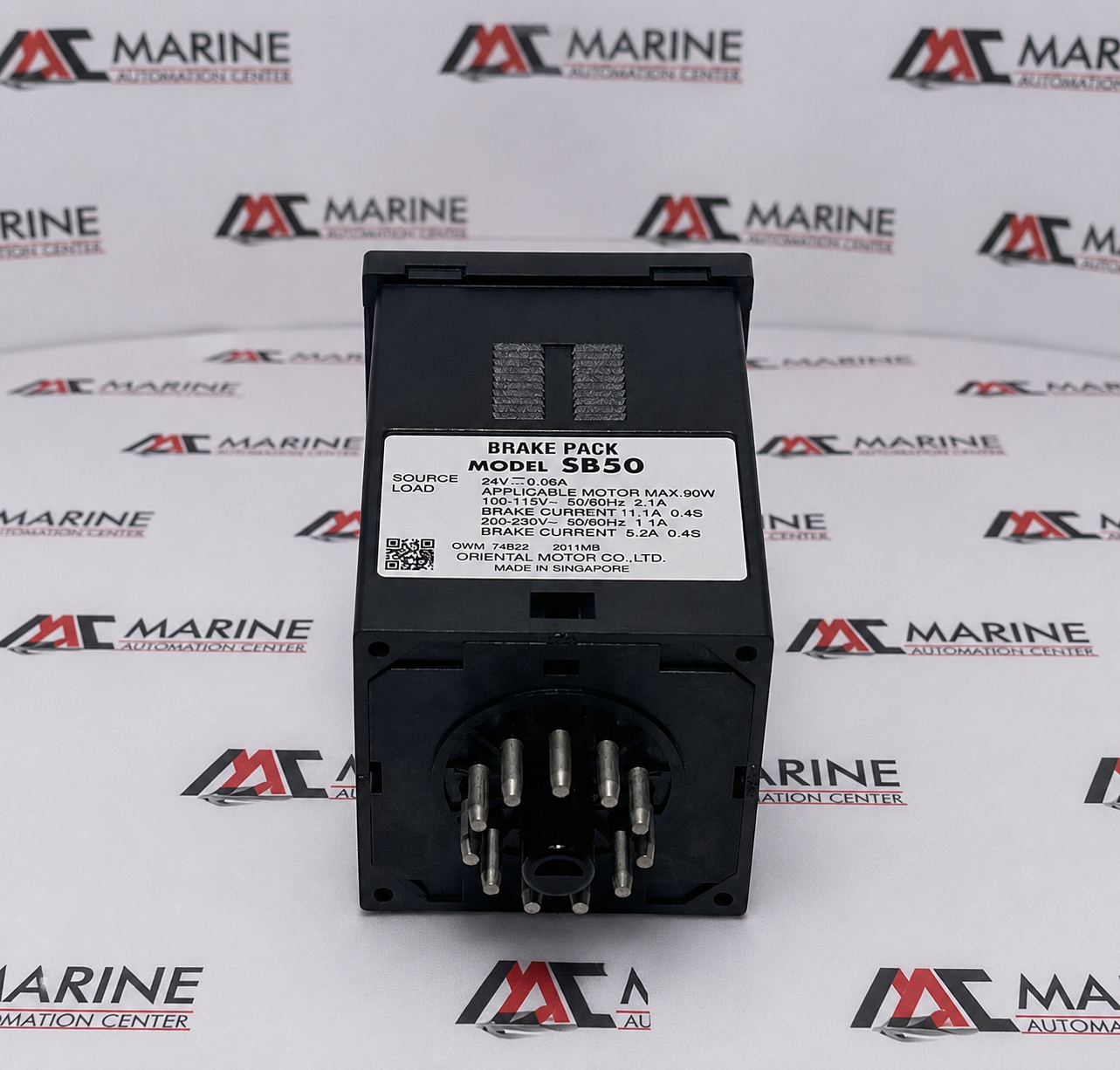

Oriental Motor Electronic Brake Pack / Motor Brake Controller
The Oriental Motor SB50 Brake Pack is a reliable electronic motor brake controller designed to provide efficient braking control for compatible Oriental Motor drive systems. Manufactured by Oriental Motor (OM), the SB50 ensures quick and secure motor stopping, improved positioning accuracy, and enhanced operational safety in industrial automation applications. Its compact, durable design makes it ideal for use in conveyor systems, packaging machinery, CNC equipment, robotics, and other motion co
BRAND
Oriental Motor
TYPE
Brake Pack / Motor Brake Controller
PART NO.
Electronic Brake Pack SB50
MODEL
SB50
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Oriental Motor |
| TYPE | Brake Pack / Motor Brake Controller |
| PART NO. | Electronic Brake Pack SB50 |
| MODEL | SB50 |
| MANUFACTURER | Oriental Motor Co., Ltd. |
| Source Supply | 24 VDC, 0.06 A |
| Applicable Motor Output | 1 W to 90 W (Selectable: 1–40 W / 60–90 W) |
| AC Input Voltage | Single Phase 100–115 VAC, 50/60 Hz, 2.1 A |
| Alternative AC Input | Single Phase 200–230 VAC, 50/60 Hz, 1.1 A |
| Brake Current (100–115 VAC) | 11.1 A for 0.4 s |
| Motor Compatibility | Oriental Motor AC Induction, Reversible and Electromagnetic Brake Motors (up to 90 W) |
| Operating Functions | Instantaneous Stop, Forward/Reverse Control, Electromagnetic Brake Control, Thermal Protector Detection, Alarm Output |
| Status Indicators | POWER LED, ALARM LED |
| Motor Output Selector | 1–40 W / 60–90 W Switch |
| Mounting Type | Panel Mount / Surface Socket Mount |
| Application | Industrial automation, conveyor systems, positioning systems, packaging machinery, indexing equipment, material handling systems, and AC motor braking/control applications. |
| Made In | Singapore |
| REF NO. | 1304 |
