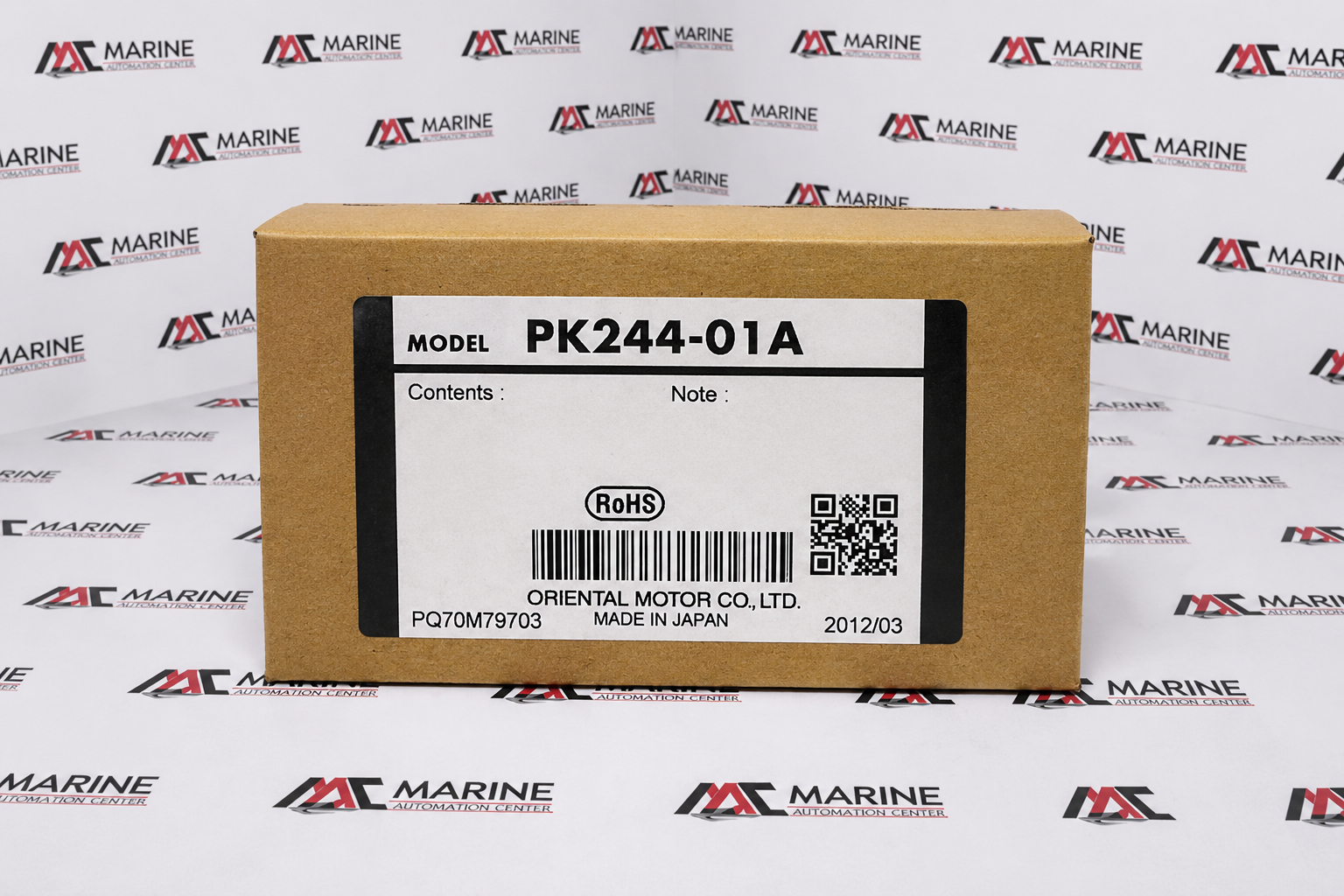

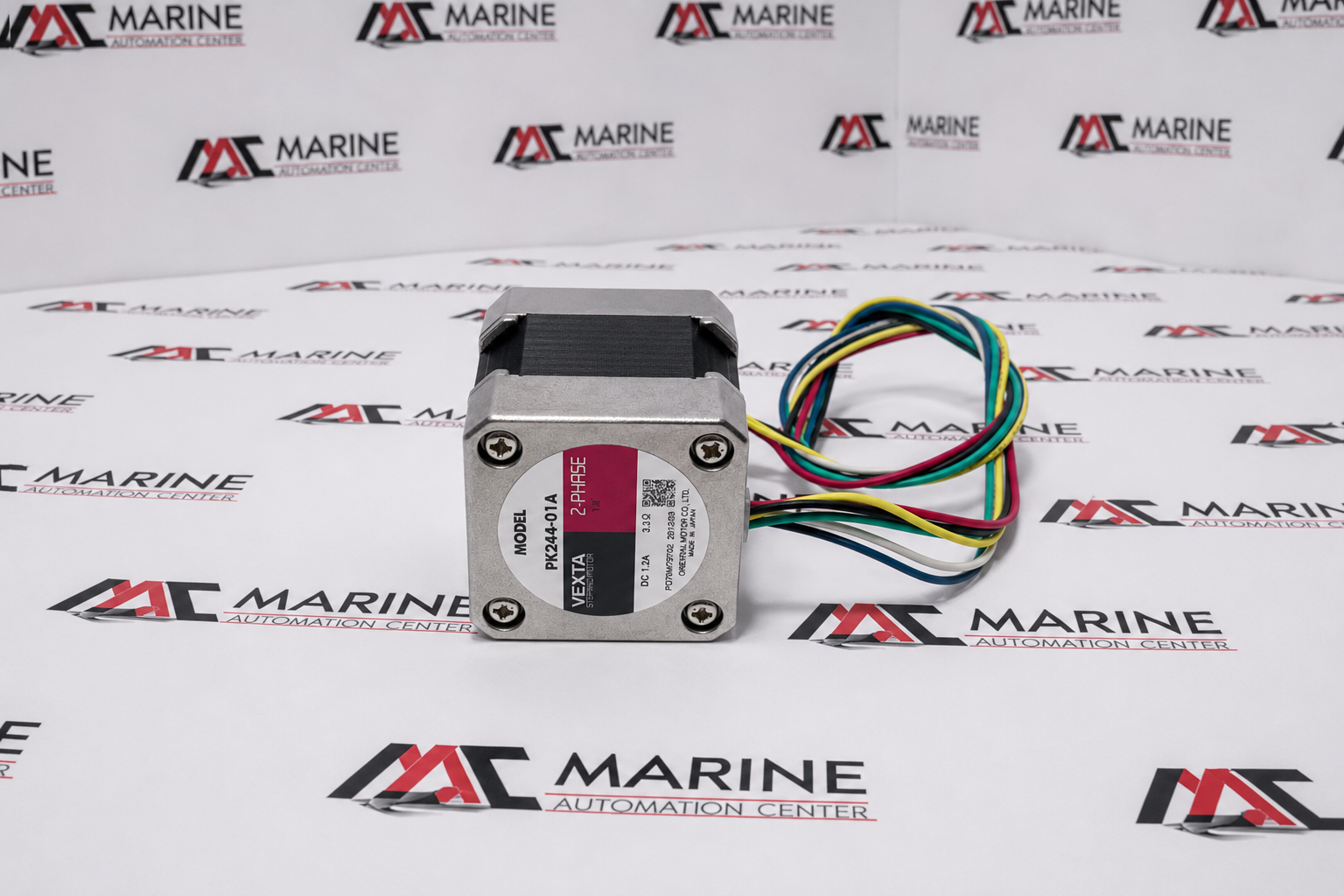

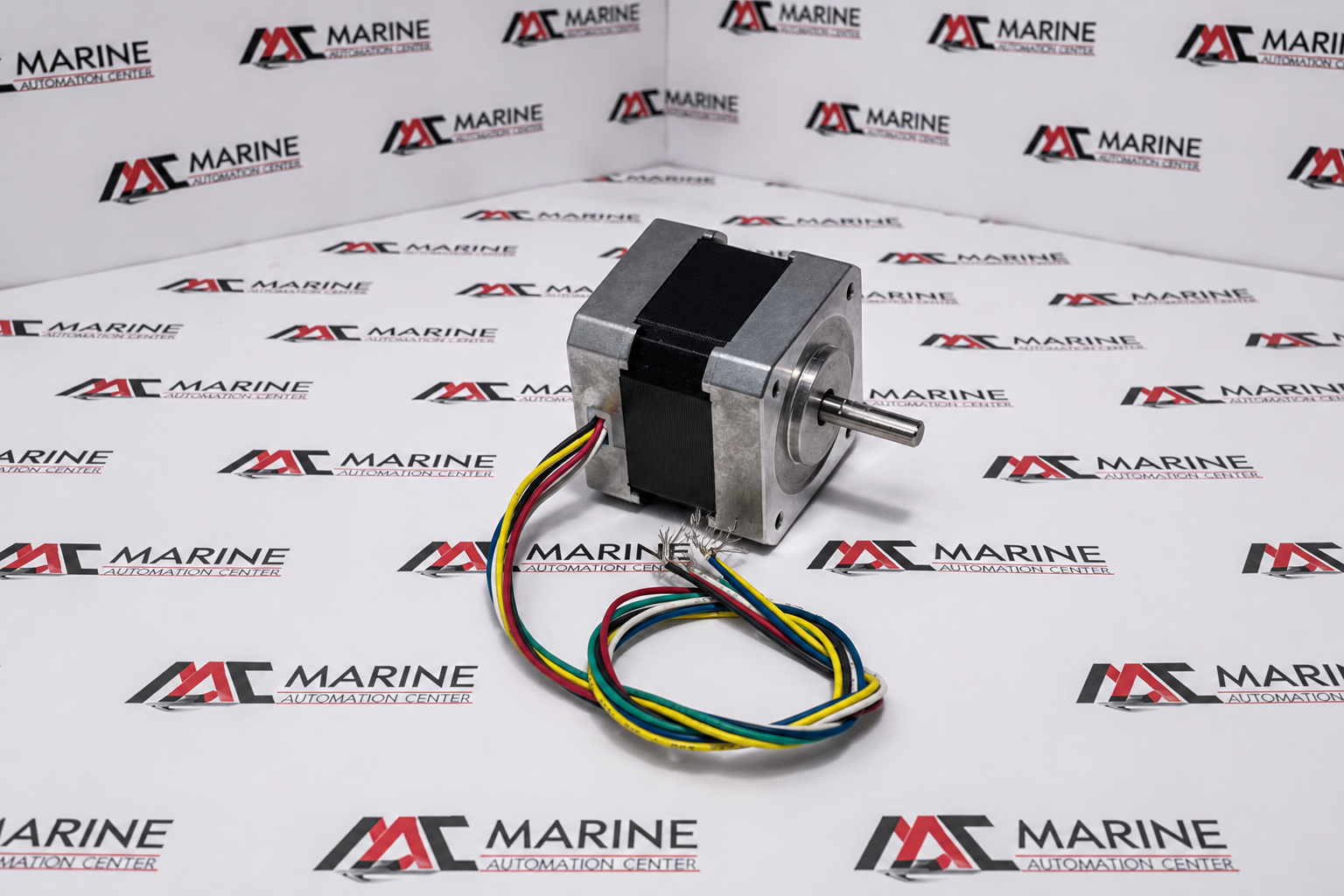

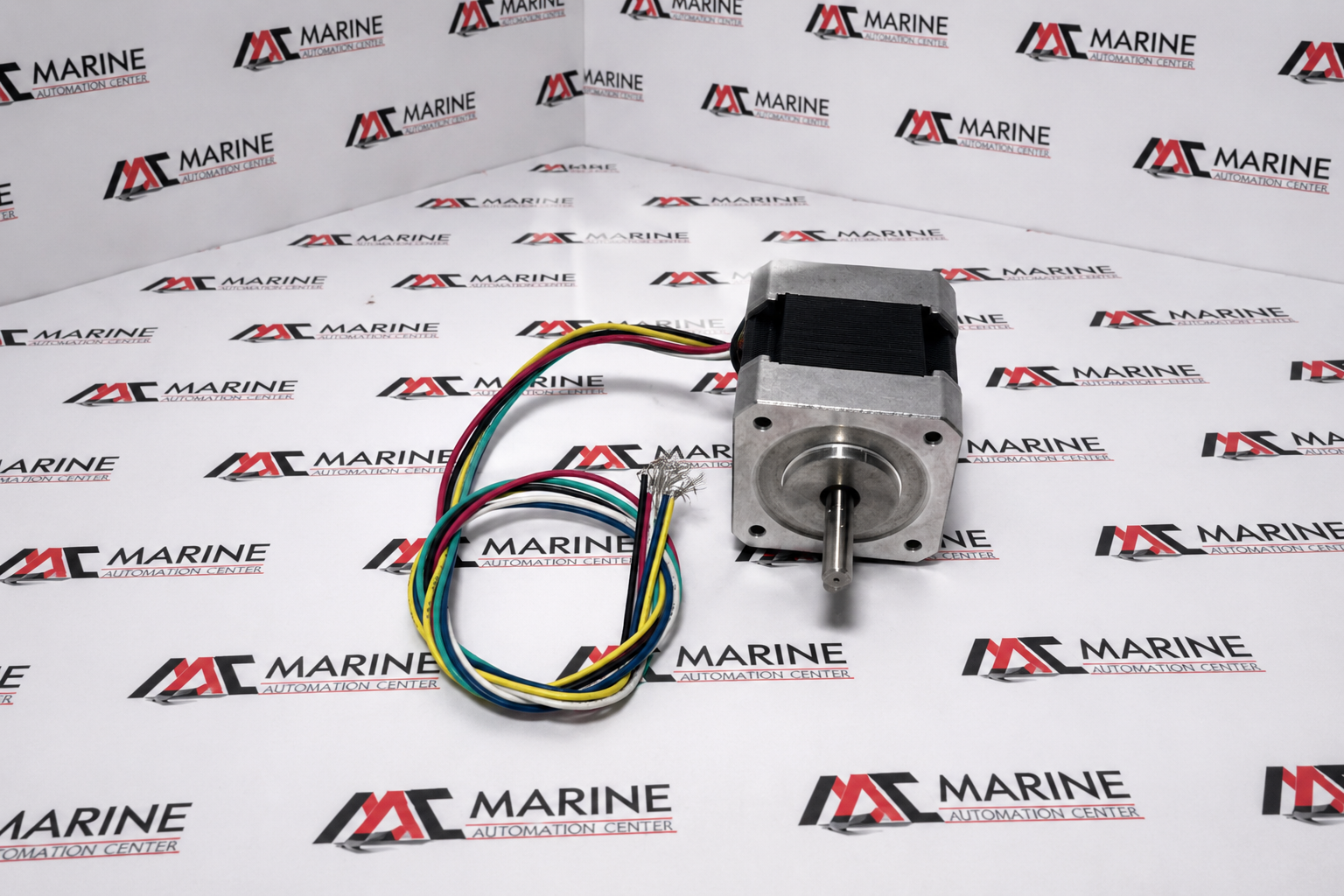

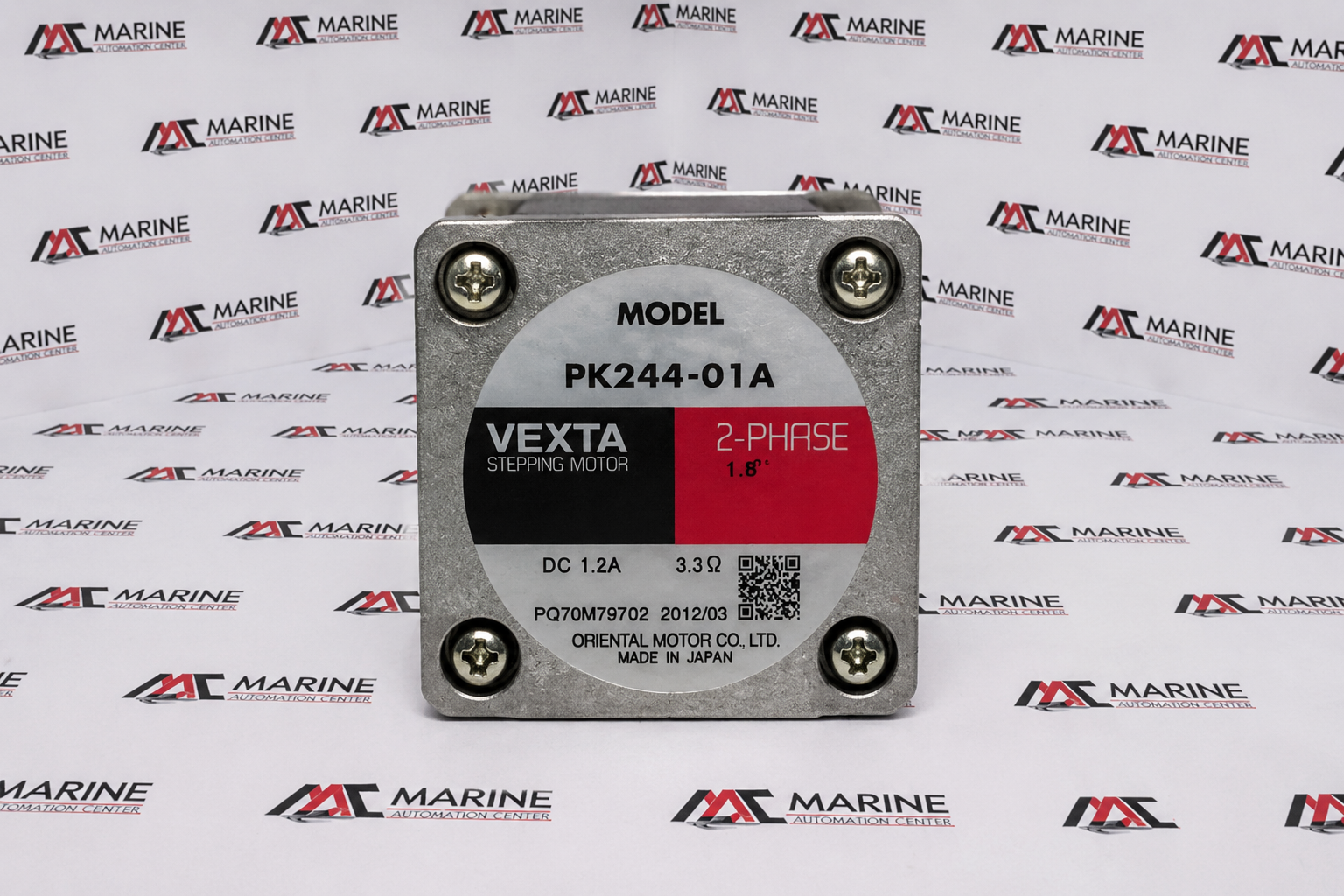

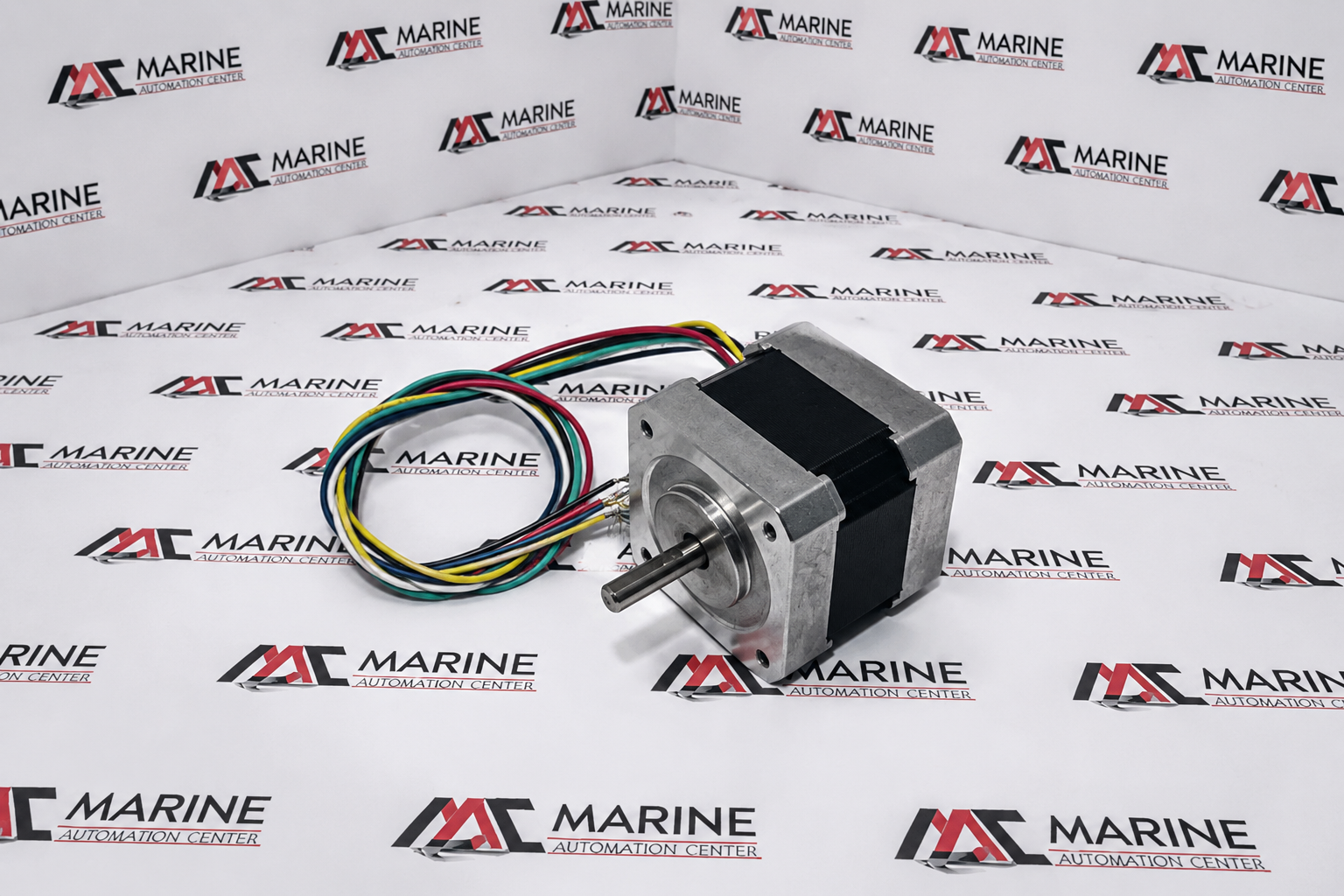

Oriental Motor 2-Phase Stepper Motor PK244-01A

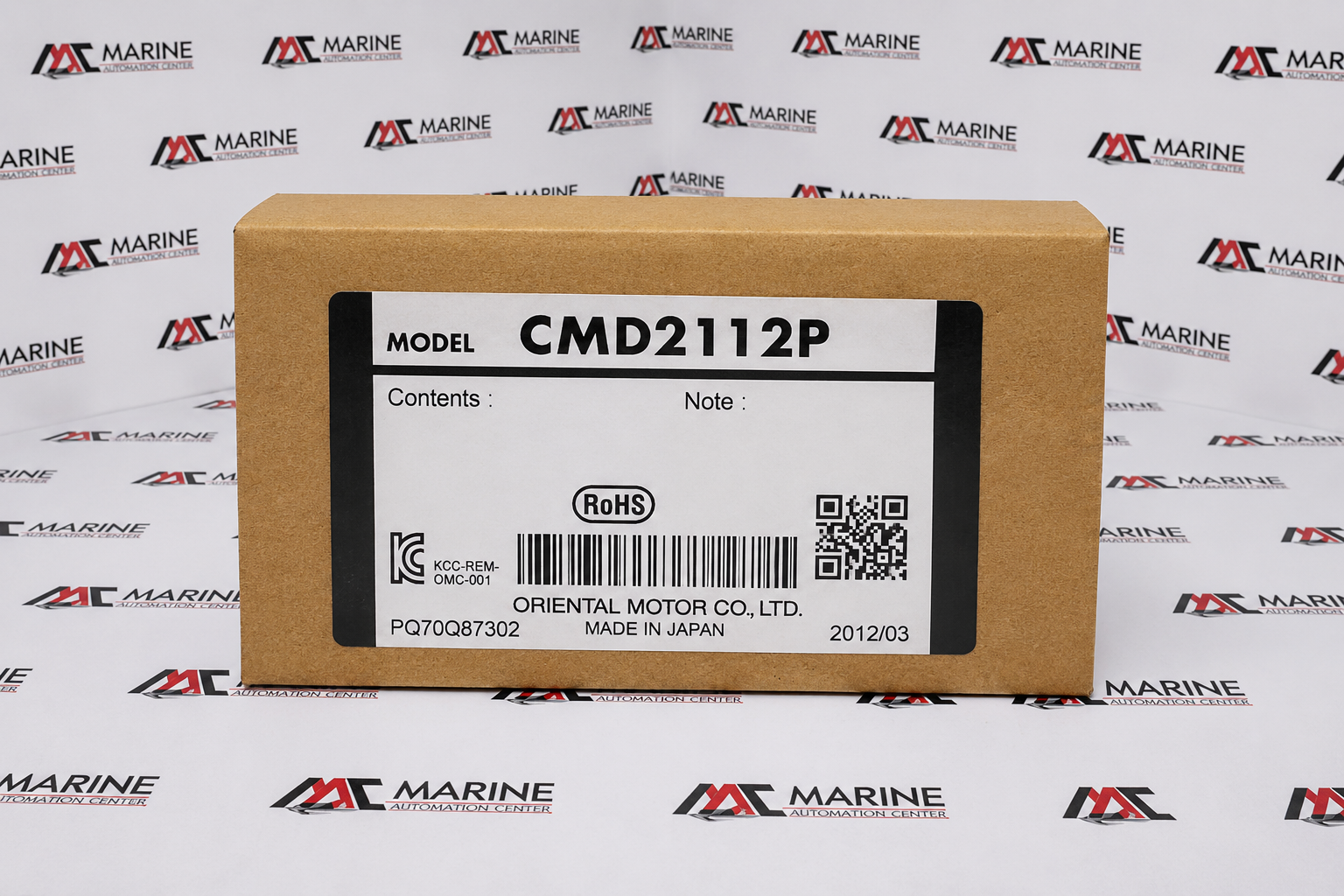

The Oriental Motor VEXTA PK244-01A 2-Phase Stepping Motor & Microstep Driver Package is a high-performance motion control solution designed for precise positioning and smooth operation in industrial automation systems. The package includes the PK244-01A stepping motor and CMD2112P microstep driver, delivering accurate speed and position control with reduced vibration and enhanced efficiency. Manufactured by Oriental Motor (VEXTA), the CMK244AP is ideal for CNC machinery, robotics, semiconductor
BRAND
Oriental Motor
TYPE
Motor
PART NO.
2-Phase Stepper Motor PK244-01A
MODEL
PK244-01A
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Oriental Motor |
| TYPE | Motor |
| PART NO. | 2-Phase Stepper Motor PK244-01A |
| MODEL | PK244-01A |
| MANUFACTURER | Oriental Motor Co., Ltd. |

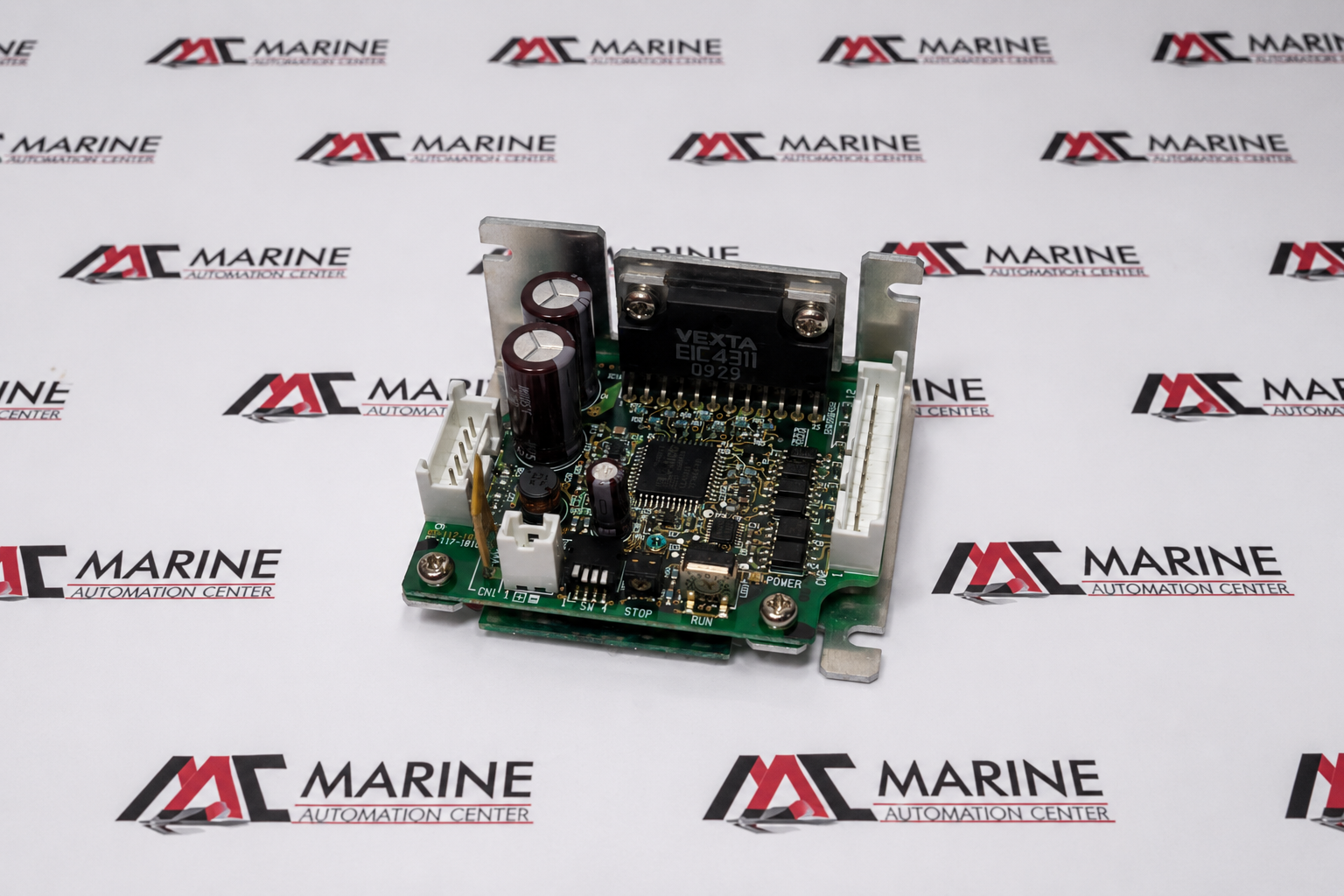

| Driver Power Module | VEXTA EIC4311 |
| Step Angle | 1.8°/step (200 steps/revolution) |
| Input Voltage (Driver) | 24 VDC ±10% |
| Motor Rated Current | DC 1.2 A/Phase |
| Motor Coil Resistance | 3.3 Ω/Phase |
| Driver Type | Open-frame Microstep Driver |
| Control Method | Pulse Input (1-Pulse / 2-Pulse Selectable) |
| Frame Size | 42 mm Square (NEMA 17 Class) |
| Motor Shaft Type | Single Shaft |
| Motor Construction | Hybrid Permanent Magnet Stepper Motor |
| Holding Torque | Approximately 0.39 N•m (55 oz-in) |
| Power Indicator | LED Power Indicator |
| Driver Functions | RUN/STOP Control, Microstep Selection, Current Setting, Pulse Direction Control |
| Connector Type | Locking Connector Interface |
| Application | Precision positioning systems, industrial automation, conveyors, indexing tables, packaging machinery, semiconductor equipment, laboratory instruments, textile machinery, CNC equipment, robotics, and OEM motion control systems. |
| Made In | Japan |
| REF NO. | 1303 |
