OMRON VOLTAGE SENSOR

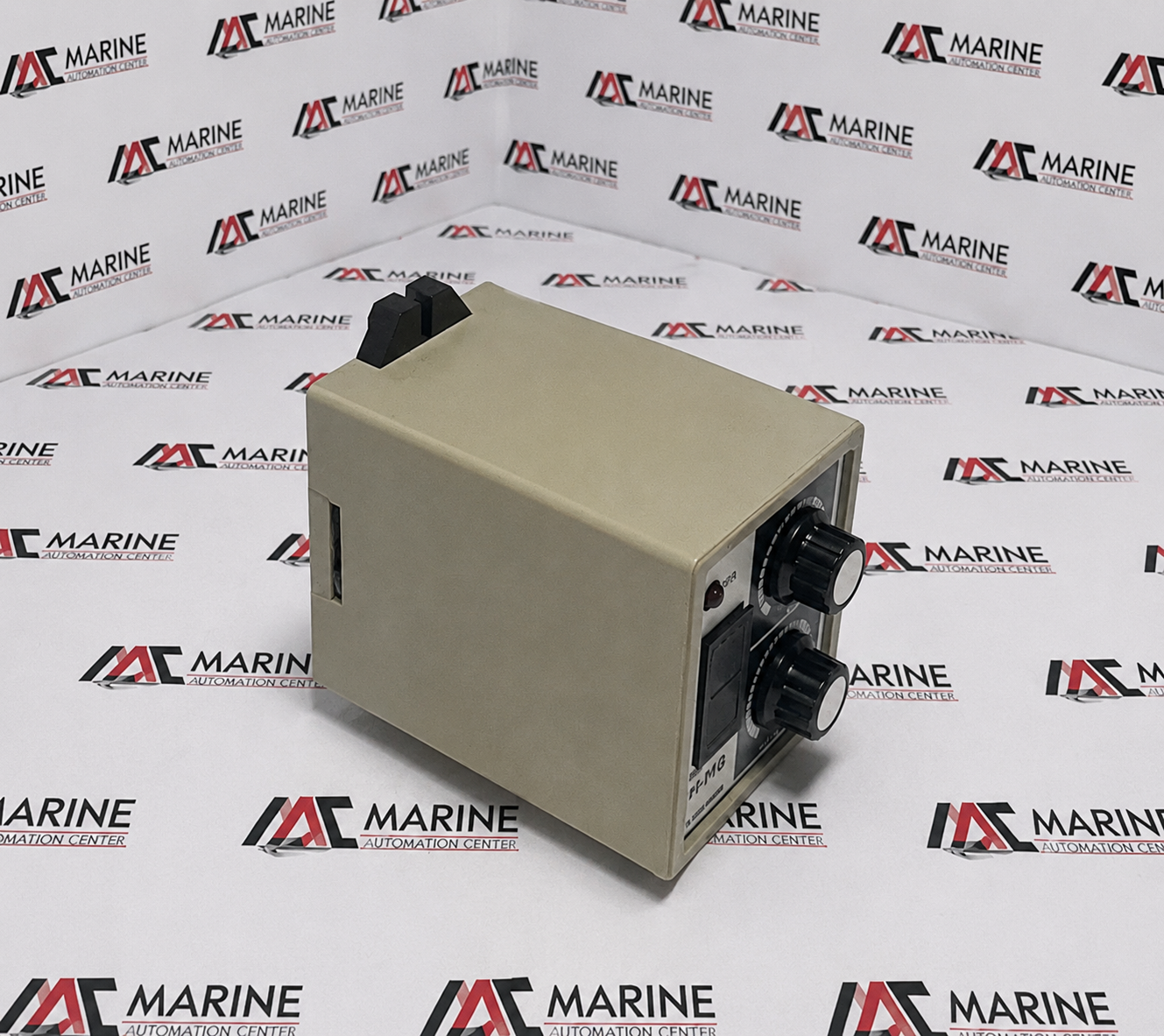

The OMRON SDV-FH6 AC100/110V Voltage Monitoring Relay is a compact industrial voltage monitoring relay designed to detect overvoltage, undervoltage, and abnormal AC supply conditions. It provides reliable protection for motors, control panels, and industrial automation systems by continuously monitoring the power supply and activating its relay output when voltage exceeds preset limits, helping to prevent equipment damage and improve system reliability.
BRAND
OMRON
TYPE
Voltage Sensor / Overvoltage-Undervoltage Monitoring Relay
PART NO.
OMRON Voltage Sensor SDV-FH6
MODEL
SDV-FH6
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| Control Supply Voltage | 100/110 VAC |
| Input Voltage Range | 10 to 300 V AC/DC |
| Input Type | AC or DC Selectable |
| Monitoring Function | Overvoltage or Undervoltage Detection (switch selectable) |
| Operating Voltage Setting Range | Adjustable via front PICK UP dial |
| Reset/Hysteresis Setting | Adjustable 2% to 30% via HOLD (%) dial |
| Output Contact Configuration | SPDT Relay Output (1 C/O Contact) |
| Contact Rating | 2 A at 220 VAC (cos φ = 0.4), 2 A at 24 VDC, 0.35 A at 125 VDC (L/R = 7 ms) |
| Maximum Contact Voltage | 250 VAC / 125 VDC |
| Maximum Contact Current | 5 A |
| Operating Time | 0.5 s max. |
| Power Consumption | Approx. 5 VA |
| Mounting Type | Plug-in Socket Mount |
| Socket Type | 8-Pin Plug-in Base |
| Indication | LED Operation Indicator |
| Application | Voltage monitoring, overvoltage protection, undervoltage protection, industrial automation, marine control panels, switchboards, power monitoring systems |
| Standards/Approvals | UL Recognized, CSA Approved |
| IEC | IEC Compliant Industrial Monitoring Relay |

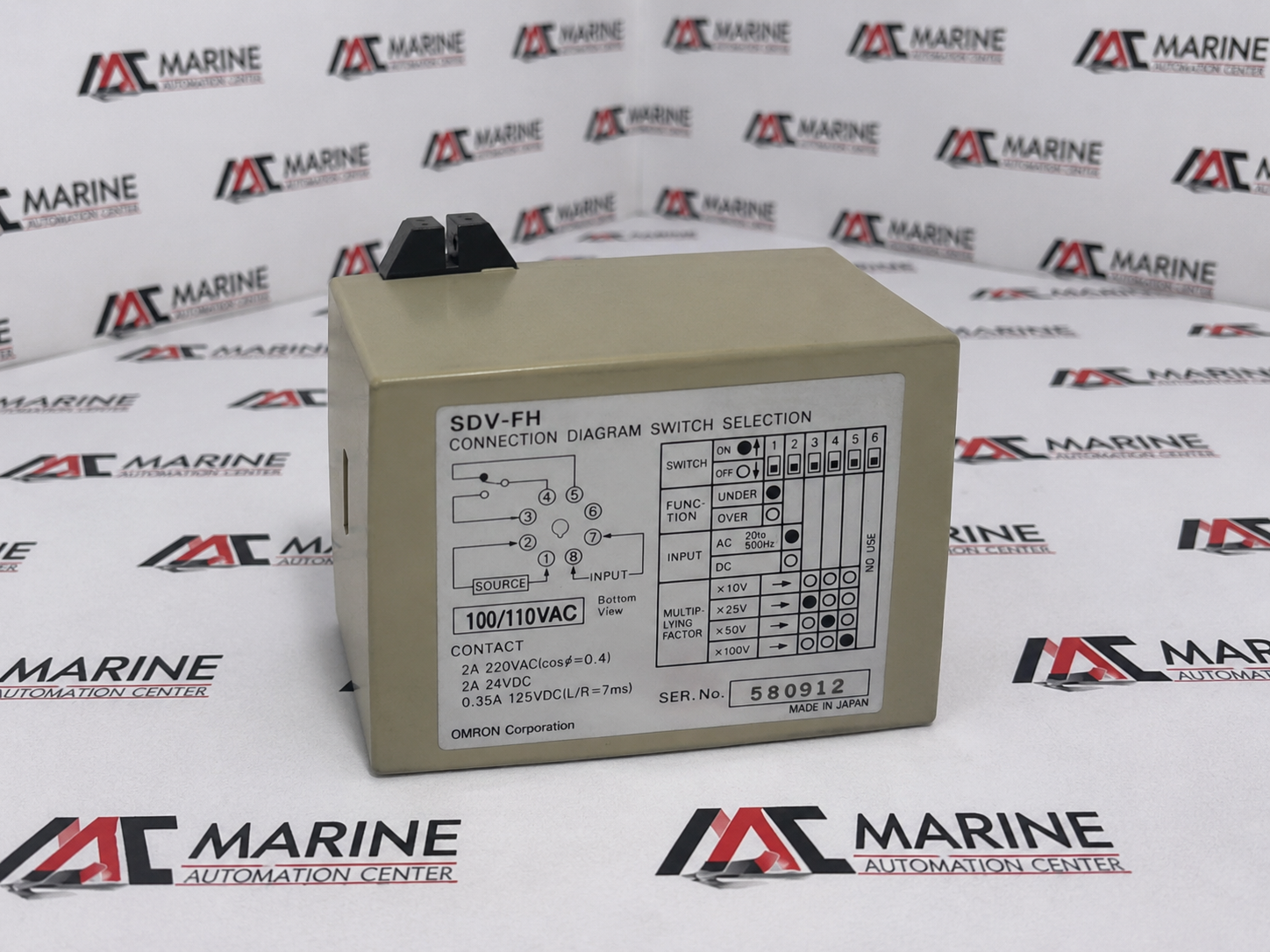

| Product Label Text | "SDV-FH CONNECTION DIAGRAM SWITCH SELECTION" |
| Label Supply Voltage | 100/110 VAC |
| Label Contact Rating | 2A 220VAC (cosφ=0.4), 2A 24VDC, 0.35A 125VDC (L/R=7ms) |
| Label Multiplying Factors | ×10V, ×25V, ×50V, ×100V |
| Label Serial Number | 580912 |

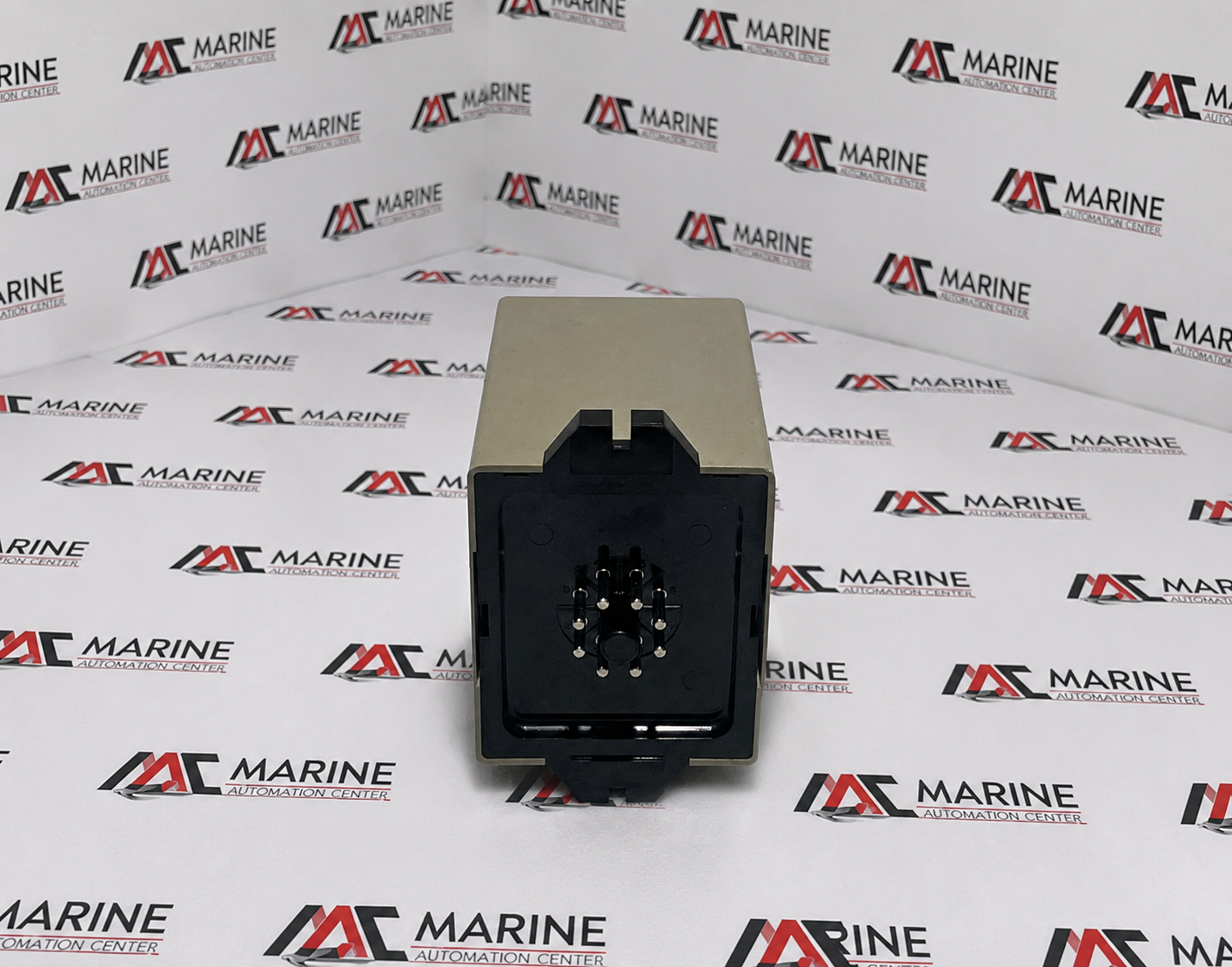

| Connection Type | 8-Pin Bottom View Plug-in Connection |
| Made In | Made In |
| REF NO | 1177 |
