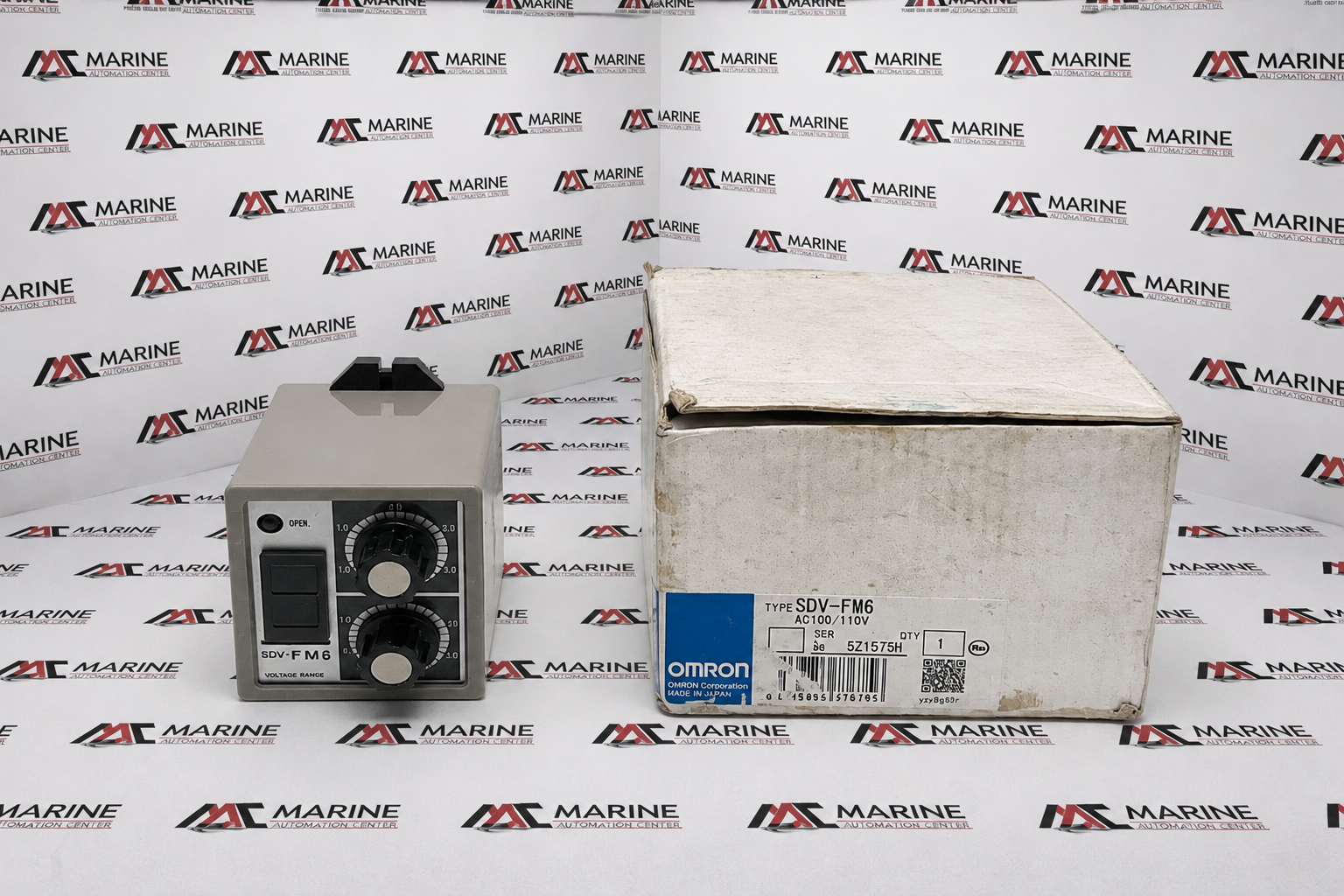

OMRON VOLTAGE MONITORING RELAY

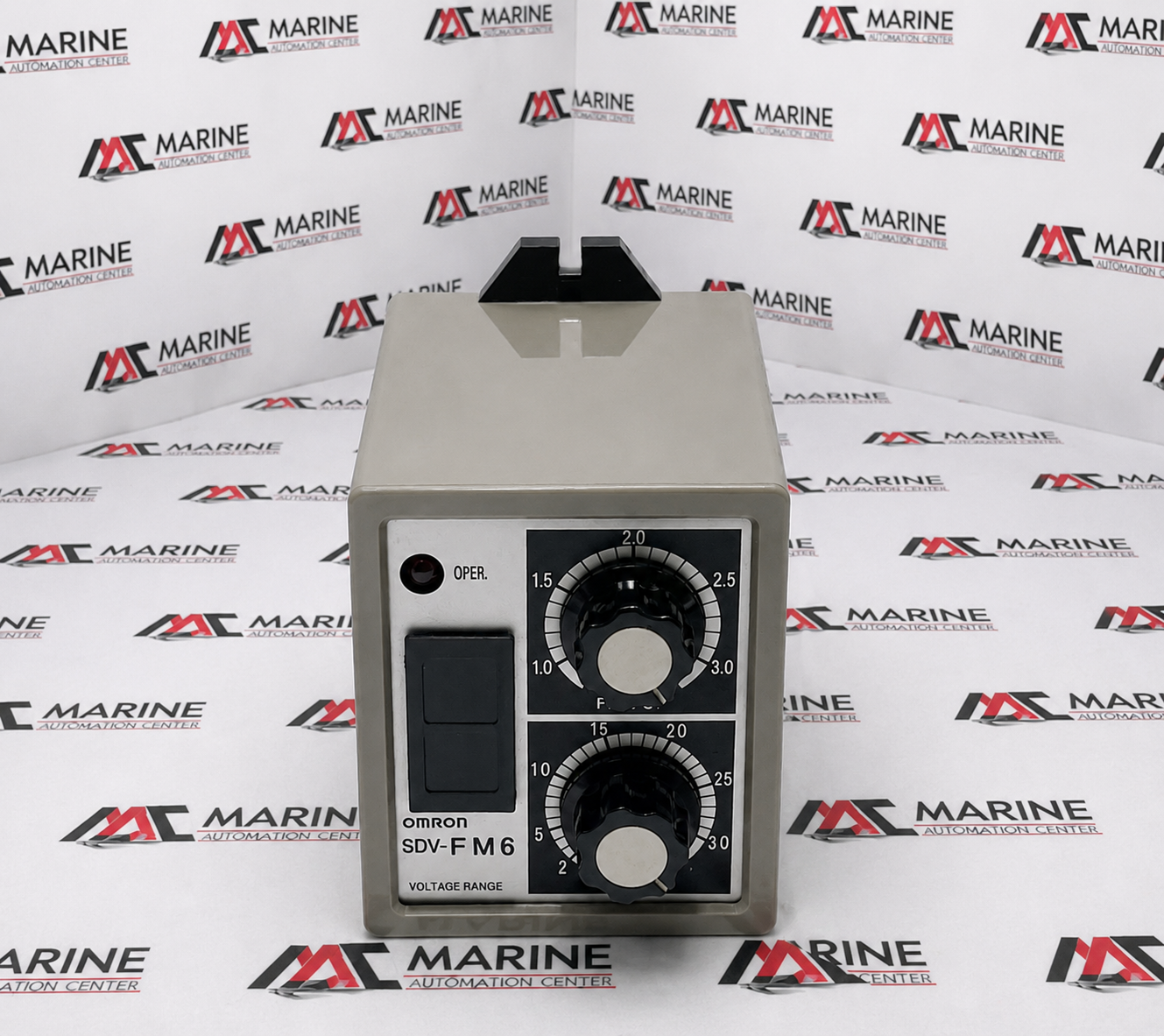

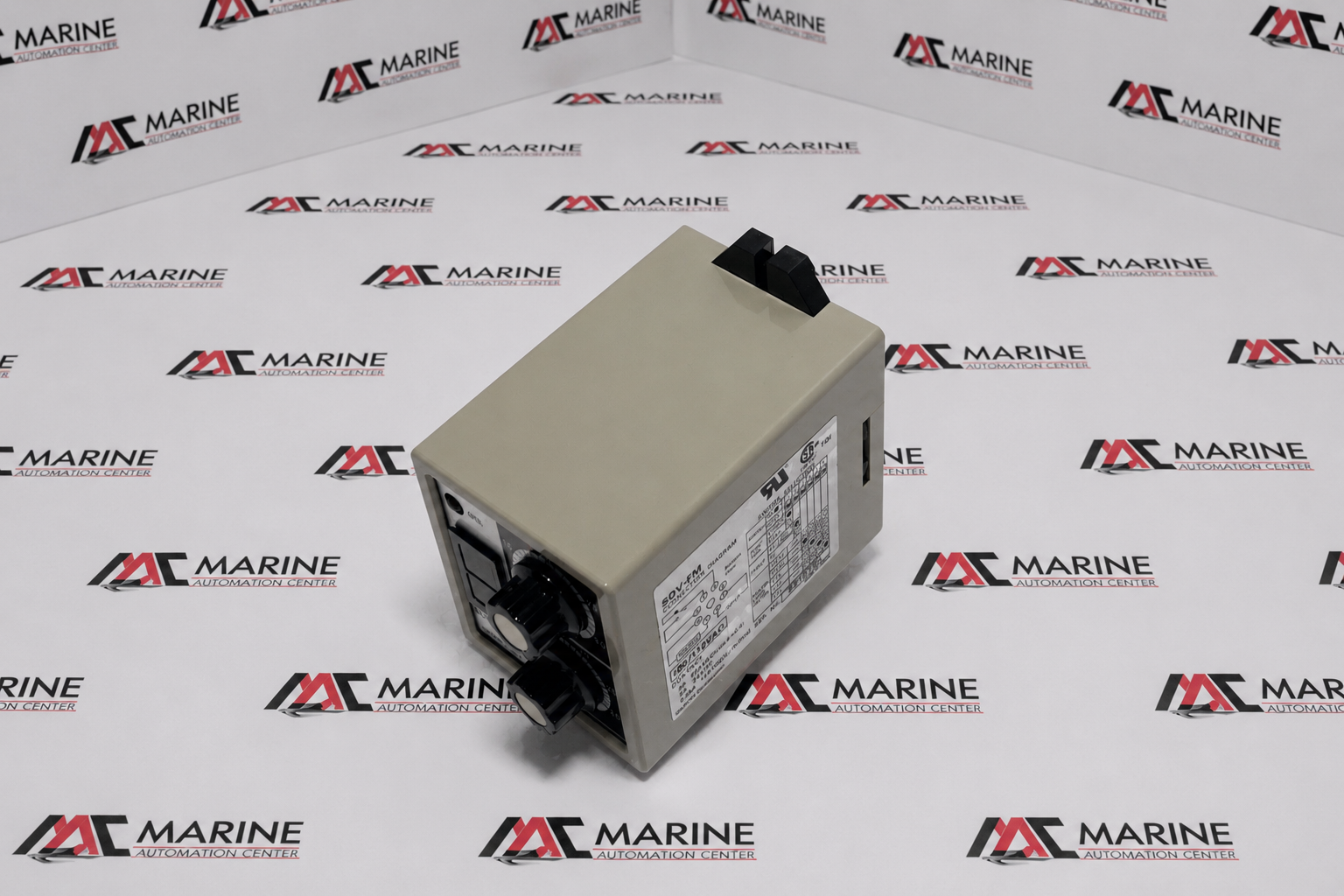

The OMRON SDV-FM6 AC100/110V Voltage Monitoring Relay is a compact industrial voltage monitoring relay designed to continuously monitor AC supply voltage for overvoltage and under voltage conditions. It provides reliable protection for motors, control panels, and automation equipment by detecting abnormal voltage levels and switching its output relay to prevent equipment damage. Ideal for industrial control systems, machinery protection, and power monitoring applications
BRAND
OMRON
TYPE
Voltage Sensor / Overvoltage-Undervoltage Monitoring Relay
PART NO.
SDV-FM6
MODEL
SDV-FM6 AC100/110V
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| Control Power Supply | AC 100/110 V AC |
| Input Voltage Range | 0.2 to 12 V AC/DC (switch selectable) |
| Input Type | AC or DC Input (switch selectable) |
| Function | Overvoltage or Undervoltage Detection (switch selectable) |
| Operating Mode | Single-function Monitoring Relay |
| Multiplying Factor Range | ×0.2 V, ×0.5 V, ×1 V, ×2 V, ×4 V (DIP switch selectable) |
| Reset Value Setting Range | 2% to 30% of operating value |
| Output Contact Configuration | SPDT (1 C/O Relay Contact) |
| Contact Rating | 2 A at 220 VAC (cos φ = 0.4), 2 A at 24 VDC, 0.35 A at 125 VDC (L/R = 7 ms) |
| Maximum Contact Voltage | 250 VAC / 125 VDC |
| Maximum Contact Current | 5 A |
| Operating Time | 0.5 s max. |
| Power Consumption | Approx. 5 VA (AC Supply) |
| Operating Temperature | -10°C to +55°C |
| Mounting Type | Plug-in Socket Mount |
| Socket Type | 8-Pin Socket |
| Application | Voltage monitoring, overvoltage protection, undervoltage protection, industrial automation systems, motor protection circuits, marine control panels, power distribution systems |
| IEC | IEC Compliant Industrial Monitoring Relay |
| Approvals | UL Recognized, CSA Approved |
| Product Label Text | "TYPE SDV-FM6 AC100/110V" |
| Label Supply Voltage | AC100/110V |

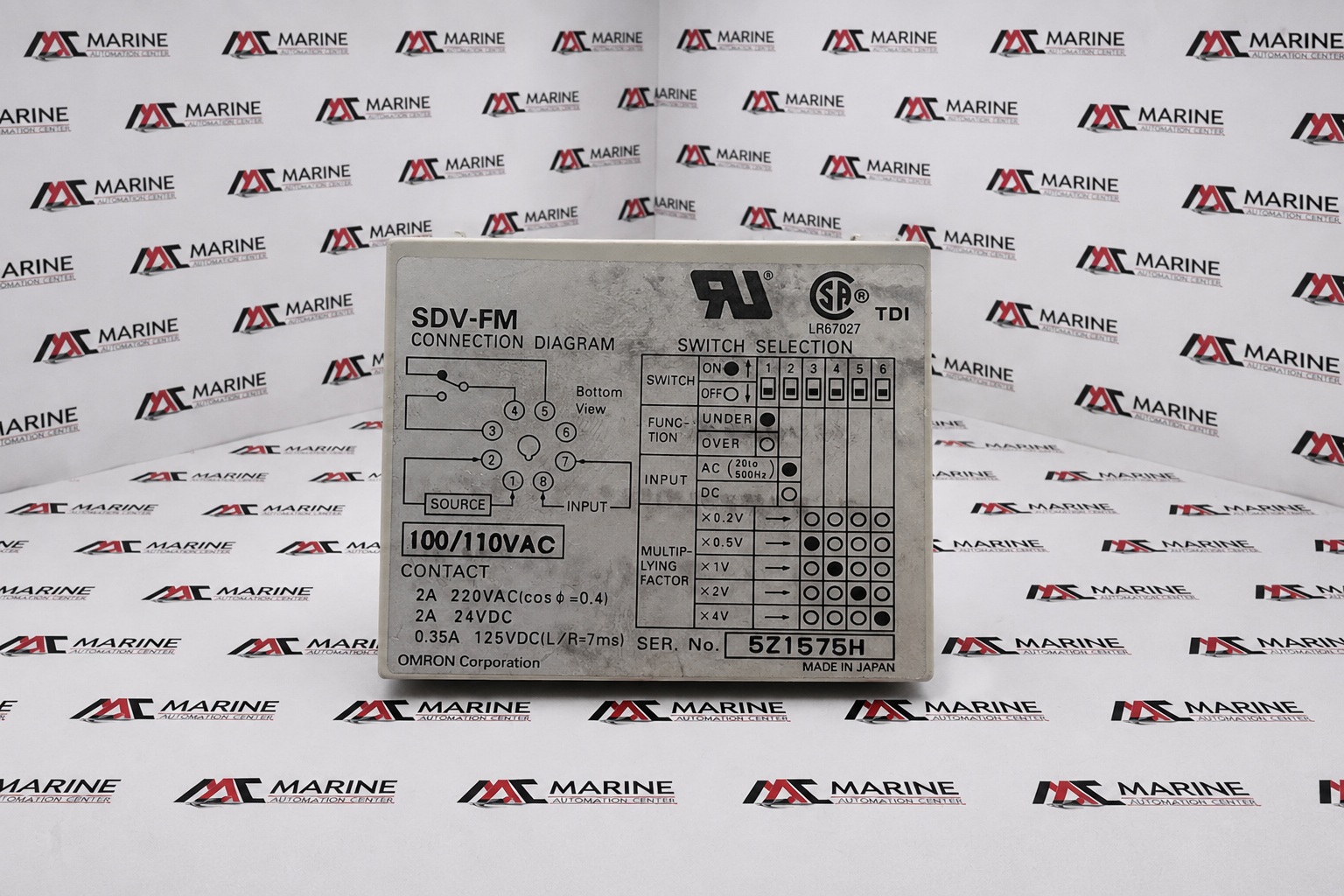

| Rear Label Text | "100/110VAC, Contact: 2A 220VAC (cos φ=0.4), 2A 24VDC, 0.35A 125VDC (L/R=7ms)" |
| Connection Type | SDV-FM Connection Diagram (8-Pin Base) |
| Made In | Japan |
| REF NO | 1176 |
