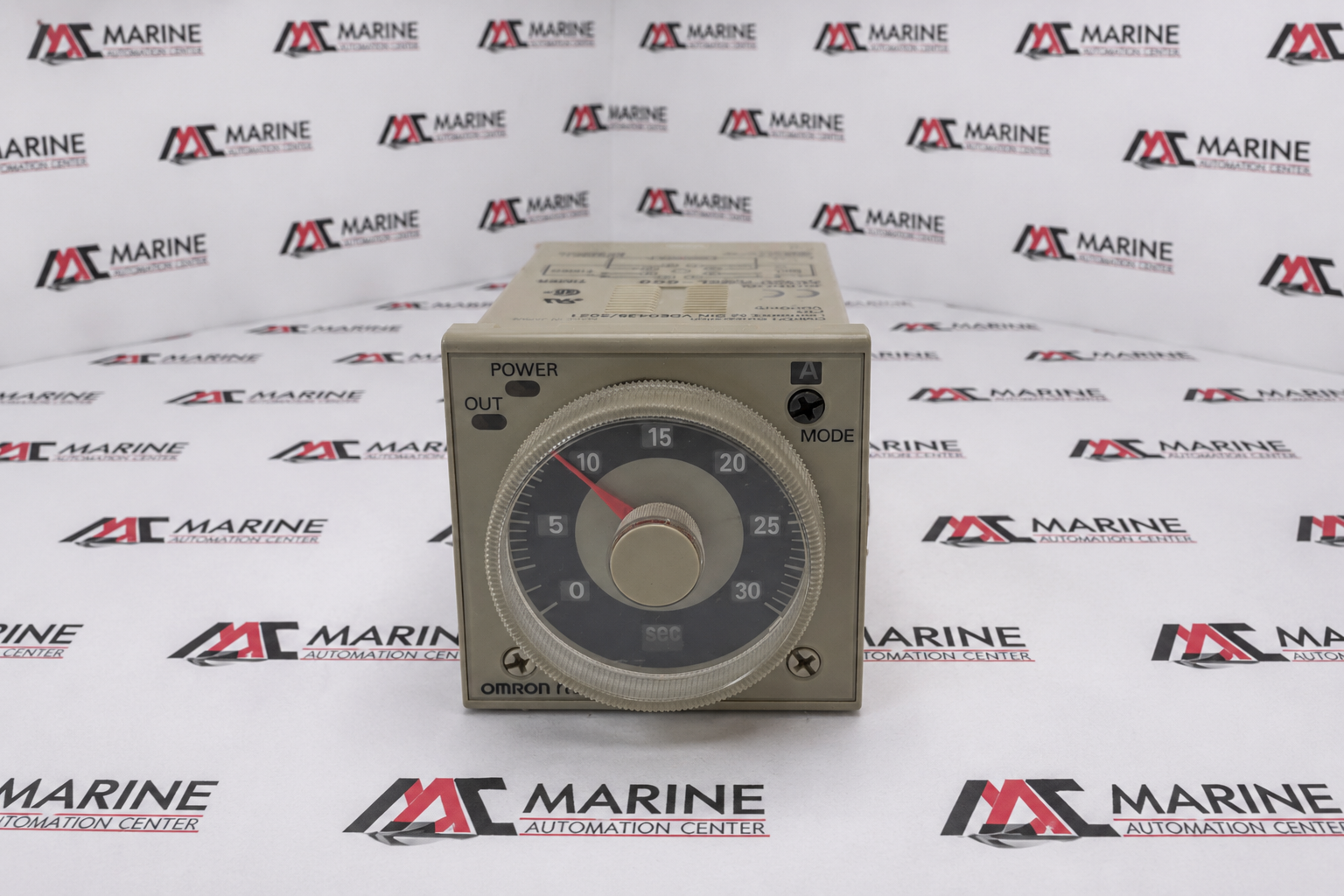

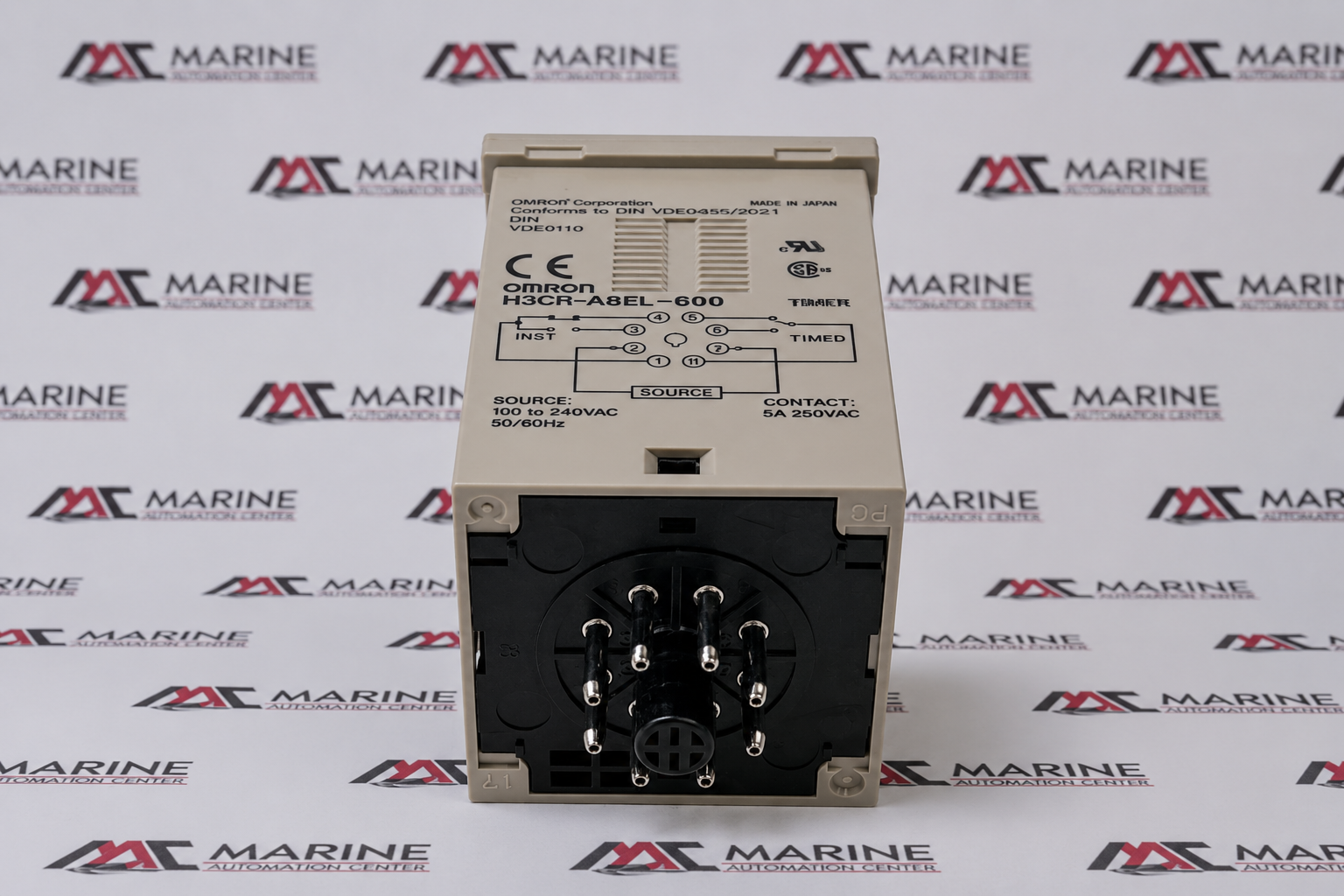

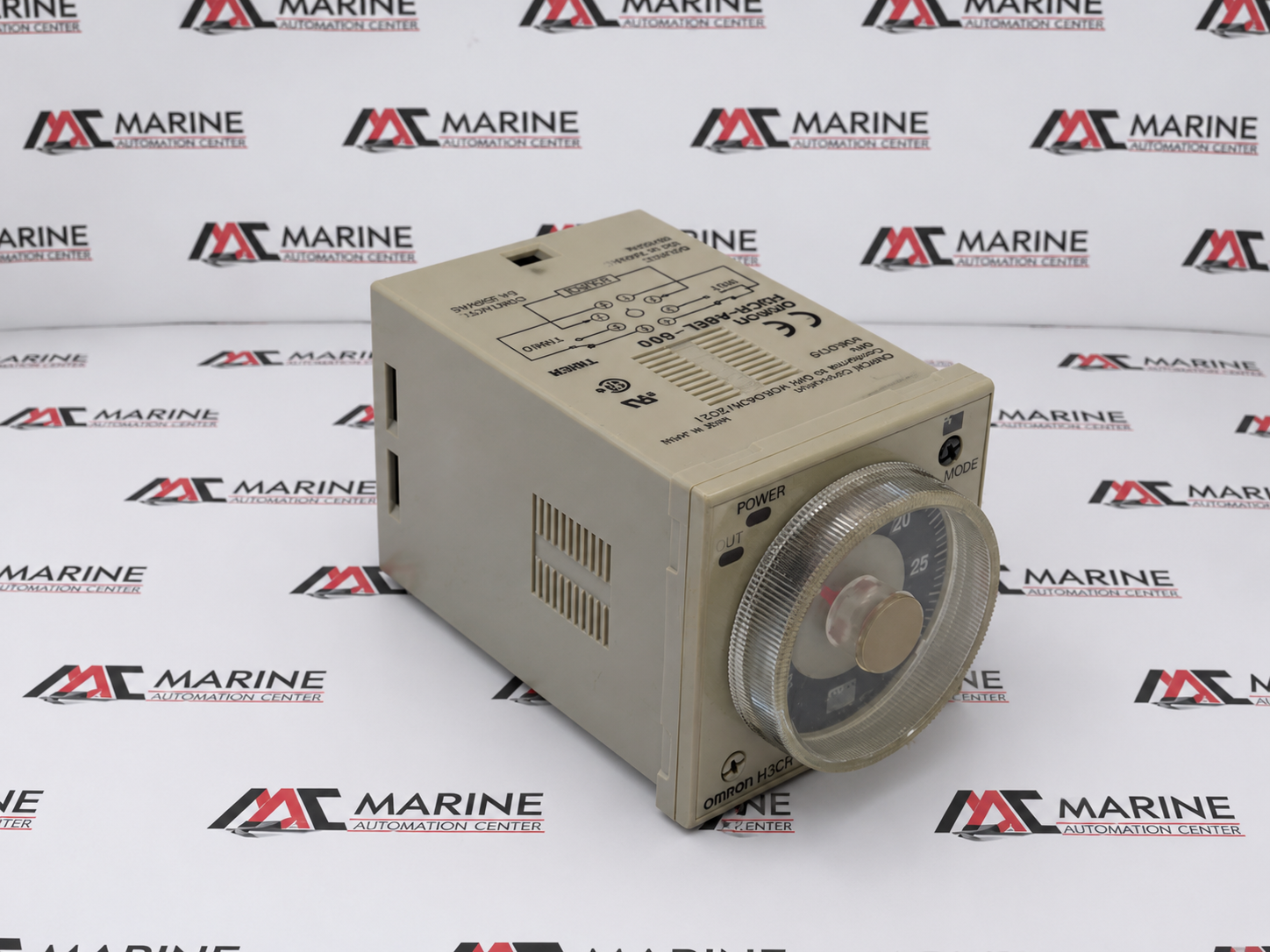

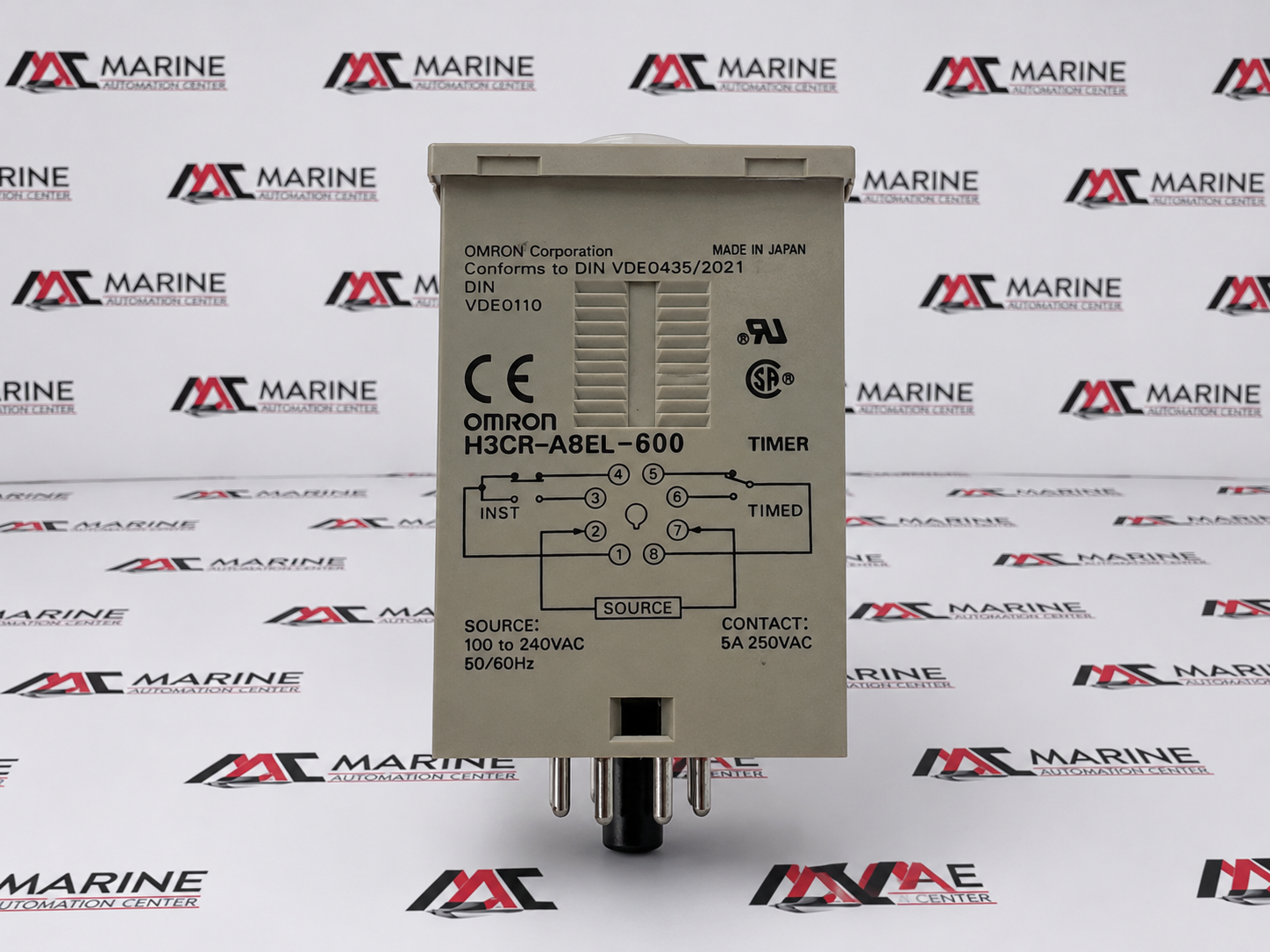

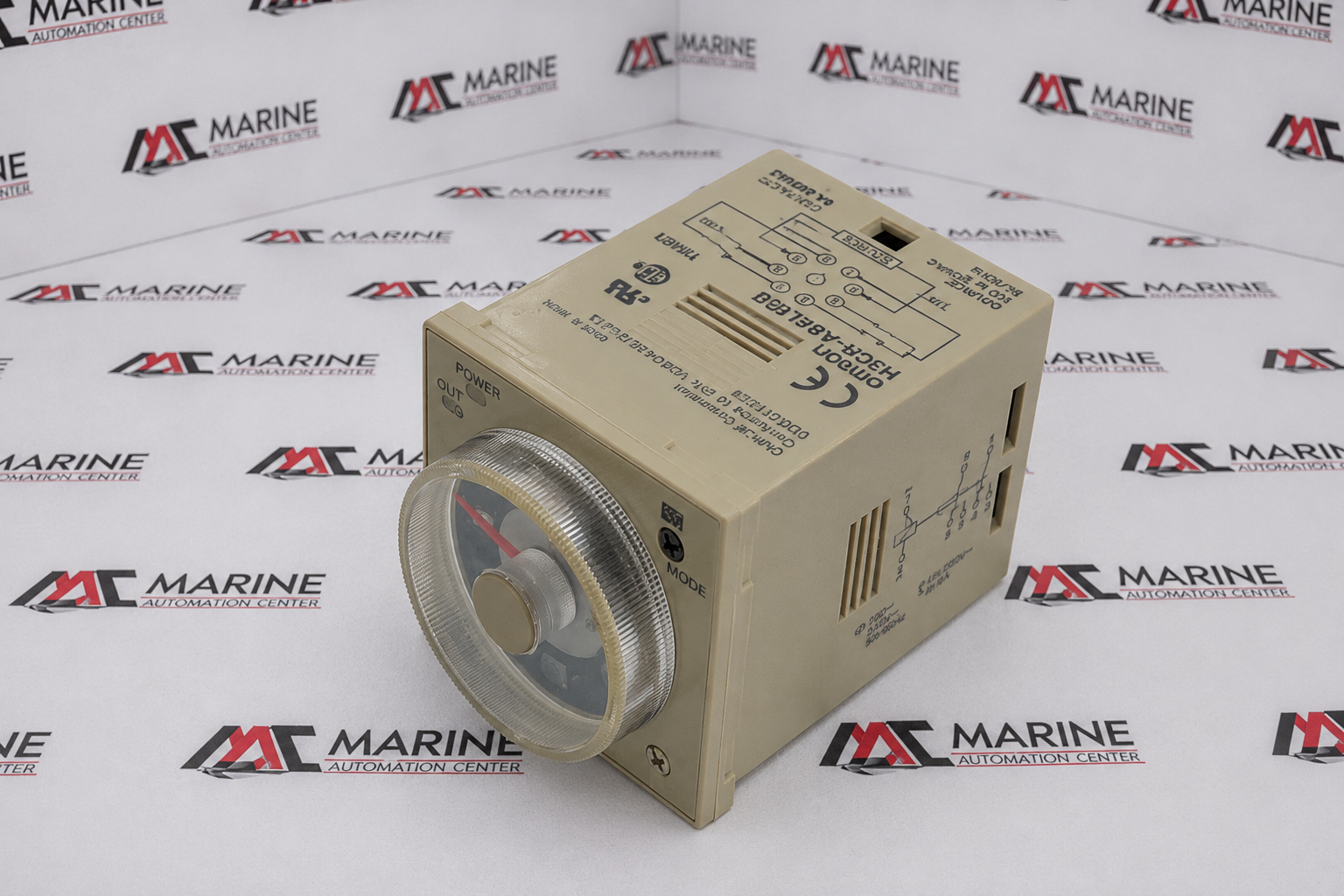

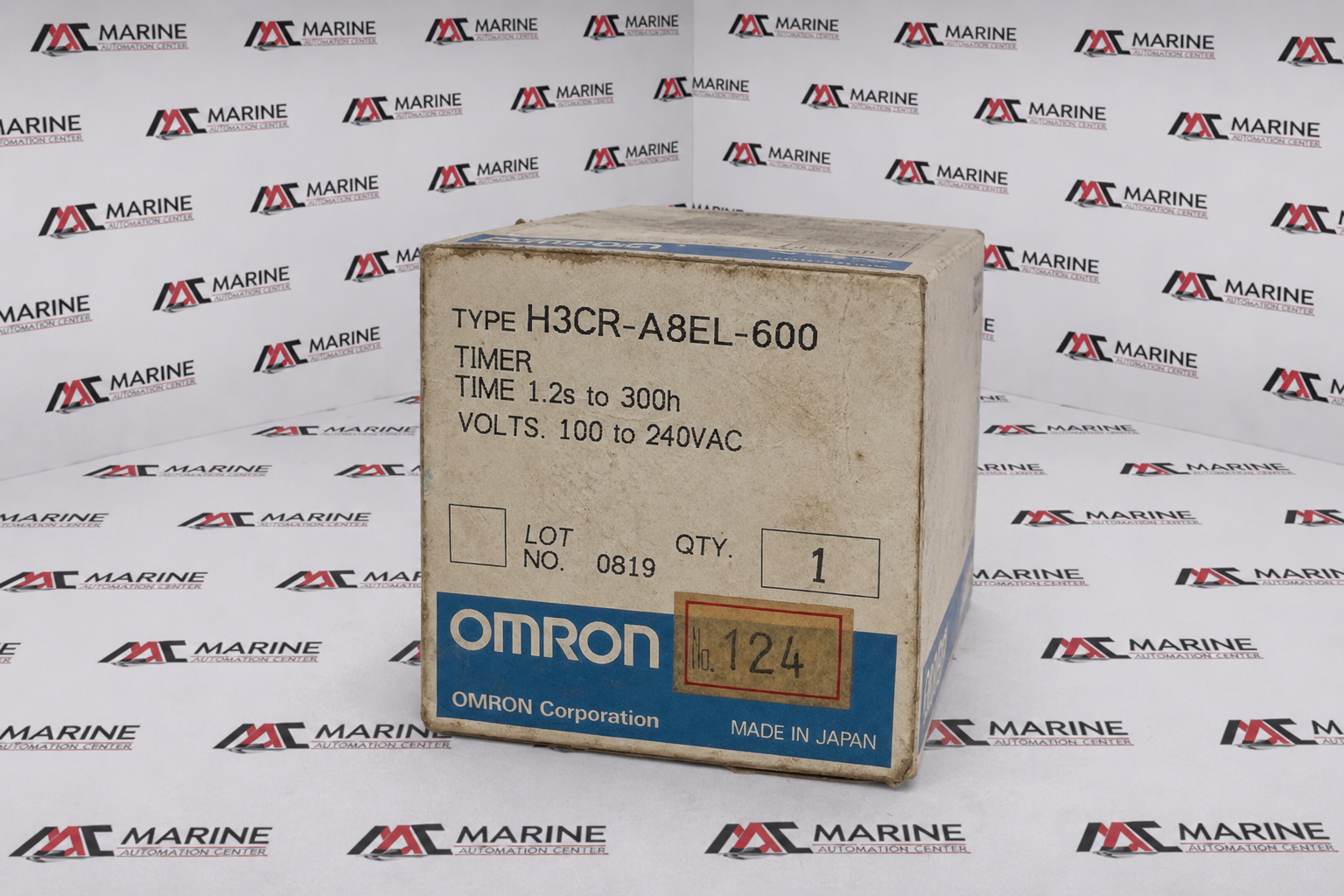

Omron Timer Relay H3CR-A8EL-600
The Omron H3CR-A8EL-600 is a multi-range analog timer relay with an extended timing range, designed for precise time-delay control in industrial automation and process control applications. It features selectable timing modes, high accuracy, reliable operation, and an easy-to-adjust analog dial for flexible configuration. Commonly used in control panels, motor control, conveyors, packaging machinery, marine automation, and industrial equipment, it ensures dependable sequence control and long-ter
BRAND
Omron
TYPE
Timer Relay
PART NO.
Omron Timer Relay H3CR-A8EL-600
MODEL
H3CR-A8EL-600
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Omron |
| TYPE | Timer Relay |
| PART NO. | Omron Timer Relay H3CR-A8EL-600 |
| MODEL | H3CR-A8EL-600 |
| SERIES | H3CR |
| TIMER FUNCTION | Instantaneous + Timed Output Timer |
| TIME RANGE | 1.2 Seconds to 300 Hours |
| SUPPLY VOLTAGE | 100 to 240 VAC |
| SUPPLY FREQUENCY | 50/60 Hz |
| MOUNTING TYPE | Socket / Panel Mount |
| OUTPUT INDICATION | POWER LED, OUT LED |
| SOURCE VOLTAGE | 100 to 240 VAC |
| APPLICATION | Industrial automation, control panels, sequencing circuits, delay control, machine automation, conveyor systems, process timing, and industrial relay control applications. |
| MADE IN | Japan |
| REF NO | 429 |
