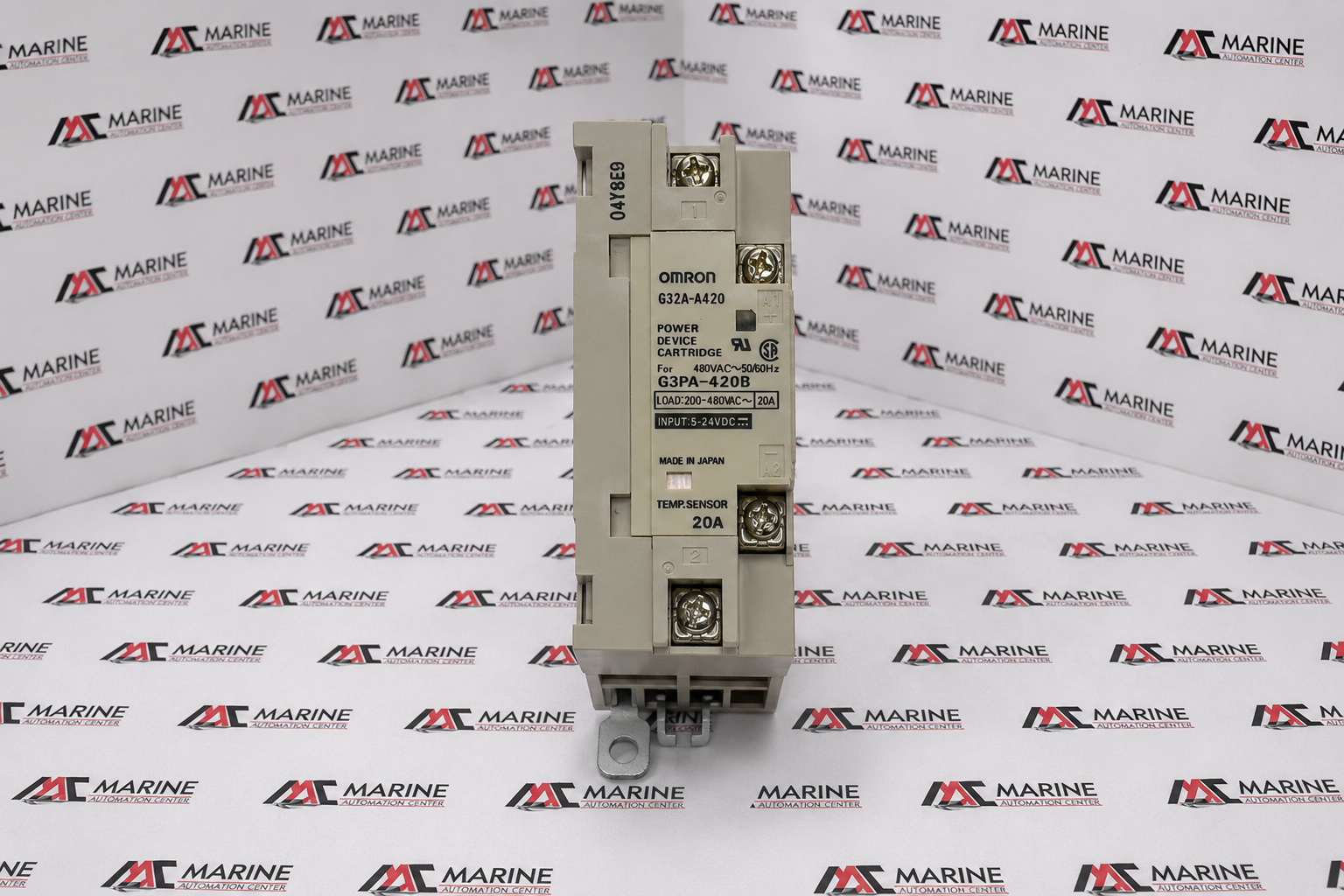

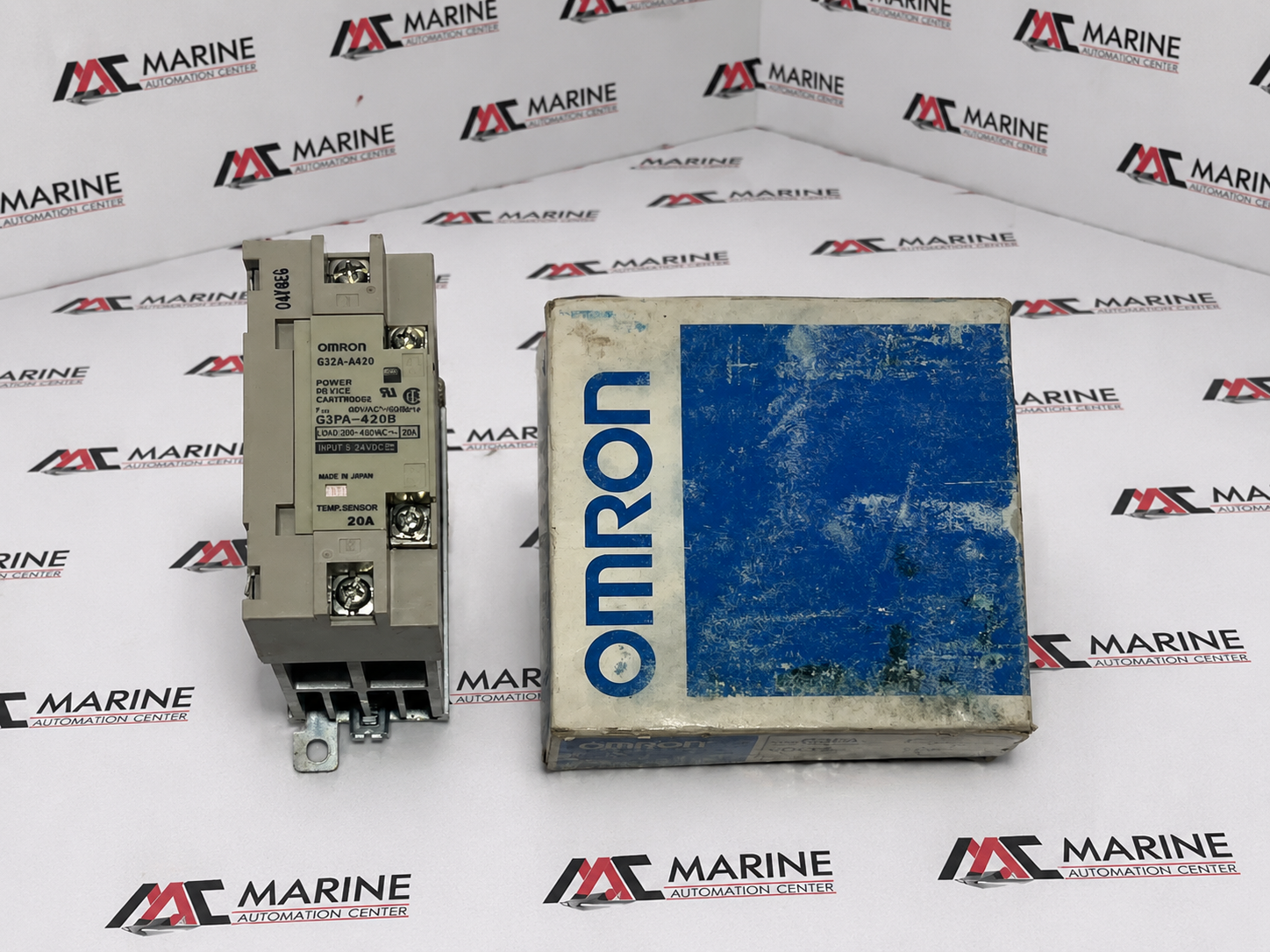

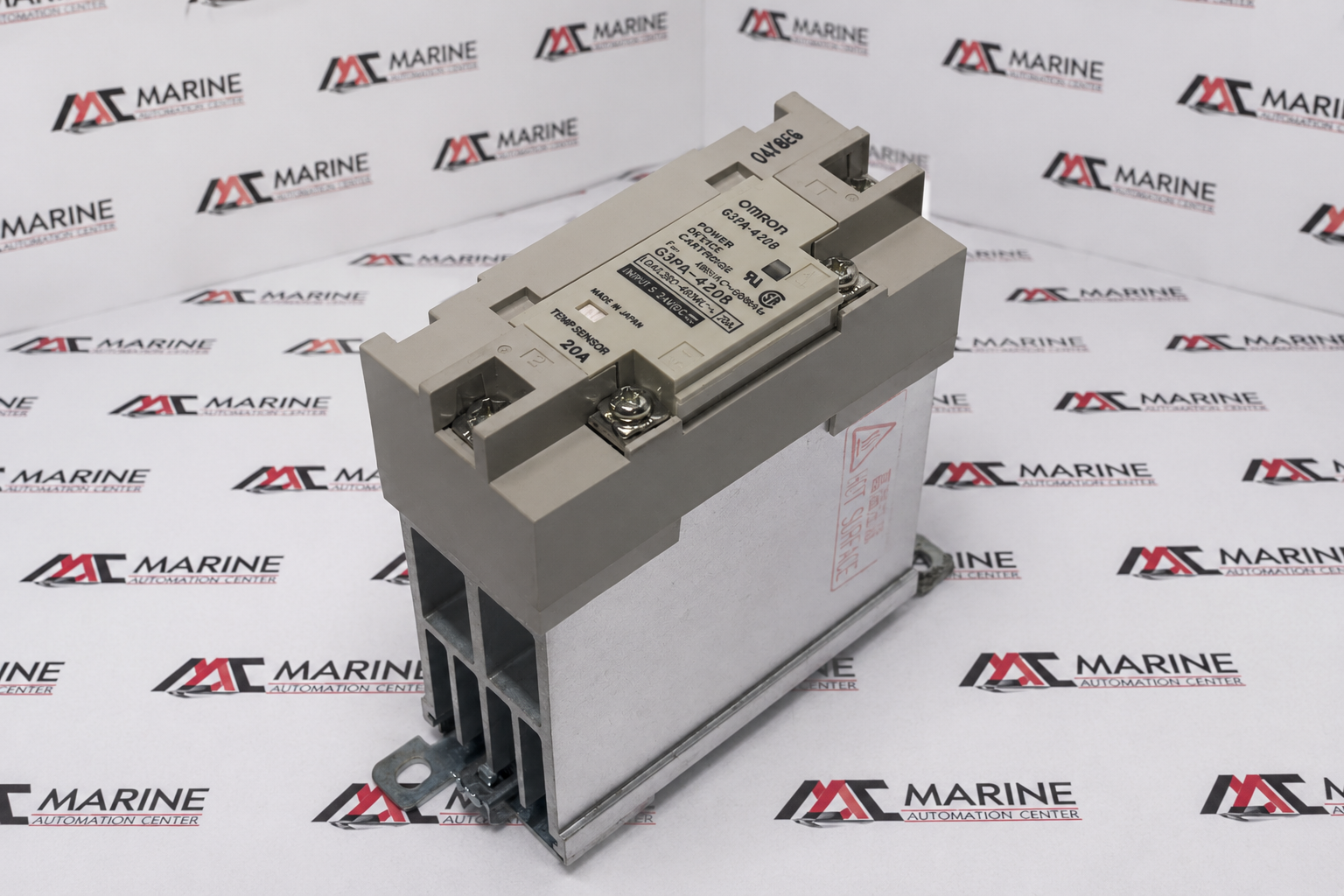

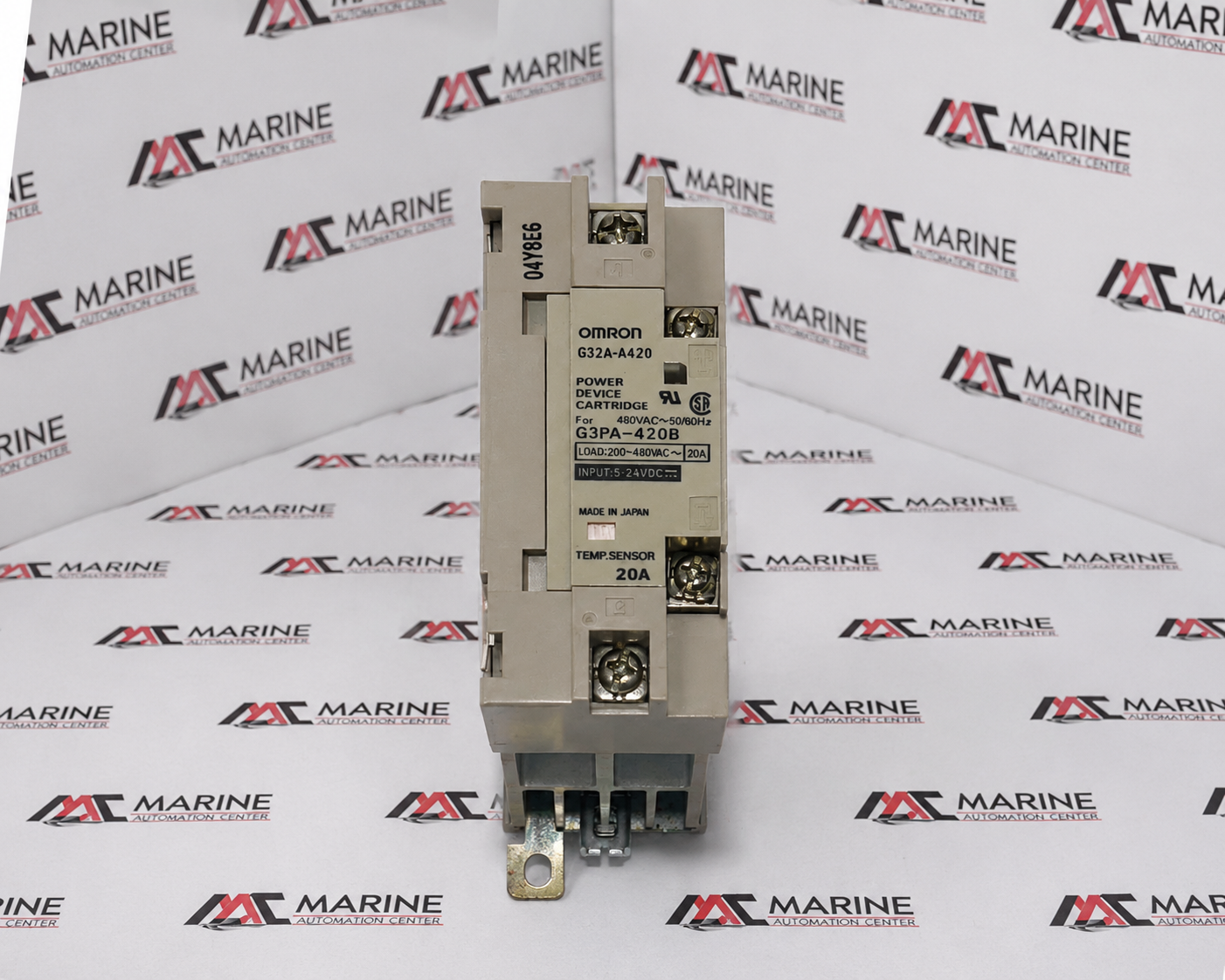

OMRON POWER DEVICE CARTIRIDGE
The OMRON G32A-A420 Solid State Relay (SSR) Power Device Cartridge is a high-performance power switching module designed for use with the OMRON G3PA Series solid state relay system. It provides fast, silent, and reliable switching of AC loads without mechanical contacts, making it ideal for industrial heaters, temperature control systems, manufacturing equipment, and automation applications requiring long service life and maintenance-free operation.
BRAND
OMRON
TYPE
Solid State Relay (SSR) Power Device Cartridge
PART NO.
OMRON Solid State Relay (SSR) Power Device G32A-A420Cartridge
MODEL
G32A-A420
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | OMRON |
| TYPE | Solid State Relay (SSR) Power Device Cartridge |
| PART NO. | OMRON Solid State Relay (SSR) Power Device G32A-A420Cartridge |
| MODEL | G32A-A420 |
| COMPATIBLE SSR MODEL | G3PA-420B |
| POWER DEVICE TYPE | Power Device Cartiridge |
| LOAD VOLTAGE | 200–480 VAC |
| RATED LOAD CURRENT | 20 A |
| OPERATING FREQUENCY | 50/60 Hz |
| INPUT VOLTAGE | 5–24 VDC |
| RATED SUPPLY VOLTAGE | 480 VAC |
| TERMINAL DESIGNATION | A1 (+), A2 (-), Load Terminals 1 and 2 |
| CONTROL METHOD | DC Input Control |
| MOUNTING TYPE | Panel Mount |
| TERMINAL TYPE | Screw Terminal |
| HEAT SINK | Integrated Heat Sink Assembly |
| TEMPERATURE SENSOR | Built-in Temperature Sensor |
| TEMPERATURE SENSOR RATING | 20 A |
| APPLICATION | Industrial heating systems, temperature control, industrial automation, process control, power switching, marine automation systems |
| APPROVALS / CERTIFICATIONS | UL Recognized, CSA Certified |
| IEC | IEC Compliant Industrial Solid State Relay Assembly |
| LABEL INFORMATION | POWER DEVICE CARTIRIDGE |
| COMPATIBLE LOAD TYPE | AC Resistive Loads |
| MADE IN | Japan |
| REF NO | 1180 |
