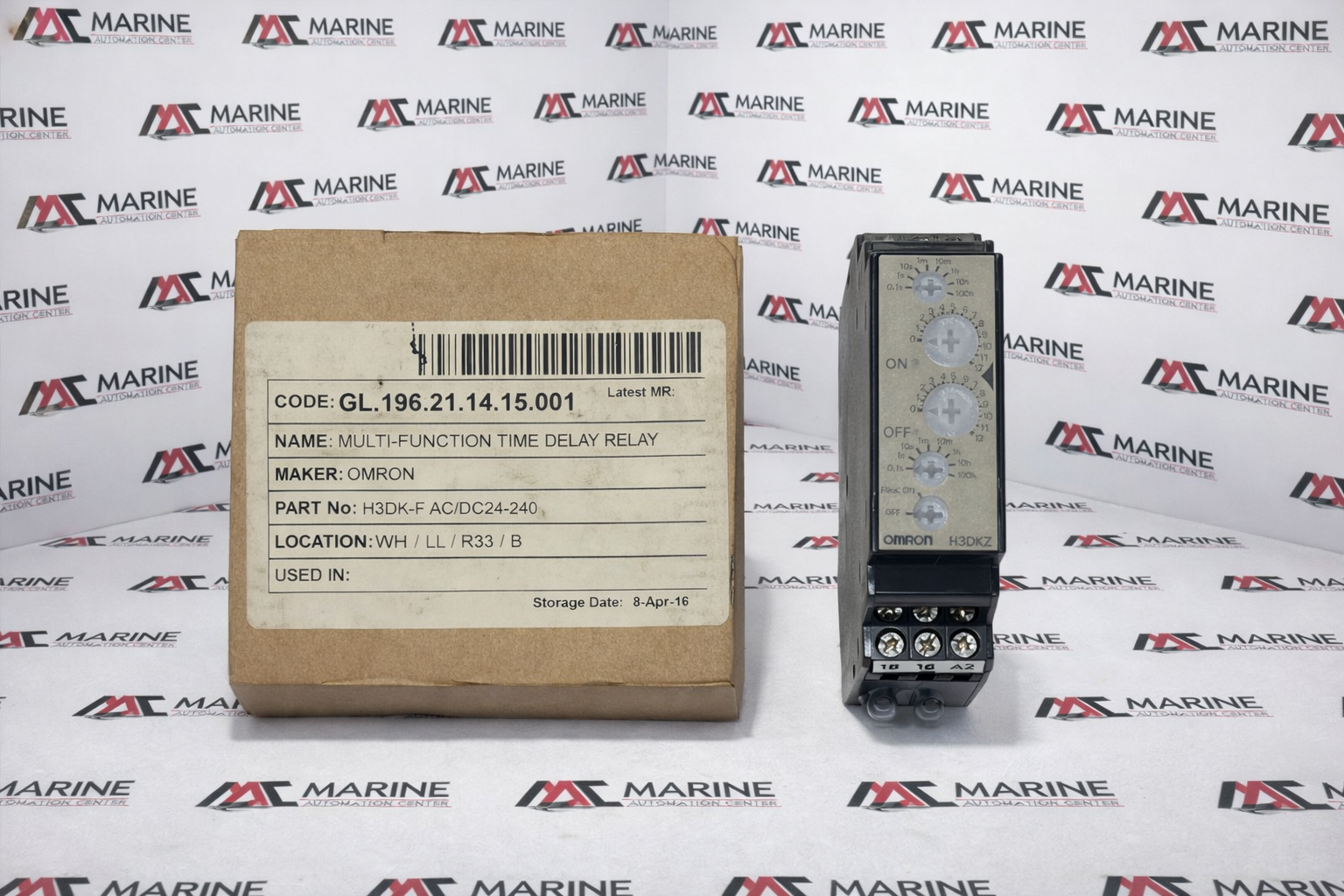

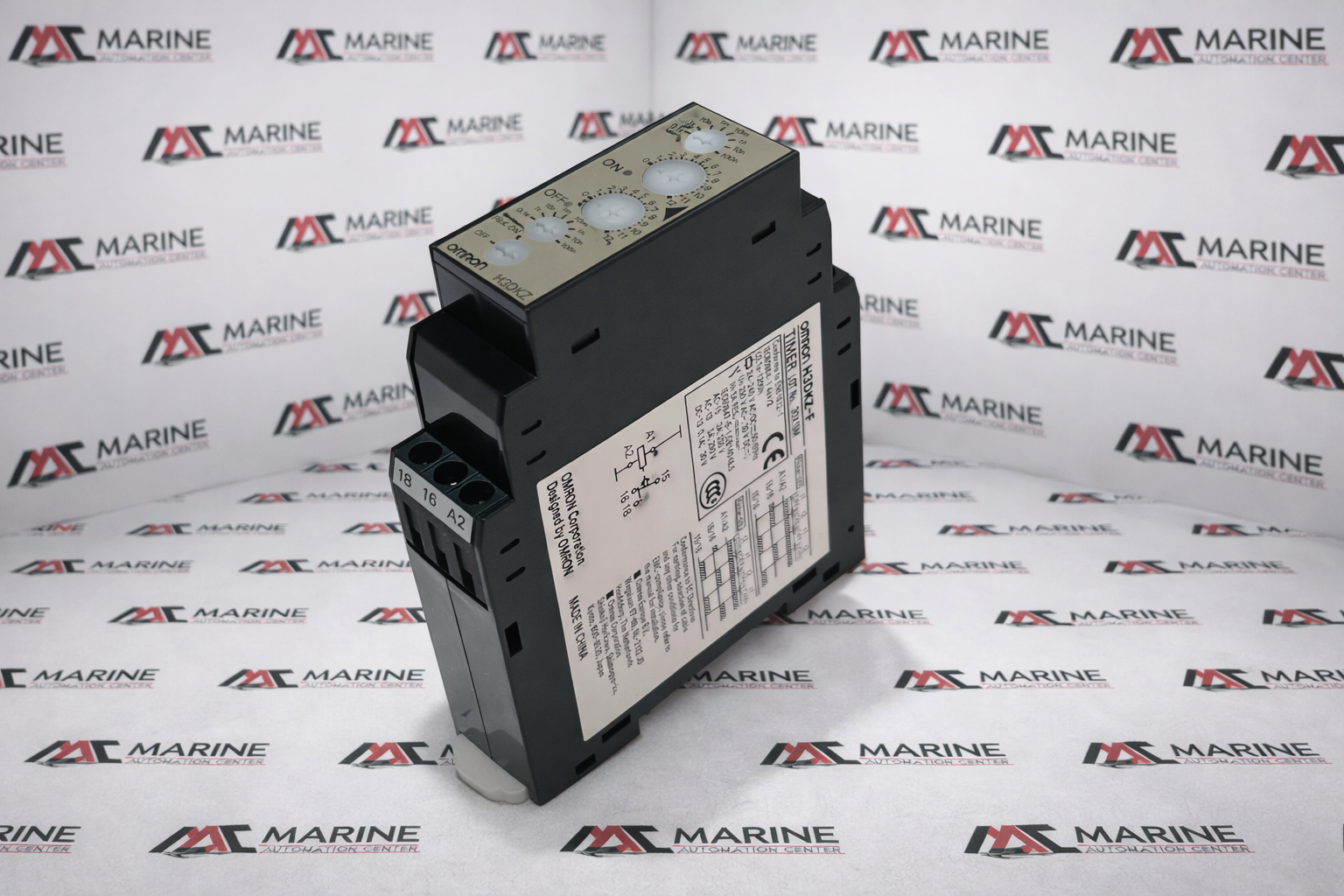

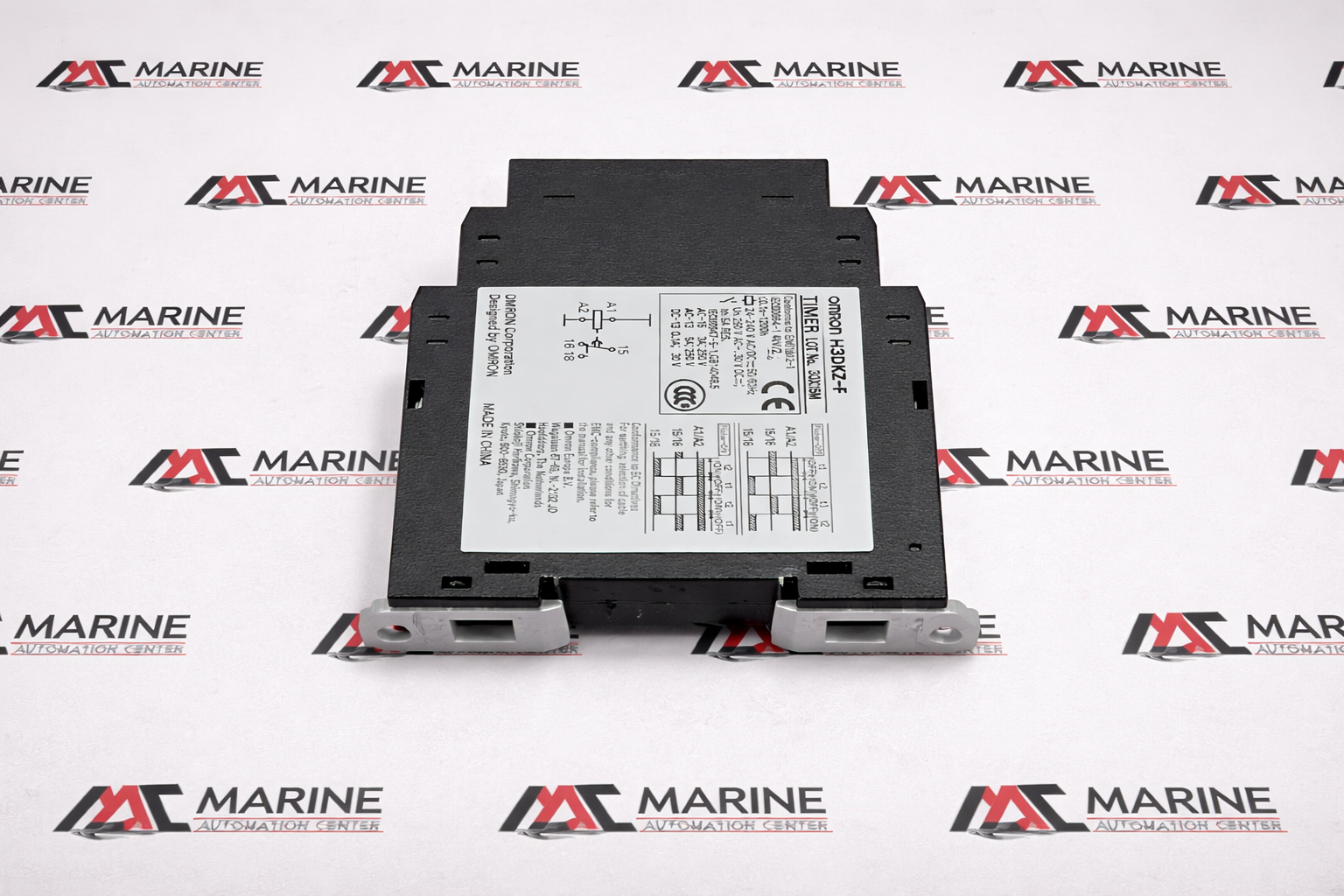

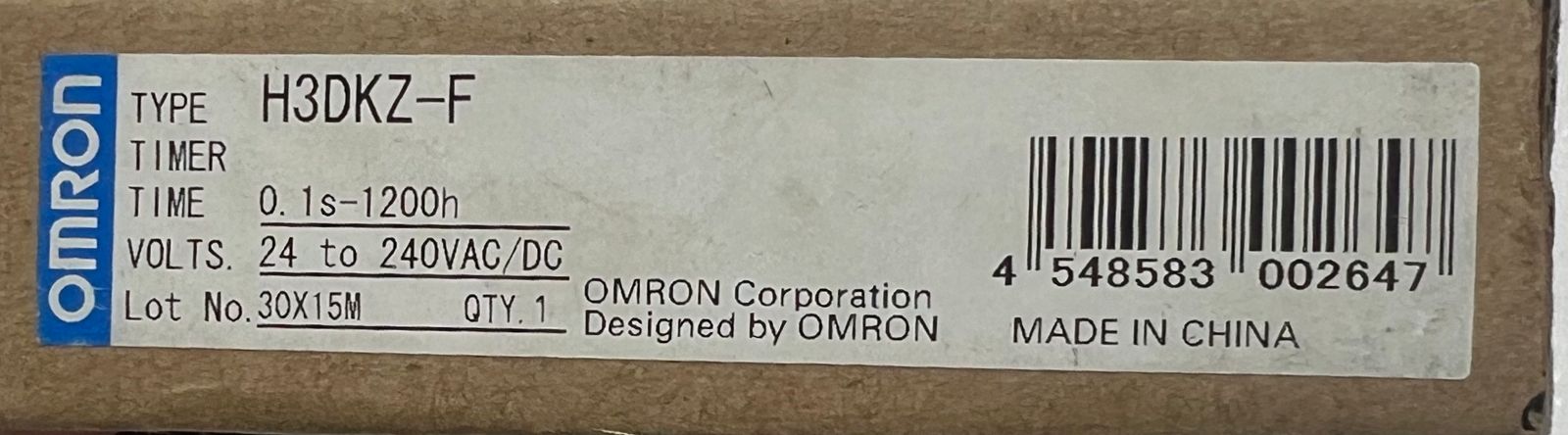

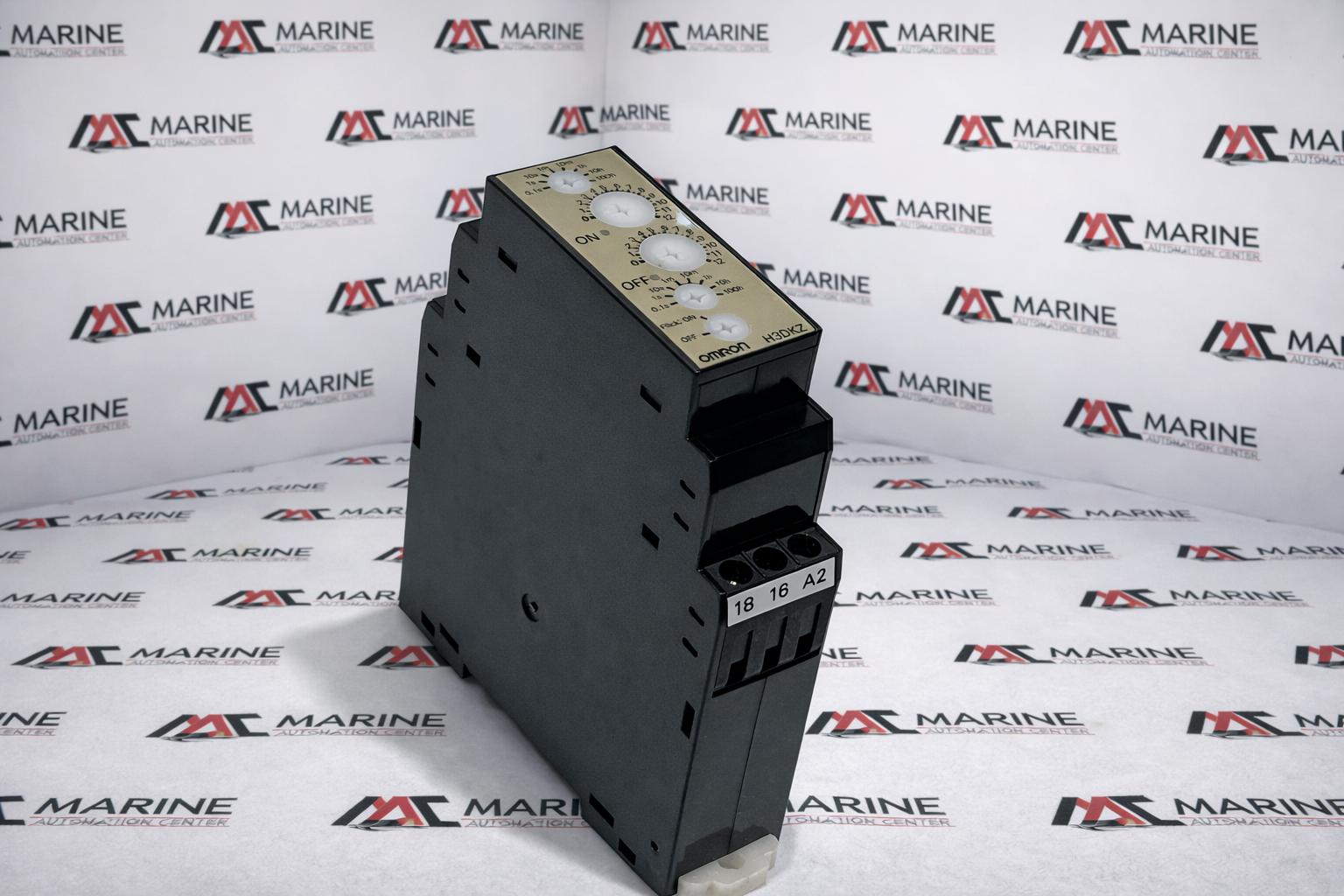

Omron H3DKZ-F Timer Delay Relay
Buy Omron H3DKZ-F multi-function time delay relay, 24–240V AC/DC, 50/60Hz. Durable timer relay with 5A AC rating, ideal for industrial control panels and automation systems.
BRAND
Omron
TYPE
Timer Delay Relay
PART NO.
H3DKZ-F AC/DC24-240
MODEL
Omron H3DKZ-F Timer Delay Relay
Full Technical Specifications ▶

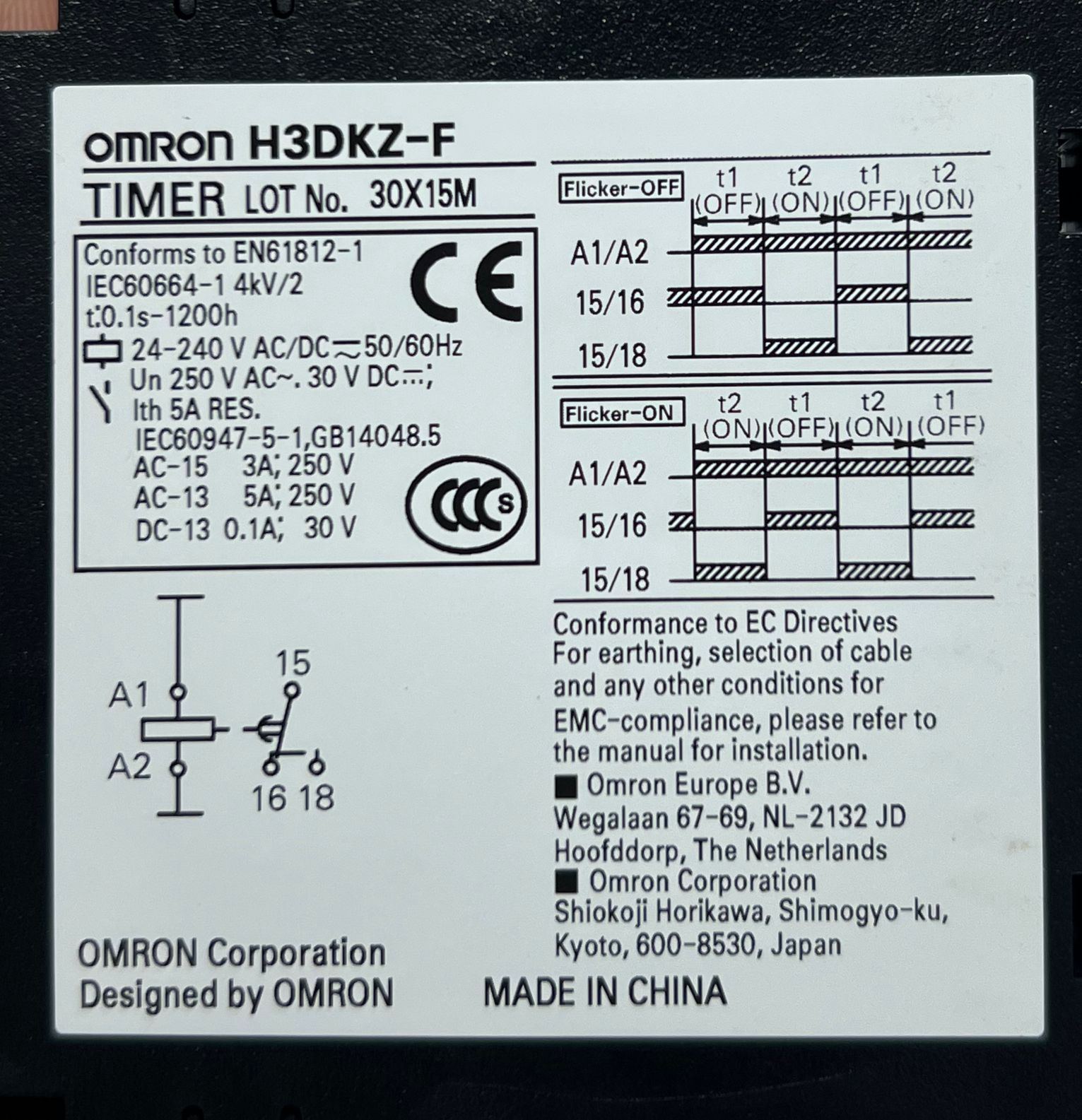

| Parameter | Value / Description |
|---|---|
| BRAND | Omron |
| TYPE | Timer Delay Relay |
| PART NO. | H3DKZ-F AC/DC24-240 |
| MODEL | Omron H3DKZ-F Timer Delay Relay |
| Lot Number | 30X15M |
| Time Range | 0.1 seconds to 1200 hours |
| Supply Voltage | 24 to 240 V AC/DC |
| Frequency | 50/60 Hz |
| Contact Ratings | AC-15: 3A ; 250V; AC-13: 5A ; 250V; DC-13: 0.1A ; 30V |
| Rated Current (Resistive) | 5A |
| Code | gl.196.21.14.15.001 |
| : | 4548583002647 |
| Made in | China |
