OMRON GENERAL PURPOSE RELAY

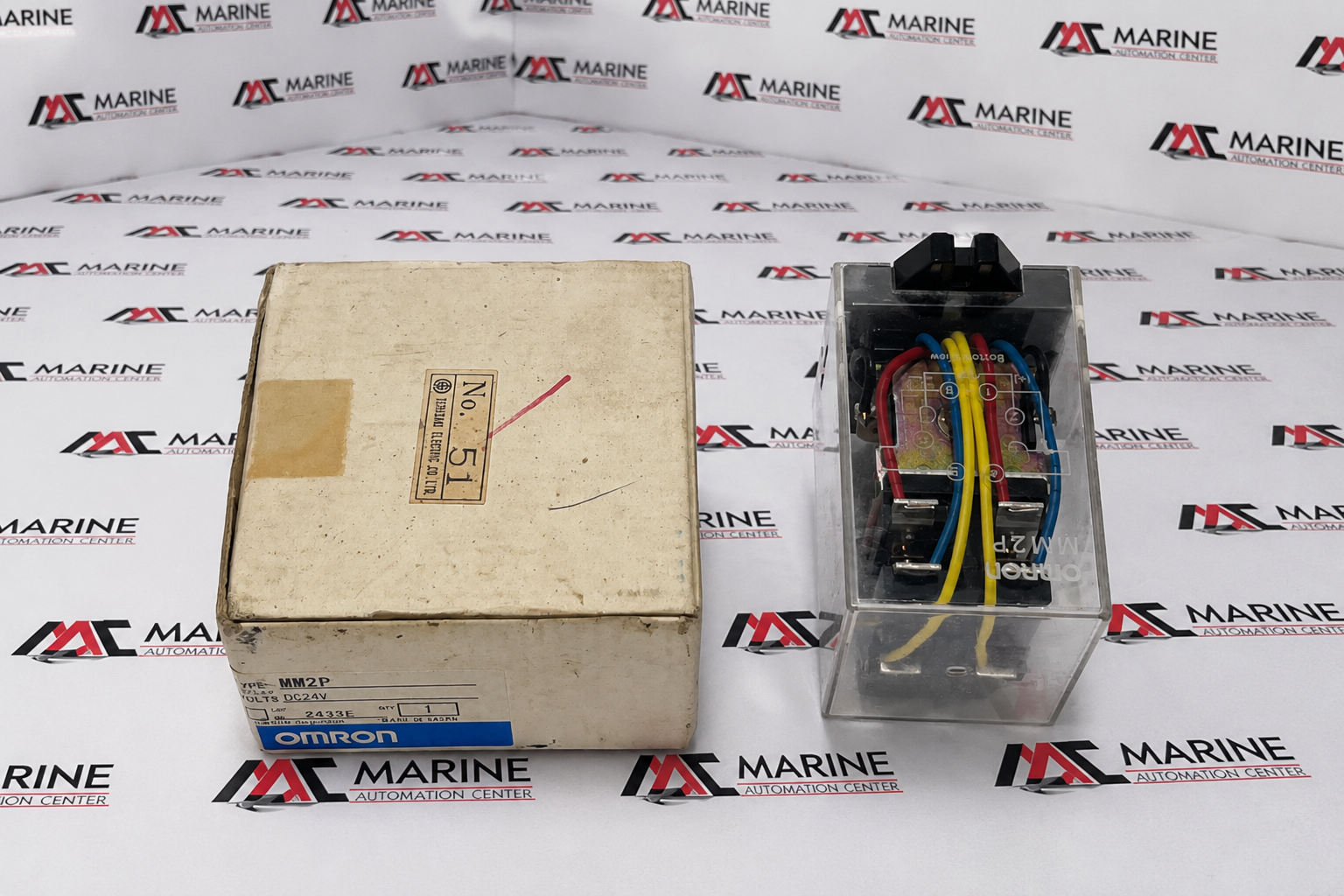

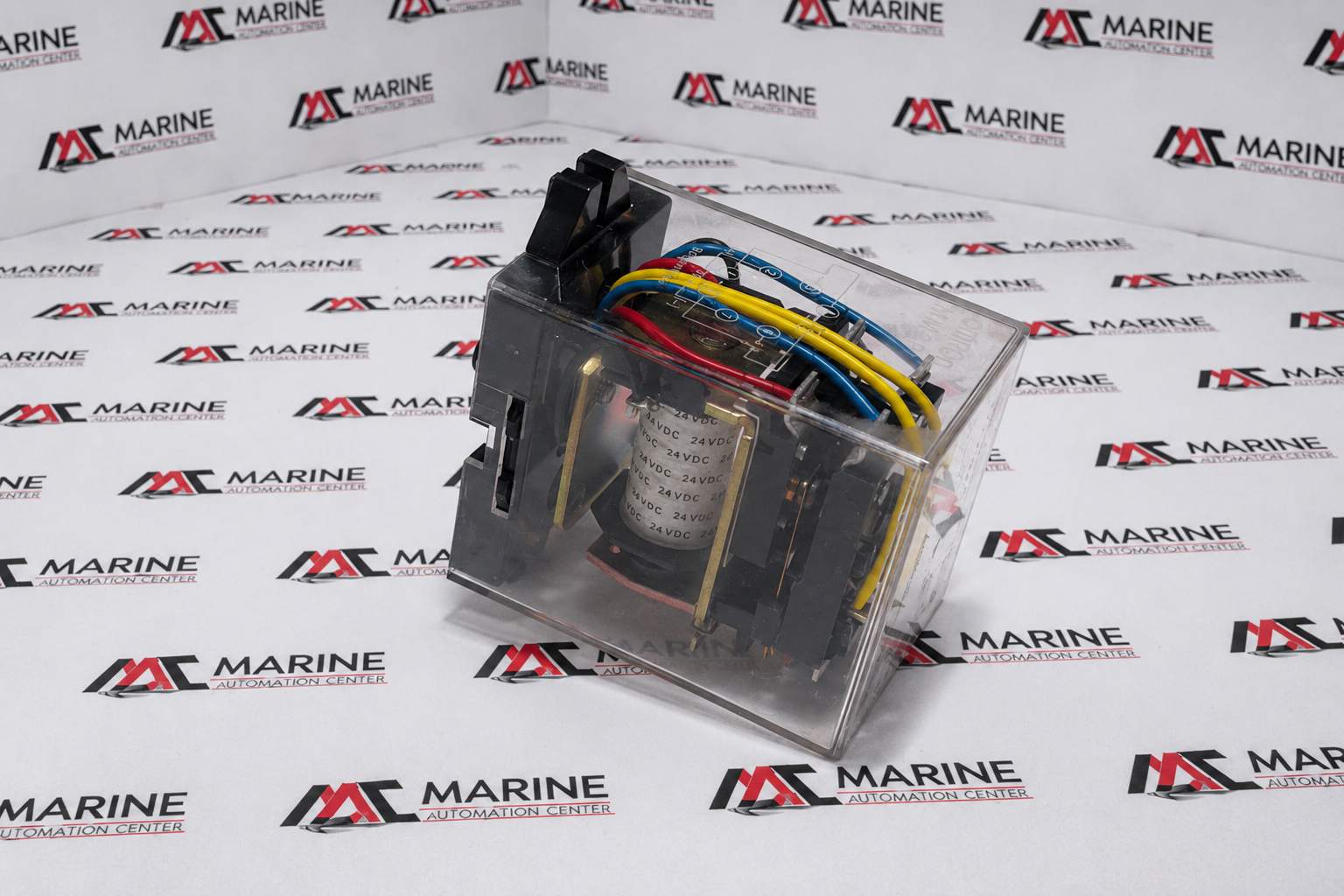

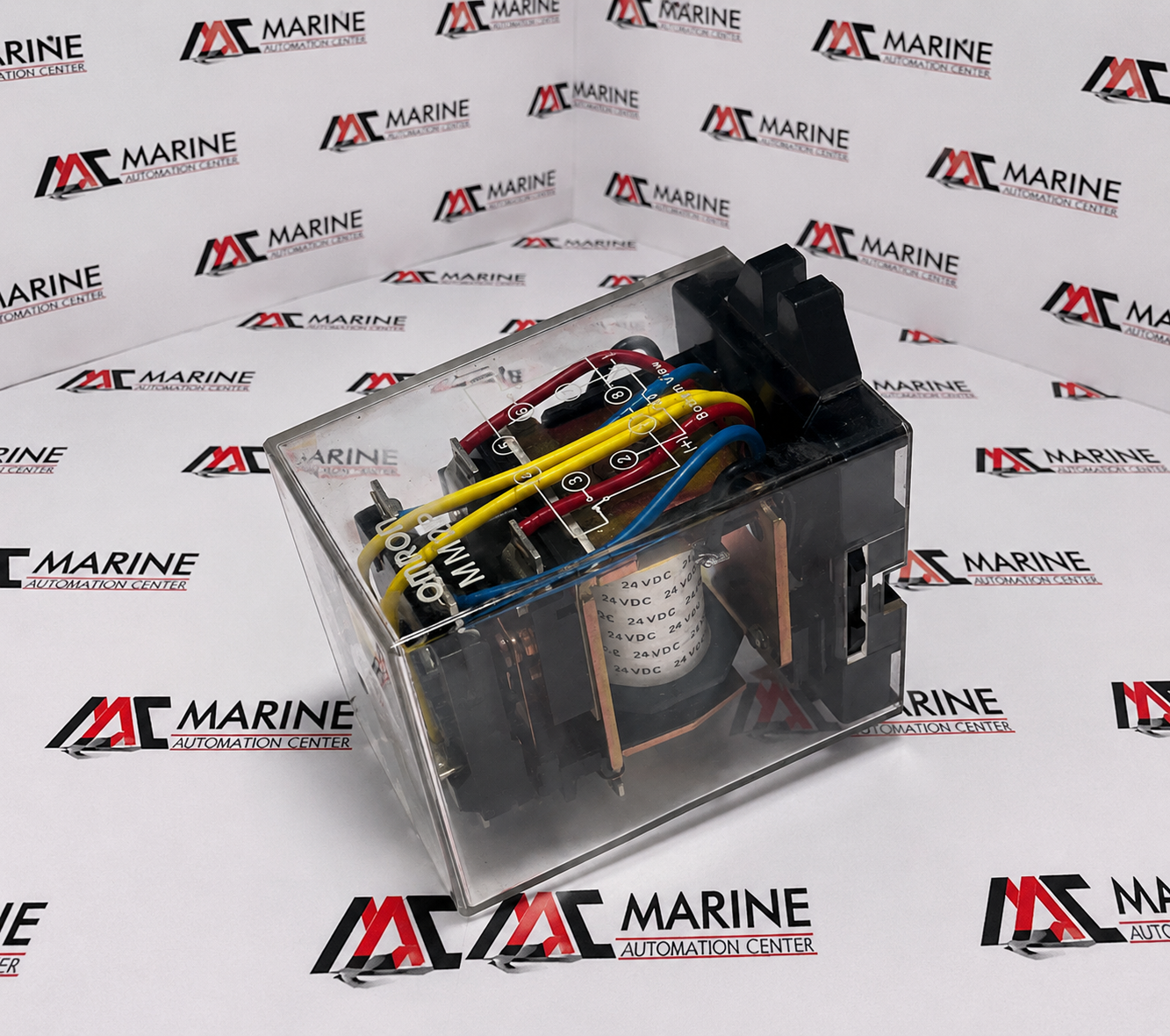

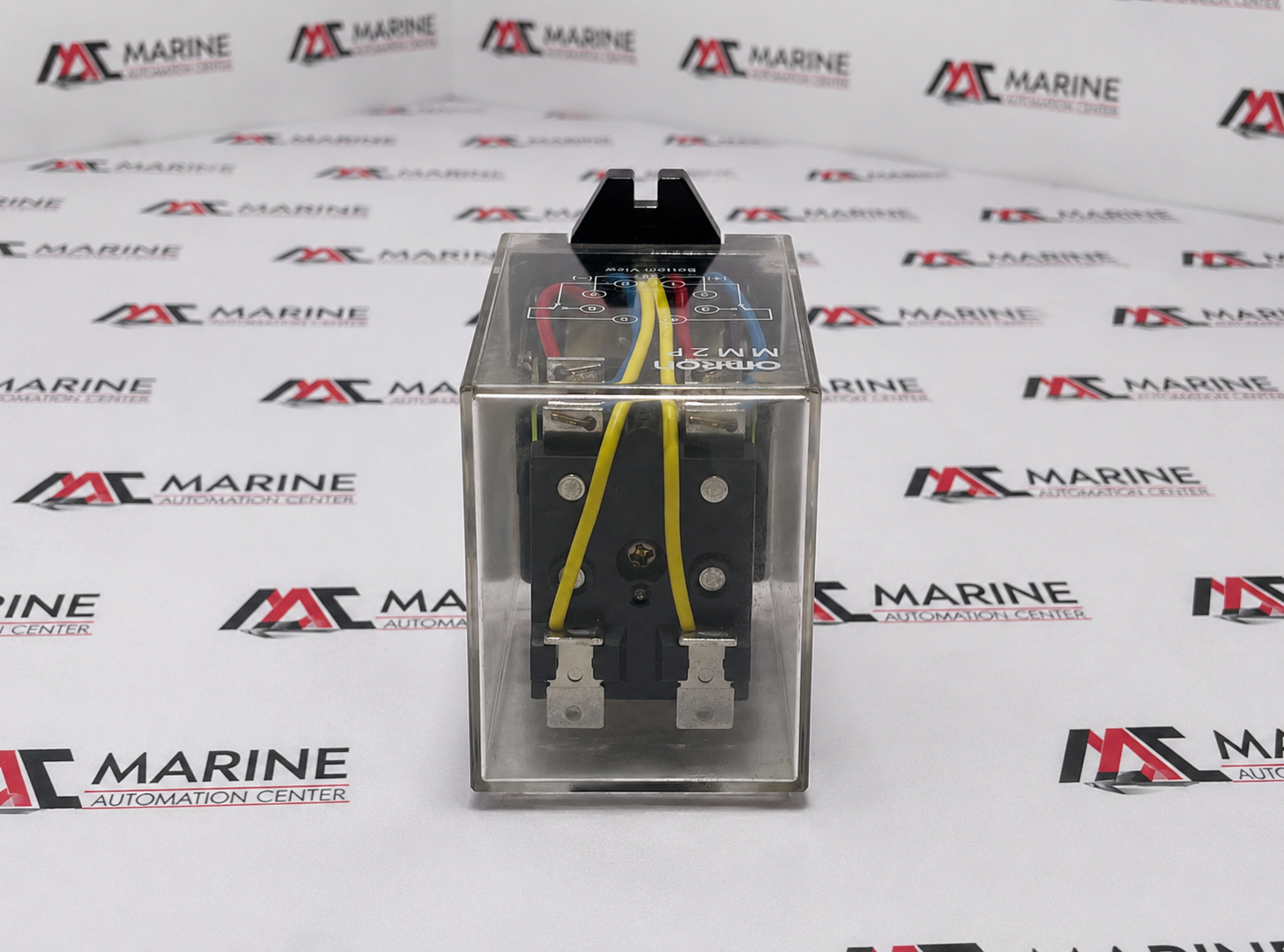

The OMRON MM2P DC24V General Purpose Plug-in Electromagnetic Relay is a reliable industrial relay designed for switching and controlling electrical circuits in automation and control systems. Featuring a 24 VDC coil, it provides dependable switching performance, plug-in installation for easy maintenance, and is widely used in control panels, machinery, process automation, and industrial equipment requiring durable and efficient relay operation
BRAND
OMRON
TYPE
General Purpose Plug-in Electromagnetic Relay
PART NO.
OMRON General Purpose Plug-in Electromagnetic MM2P DC24V Relay
MODEL
MM2P DC24V
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | OMRON |
| TYPE | General Purpose Plug-in Electromagnetic Relay |
| PART NO. | OMRON General Purpose Plug-in Electromagnetic MM2P DC24V Relay |
| MODEL | MM2P DC24V |
| Relay Type | Electromagnetic Plug-in Relay |
| Contact Configuration | DPDT (2PDT / Double Pole Double Throw) |
| Number of Poles | 2 Pole |
| Coil Voltage | 24 VDC |
| Rated Coil Voltage | DC 24 V |
| Operating Voltage | 80% max. of rated voltage |
| Release Voltage | 10% min. of rated voltage |
| Contact Arrangement | 2 Form C |
| Mounting Type | Plug-in / Socket Mount |
| Terminal Type | 8-Pin Octal Plug-in |
| Indicator | Mechanical Operation Indicator |
| Contact Material | Silver Alloy Contacts |
| Housing Material | Transparent Plastic Dust Cover |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2,000 VAC (approx.) |
| Mechanical Life | 10,000,000 operations (typical) |
| Electrical Life | 500,000 operations (typical at rated load) |
| Operating Temperature | -10°C to +55°C (typical) |
| Standards | Industrial Control Relay Standards |
| IEC | IEC Compliant Industrial Relay |

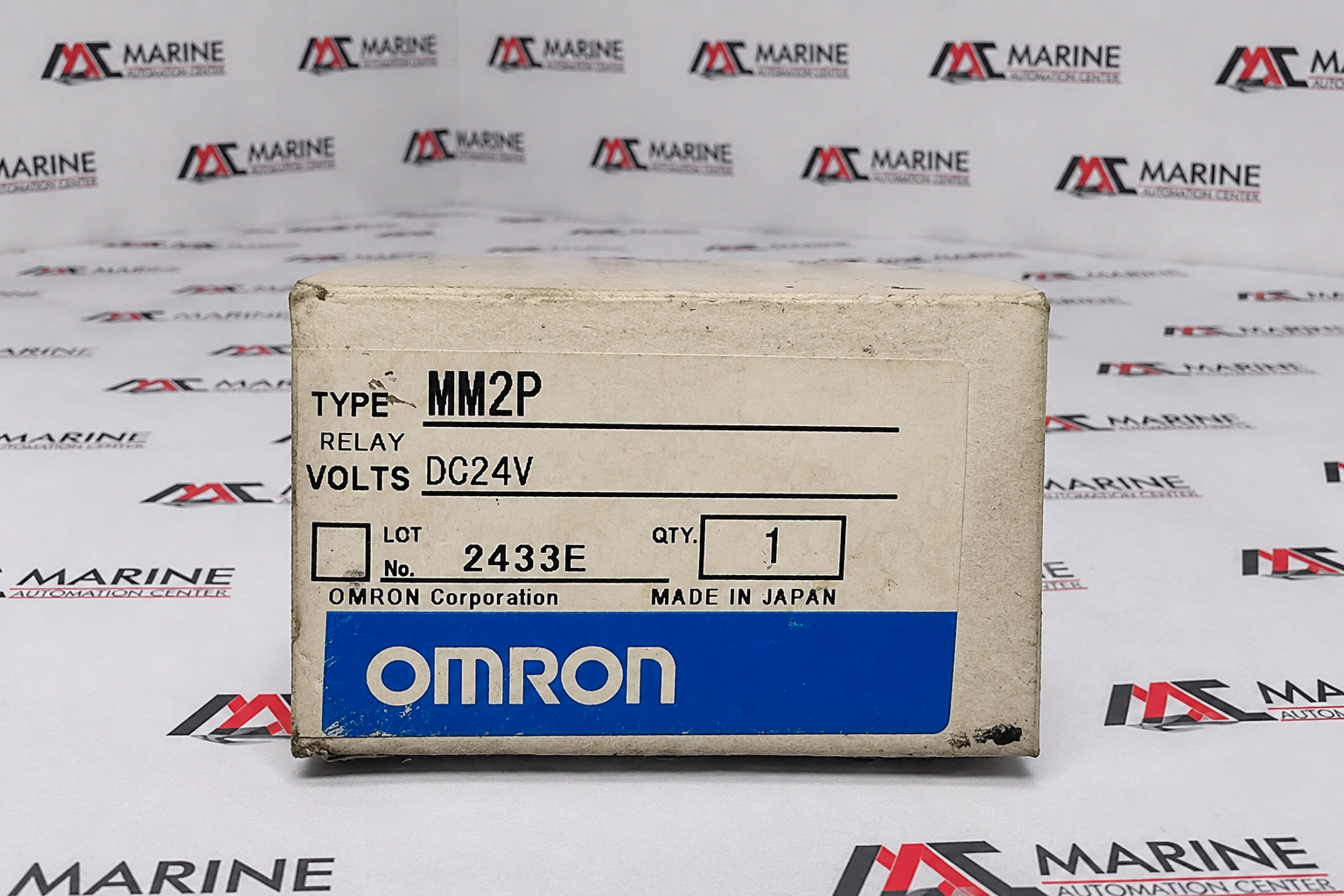

| Label Text | TYPE: MM2P |
| Label Coil Voltage | VOLTS: DC24V |
| Label Lot Number | LOT No.: 2433E |

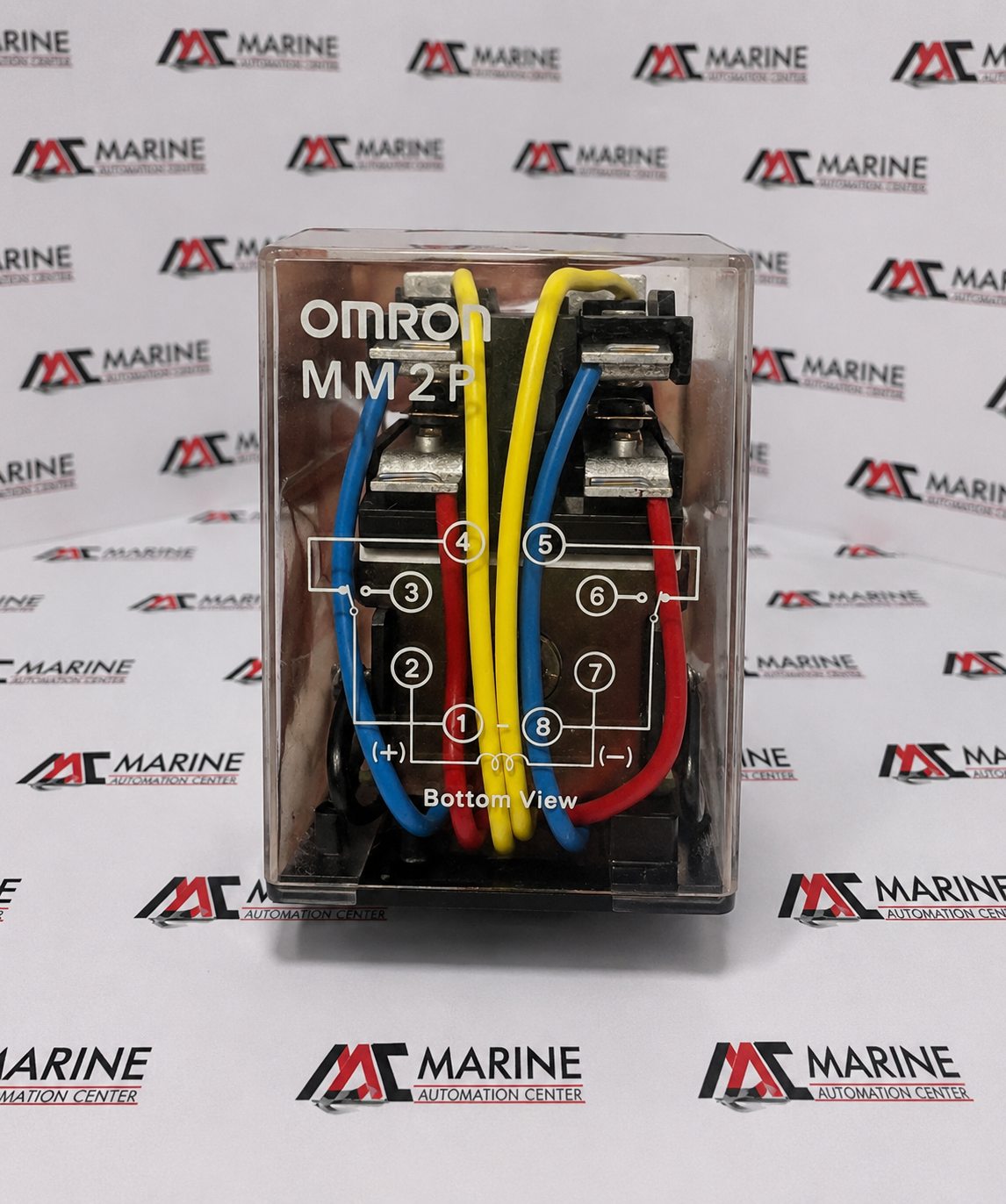

| Product Marking | Bottom View Wiring Diagram Printed on Relay Cover |
| Wiring Configuration | 8-pin plug-in base with DPDT contact arrangement |
| Made In | Japan |
| REF NO | 1179 |
