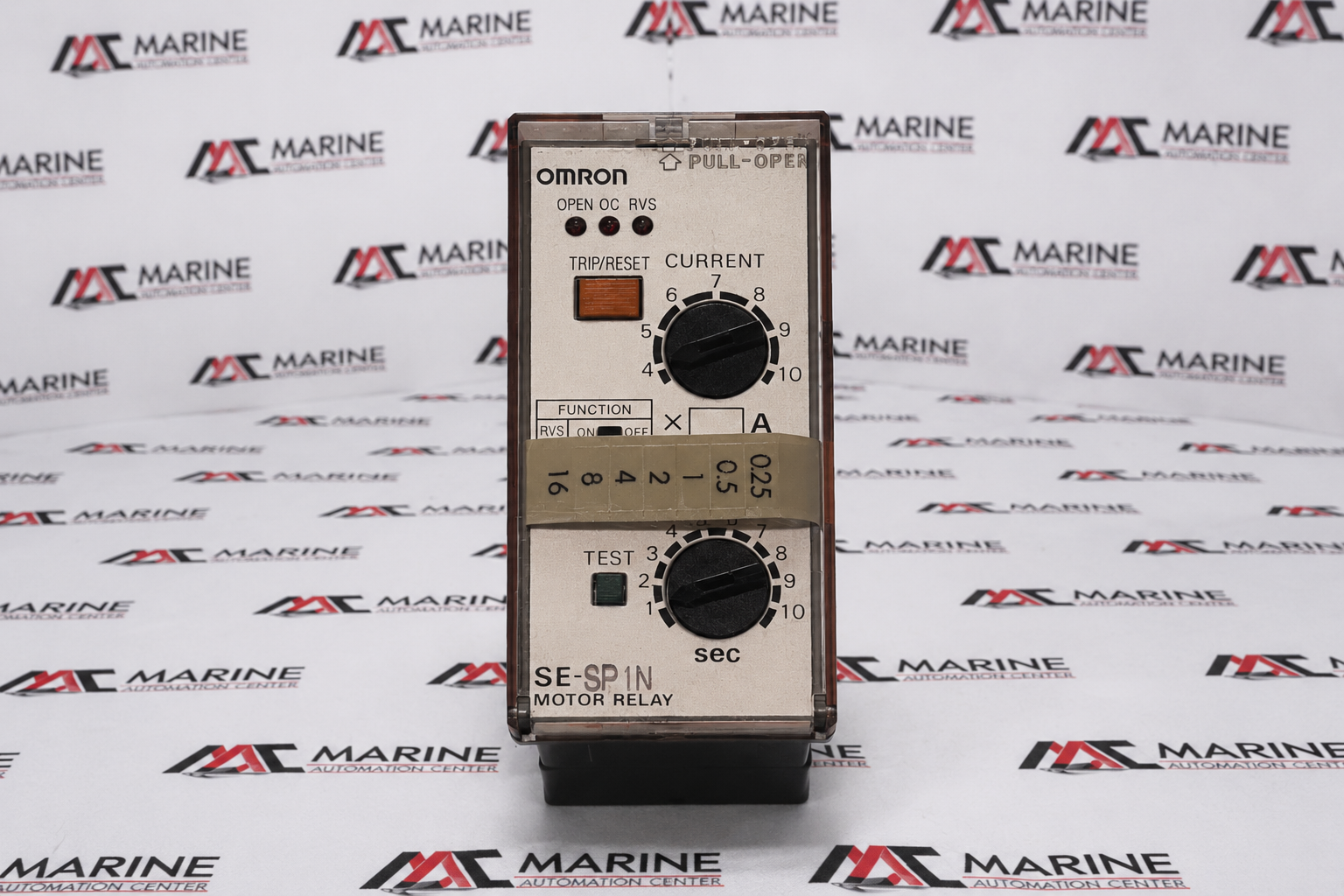

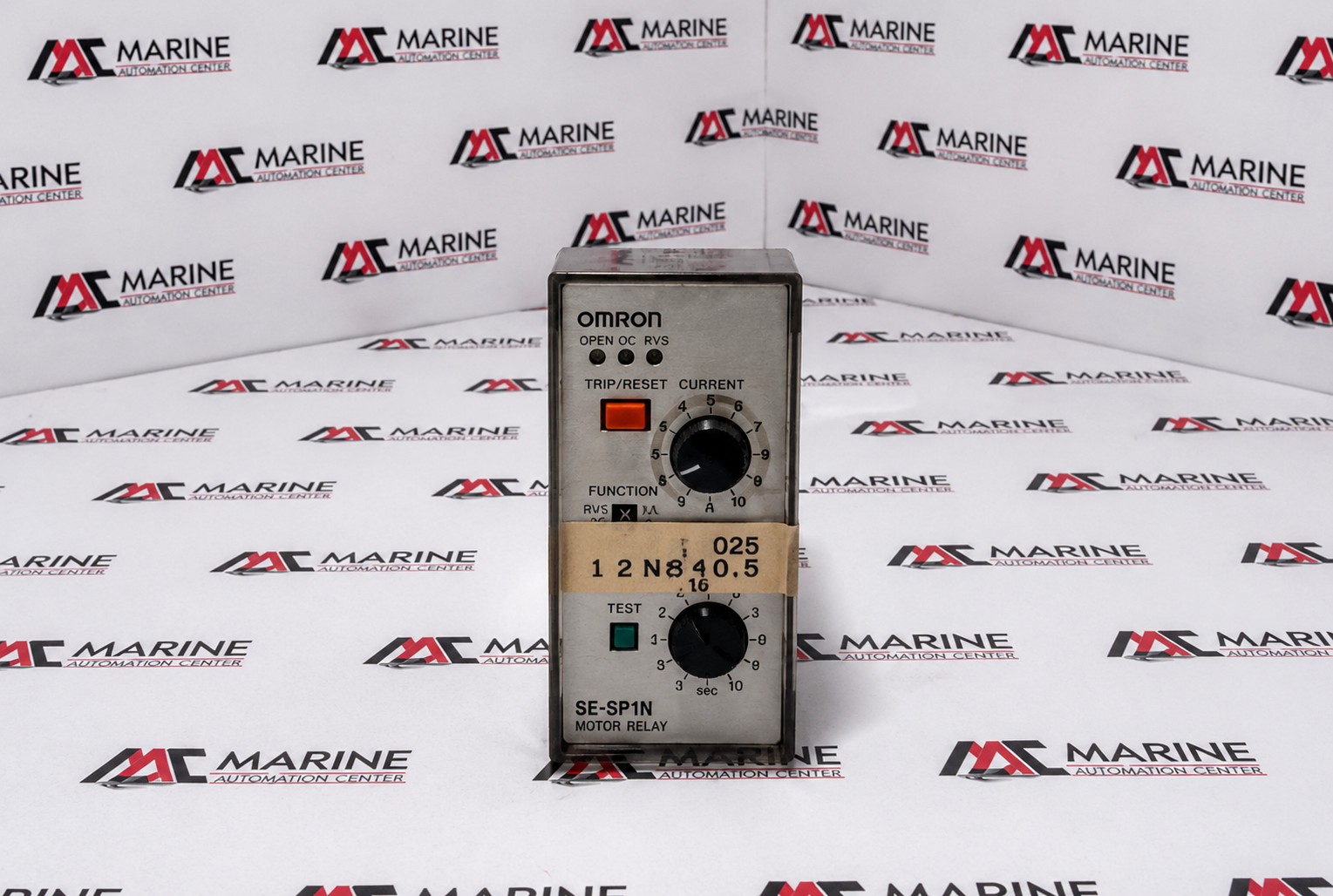

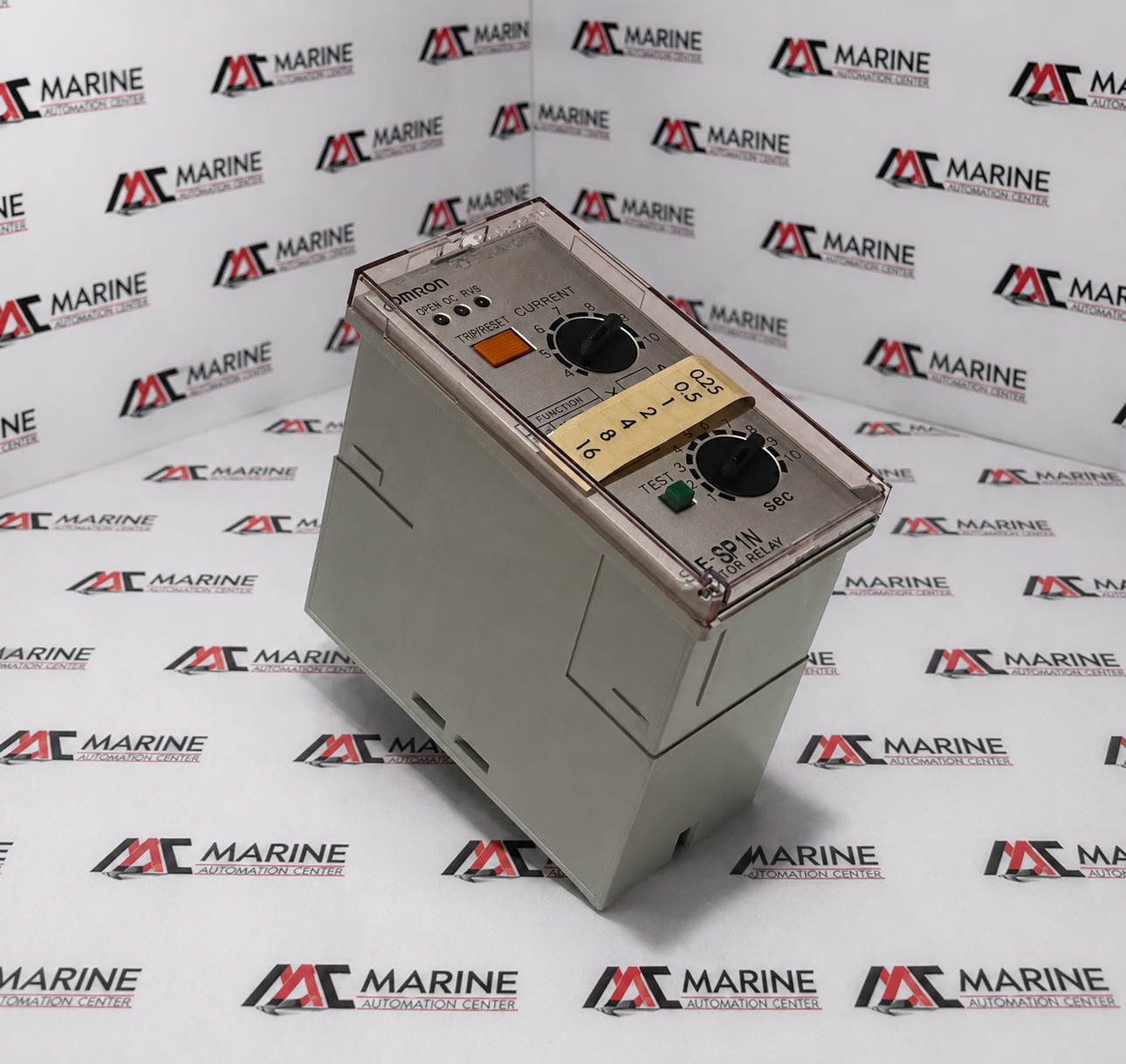

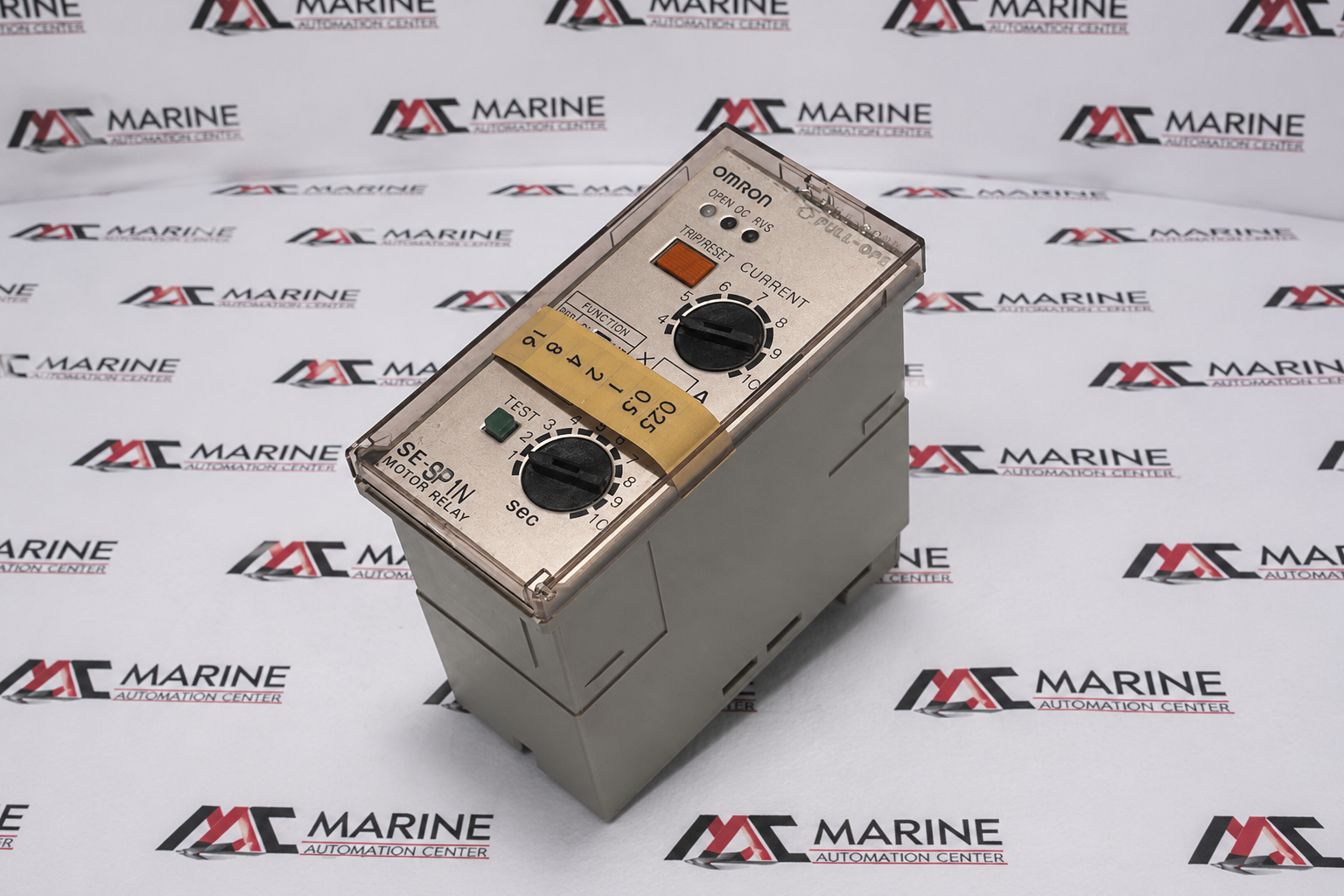

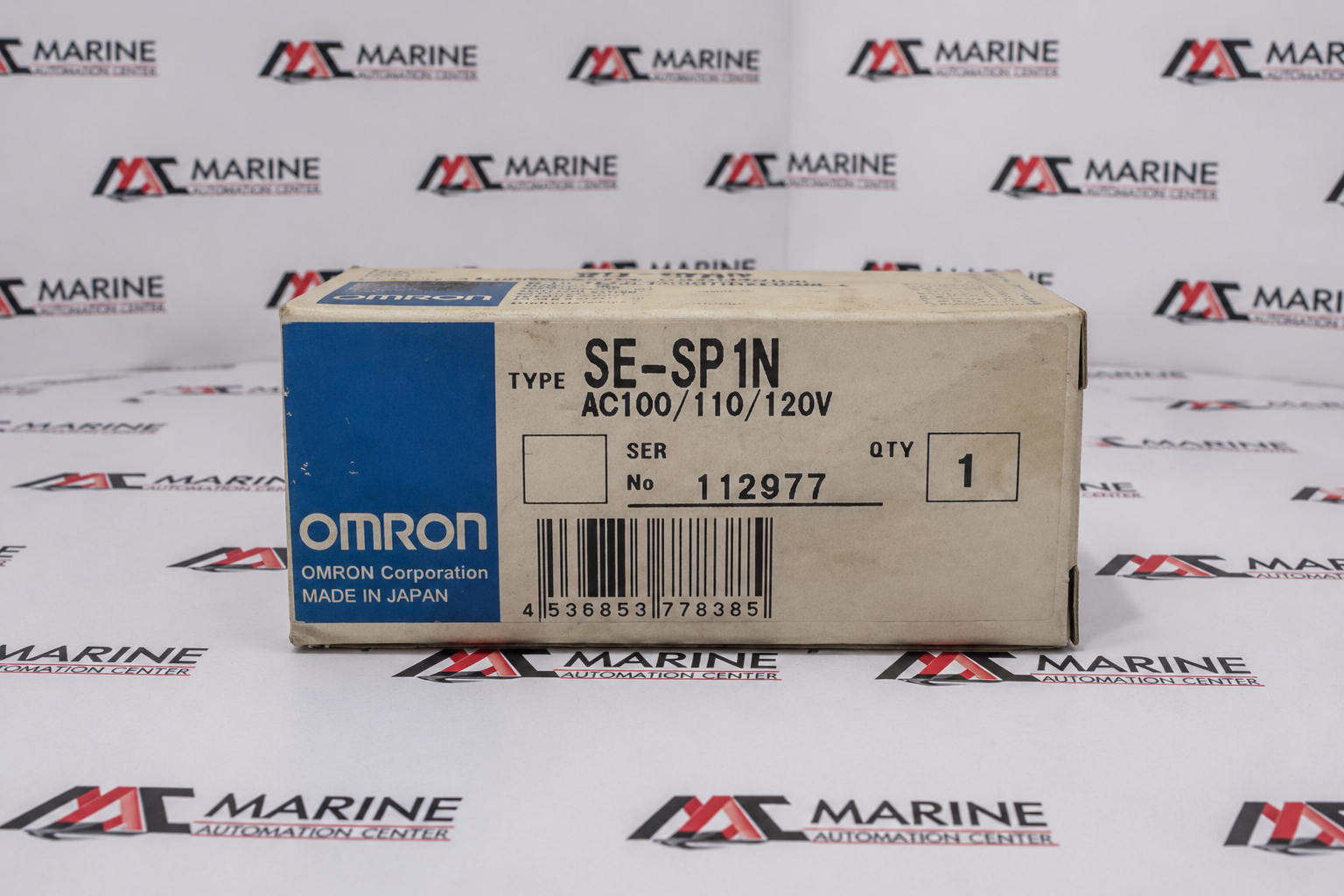

OMRON Electronic Motor Relay SE-SP1N
The OMRON SE-SP1N Electronic Motor Relay is a reliable motor protection relay designed to monitor and protect electric motors from overload, phase failure, and abnormal operating conditions. Engineered for industrial automation and motor control applications, it enhances equipment safety, minimizes downtime, and ensures dependable motor performance.
BRAND
OMRON
TYPE
Motor Relay
PART NO.
Electronic Motor Relay
MODEL
SE-SP1N
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | OMRON |
| TYPE | Motor Relay |
| PART NO. | Electronic Motor Relay |
| MODEL | SE-SP1N |
| MANUFACTURER | Omron Corporation |
| Voltage Rating | AC 100 / 110 / 120 V, 50/60 Hz |
| Application | Electronic motor protection relay for monitoring motor current, overload, locked rotor, and abnormal operating conditions in industrial control and automation systems |
| Frequency | 50/60 Hz |
| Current Setting Range | Adjustable, 0.25–16 A |
| Time Delay Setting | Adjustable 1–10 seconds |
| Function | Motor overload protection with adjustable current and trip delay, Trip/Reset button, Test button, OPEN / OC / RVS status indication |
| Input Source | 100 / 110 / 120 VAC |

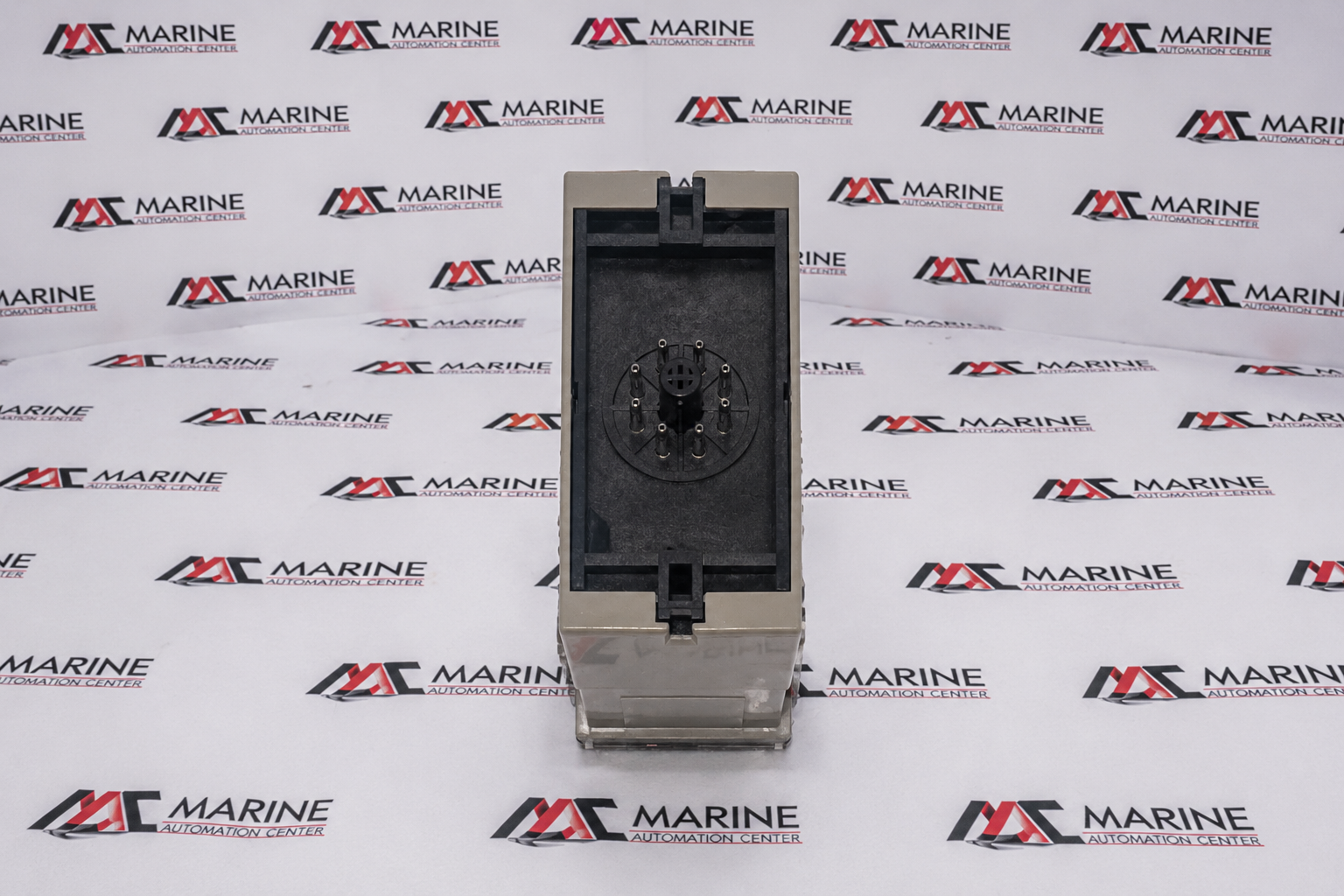

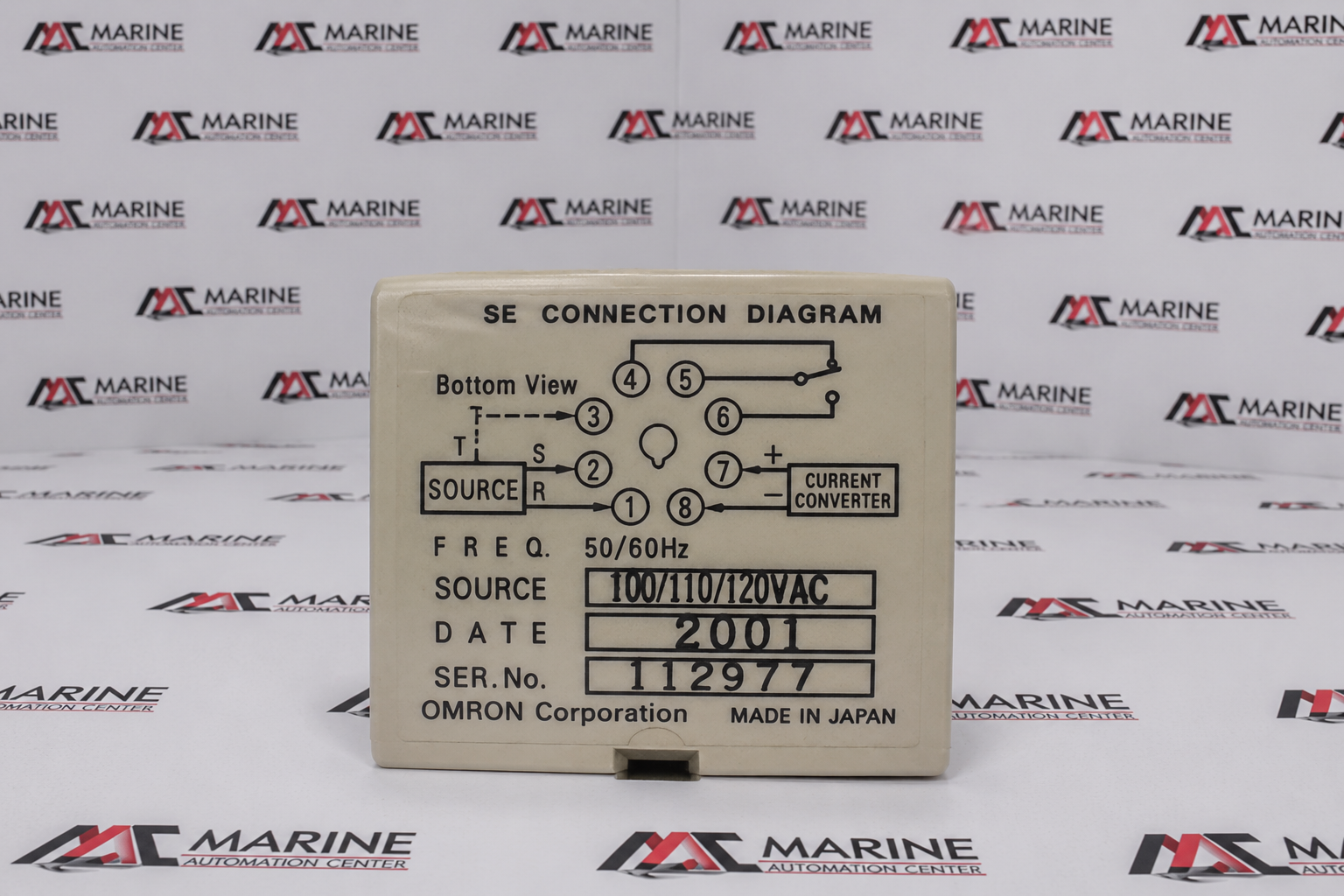

| Connection | 8-pin plug-in relay base (Bottom View wiring as marked on unit) |
| Serial No. | 112977 |
| Made In | Japan |
| REF NO | 1243 |
