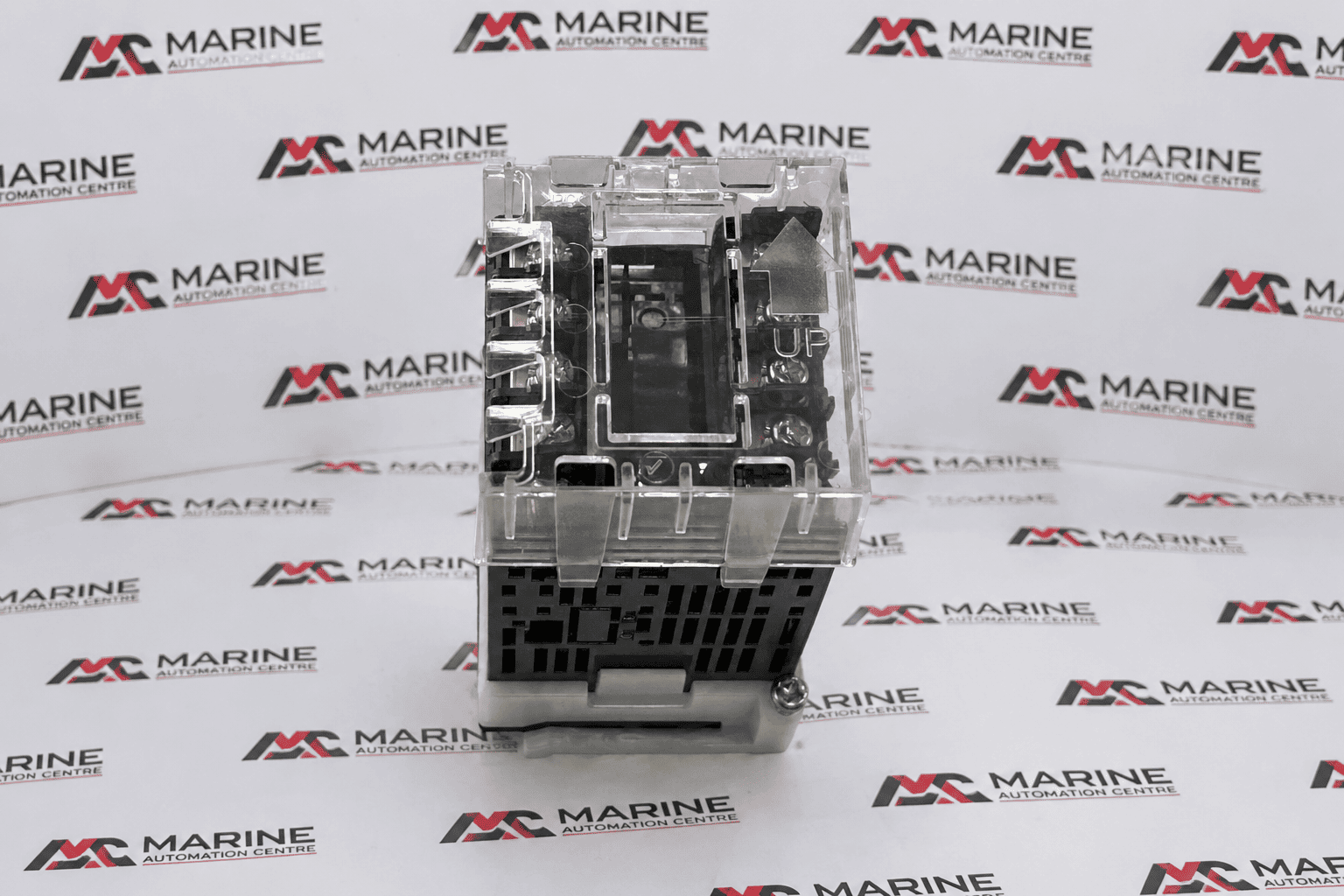

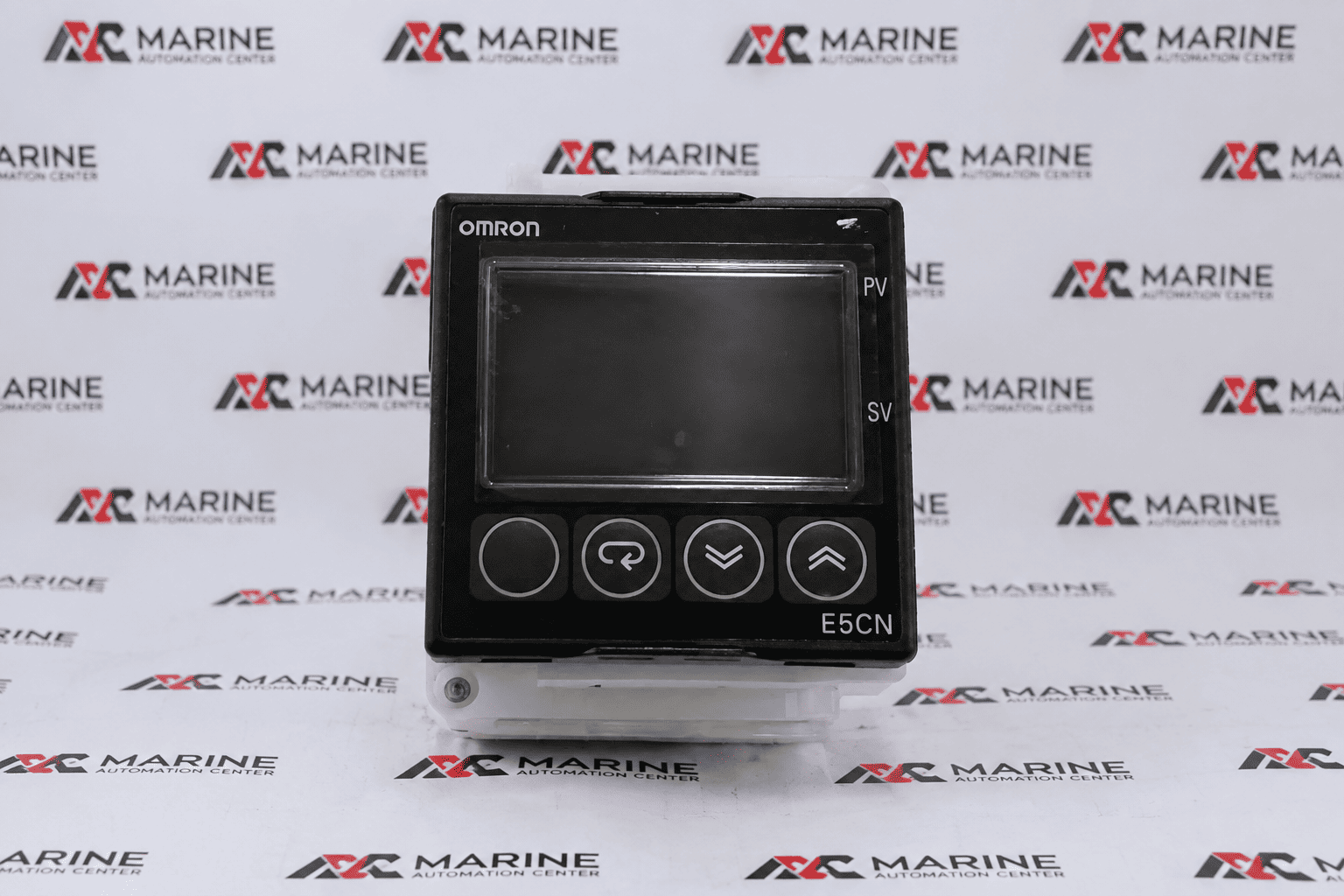

Omron Digital Temperature / Process Controller E5CN-R2MT-500
The Omron E5CN-R2MT-500 is a versatile 1/16 DIN digital temperature and process controller designed for precise PID control in industrial automation applications. It features a universal multi-range input supporting thermocouples, RTDs, and process inputs. The unit operates on a 100–240 V AC power supply and provides a main relay control output along with two auxiliary relay outputs for flexible alarm and signaling configurations. With its standard screw terminal blocks and robust build, it is c
BRAND
Omron
TYPE
Process Controller
PART NO.
E5CN-R2MT-500
MODEL
E5CN-R2MT-500
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Omron |
| TYPE | Process Controller |
| PART NO. | E5CN-R2MT-500 |
| MODEL | E5CN-R2MT-500 |
| Voltage Rating | 100–240 V AC, 50/60 Hz |
| Application | Temperature and process control for industrial automation, heating, cooling and OEM machinery |
| IEC | IEC Industrial Process Control Standards |
| Product Name | Digital Temperature Controller |
| Device Function | 1/16 DIN Temperature / Process Controller |
| Input Type | Multi-range Thermocouple, RTD and Process Inputs |
| Control Output | Relay Output |
| Control Relay Rating | 250 VAC, 3 A (Resistive) |
| Power Consumption | 7.5 VA |
| Control Output Terminals | 1, 2 (OUT1) |
| Terminal Type | Screw Terminal Blocks |
| Primary Function | Provides precise PID temperature and process control with relay outputs, alarm functions and multi-sensor input compatibility |
| Made In | China |
| REF NO | 72 |
